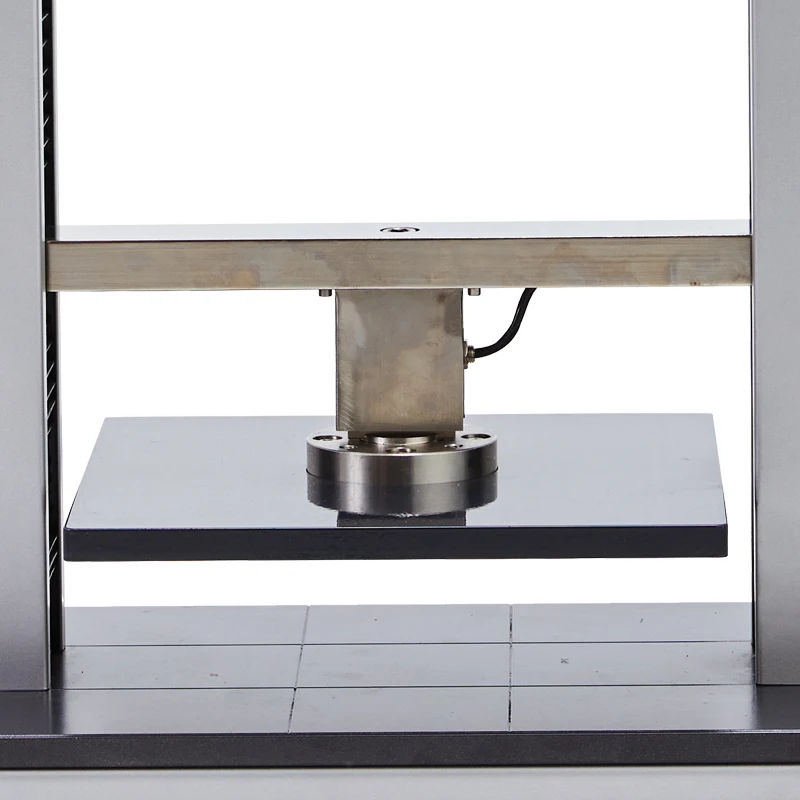

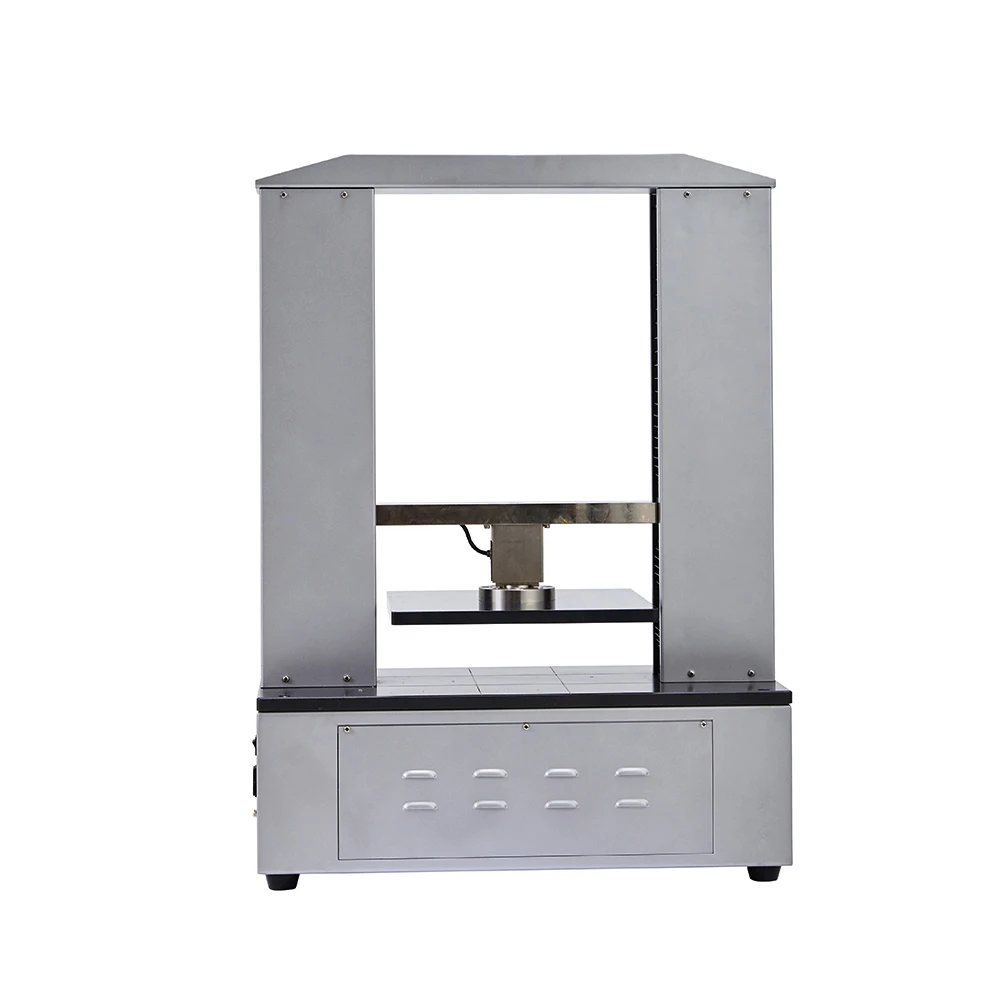

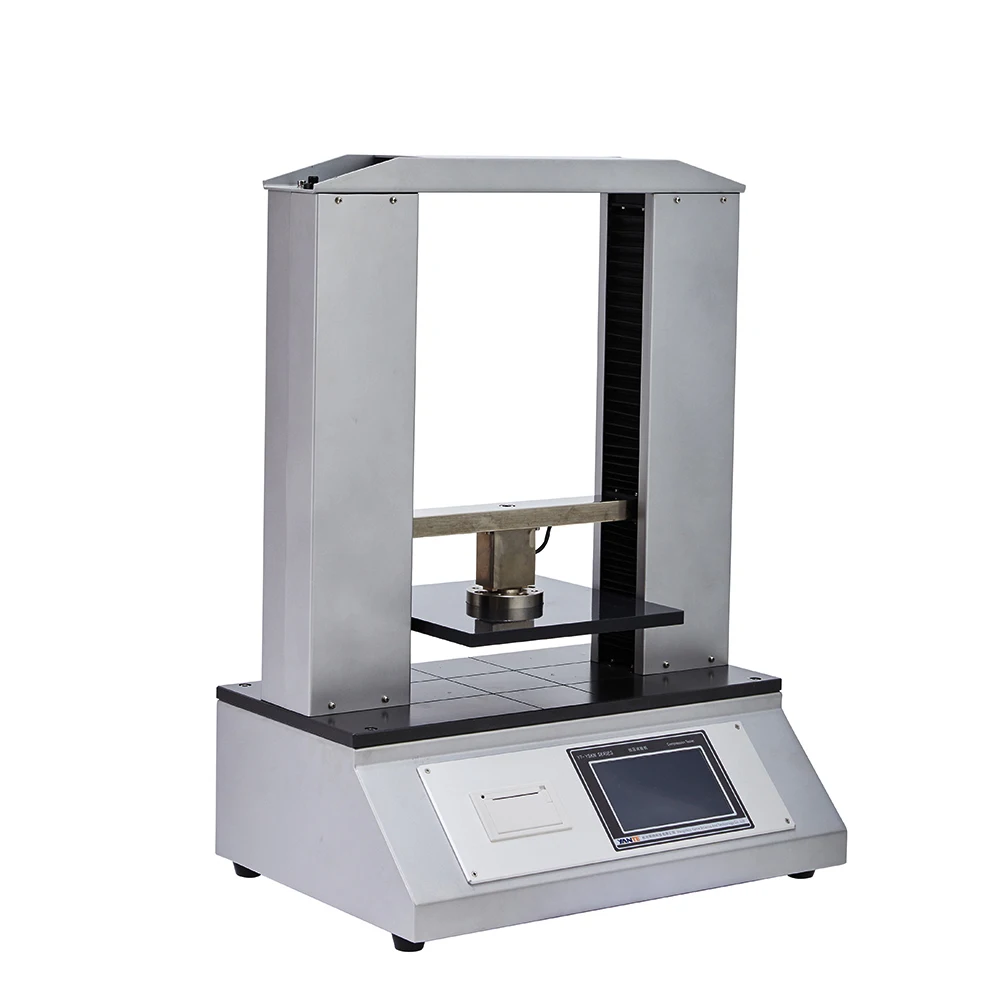

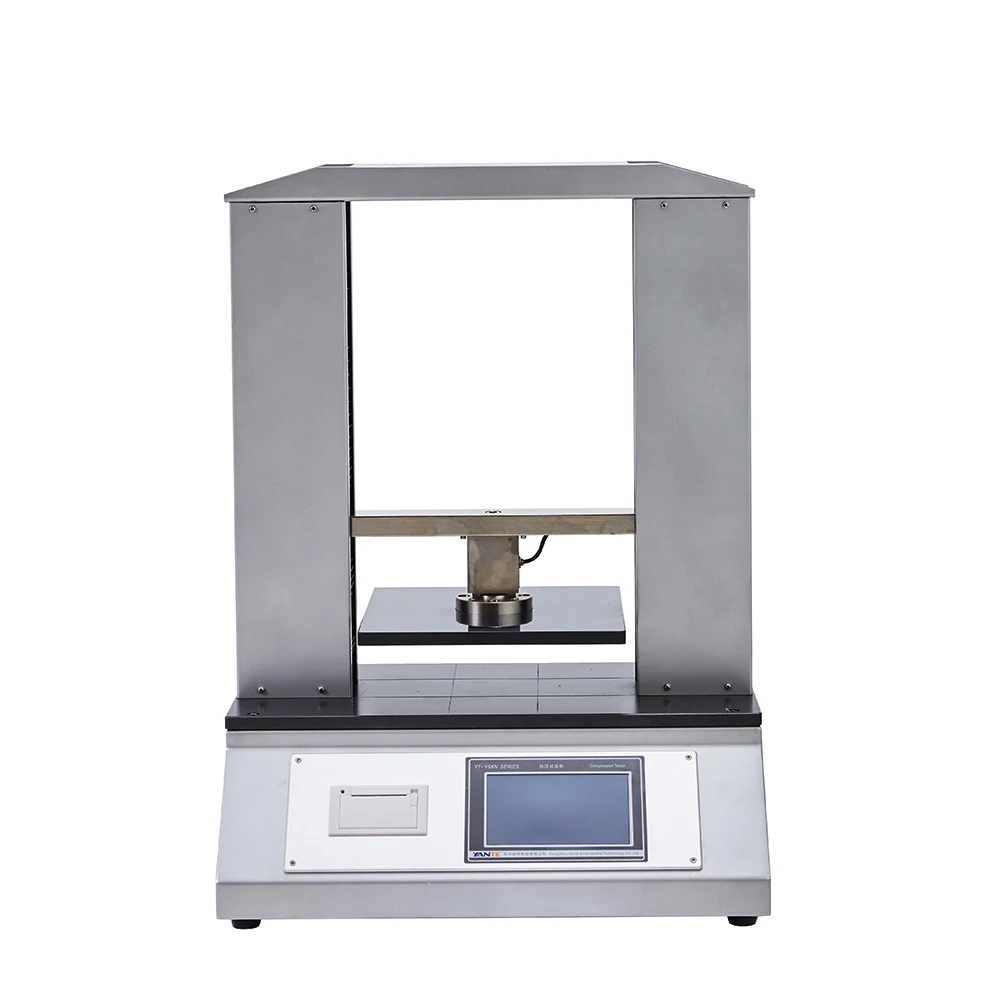

YT YS05KN paper tube compression resistance test machine compressive strength tester
- Category: >>>
- Supplier: Hangzhou Yante Science And Technology Co. Ltd.
Share on (62577511328):
Product Overview
Description
Product Overview
Paper Tube Compression Tester is a testing instrument for testing the compressive strength of paper tubes. It is mainly suitable for the compressive strength of various industrial paper tubes, chemical fiber paper tubes, small packaging boxes and other types of small containers or honeycomb paperboards with a diameter of less than 300mm. Deformation testing is an ideal testing equipment for paper tube manufacturers, quality testing institutions and other departments.
Features At A Glance
The ARM processor and 24-bit high-speed analog-to-digital converter improve the response speed and sampling accuracy of the instrument.
Closed-loop servo stepping motor, ball screw, dual optical axis guide, stable operation and precise positioning.

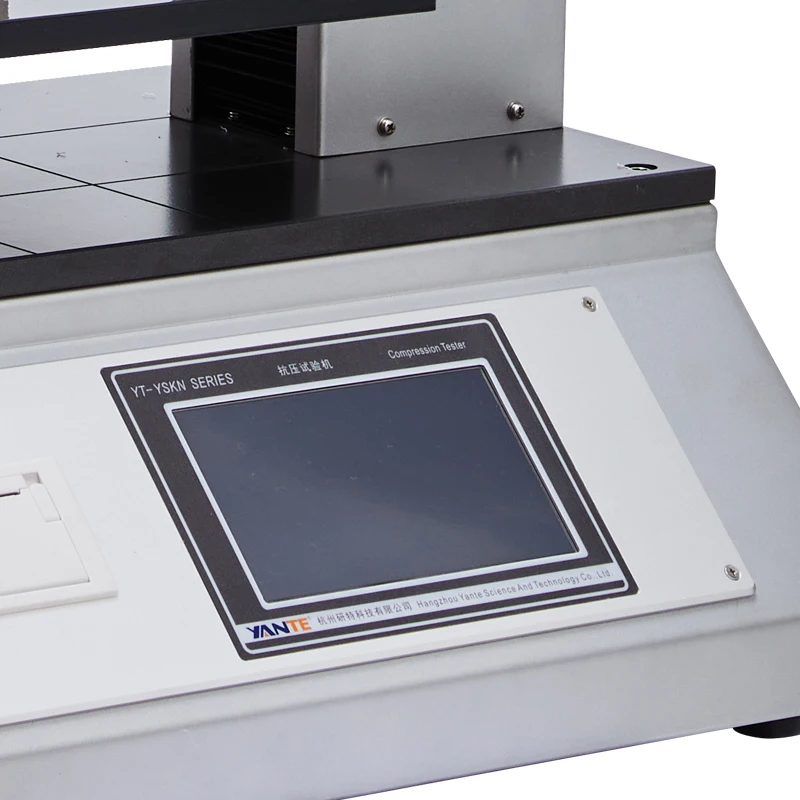

The 7-inch color touch screen displays the force-displacement curve in real time.
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Features of automatic reset, data memory, overload protection and fault self-diagnosis.
Cooperate with computer software for communication (purchased separately).
Closed-loop servo stepping motor, ball screw, dual optical axis guide, stable operation and precise positioning.
The 7-inch color touch screen displays the force-displacement curve in real time.
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Features of automatic reset, data memory, overload protection and fault self-diagnosis.
Cooperate with computer software for communication (purchased separately).
Details Images
Application Range
Carton,beer box,paper tube,paper cup, color box,milk box, etc.
Execute Standard
GB/T 2679.8-1995，GB/T 4857.4，GB/T 4857.3，BB/T 0032-2006
Sales And Service Network
Product Paramenters
No. | Parameter item | Technical index |
1 | Power Supply | AC(100～240)V，(50/60)Hz 100W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |
3 | Display | 7 inch color touch screen |
4 | Measuring range | 5N～5kN |
5 | Indication accuracy | ±1％(Range 5%～100%) |
6 | Measured Area | 300×300 mm |
7 | Work Capacity | 5～300 mm |
8 | Parallelism Between Plates | ≤0.5mm |
9 | Press Speed | 50mm/min（1～500mm/min adjustable） |
10 | Return Speed | 1～500 mm/min adjustable |
11 | Print | Built-in thermal printer |
12 | Communication Interface | RS232(Default) (USB, WIFI optional) |
13 | Dimension | 545×380×825 mm |
14 | Net Weight | 62.5kg around |
