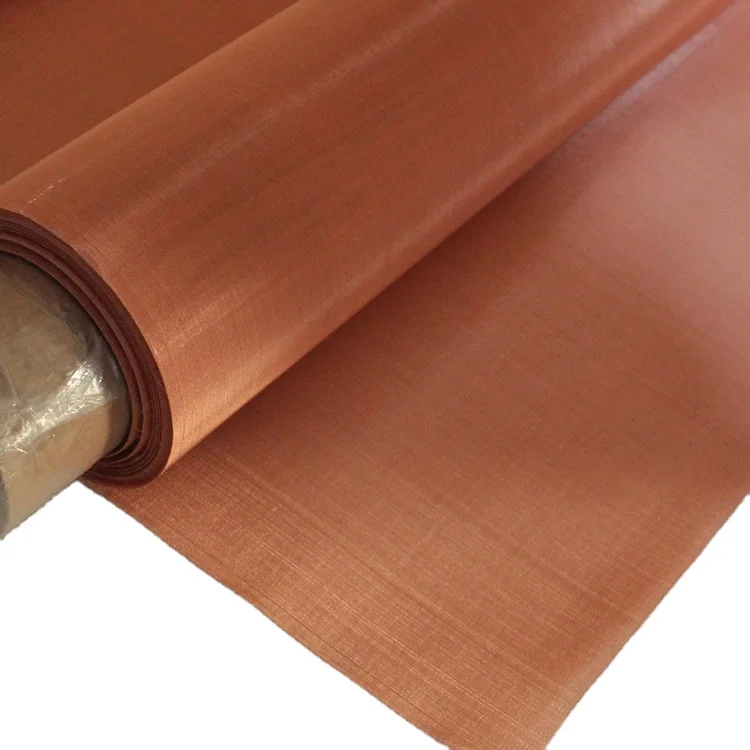

Китайский поставщик, ткань из красной меди, плетеная сетка, медный экран
Китайский поставщик, ткань из красной меди, плетеная сетка, медный экран
Китайский поставщик, ткань из красной меди, плетеная сетка, медный экран
Китайский поставщик, ткань из красной меди, плетеная сетка, медный экран
Китайский поставщик, ткань из красной меди, плетеная сетка, медный экран
Китайский поставщик, ткань из красной меди, плетеная сетка, медный экран
Китайский поставщик, ткань из красной меди, плетеная сетка, медный экран

Китайский поставщик, ткань из красной меди, плетеная сетка, медный экран

Share on (62577532966):


Price:360,00 $ - 370,00 $

Quantity:


Product Overview

Description





Production Description:

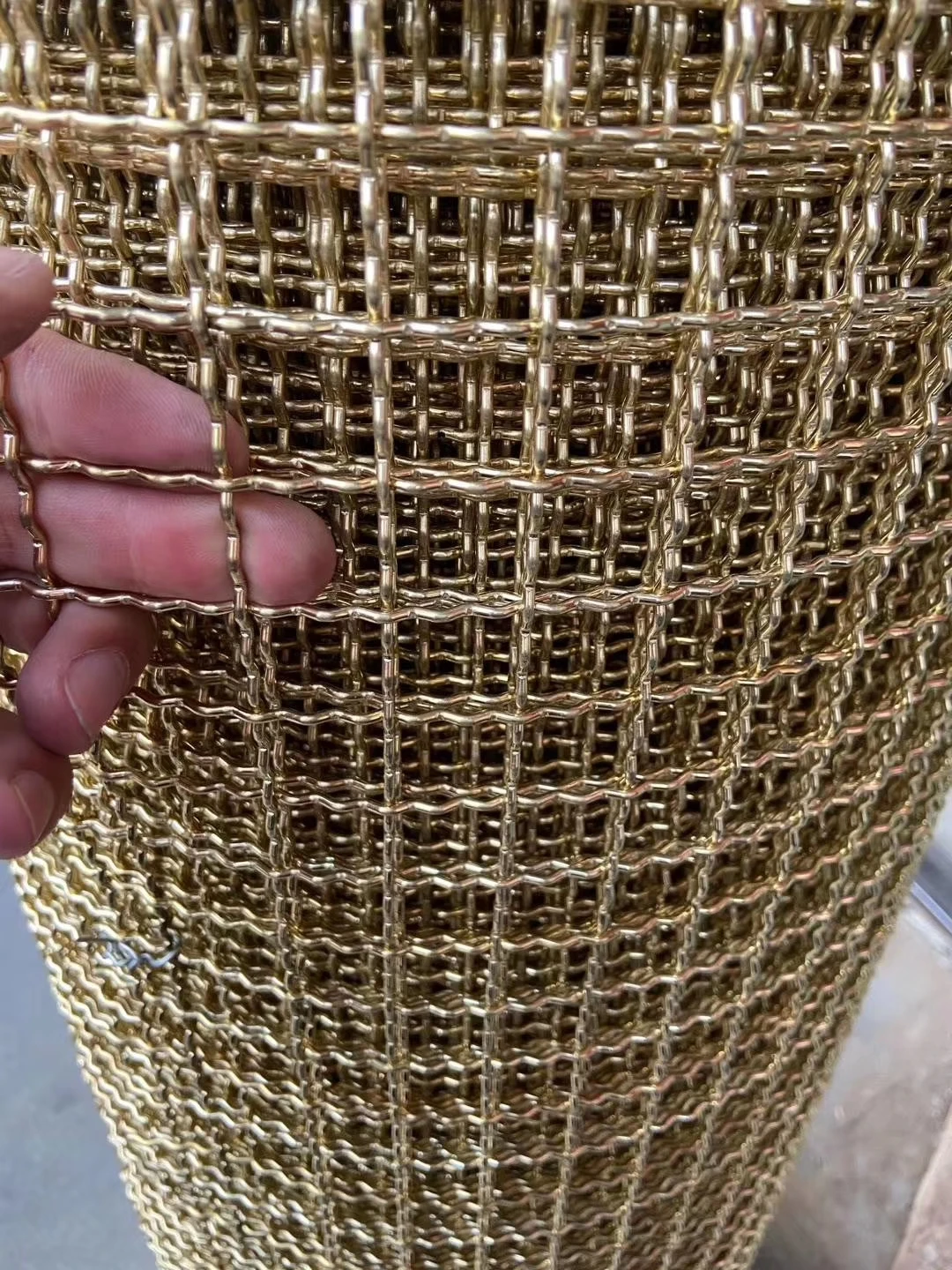

As a supplier of copper and brass wire mesh for many different industries and applications, our produces a wide variety of woven wire meshes. Our copper/brass wire mesh of square mesh ranges in aperture sizes from 0.025 mm to 14 mm. And in addition to our standard program, which is always readily available in stock, we also run lots of special productions for customer-specific



Mesh/Inch
Wire Diameter
Aperture
Open Area
Weight
(kg /Square meter)
Inch
MM
Inch
MM
(%)
1x1
0.08
2.03
0.92
23.37
92
2
2X2
0.063
1.6
0.437
11.1
87.4
2.5
3X3
0.054
1.37
0.279
7.09
83.8
2.7
4X4
0.047
1.19
0.203
5.16
81.2
2.7
5X5
0.041
1.04
0.159
4.04
79.5
2.6
10X10
0.025
0.64
0.075
1.91
74.9
2
12X12
0.02
0.508
0.063
1.6
75.9
1.5
14X14
0.02
0.508
0.051
1.3
71.9
1.8
16X16
0.018
0.457
0.0445
1.13
71.2
1.6
18X18
0.017
0.432
0.0386
0.98
69.4
1.6
20X20
0.02
0.24
0.03
0.76
76
0.56
20X20
0.016
0.33
0.034
0.86
72.2
1.1
30X30
0.012
0.305
0.0213
0.54
63.9
1.4
30X30
0.0094
0.24
0.0243
0.62
72.1
0.84
40X40
0.01
0.254
0.015
0.38
59.9
1.3
50X50
0.0055
0.14
0.0145
0.368
72.4
0.48
60X60
0.0047
0.12
0.012
0.303
71.6
0.42
60X60
0.0059
0.15
0.0107
0.273
64.5
0.65
80X80
0.0055
0.14
0.0069
0.117
45.5
0.76
100X100
0.0039
0.1
0.006
0.154
36.76
0.5
120X120
0.003
0.08
0.0052
0.132
38.7
0.384
150X150
0.0024
0.06
0.0043
0.11
64.7
0.26
150X150
0.0028
0.07
0.0039
0.1
58.8
0.38
165X165
0.0019
0.05
0.0041
0.104
67.5
0.2
180X180
0.0019
0.05
0.0035
0.091
64.5
0.22
180X180
0.0024
0.06
0.0031
0.081
57.4
0.32
200X200
0.0019
0.05
0.003
0.077
60.6
0.24
200X200
0.0024
0.06
0.0026
0.067
52.7
0.35
250X250
0.0016
0.04
0.0024
0.0616
60.6
0.2
270X270
0.0016
0.04
0.0021
0.054
57.4
0.21
300X300
0.0016
0.04
0.0018
0.045
53.5
0.23
325X325
0.0014
0.035
0.0017
0.0432
55.3
0.2
400X400
0.0012
0.03
0.0013
0.0335
52.7
0.18
500X500
0.0009
0.025
0.001
0.0258
50.7
0.15
500X500
0.0012
0.03
0.0008
0.0208
16.76
0.225
635X635
0.0007
0.018
0.0008
0.022
55
0.1

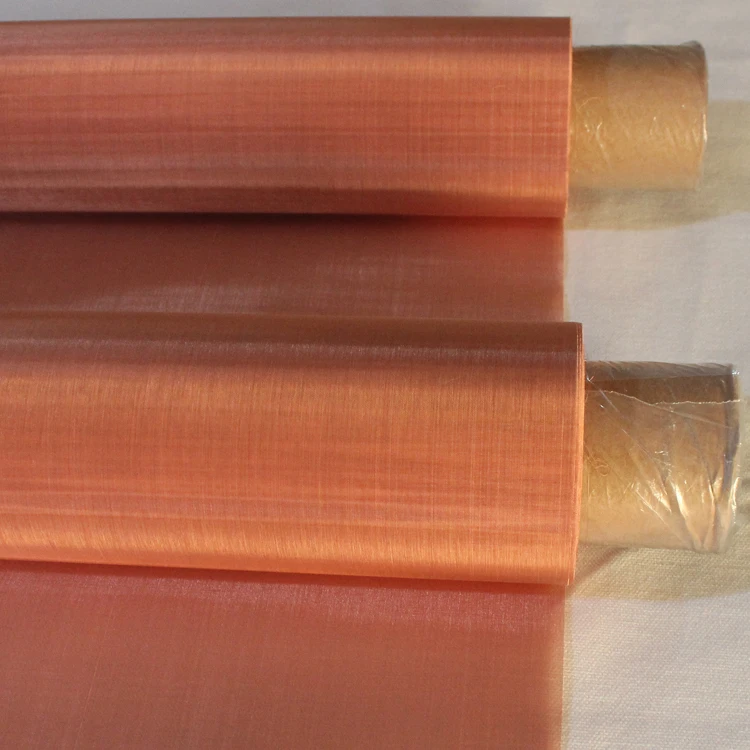

Material: red copper/red copper phosphor bronze brass

Specification: 1-635 mesh/inch, width: 0.914m ,1.0m,1.5m

Weaving: plain weave

Uses: screening of mining, metallurgy, construction, medicinal materials and other industries

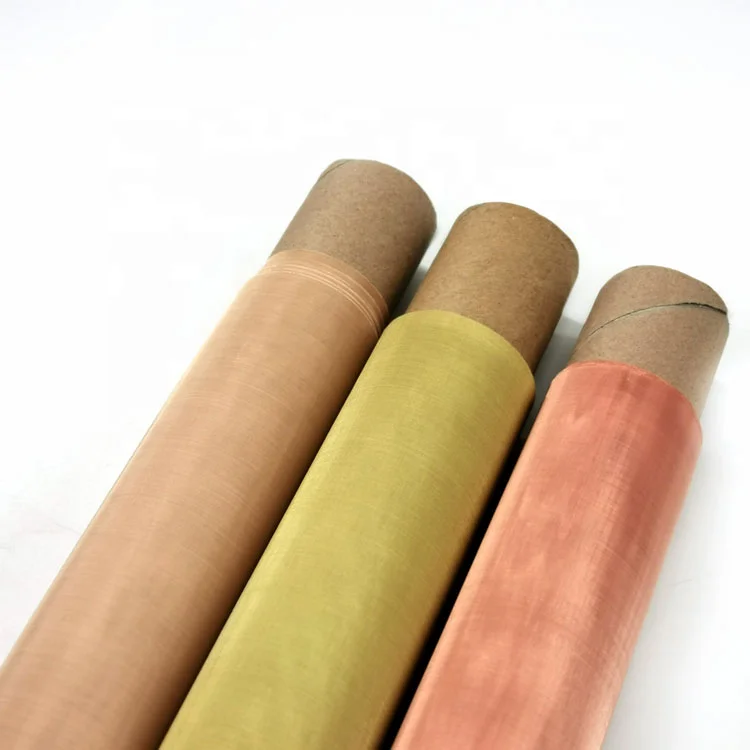

Material type
Brass wire,Red copper wire,Phosphor bronze wire

Mesh counts
2-350

Weave style
Plain weave/twill weave
Feature

Good conductivity,heat-tansfer properties,non-magnetic,corrosion resistant,low ductility and wear resistant
Application

Use in screening of various granular powder,porcelain clay,glass,chinaware printing,gas and liquid filtering,electromagnetic
shielding etc.

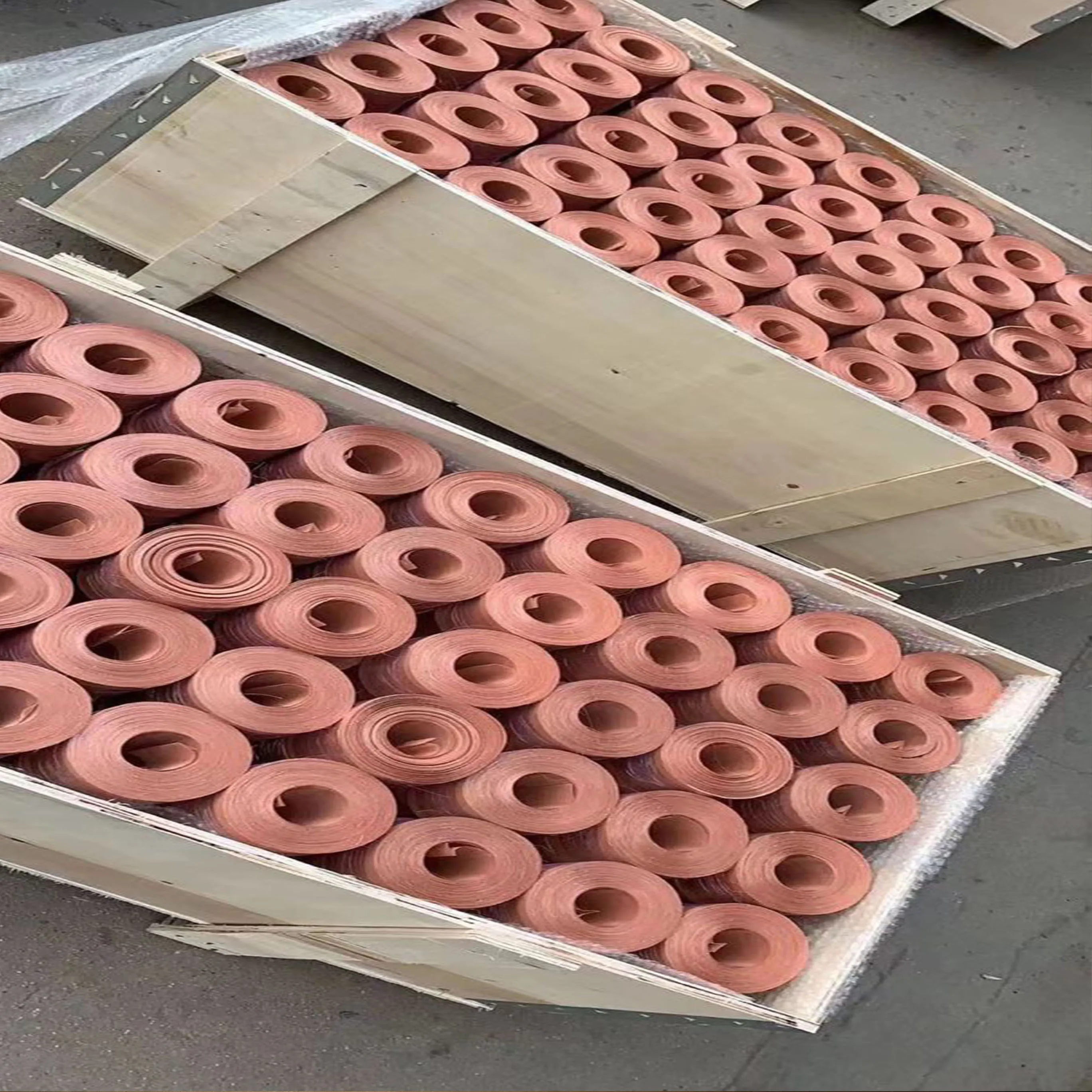

Packing details:
PP bag inside,carton or wooden case or pallet packed outside
All products are inspected by QC before delivery.
Delivery Time:
1. For sample order: will be shipped out in 3-5 days.
2. For normal order,we usually have in stock,we usually ship out in several days,also depend on the order quantity.
MOQ order:
We also will sell even 1m2m
