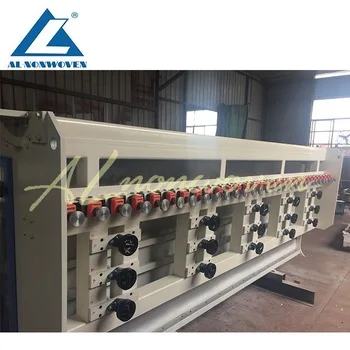

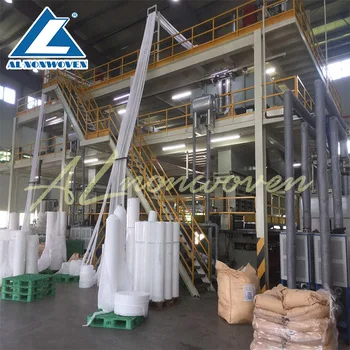

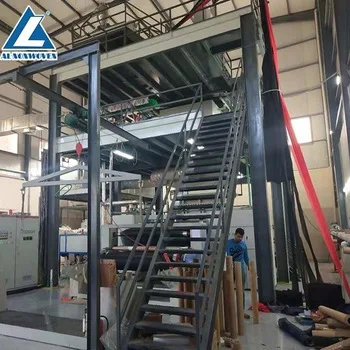

AL 3200MM SS Medical Gowns Material Making Machine / PP Spunbond Nonwoven fabric production line
- Category: >>>
- Supplier: Dongyang Aolong Nonwoven Equipment Co. Ltd.
Share on (62577633784):
Product Overview
Description
AL- 3200MM SS Medical Gowns Material Making Machine / PP Spunbond Nonwoven fabric production line
Our Advantages
Dong Yang AoLong Nonwoven Equipment Co.,Ltd. is a professional manufacture of PP spun bonded non-woven fabric production lines, bag making machine, PET needle puching production lines, AAC bricks production line and special application treatment equipments like hydrophobic, anti-alcohol (blood, oil, aging, bacteria, UV)and fire retardant, which integrates project design, processing,installation and operation training of PP non-woven fabric production lines.
Our factory has many years' experienced engineers and service team to develop and install our "A.L" brand of PP spun bonded non-woven fabric production lines from 1.6m, 2.4m, 3.2m, 4.2m with different modles like S, SS, SSS, SMS and SMMS.
Exhibition Show
Product Paramenters
S Model

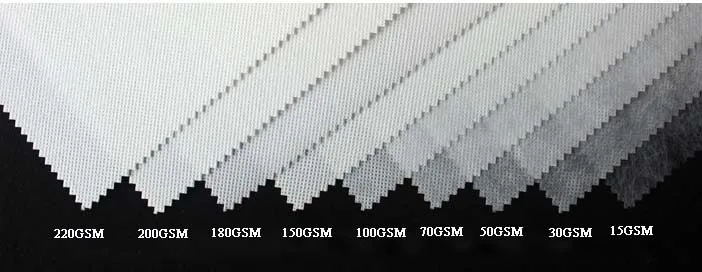

Working Width | Fabric GSM | Power input | Consumption | Annual Output/Year |
1600mm | 9-250 | 200KVA | 130KW | 1500T |
2400mm | 9-250 | 250KVA | 180KW | 2400T |
3200mm | 9-250 | 300KVA | 200KW | 3000T |
4200mm | 9-250 | 450KVA | 300KW | 3800T |
SS Model
Working Width | Fabric GSM | Power Input | Consumption | Annual Output |
1600mm | 10-250 | 300KVA | 200KW | 3000T |
2400mm | 10-250 | 350KVA | 250KW | 4800T |
3200mm | 10-250 | 600KVA | 300KW | 6000T |
4200mm | 10-250 | 800KVA | 450KW | 7500T |
SSS Model
Working Width | Fabric GSM | Power Input | Consumption | Annual Output |
1600mm | 12-250 | 600KVA | 300KW | 4000T |
2400mm | 12-250 | 850KVA | 400KW | 6000T |
3200mm | 12-250 | 1000KVA | 600KW | 8000T |
SMS Model
Working Width | Fabric GSM | Power Input | Consumption | Annual Output |
1600mm | 15-250 | 600KVA | 400KW | 3500T |
2400mm | 15-250 | 800KVA | 600KW | 5000T |
3200mm | 15-250 | 1000KVA | 800KW | 6500T |

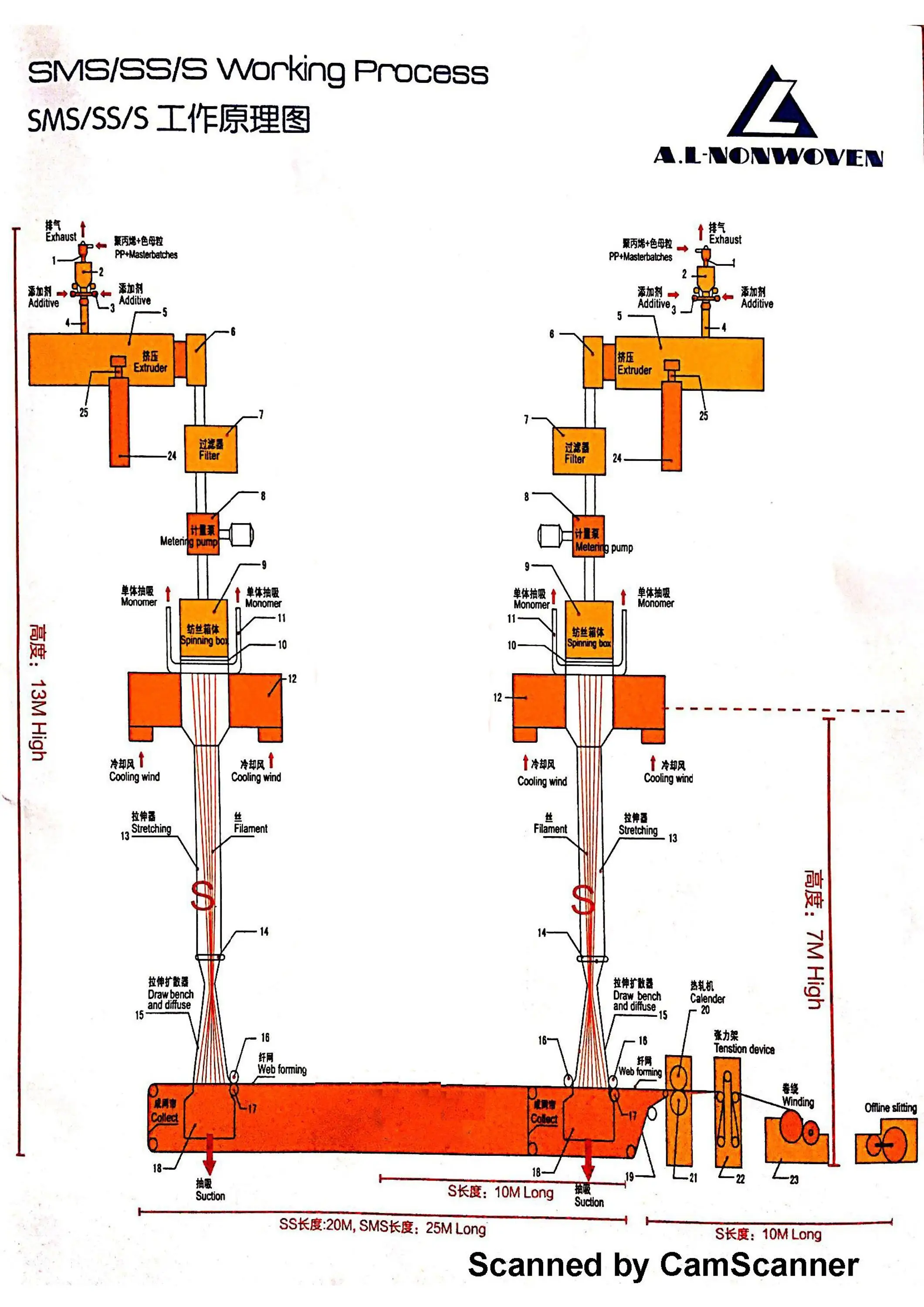

Working Process
Features:
1) The whole line is well-structured and easy operating.
2) Control elements are of well-know made,high performance and reliable technology.

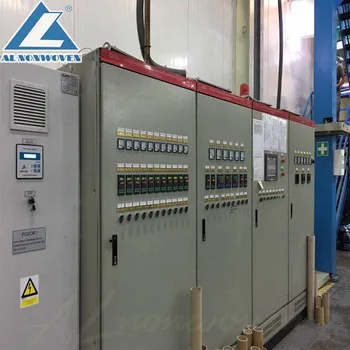

3) The whole line are controlled by PLC and operated with touch-screen.
4) The allocation of the main frame and auxiliary equipment can be specially designed and adjusted according to customer's requirement.
5) No waste, No pollution.
Product Description

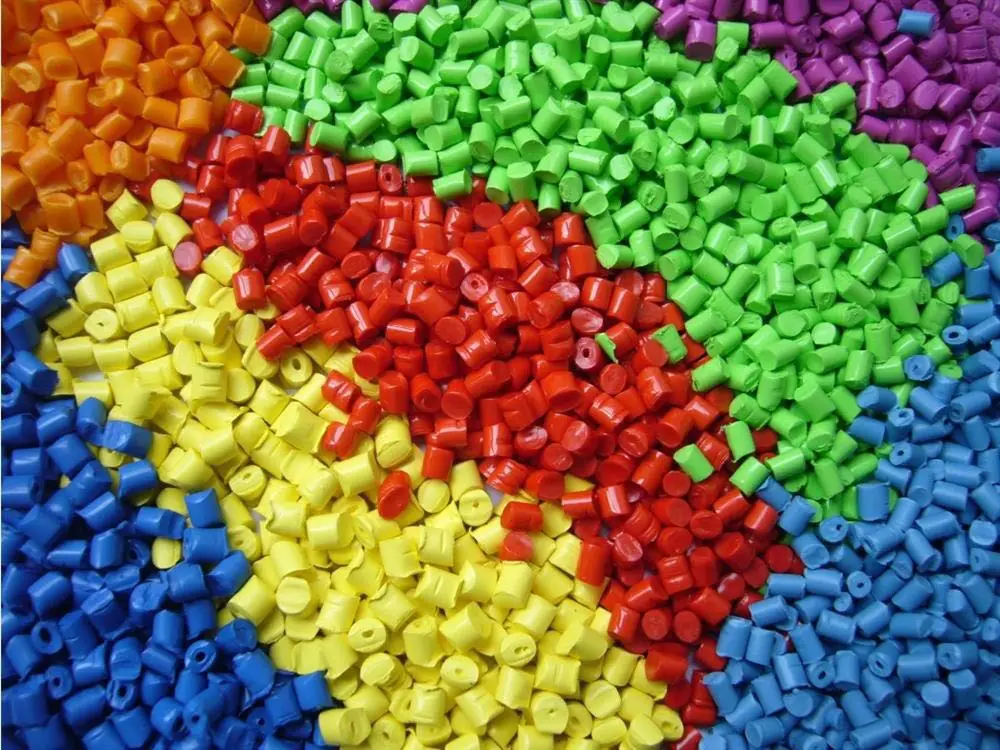

Raw Material( Polypropylene Granule, Master Batches, Additive.)
Detailed Images

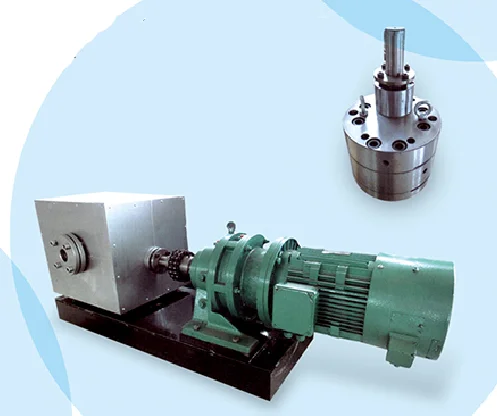

Supply volume: 200cc for 1.6m
200ccx2 for 3.2m
Rotate speed: 5~35r/min
Max pressure: 35MPa
Temperature: ≤300℃

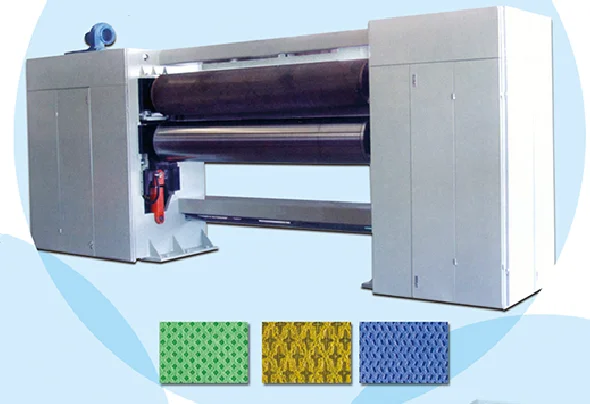

Roller diameter:φ4200mm-5200mm
Roller pressure:150kg/c㎡
Calender material: 42CrMo

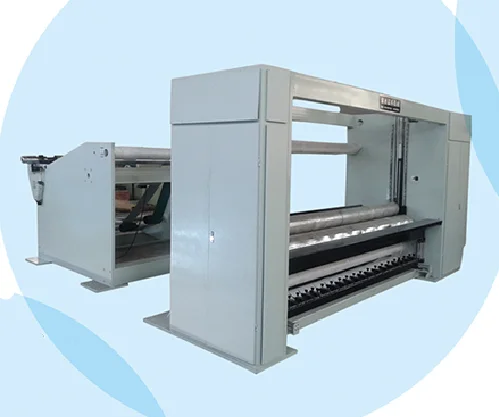

Speed:10-150m/min
Motor:30KW
Speed: 10-150m/min
Motor: 5.5-15KW
Motor: 5.5-15KW
Products Application
Cover for plant to anti-frost, insect-resistant sunshades, awning clothes, packing bags for crops etc.
Bags for shopping and gift paket, dust cover, sleeping bag for children, leather shoes, luggage, household decoration, water proff, filtering material, fabric for roadbed and dam etc.

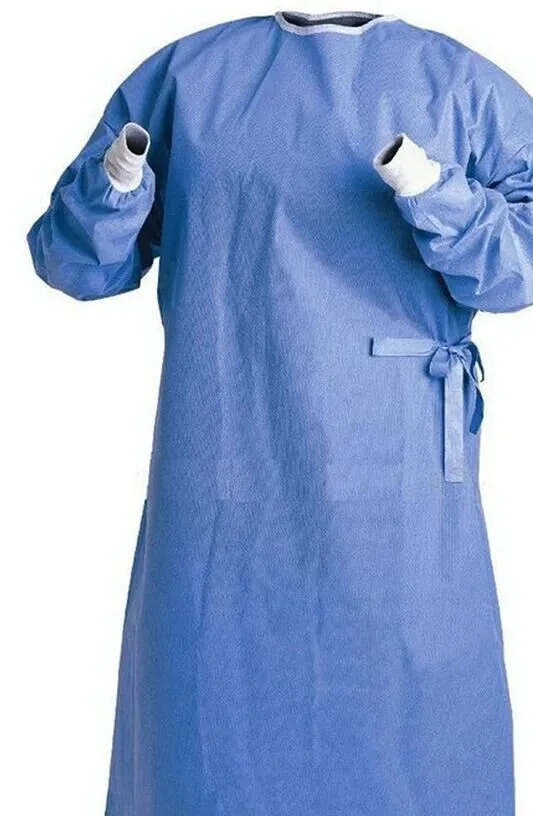

Medical and Health: Operation suit, exposure suit, cap, mask, message cloth, adheisive tape.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Technology innovation:
Supported by a strong technical team A.L makes continuous research and technology innovation activity, gainin significant targets remarked by high performance machinery.
Quality control:
A.L employees have special sense of responsibility and an excellent team spirit,therefore machinery complies to the highest standard in nonwoven industry creating by with individual outstanding components.
Application fields:
Supported by modern technology A.L designed for custom-built machinery and machinery offers an optimum solution for all customer requirements.
Service:
A.L supports our customers service 24 hours A day,7 days work ,any inquiry could be replied within 1 hour pre-sales and after-sales.
Product packaging
Generally, we will adopt wooden package to better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. If export to european countries,the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request.
