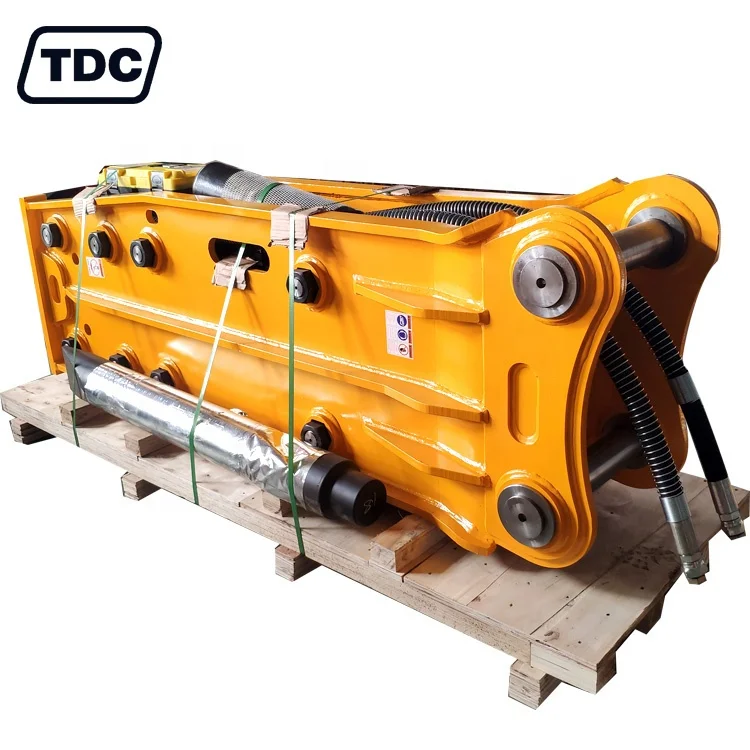

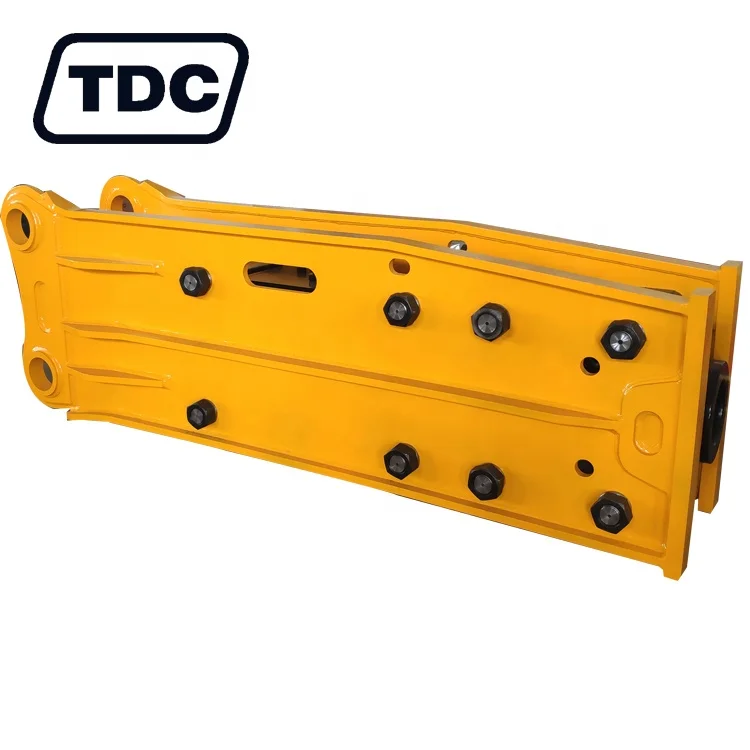

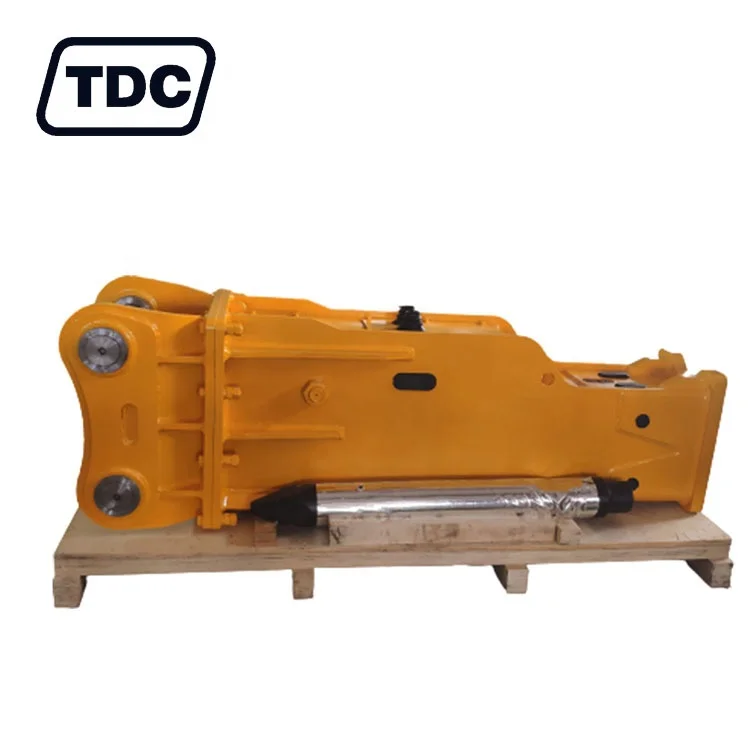

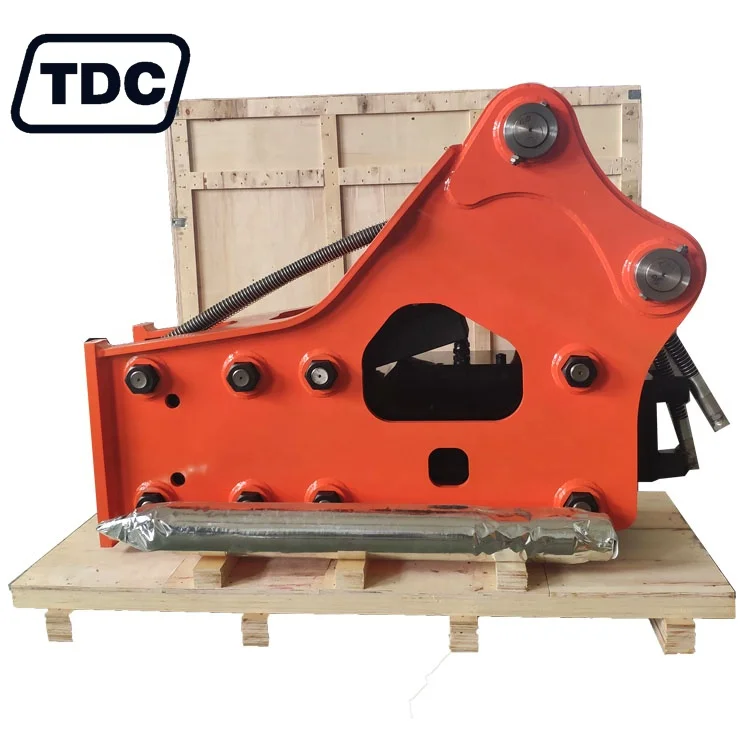

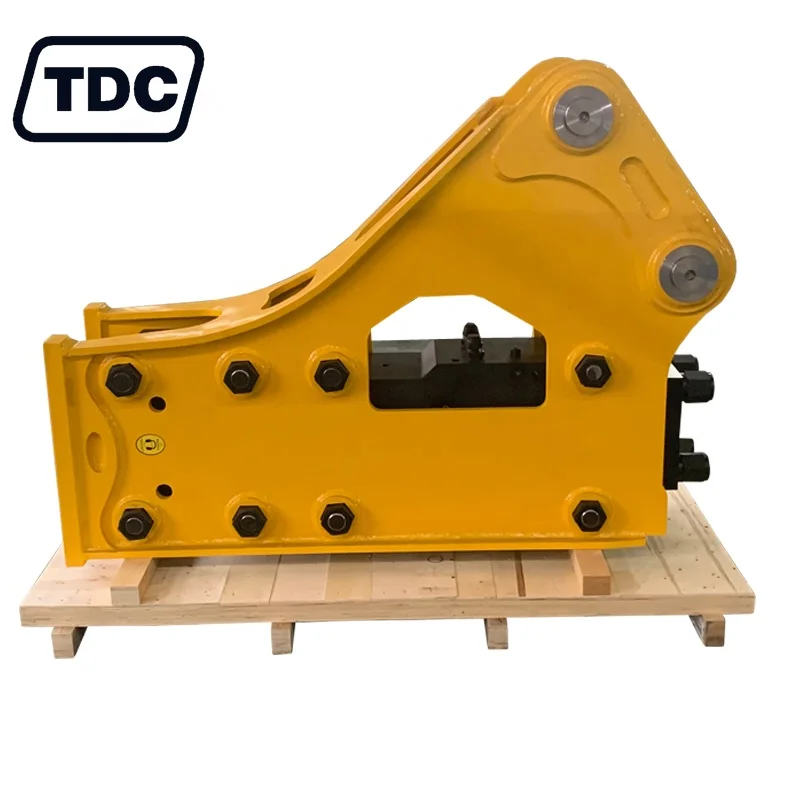

Production Description for Hydraulic breaker

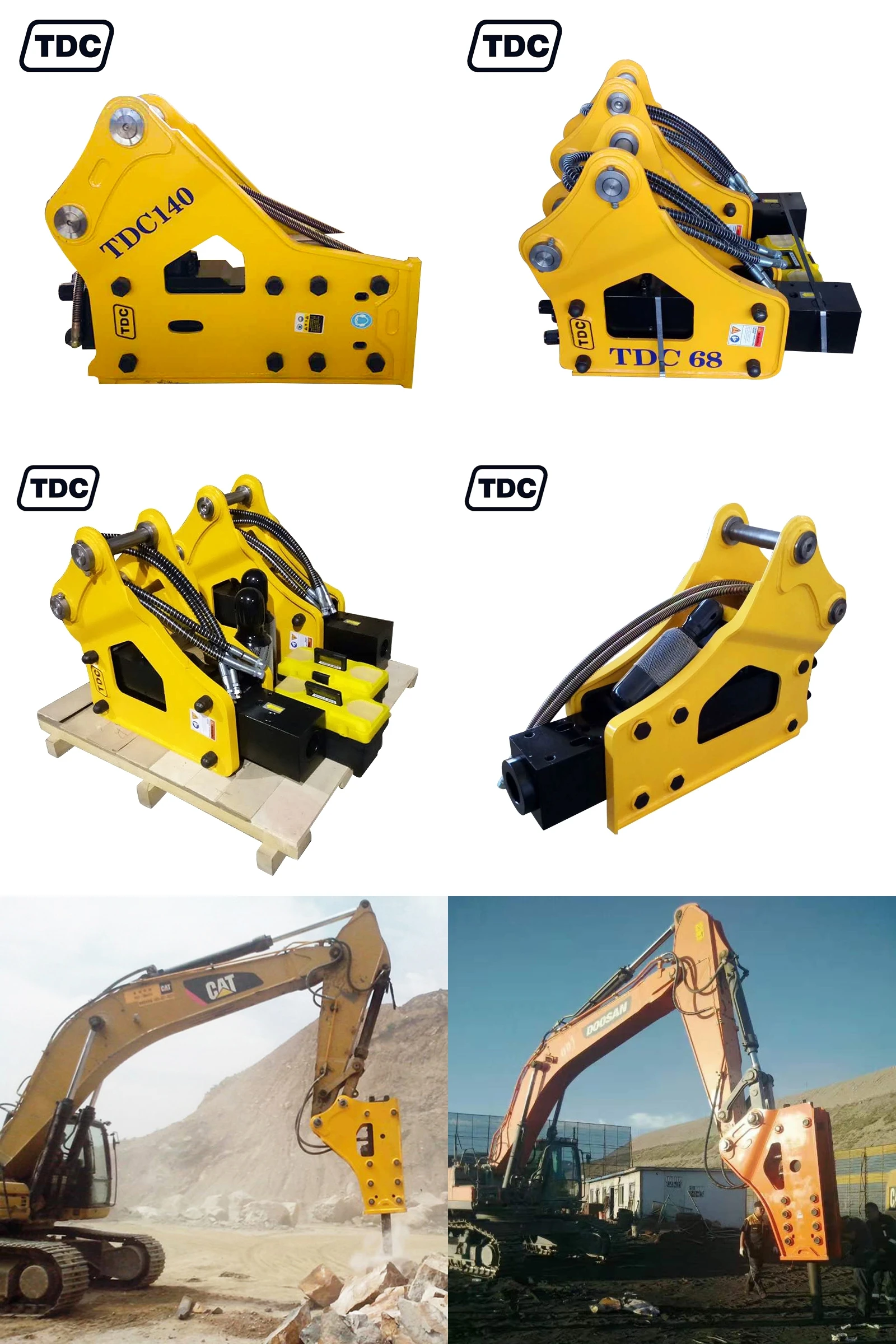

1.TDC hydraulic breaker are widely used for construction, demolition, mining, quartering and special sites(underwater project, tunnel project), etc.
2.Advanced technology for hydraulic breaker:
A. Heat resistance and abrasion resistance.
B. Low oil consumption design. This reduces the oil cylinder volume and lessens the fuel consumption under the condition of guaranteeing oil pressure invariable.
C. Made of high strength steel plate (Q345b),Chisel made by 42CrMo, provide very long operation life
D.Following Korean Technology and Design, guarantee low breakdown rate
3. Strong and mature "Hydraulic + Nitrogen" impact System
4.Easy control and easy installation make it more convenient for use
5 Tedy breaker can be compatible to all brands and models of excavators !!!!
Payment term:
1.L/C at Sight
2.T/T: 30% advanced payment , 70% balanced payment before shipment.
*Trade term: EXW, FOB, CNF, CIF all accepted.
Packaging Detail for Hydraulic breaker:
Export standard wooden pallet, wooden case or steel case.
Hydraulic breaker catalogue
| model | weight | length | pressure | flow | rate | chisel diameter | chisel length | hose diameter | suitable Excavator |
| Unit | Kg | mm | kg/cm2 | L/min | Bpm | mm | mm | Inch | Ton |
| TDC40 | 53 | 70 | 90-120 | 15-25 | 800-1400 | 40 | 0.4 | 1/2 | 0.8-2.5 |
| TDC45 | 120 | 1090 | 90-120 | 20-30 | 700-1200 | 45 | 0.5 | 1/2 | 1.2-3 |
| TDC53 | 170 | 1178 | 90-120 | 25-50 | 600-1100 | 53 | 0.58 | 1/2 | 2.5-4.5 |
| TDC68 | 300 | 1373 | 110-140 | 40-70 | 500-900 | 68 | 0.7 | 1/2 | 4-7 |
| TDC70 | 320 | 1373 | 110-140 | 40-70 | 500-900 | 70 | 0.7 | 1/2 | 4-7 |
| TDC75 | 400 | 1515 | 120-150 | 50-90 | 400-800 | 75 | 0.72 | 1/2 | 6-9 |
| TDC85 | 520 | 1735 | 130-160 | 60-100 | 400-800 | 85 | 0.85 | 3/4 | 7-14 |
| TDC100 | 800 | 1994 | 150-170 | 80-110 | 350-700 | 100 | 1 | 3/4 | 10-18 |
| TDC135 | 2000 | 2423 | 160-180 | 130-150 | 400-600 | 135 | 1.3 | 1/2 | 18-26 |
| TDC140 | 2000 | 2480 | 160-180 | 120-180 | 350-500 | 140 | 1.3 | 1 | 18-26 |
| TDC155 | 2700 | 2776 | 160-180 | 180-240 | 300-450 | 1.5 | 5/4 | 28-35 | |
| TDC165 | 3200 | 2820 | 160-180 | 200-260 | 250-400 | 165 | 1.6 | 5/4 | 30-40 |
| TDC175 | 4200 | 3184 | 160-180 | 210-290 | 200-350 | 175 | 1.6 | 5/4 | 35-50 |
| TDC185 | 5700 | 3326 | 180-220 | 220-270 | 200-250 | 185 | 1.7 | 5/4 | 35-55 |
| TDC195 | 6000 | 3420 | 180-220 | 220-290 | 180-200 | 195 | 1.8 | 5/4 | 40-55 |
| TDC210 | 6500 | 3700 | 190-230 | 290-340 | 120-200 | 210 | 1.8 | 5/4 | 60-80 |

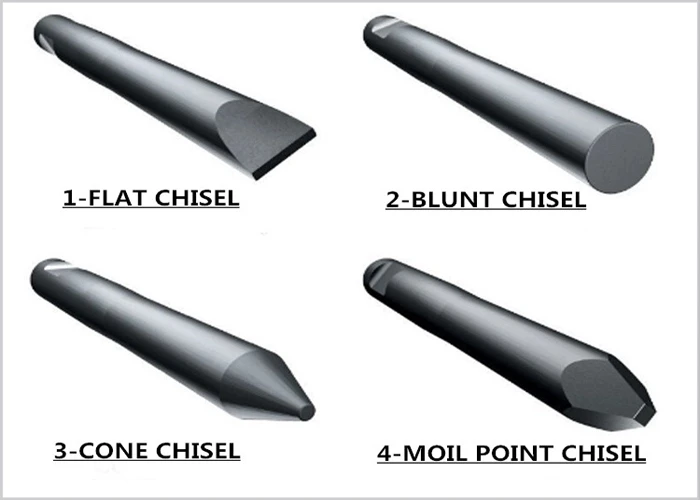

chisel type

all spare parts for hydraulic breaker

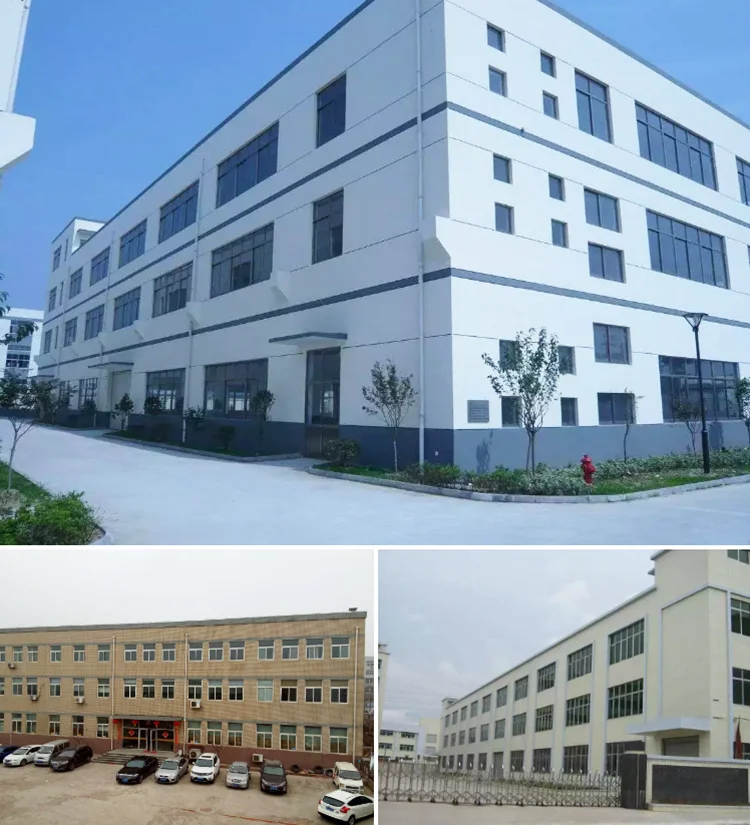

The company has been committed to the development, production and sales of excavator front-end devices for many years. The company mainly produces: various front ends such as crushers, quick connectors, wood grabbers, stone grabbers, rammers, multifunctional crushing shears, crushing pliers, hydraulic shears, pile drivers, frequency hammers, bucket clips, thumb clips, etc. Attachment device can be adapted to domestic and foreign large, medium and small excavators such as Doosan, Sany, Komatsu, Baili, Kobelco, Liugong, Xugong, Carter, etc., and can be customized according to the customer's operating environment requirements Special attachments for working conditions.
Our company has advanced production equipment, perfect product testing methods and quality assurance system. The company has a professional technical team, from the development of new products to the production process in the process, and then to the after-sales service of the product, to provide firm technical support for high-quality products.
Product quality is the foundation of the company. Since its establishment, the company has always adhered to the principle of "quality first, credit first" and strictly controlled quality in all aspects of production, as always, to provide customers with the highest quality products and Service to achieve a win-win situation with customers.
Looking forward to the future, the company will make use of the rich experience accumulated in the past few years, combined with its own characteristics, continue to innovate and pursue excellence, let us do more for your tomorrow.






Q: Your company is a manufacturer or a trading company?
A: ERICE is a professional manufacturer since 2007.
Q: Can your company supply sample?
A: Yes, the sample can be supplied.
Q: What is your MOQ?
A: Our MOQ is 1 set
Q: Which payment term your company accepts?
A: We accept T/T, LC, Moneygram, Western Union, Paypal, etc.
Q: Does your company attend any exhibitions?
A: Yes, we attend professional construction machinery fairs. We will go to BAUMA Fair in November 22-25th, 2016, and will attend BAUMA in India in 2018.
