12V USB SD FM Wireless BT Blue tooth Audio MP3 Module
- Category: >>>
- Supplier: Shenzhen Aiyinyuan Technology Co. Ltd.
Share on (62577708513):
Product Overview
Description
Product Description
Product Name | Audio decoder module |
Power Input | DC 5V/12V |
Functions | BT/FM radio/AUX/TF card/USB/display screen |
Accessories | remote controller/ connection cables/screw hole cover |
Panel Color | black |
Digital Dispaly | dancing screen |
Using Scenarios | audio speakers/mp3 player/portable speaker/amplifier speaker |
Warranty Period | 2 years |
Common Products MOQ | 1 piece,Goods in stock. |
OEM MOQ | 1200pcs |

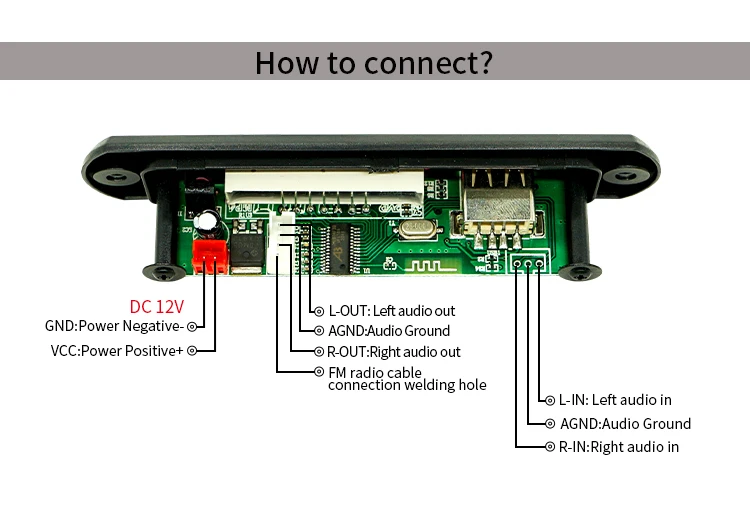

User Manual:

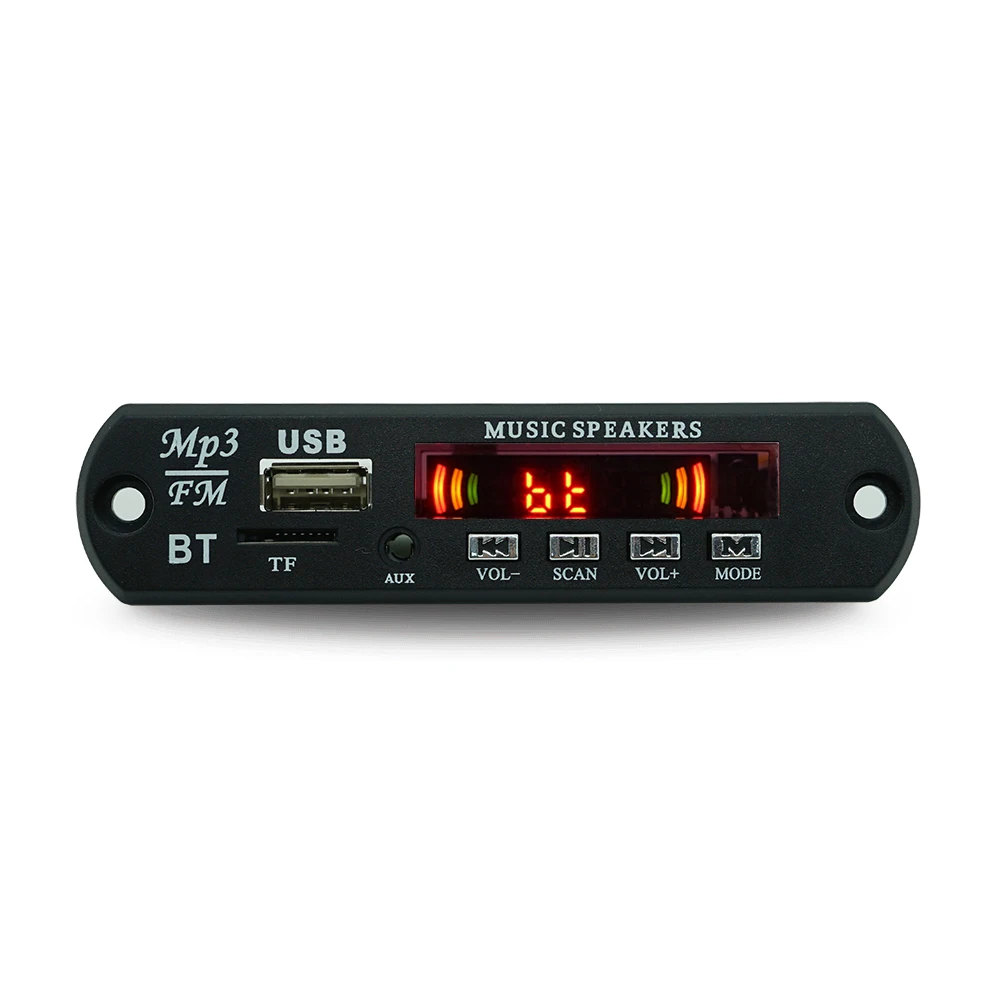

Plastic Panel details:
Front Panel Size:108*25.6mm;92*25.6mmPCB Size:75*27*1.0mm
Key Size:7*3.5mm
Screw spacing:80mm
Specifications:
Function Introduction:
Support BT call function,double decoding MP3/WMA/WAV format music,read USB disk, read TF Card ,radio FM,external audio input line in,infrared remote control,power off memory ,power supply 5V or 12V optional.
Major Function:
1,Double decoding,support MP3/WMA/WAV format music;
2,Support wireless music;
3,Display with digital tube;
4,Support USB/TF card;
5,Power off memory function 24C02;
6,Support 5-10 meters distance infrared remote control operation;
7,Support LINE-IN(AUX)/ LINE-OUT;
8,Support FM(87.5MHZ-108.0MHZ);
9,Buttons:VOL-/ AUTO / VOL+ / MODE;
10,Support power automatic protection system(the PCBA will not burn out if the positive and negative power is reverse,it only not
working);
11,The highest volume level is 30;
12,Support for pause / single loop play / replay all the repertoire.
Button Operation Instructions:
1,Vol- button (last song / volume reduction): in MP3 state, vol- is short pressed for the last one, long press for volume reduction; in FM state, short press is to increase one stage number; under BT function, short press is BT one, long press is volume reduction;
2,Auto button (play / pause): in MP3 state, auto is short to play / pause; in FM state, short press is playing / pause, long press is automatic receiving station; in BT function, short press is playing / pause;
3,Vol+ button (next song / volume increase): in MP3 state, Vol is short pressed for next, long press for volume increase; in FM state, short press is to lower a stage number; under BT function, short press is BT next song, long press is volume reduction;
4,MODE button:switch between USB/SD/FM/AUX/BT functions in turn.
