GECEN strong universal ku band single LNBF
- Category: >>>
- Supplier: Zhuhai Gecen Technology Co. Ltd.
Share on (62577816384):
Product Overview
Description
Products Description

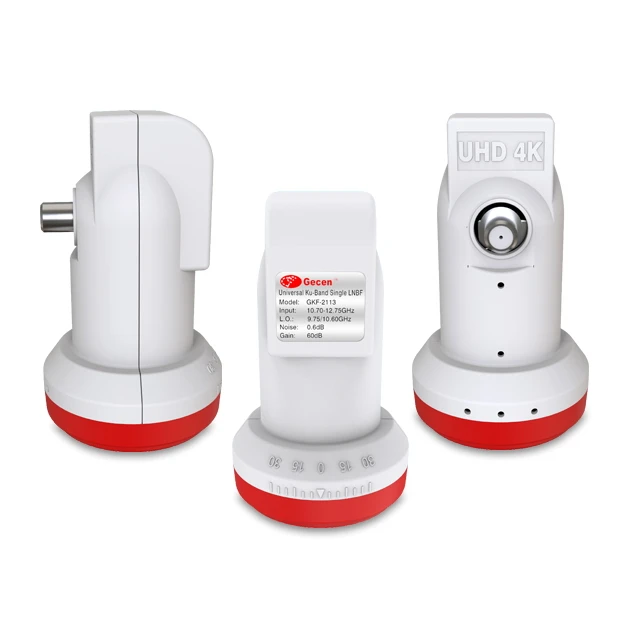

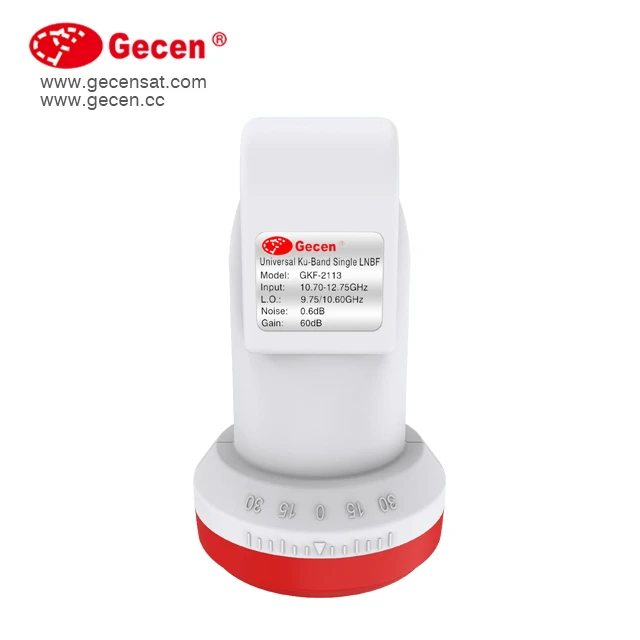

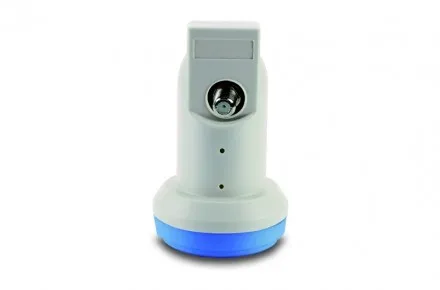

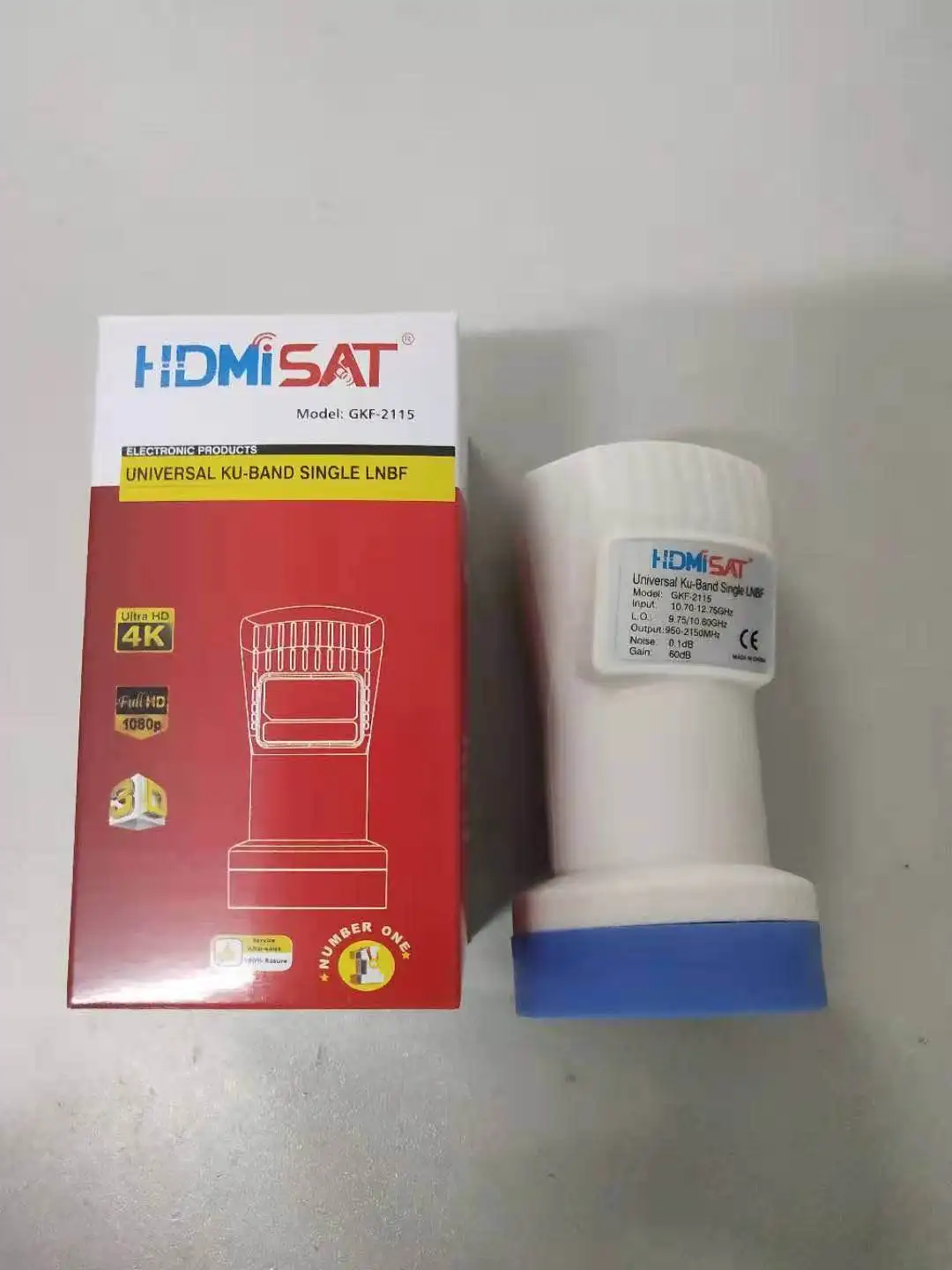

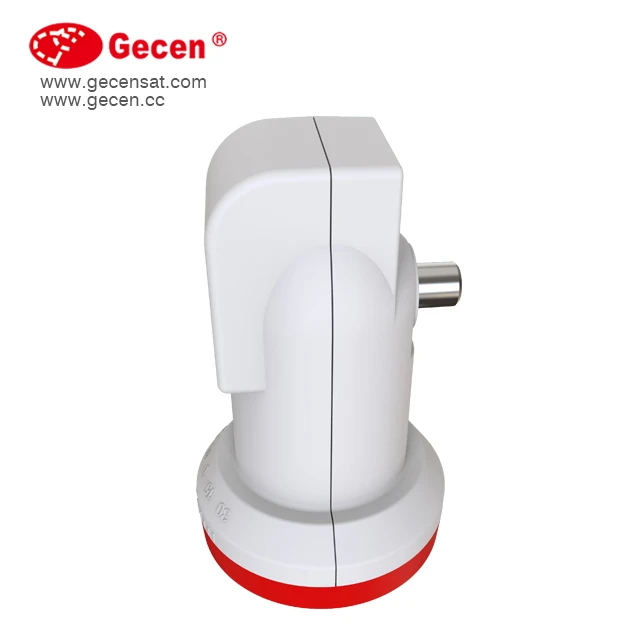

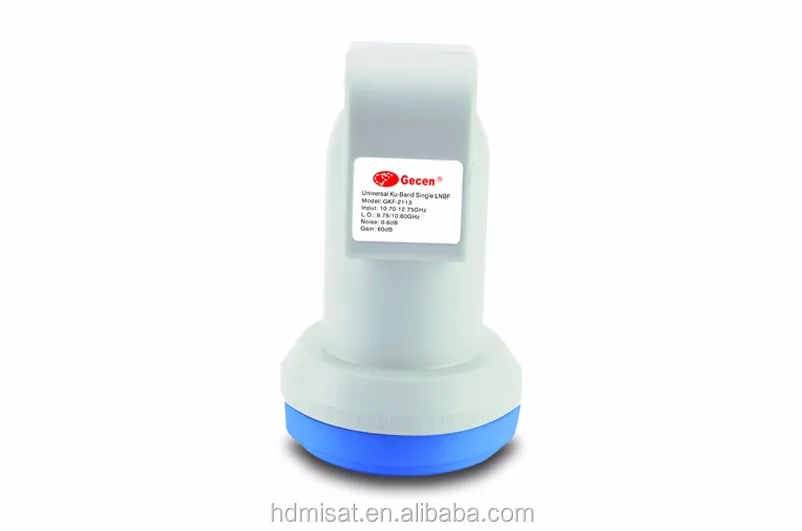

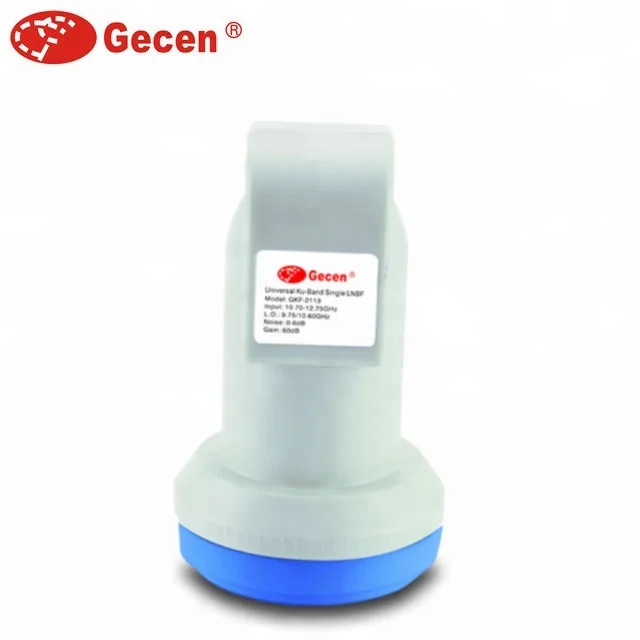

GECEN strong universal ku band single LNBF
* Low noise figure
* Digital ready
* Low power consumption
* Easy installation
* High quality weather protection
* Digital ready
* Low power consumption
* Easy installation
* High quality weather protection
Item | Specification | Item | Specification |
Input Frequency Range | Low Band:10.70~11.70GHz | Gain Flatness | ±0.5dB/26MHz |
High Band:11.70~12.75GHz | Cross POL. Isolation | 25dB(Typ.) | |
Output Frequency Range | Low Band:950~1950MHz | Image Rejection | 40dB(Min.) |
High Band:1100~2150MHz | Output VSWR | 2.0:1(Max.) | |
L.O. Frequency | Low Band:9.75GHz | P1dB | 0dBm (Min.) |
High Band:10.60GHz | DC Current Consumption | 80mA(Typ.) | |
L.O. Frequency Stability | ±1.0MHz (Max.)@+25℃ | Low/High Band Switching | Low Band:0Hz |
±2.0 MHz (Max.)@-30℃~+70℃ | High Band:22KHz±4KHz | ||
L.O. Phase Noise | -60dBc/Hz@1KHz | POL. Switching Voltage | 10.5~14.0V @Vertical |
-80dBc/Hz@10KHz | 16.0~20.0V @Horizontal | ||
-100dBc/Hz@100KHz | Relative Humidity | 0%~95% | |
Conversion Gain | 60dB(Typ.) | Operating Temperature | -30℃~+70℃ |
Noise Figure | 0.1dB(Typ.) | Connector Type | 75Ω Female Connector |
Company Introduction
Packing&Shipping
Gift Box/ Blister/ PE Bag etc
↓
Carton
Carton
FAQ
Q1. Why choose you?
-->As a gold supplier ,we have a good reputation on our customers,because of the good quality , suitable price and good service .
Q2. You are factory or trading company?
--> we are 100% factory and also do trading online.
Q3. What is your shipping way?
-->We usually ship it via DHL/UPS/Fedex/TNT/Aramex. If you have big quantity, you can choose Air or Sea shipment.
Q4. What is your payment term?
-->T/T wire bank transfer, L/C, D/P etc.
Q5. Can I take a sample for quality check?
-->Sure, we can offer sample for your testing.
Q6. Can you put my brand name(LOGO)on the products?
-->Yes,We can. Carved print, Silk print for your choose.
Q7. Can you printed our logo on the product or do the customized package box for us?
-->Sure, our factory produces OEM/ODM .
Q8. Can you ship the goods to my agent or shipping forwarder in China?
-->Yes, we can, just tell us your code in your agent or forwarder side, also tell us your agent or forwarder adress and contact
details.
Q9. How can you slove the problem if we receive the defective goods?
-->Send us the pictures or video first time, we would like to offer free replacement goods for you.
-->As a gold supplier ,we have a good reputation on our customers,because of the good quality , suitable price and good service .
Q2. You are factory or trading company?
--> we are 100% factory and also do trading online.
Q3. What is your shipping way?
-->We usually ship it via DHL/UPS/Fedex/TNT/Aramex. If you have big quantity, you can choose Air or Sea shipment.
Q4. What is your payment term?
-->T/T wire bank transfer, L/C, D/P etc.
Q5. Can I take a sample for quality check?
-->Sure, we can offer sample for your testing.
Q6. Can you put my brand name(LOGO)on the products?
-->Yes,We can. Carved print, Silk print for your choose.
Q7. Can you printed our logo on the product or do the customized package box for us?
-->Sure, our factory produces OEM/ODM .
Q8. Can you ship the goods to my agent or shipping forwarder in China?
-->Yes, we can, just tell us your code in your agent or forwarder side, also tell us your agent or forwarder adress and contact
details.
Q9. How can you slove the problem if we receive the defective goods?
-->Send us the pictures or video first time, we would like to offer free replacement goods for you.
