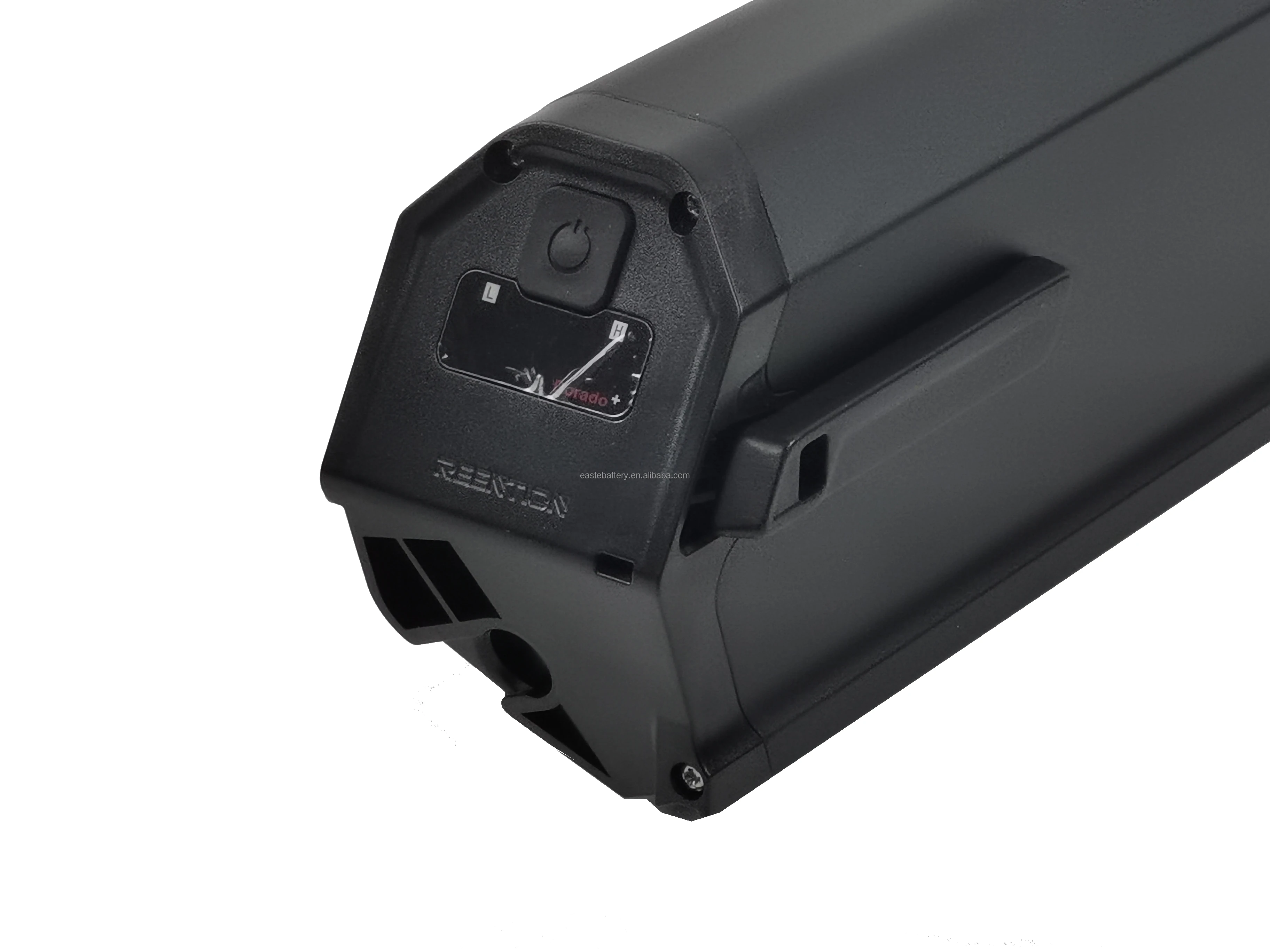

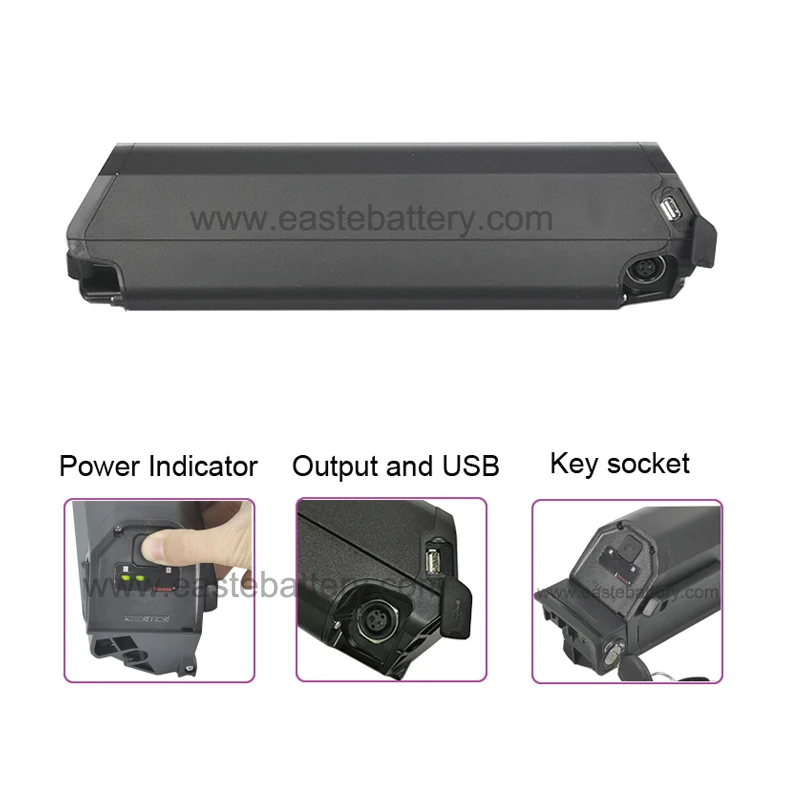

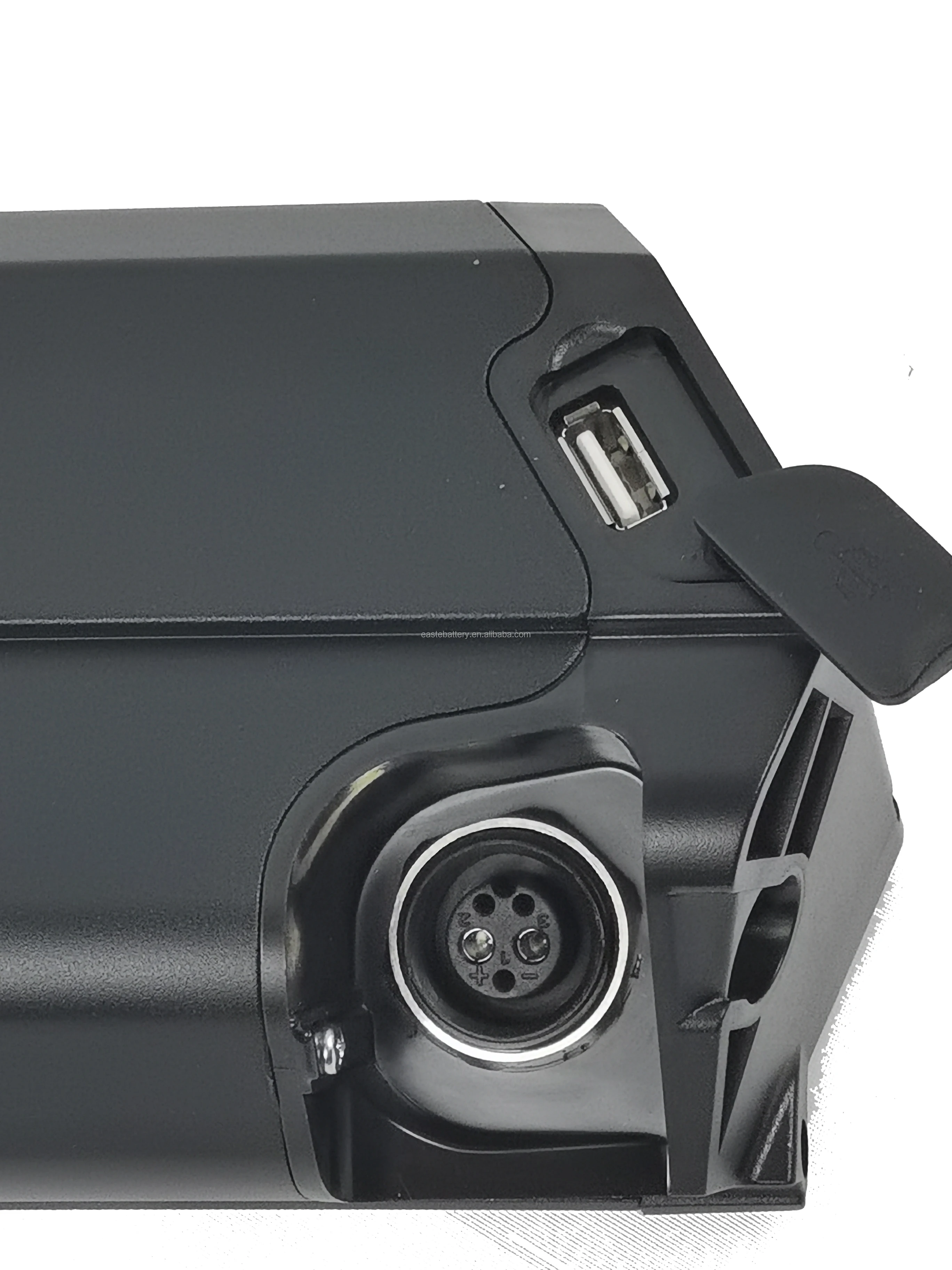

Reention dorado e bike battery pack 48v 17.5ah 14.5ah 17ah 21ah reention dorado 48v battery pack dorado 505 battery 48v 21ah

Product Overview

Description

Reention dorado e bike battery pack 48v  17.5ah 14.5ah 17ah 21ah reention dorado 48v battery pack dorado 505 battery 48v 21ah specification:

Model	Junda-J109
Chemistry	LiNiCoMnO2
Nominal Voltage	48V
Nominal Capacity	10.4ah 11.6ah 13.6ah 13ah 14.5ah 17ah 21ah 25ah
Weight	Approx 5.5Kg

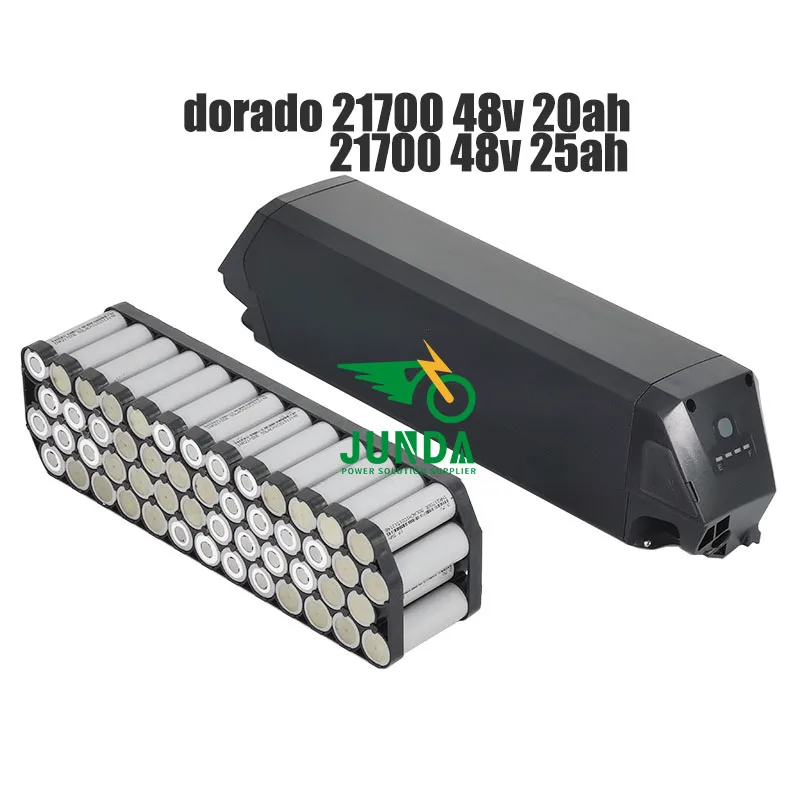

Outer case style	Dorado Pro L505 50pcs or L440 40pcs 18650 cell Dorado plus L440 52cpcs or L505 65pcs 18650 cell Dorado Max L440 64pcs or L505 80pcs 18650 cell Dorado 21700 5ah L440 52 cell or L505 65 cell

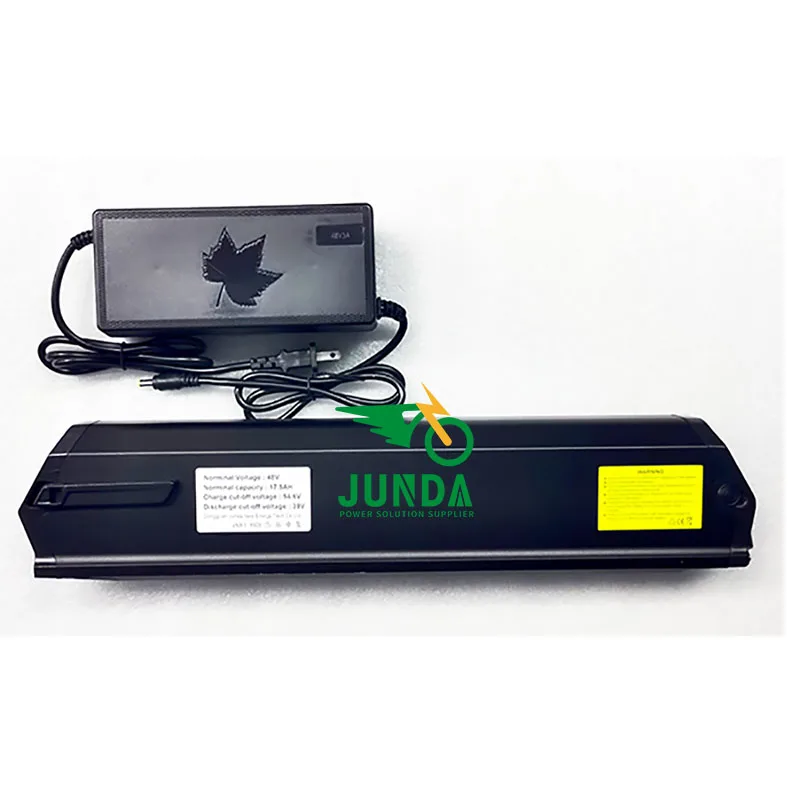

Standard Charge	Constant Current 0.2C, Constant Voltage 54.6V 100mA Cut-off
Fast Charge	Constant Current 0.5CA, Constant Voltage 54.6V 100mA Cut-off
Standard Discharge	Constant Current 0.2C/End Voltage 39V
Cycle Life	500 times with DOD80%
Continuous Discharge Current	17A or customized
Peak discharge current	51A or customized
BMS function	Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Balance
Storage Temperature Range	Temperature: -10-40℃ Relative humidity:45-75% Pressure: 86-106KPa

Reention dorado e bike battery pack 48v  17.5ah 14.5ah 17ah 21ah reention dorado 48v battery pack dorado 505 battery 48v 21ah feature:

1Long Battery Life

2 Easy to Use

3 Safety and Environmental Protection

4 High Discharge Efficiency

5 Over one year warranty

this dorado ebike battery case will fit for MS2 XC Sport R500, iGo M29r, Surface 604 Shred, Magnum Peak, E-Glide S/T, Addmotor m-560, Juiced Crossed Current S, Ride1Up 500 Series NCM Moscow,Milano,Venice,Aspen ebike.500 ride 1UP battery,arrow 10 A 1000, vtuvia bike X-Treme Catalina ebike and many other ebike model.

Warning :

1 do not short circuit postive and negative of the battery pack

2 do not dismantle the battery without the professional ebike battery technicist ' s support.

3 do not place the battery under high tempearature,such as heat,sunshine,or close to fire.

4 do not place the battery in fuilds,such as water ,alkaline or slat water.

5 Please keep the battery cool and dry ,charge the battery for 2 hours every 3 months if stored for a long time.

6 Always charge the battery with the licensed charger for lithium ion or lithium polymer battery.Please never mix the other charger to charge them in case of battery issues.

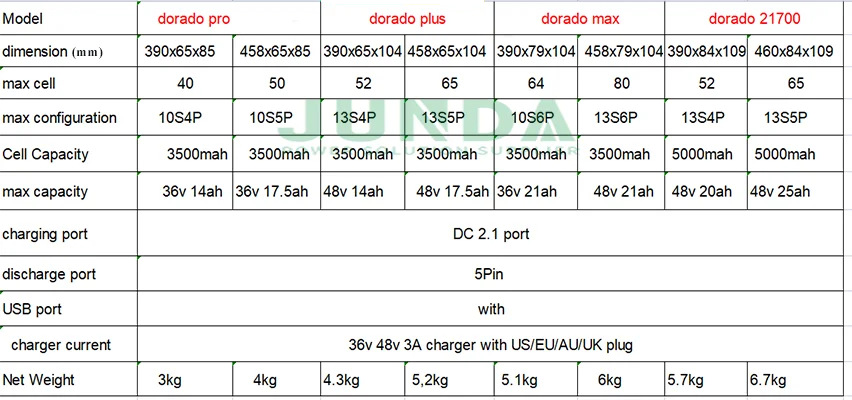

Detail parameter for the  Reention dorado e bike battery pack 48v  17.5ah 14.5ah 17ah 21ah reention dorado 48v battery pack dorado 505 battery 48v 21ah  as following:

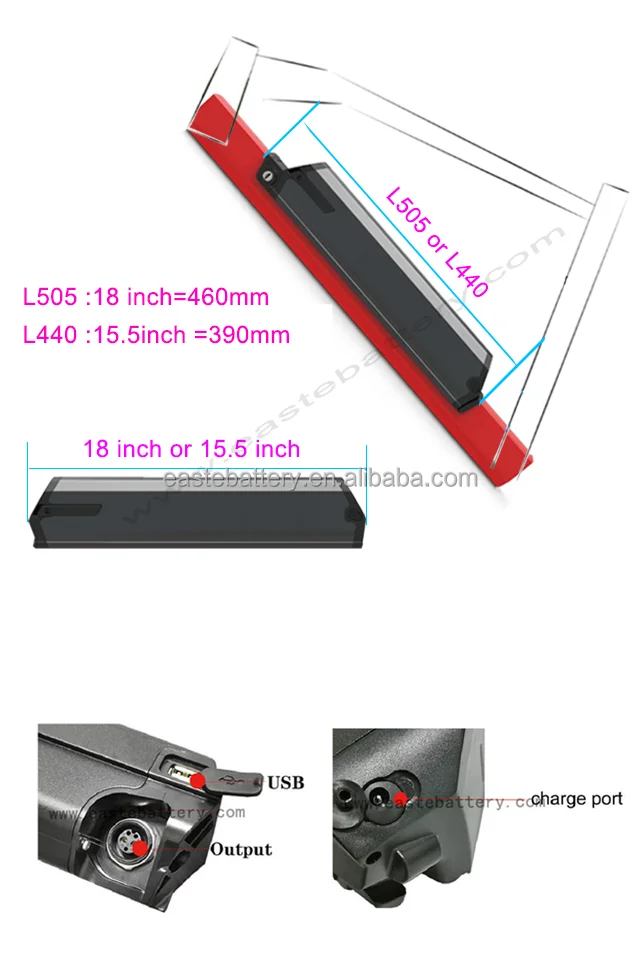

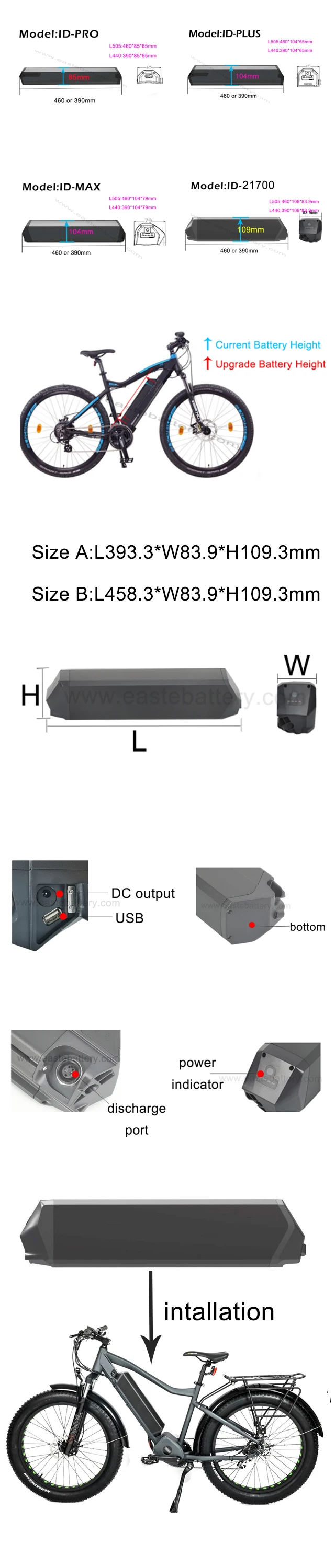

How to choose a spare well-fit upgrade battery?

1:Confirm the original battery belong to L505 or L440 down tube

2:Battery length 18inch(460mm) belong to L505, can be upgraded to max 48V21AH or Plus 48V17.5AH

3:Battery length 15.5inch(390mm) belong to L440, can be upgraded to Plus 48V14AH

4: Confirm the battery voltage:36V 48V 52V

5: suitable motor power : 250W/350W/500W/750W/1000W motor

REMARK:

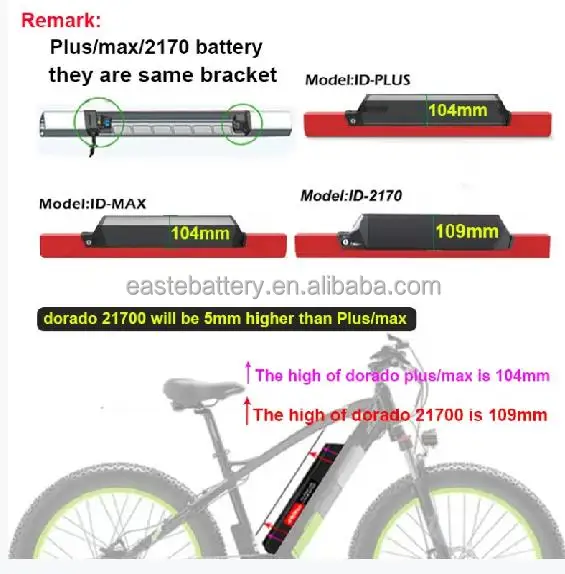

please check there is enough upper height space for upgrade more capacity battery .



Q1: Are you trading company or manufacturer ?

A1: We are a factory loacted at dongguan city,welcome to visit us.



Q2: How long is your delivery time?

A2: Generally it is 4-5 days for sample , it is according to quantity.



Q3: Do you provide samples ?

A3: Yes, sample order is ok, as we have enough stock for normal model ebike battery.



Q4: What is your terms of payment ?



A4: For bulk order,30% T/T in advance ,balance 70% before shippment. For sample order,100% payment before production.



Q5:What kind of after sales service would you provide ?



A5:If you have any questions when using,just feel free to contact our technology department.
