Our shale shaker screens are available for the FLC Series. Brandt VSM, Cobra Series, Swaco Mongoose and KEM-TRON shale shakers, and we accept customized shale shaker screen.

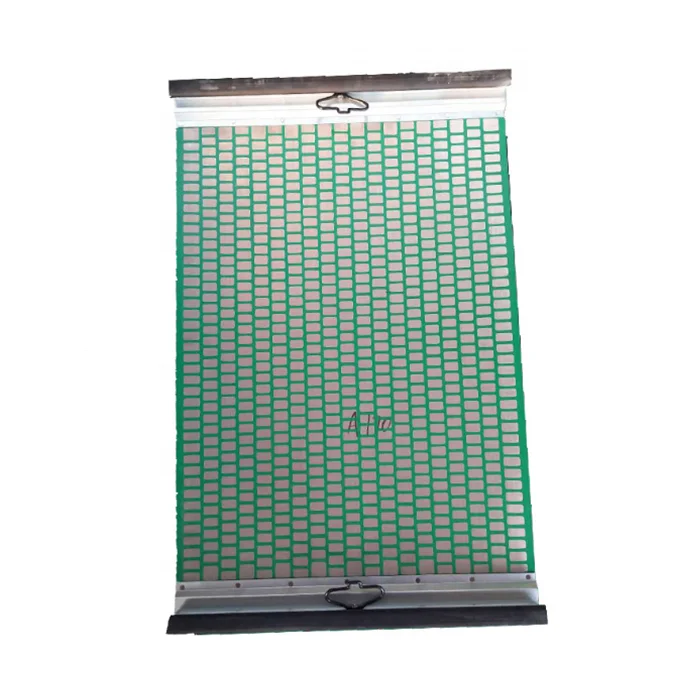

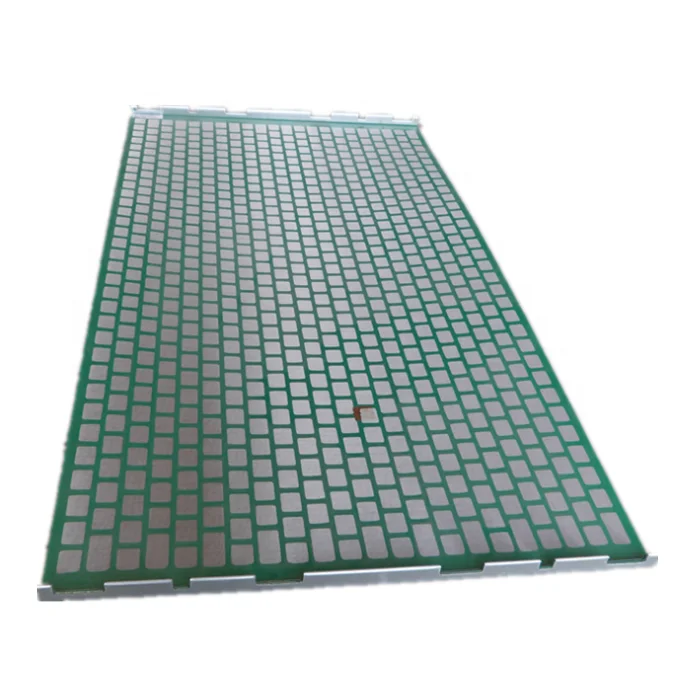

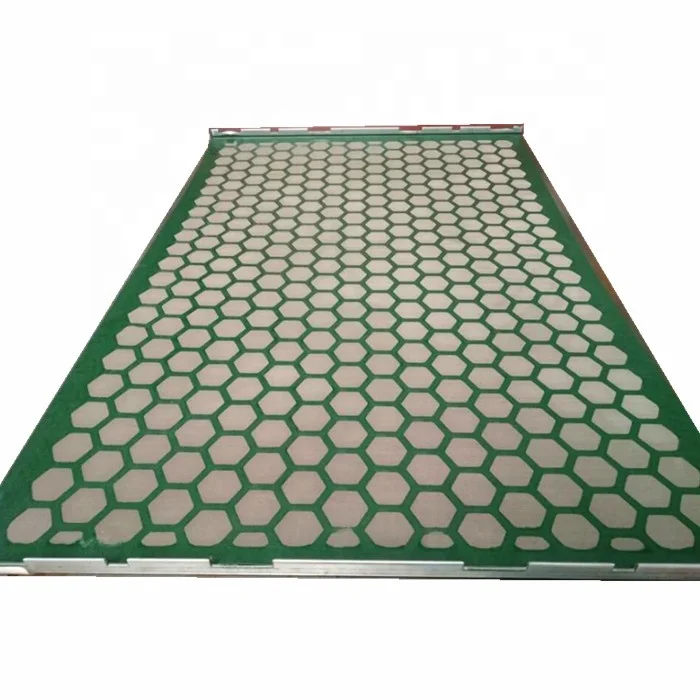

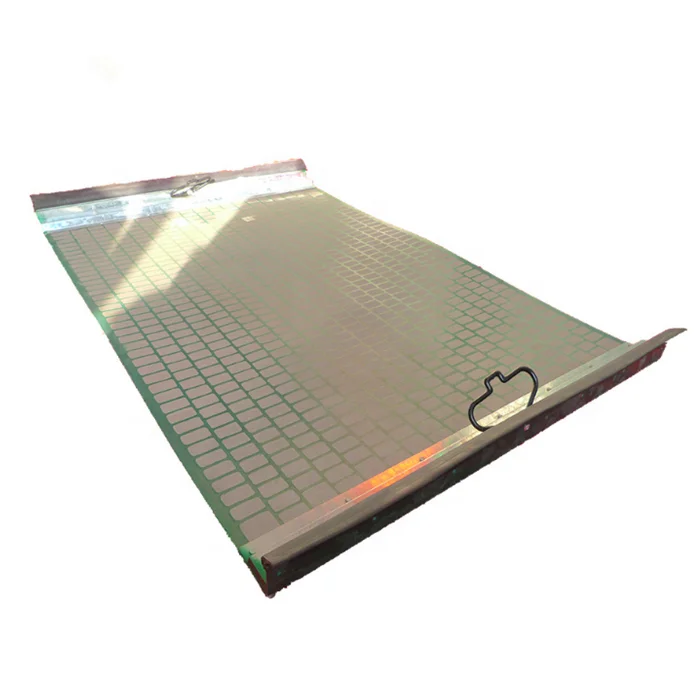

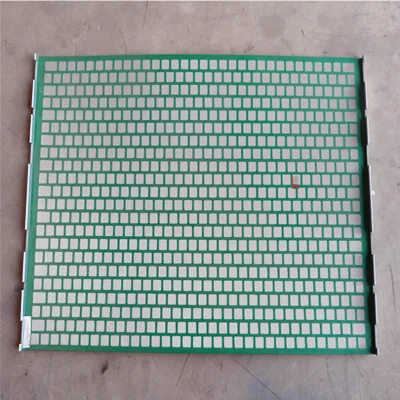

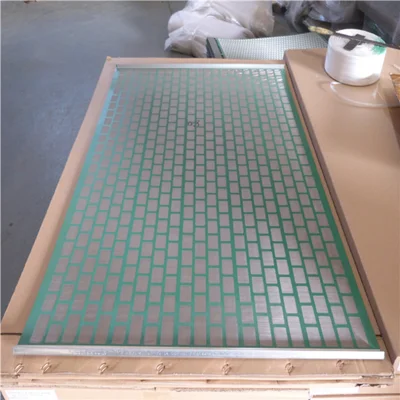

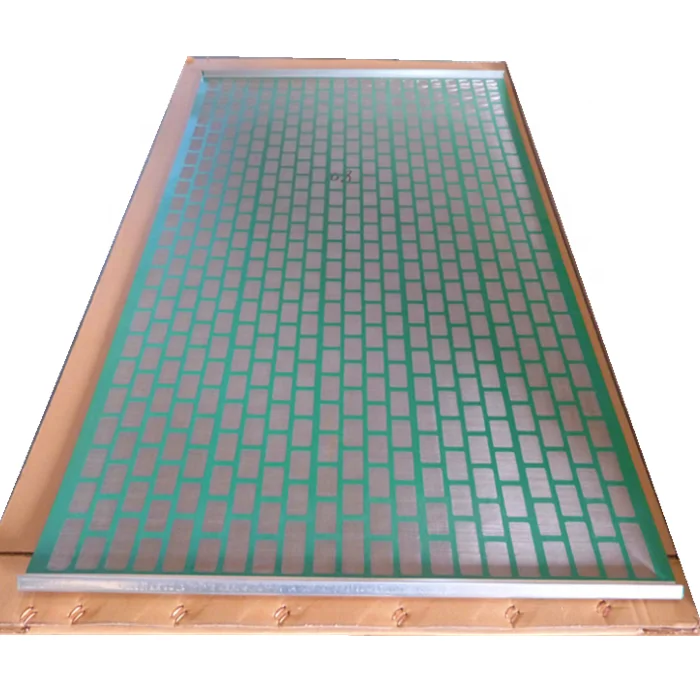

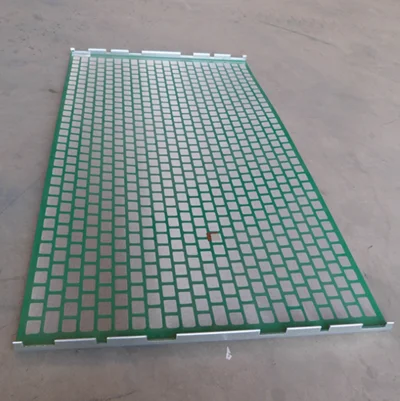

Flat Panel Shaker Screen
Flat panel shaker screen is the most common kind of shaker screen, which can be widely used in different conditions of drilling operations. The screens usually consists of two or three layers of stainless steel screen cloth bonded to the metal lining plate with opening. What’s more, special rubber plug can be attached to screen mesh to repair mesh surface damage, which can effectively save time and reduce production costs. Our factory has rich production experience and mature technology, we can produce a variety of sizes of screen according to customers’ requirements.
Mesh Size
Screen Size (L x W)
20-325
903×1155mm
20-325
1212×1141mm
20-325
697×1050mm
20-325
697×1053mm
20-325
697×846mm
20-325
915×1150mm
20-325
720×1220mm
20-250
700×1165mm
20-250
1186×1280mm
Other size can be produced as customers' requirements
Recommend Products

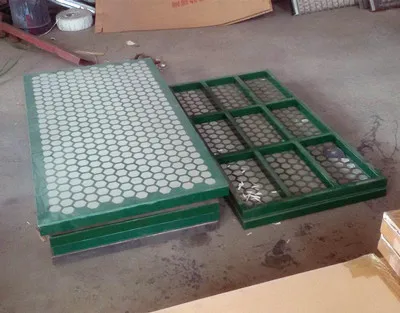

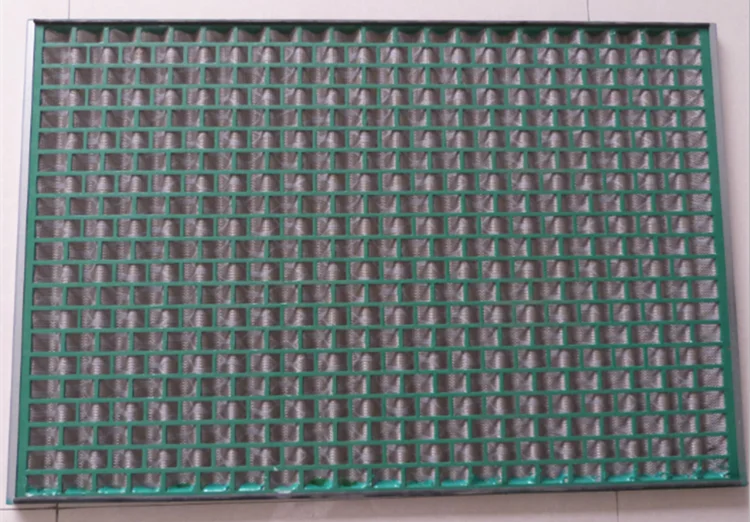

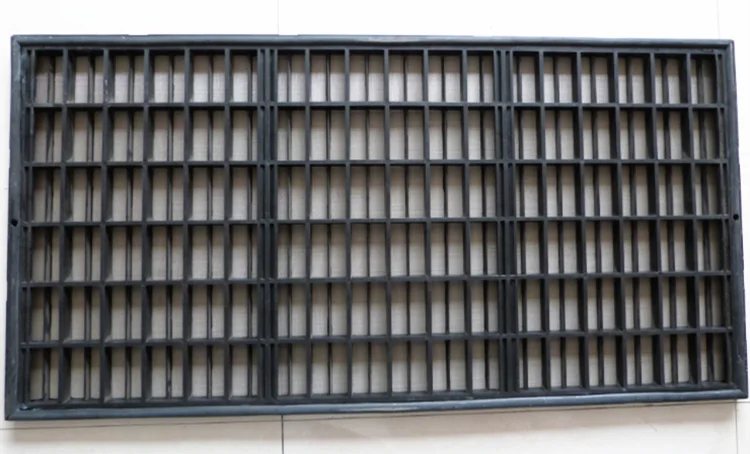

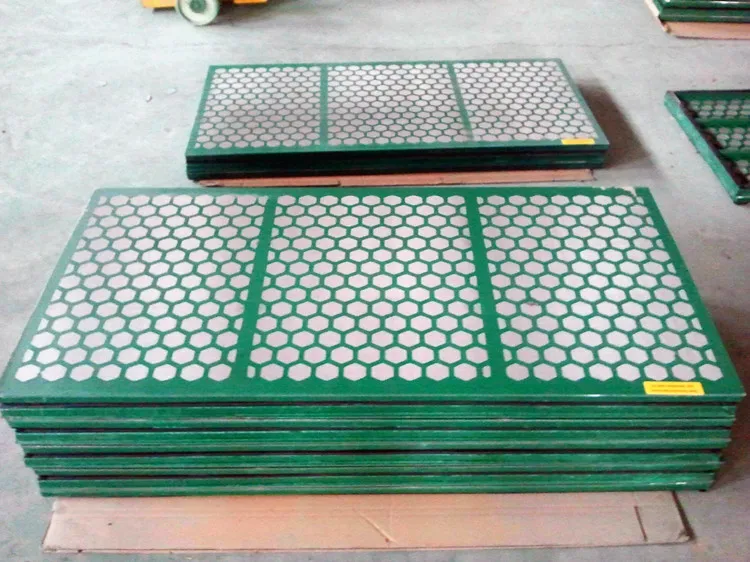

Steel Frame Shaker Screen
The Steel Frame Shaker Screen is a commonly used shaker screen, the main structure and characteristics are as follows:
1. The Steel Frame Shaker Screen consists of stainless steel mesh directly bonded to the metal lining plate, and then closely bonded to the steel frame through the metal lining plate.2. The mesh size of each layer of the The Steel Frame Shaker Screen is different, and the screening effect is more meticulous when matched accurately and reasonably.
3. The high-strength steel frame and support ribs of The Steel Frame Shaker Screen, as well as the moderately tensioned screen, form a tight whole, which improves the throughput, strength and use time of the screen. The wedge-shaped quick tensioning device of the steel frame shaker screen makes the installation of the screen more convenient and saves the downtime.4. The Steel Frame Shaker Screen mesh is divided into a plurality of independent small mesh surfaces to prevent excessive expansion of local damage. The steel frame shaker screen is also equipped with a special rubber stopper to repair the damaged mesh surface, saving time and reducing the cost of use.
5, The Steel Frame Shaker Screen can be customized according to customer needs, different sizes, plane or wave type.
Mesh Size
Screen Size (L x W)
Avaliable Brand
API 20 - API 325
1165 x 585 mm
SWACO MONGOOSE
API 20 - API 325
1250 x 635 mm
BRANDT KING COBRA
API 20 - API 325
1220 x 720 mm
KEMTRON 48 SERIES
API 20 - API 325
913 x 650 mm
BRANDT VSM300
Other size can be produced as customers' requirements

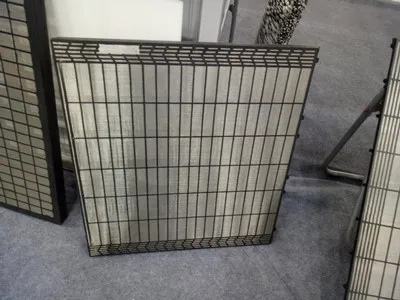

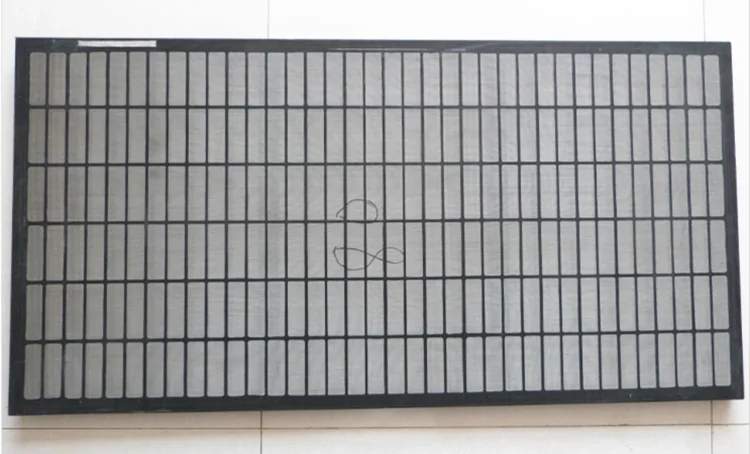

Composite Frame Shaker Screen
Characteristic: Wear resistance, corrosion resistance, high temperature resistance, etc.
1. Composite frame shaker screen is mainly composed of composite frame and stainless steel mesh cloth closely bonded together.
2. The mesh size of each layer of the composite frame shaker screen is different, and the screening effect is more meticulous when matched accurately and reasonably.
3. The high quality and high strength composite frame of the composite frame shaker screen enhances the corrosion resistance and toughness of the screen, has good shock absorption performance, and prolongs the use time of the screen.
Mesh Size
Screen Size (L x W)
Avaliable Brand
API 20 - API 325
1165 x 585 mm
SWACO MONGOOSE
API 20 - API 325
1250 x 635 mm
BRANDT KING COBRA/VENOM
API 20 - API 325
913 x 650 mm
BRANDT VSM300
API 20 - API 325
660 x 610 mm
SWACO MD-3
API 20 - API 325
SWACO BEM-600
Other size can be produced as customers’ requirements

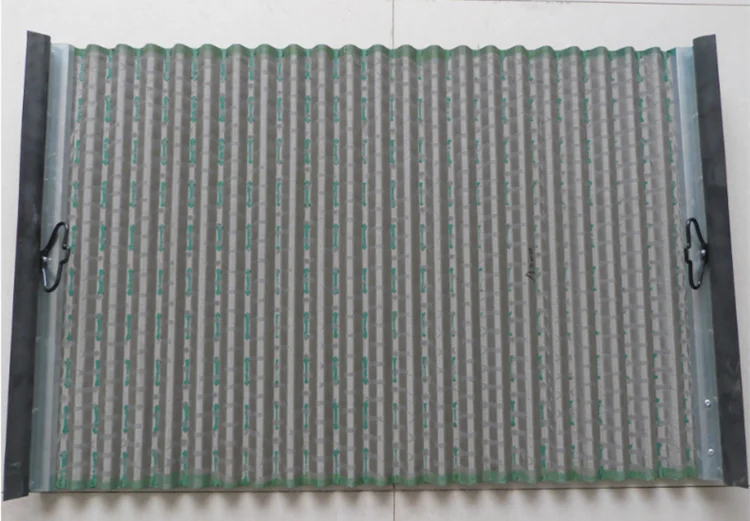

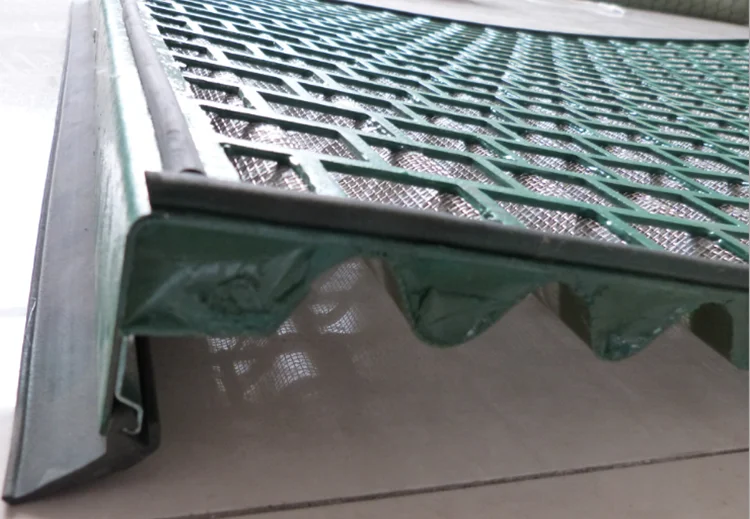

Wave Type Shaker Screen
Wave type shaker screen, also known as Pyramd type shaker screen, has a unique wavy surface. It is made of two or three layers of stainless steel screen cloth formed by bending and bonded with metal brackets with openings. The effective filtration area of the wave screen can reach 125% to 150% of the plate screen of the same size, so the processing capacity is greatly increased. we can produce a variety of sizes of screen according to customers’ requirements.
Mesh Size
Screen Size (L x W)
Avaliable Brand
API 20 - API 325
1053 x 697 mm
FLC 2000
API 20 - API 325
1050 x 697 mm
FLC 500
API 20 - API 325
1070 x 570 mm
HYPERPOOL
API 20 - API 325
710 x 626 mm
DUAL POOL 600
Other size can be produced as customers’ requirements

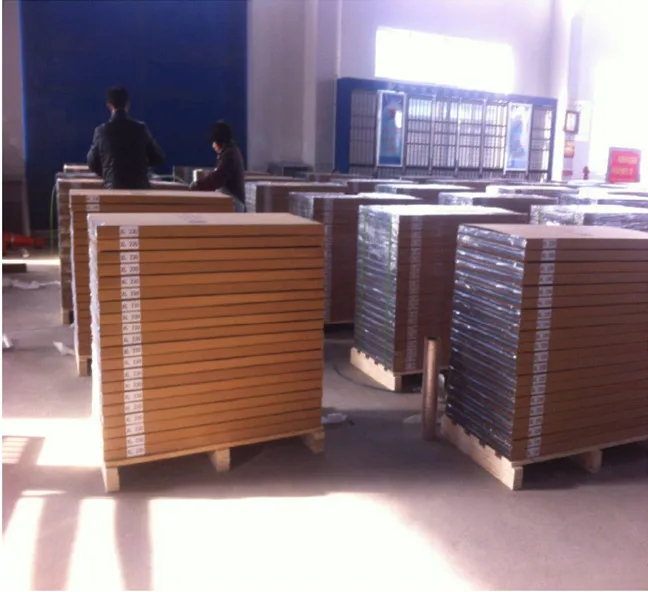

Packing&Shipping

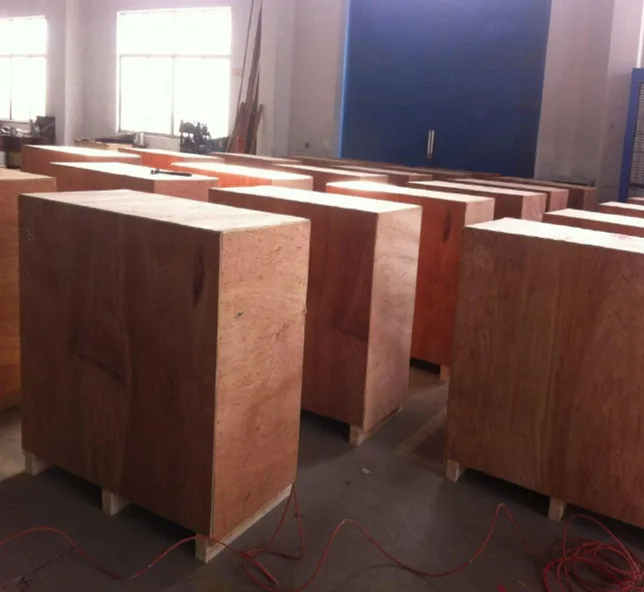

2pc/carton, 20pcs/wooden case for offshore drilling king cobra composite screen, or according to your requirement.
Goods will be delivered by sea, train, truck, air, etc.

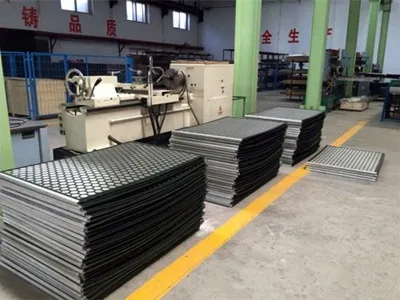

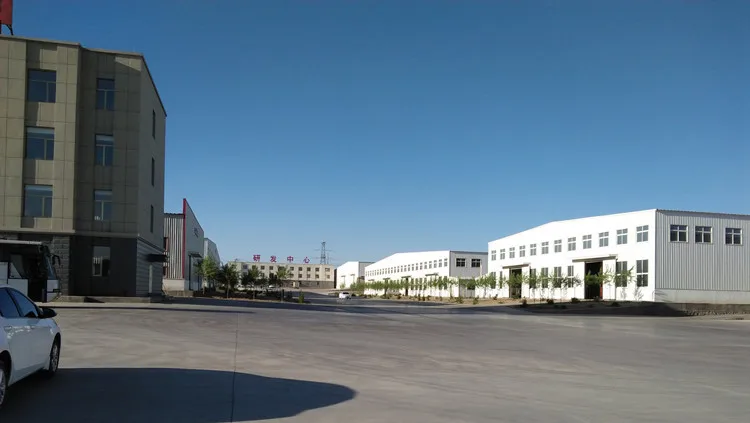

Company Introduction
Our petroleum solid control equipment accessories contain shale shaker screen, hydrocyclone, hook plate, hook plate bolts, fixed wedge, column, stabilizer, elastic block, L shaped bolts, ventilation devices, vibration motor, kinds of non-standard, etc. The market share of XRR is growing steadily and rapidly. Our products have a presence in more than 50 countries and regions in the world, covering North America, Latin America, Russia and Central Asia, the Middle East, Asia Pacific, Europe and Africa.
We insists on quality first, service-oriented, people-oriented, to create a harmonious business philosophy. Serve the people with integrity, high-quality. Then to better contribute to society.
Our Services & Strength
XRR has a skilled and experienced after sales team geared up for fast response and superior services to our customers at any time. Our Long distance monitoring center is equipped to monitor, diagnose, serve and manage the units delivered. XRR also provides technical training to our customers at regular intervals.
FAQ
1. Are the screens in stock? A: Some are in stock, but some need to be produced by orders.
2. Can I request to change the form of packaging and transportation? A: Yes, We can change the form of the packaging and transportation according to your request.
3. Can I have my own Logo on the product? A: Yes, but the logo need to be sent to us when signing the contract.
4. Can you produce the screens according to my requirements? A: Yes, we can produce screens as per your requirements, but all need to be discussed before signing the contract.
5. Can we visit your company before placing order? Welcome to our company any time you like.
