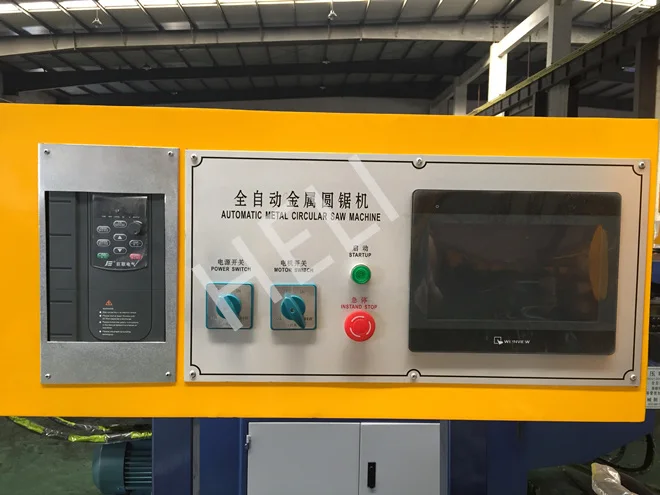

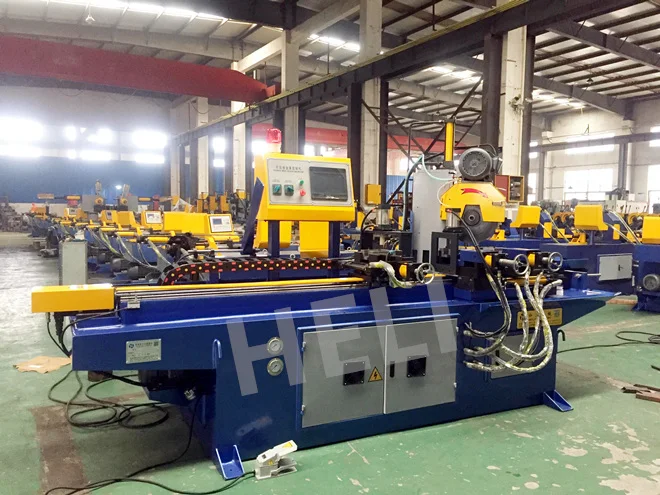

The feature of this machine as follows: 1: It’s CNC full automatic. Automatic feeding, automatic clamping 2: plc and touch screen control 3: automatic feeding controlled by servo motor 3: can set different feeding length when cutting one pipe, such as , the first feeding length is 50mm. Second feeding length is 200mm 4: the standard maxi feeding length is 1500mm at one time. And it can increased according to your need. 5: has pipe pulling function at last cutting, it can save the pipe, reduce the waste of pipe.
HVS-425FA-DR
blade position
Φ400mm × 3mm
100mm x 90mm

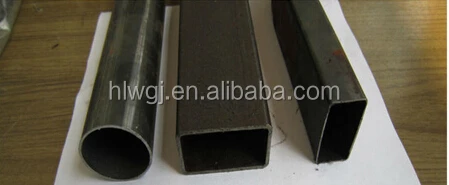

square tube
100mm × 100mm
round pipe
110mm
round bar
40mm
square bar
30m × 30mm
Dimension
2000mm × 1100mm × 1780mm
Weight
1000kg

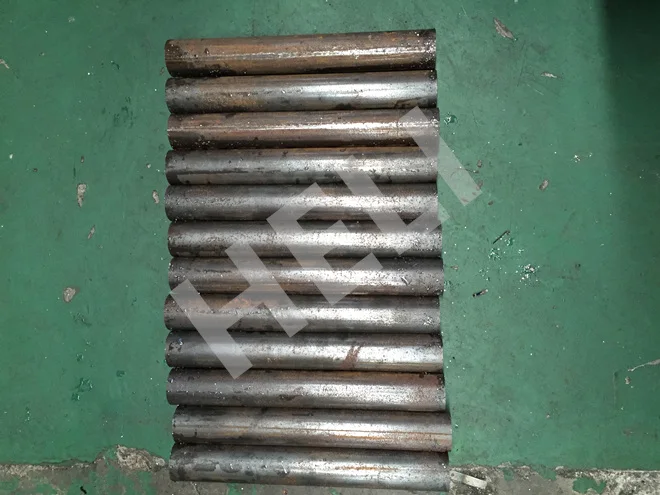

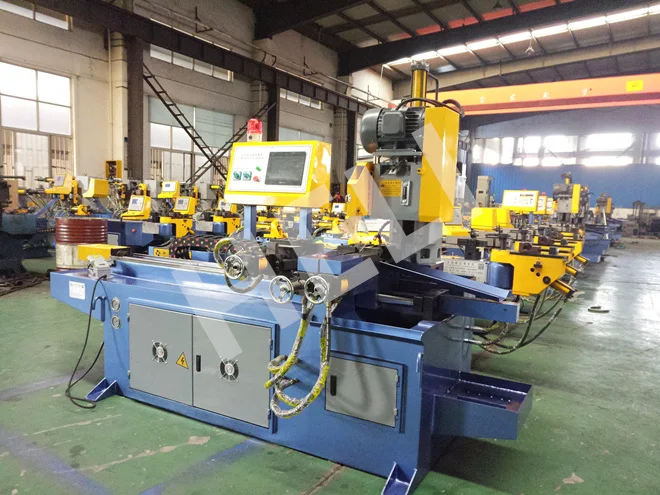

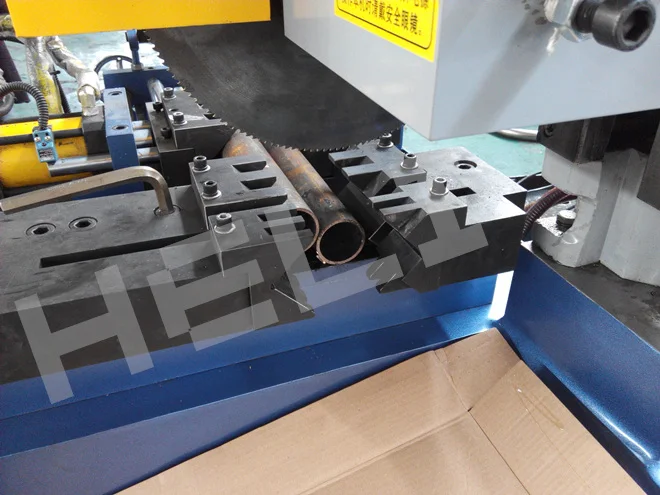

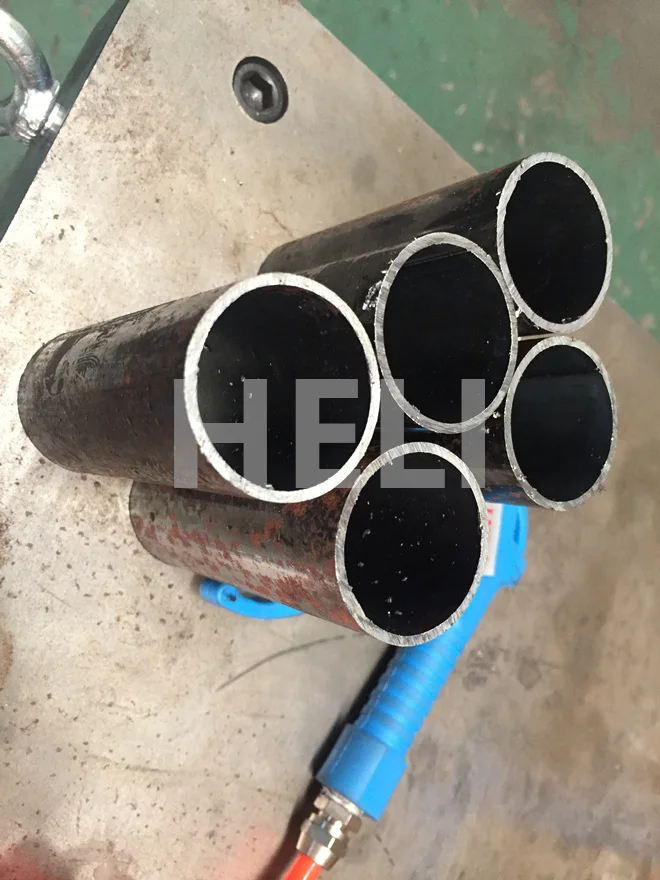

Detailed Images

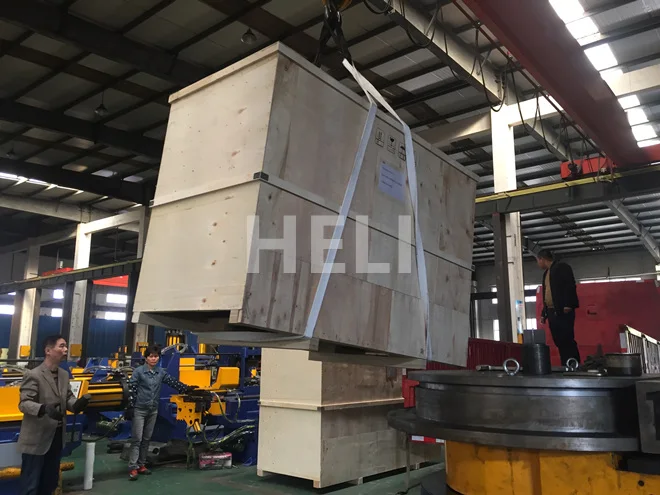

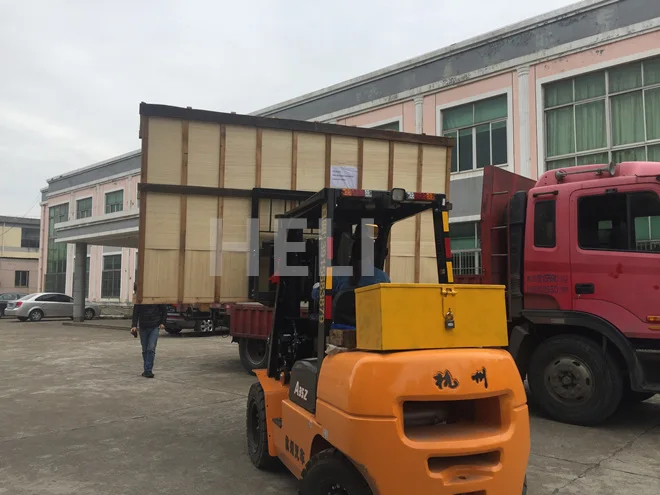

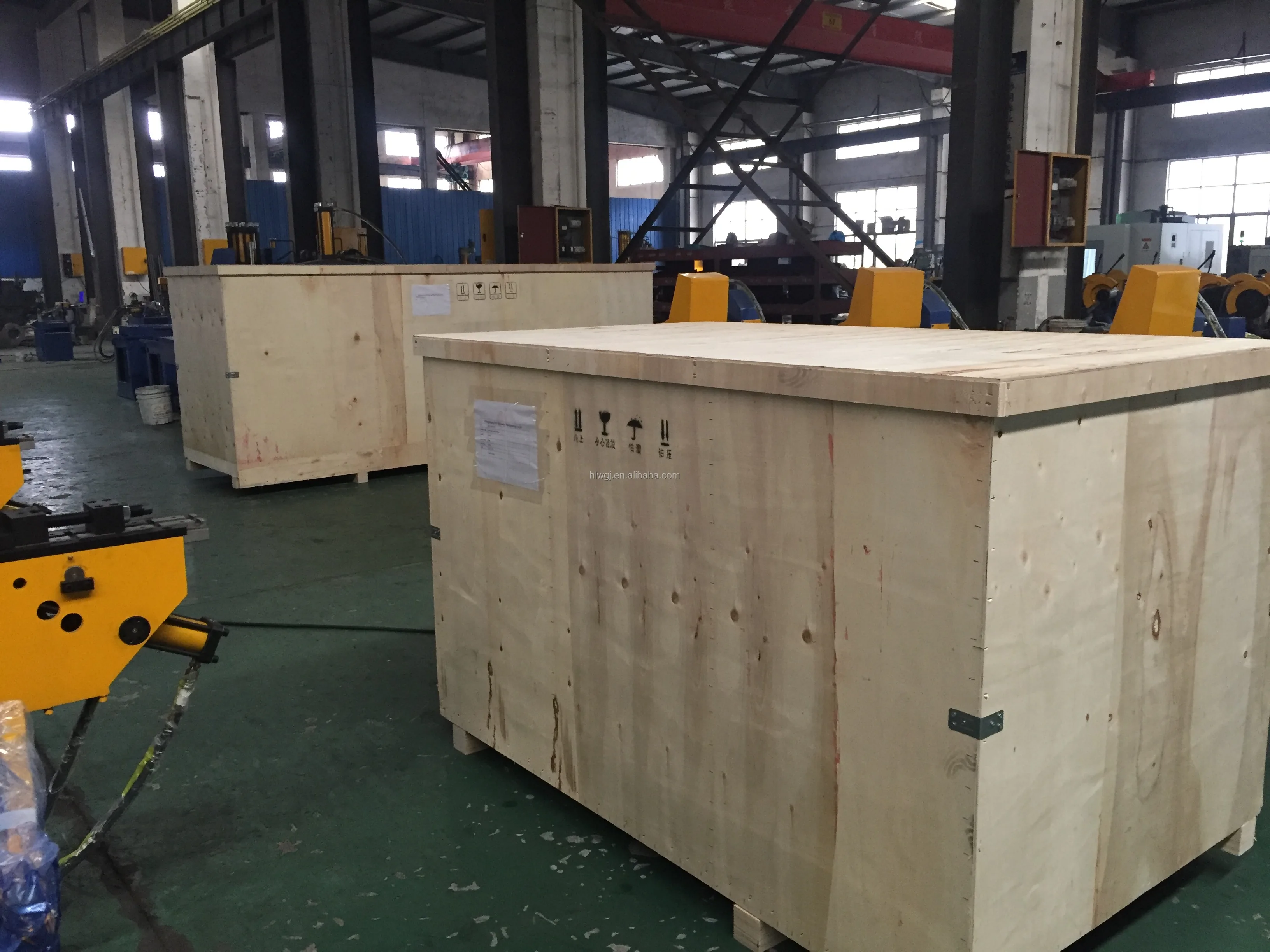

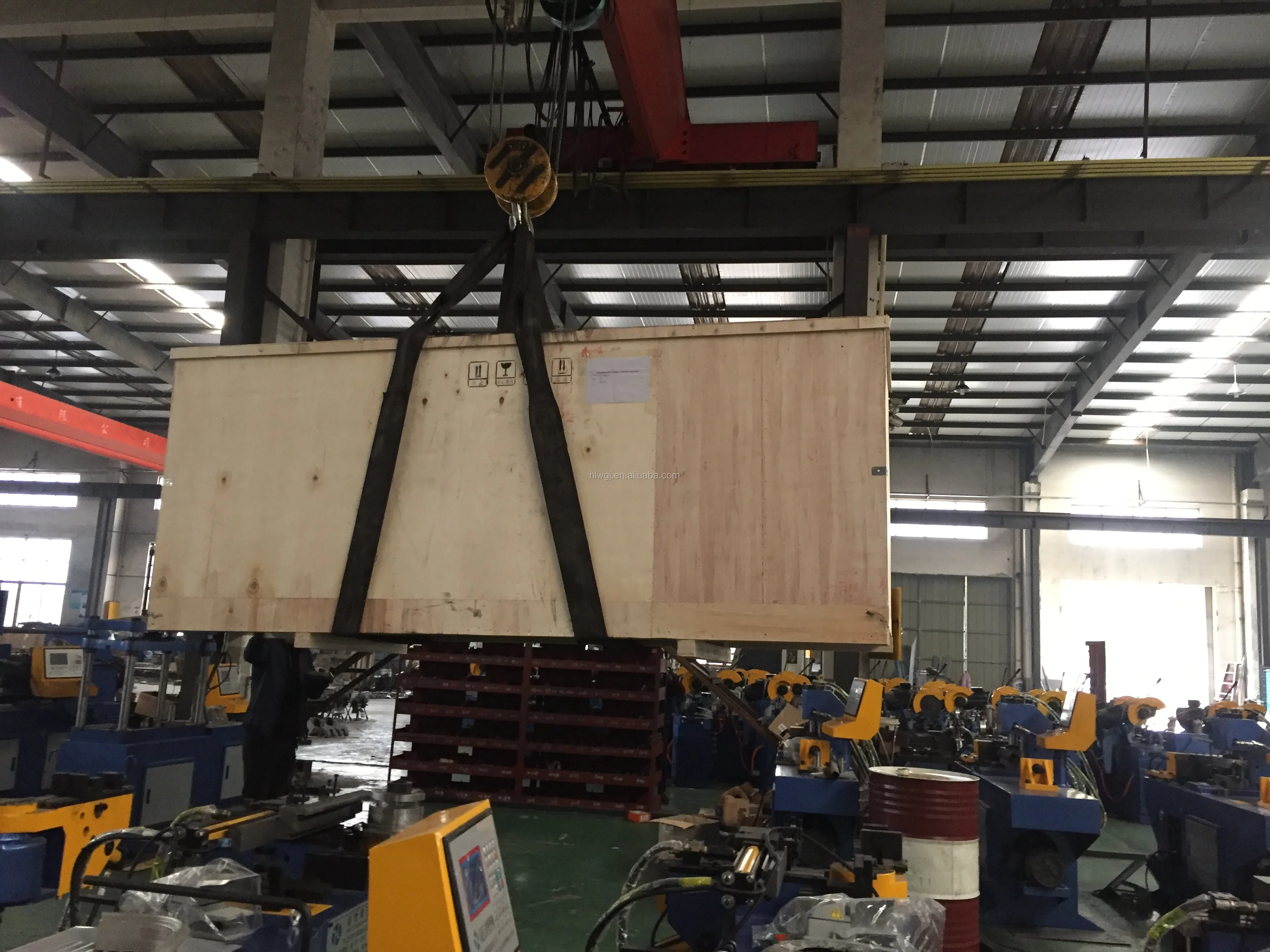

Packing&Shipping
After Sales Service
After the machine is installed in buyer’s factory, 365 days later, if any parts are damaged because of quality, the seller will give new parts for free I f any problem happens to the machine, Seller agrees to assist the Buyer in repairing the machine through email or phone call. In case the presence of Sellers technician is required for repairing the machine, the Buyer will pay for the tickets and accommodation of visiting technician.

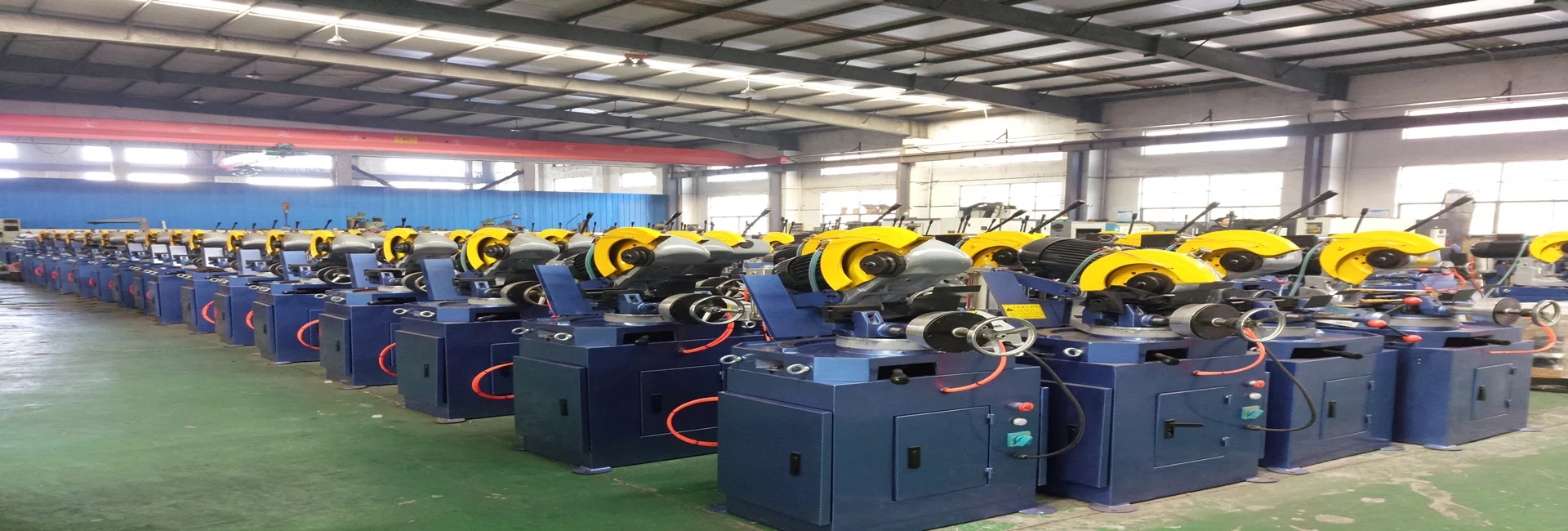

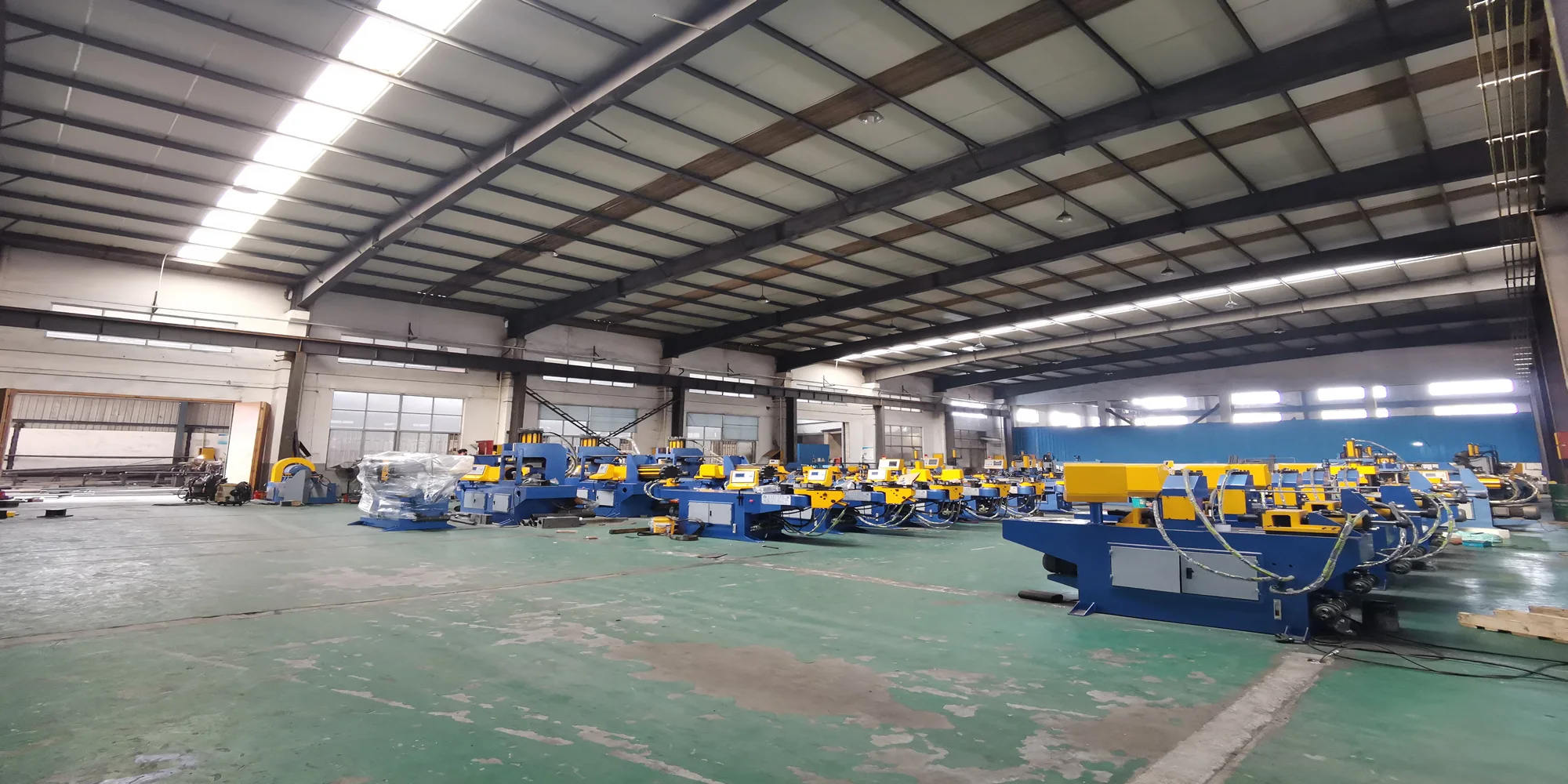

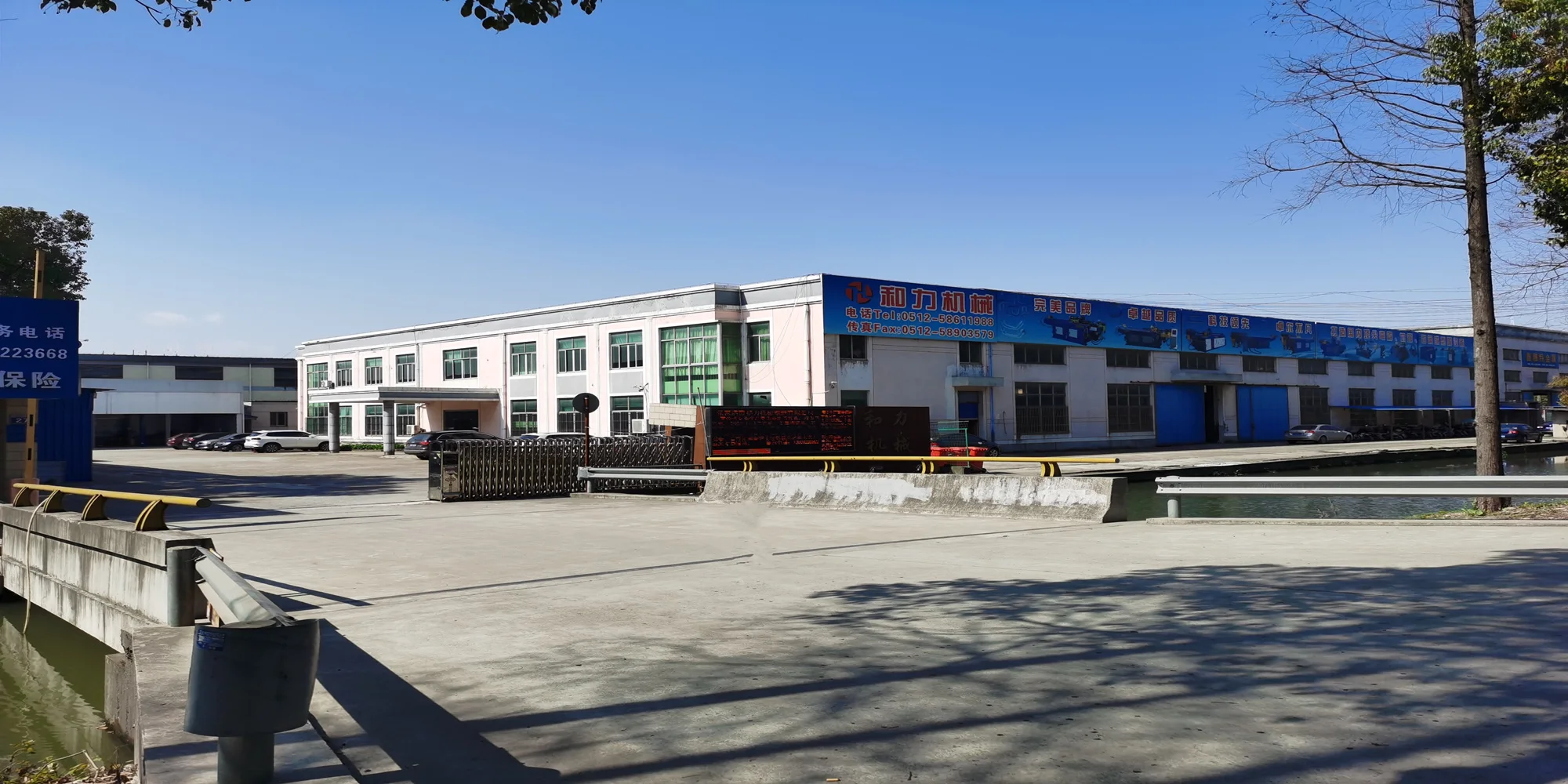

Company Introduction

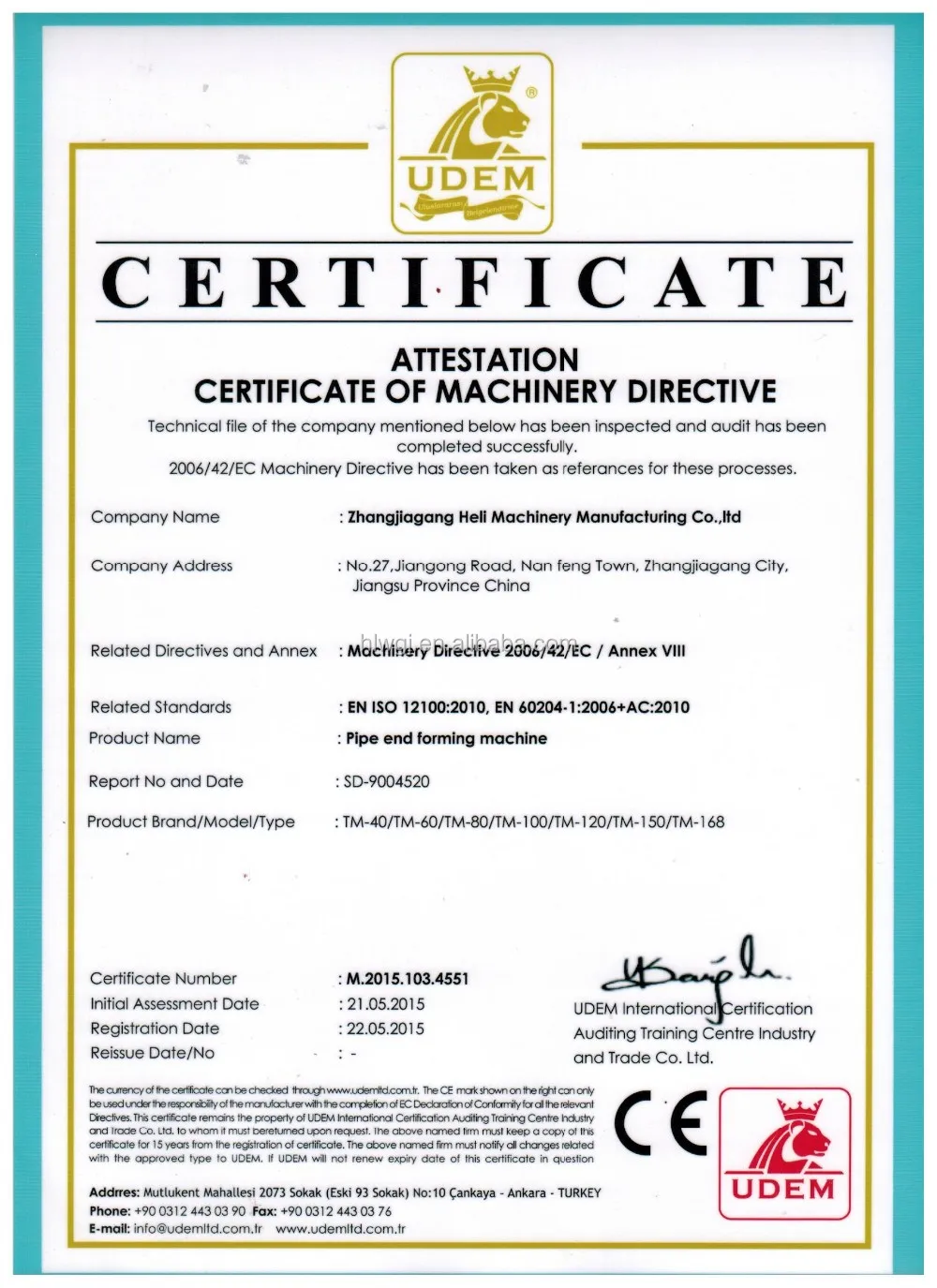

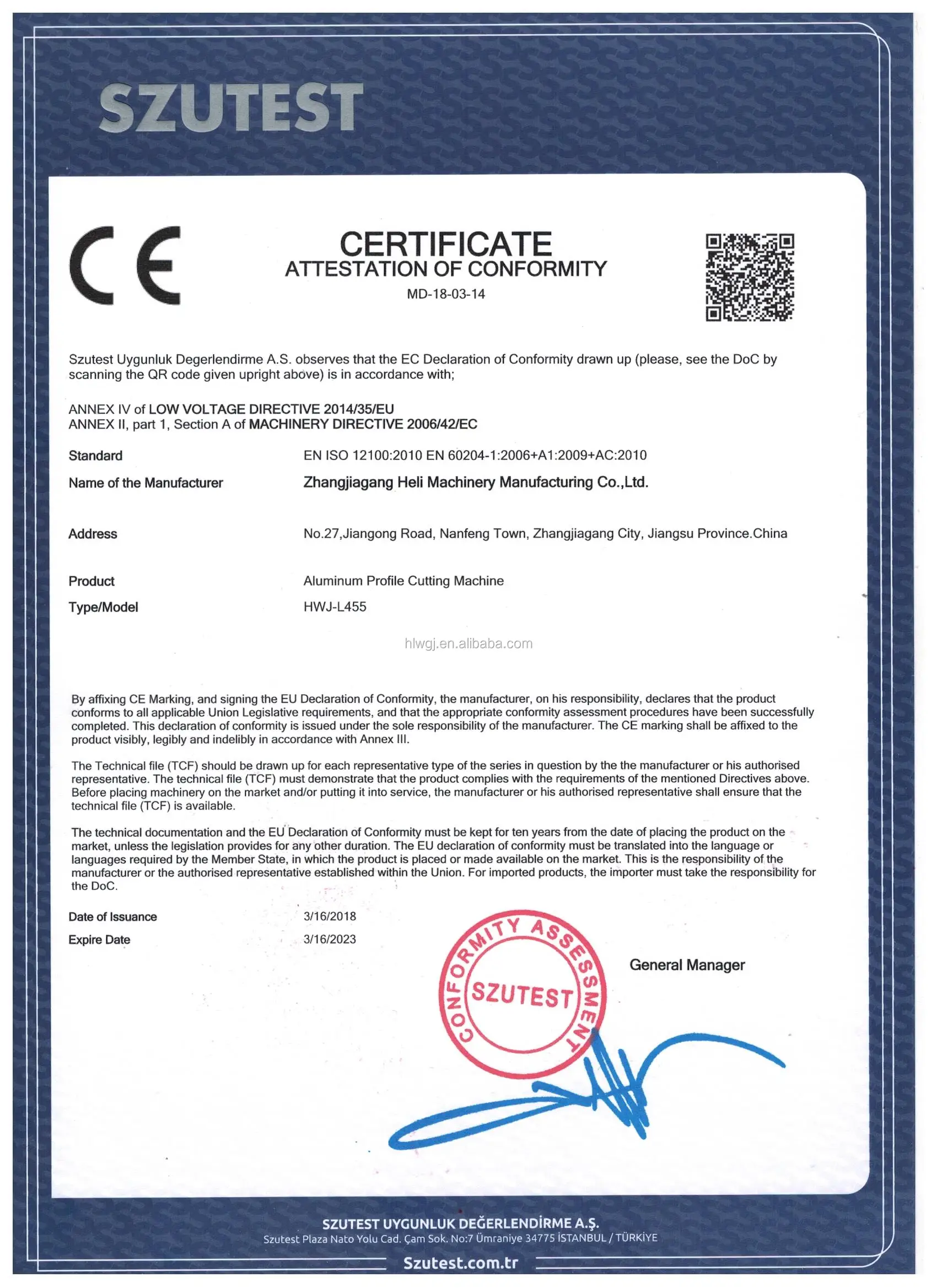

Zhangjiagang Heli Machinery Manufacturing Co.,ltd is one professional machinery manufacturing company with 5000 square meters and 15 years experience specialing in production and manufacturing of metal pipe processing machinery, our main products are ；pipe bending machine/pipe cutting machine/pipe end forming machine and other small pipe processing machinery. we have passed the authentication of ISO9001:2000 Quality Management System and gained a good reputation among our customers. Our company has a strong R&D team as well as the production and inspection equipment of high precision. . Our products are widely used in vehicles, motorcycles, bicycles, children's bicycles, steel furniture, air conditioner pipe systems, petrochemical industry, bathroom equipment, shipbuilding, boilers, and pipe manufacture industry.
