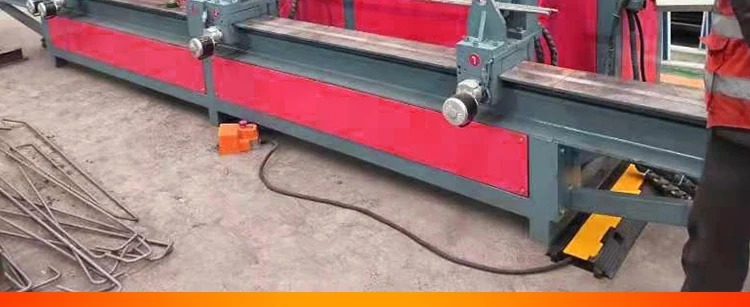

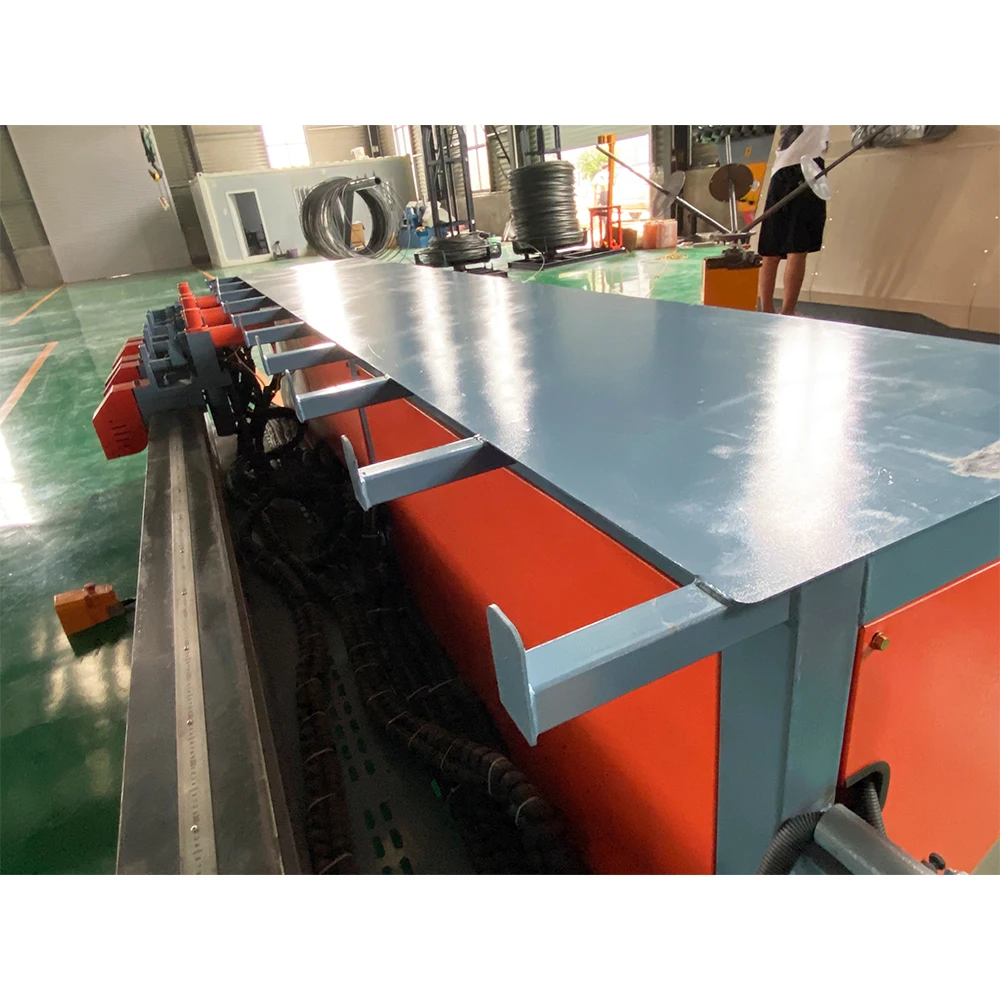

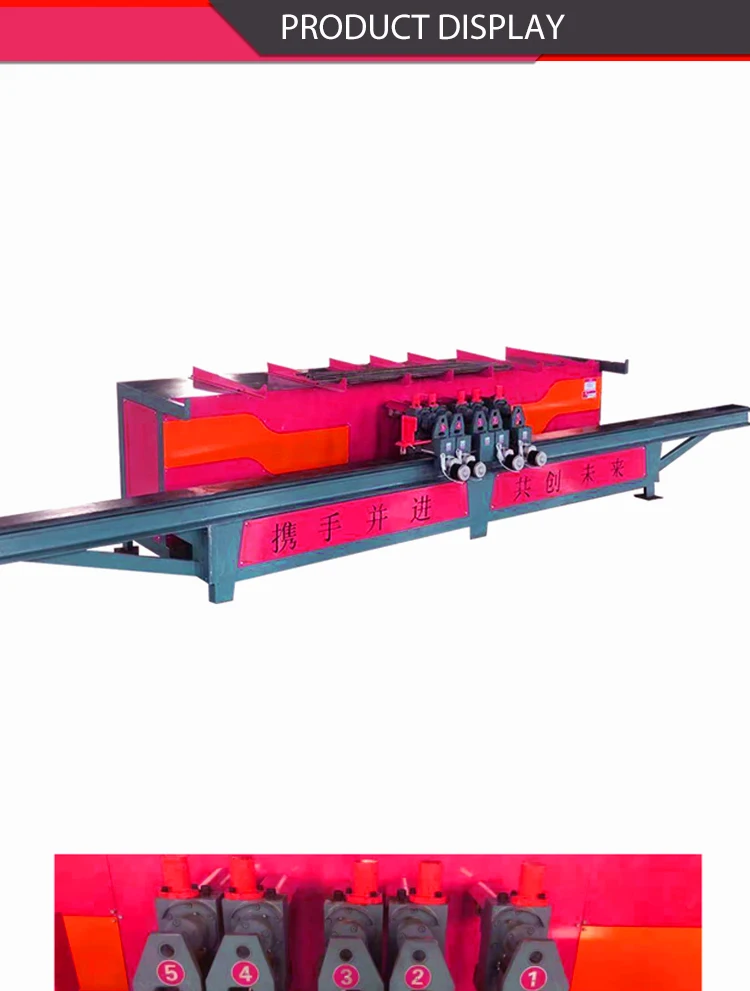

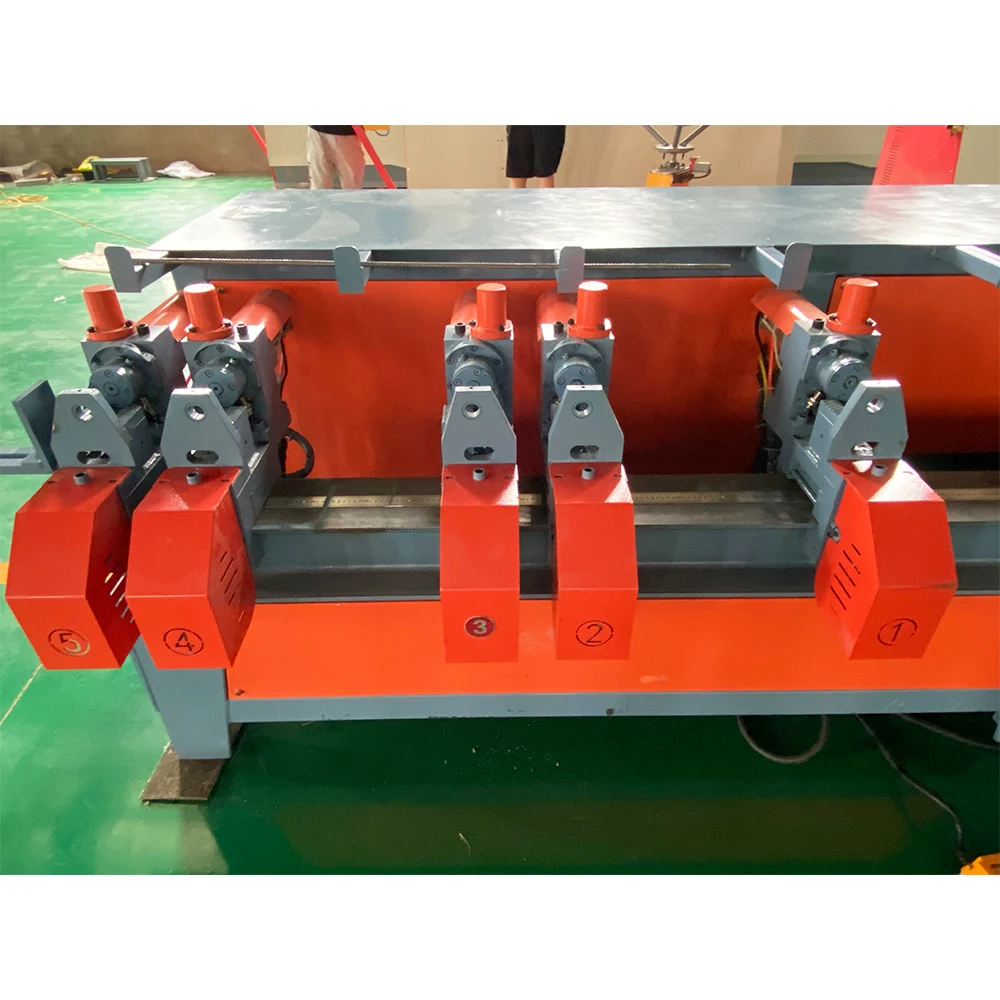

High quality Reinforced CNC automatic steel wire bar Bender Rebar Bending hoop Machine Intelligent five hoop Bending Machine

Name

4-25 Automatic type

Functional features

Electronic measuring ruler, manual adjusting ruler, automatic locking and automatic angle adjusting

Bending bar diameter

10-20mm

Motor power

4kw+4kw/380V

Forming speed of bending hoop

Adjustable speed of 4.5-10 seconds

Minimum stirrup size

150 * 150 mm (inner scale)

Gas source (self provided)

0.5Mpa min--0.8Mpa, motor 7.5KW

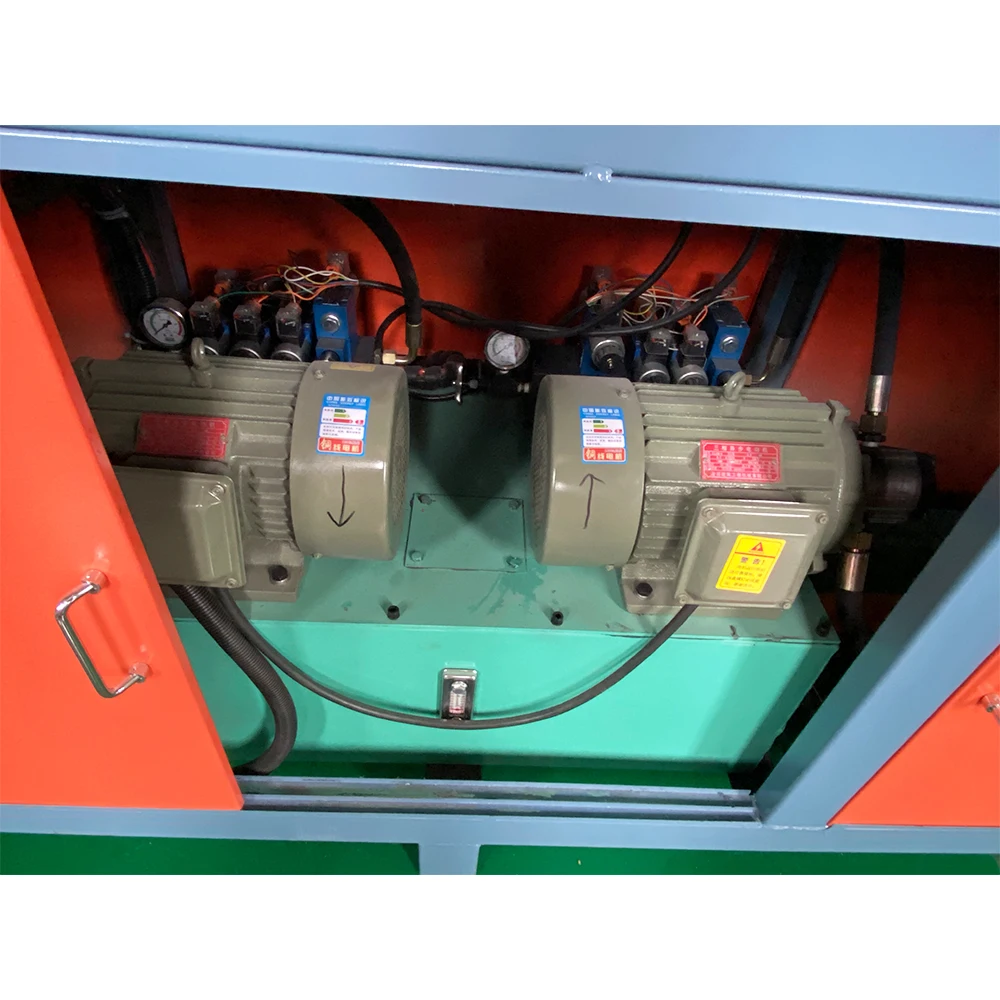

Hydraulic pressure

5-16Mpa

Length determination method

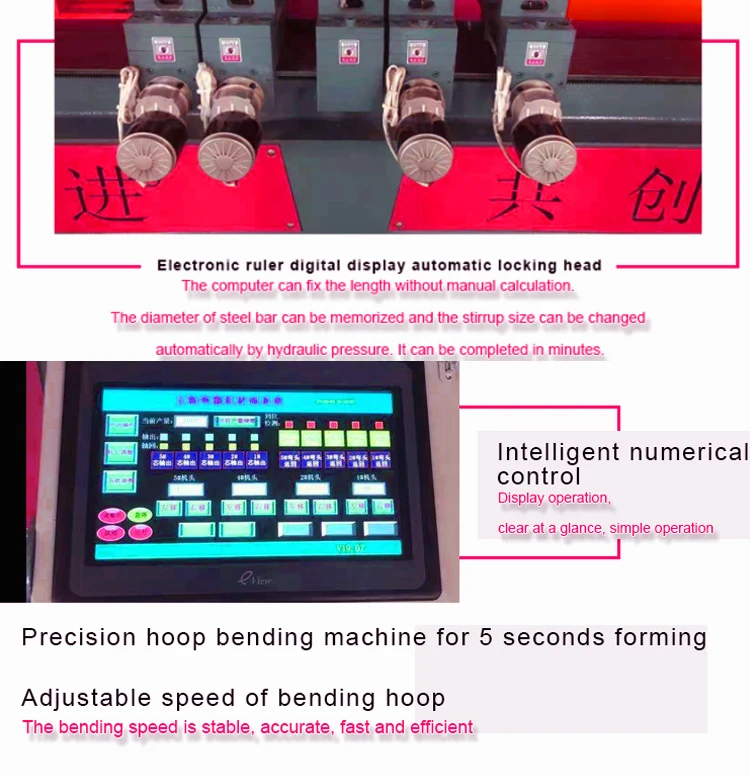

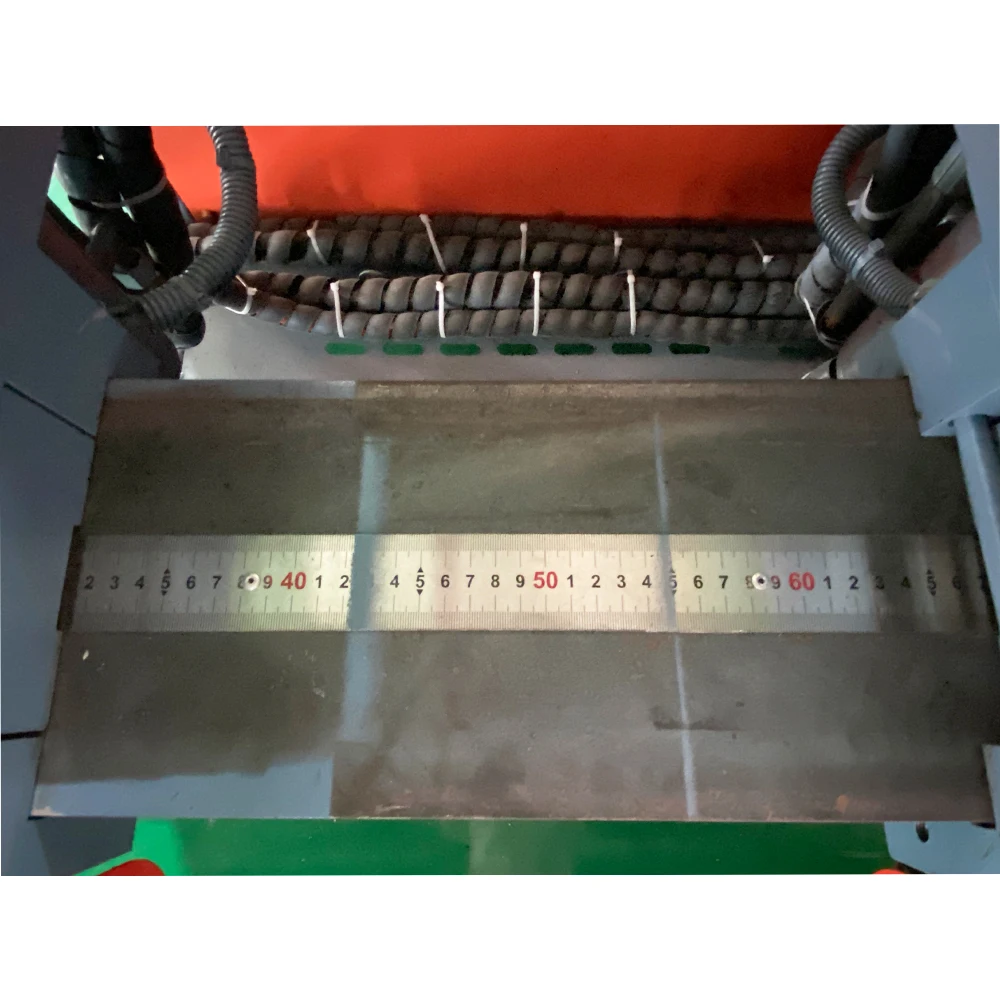

Electronic ruler digital display - automatic size adjustment

Locking method of machine head

Hydraulic automatic locking, internal pressure detection system, automatic pressure locking when the pressure decreases, to prevent the movement of the head.

Class yield

10t / 9h (according to 400 * 400mm diameter 10mm steel bar)

Degree of automation

Emergency stop, reset, fault alarm, real-time monitoring of operation PLC, and stop operation of hydraulic failure

Angle adjustment mode

Direct display of digital adjustment, automatic formula memory, change of drawing and reinforcement diameter, no need to re adjust the angle.

working temperature

20-60℃

Number of pieces processed

Φ 10 6pcs

Φ 12 4pcs

Φ 16 3pcs

Φ 18 2pcs

Φ 20 2pcs

Φ 22 1pcs

Steel processing shape

More than 20 shapes that are not available on the system can be added as required

Weight / size

1800KG 700*115*100CM
