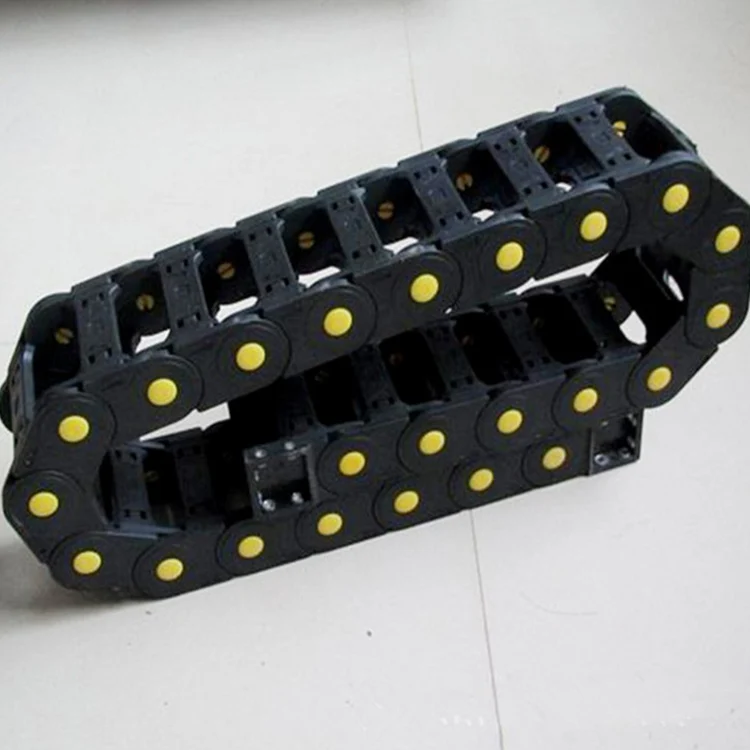

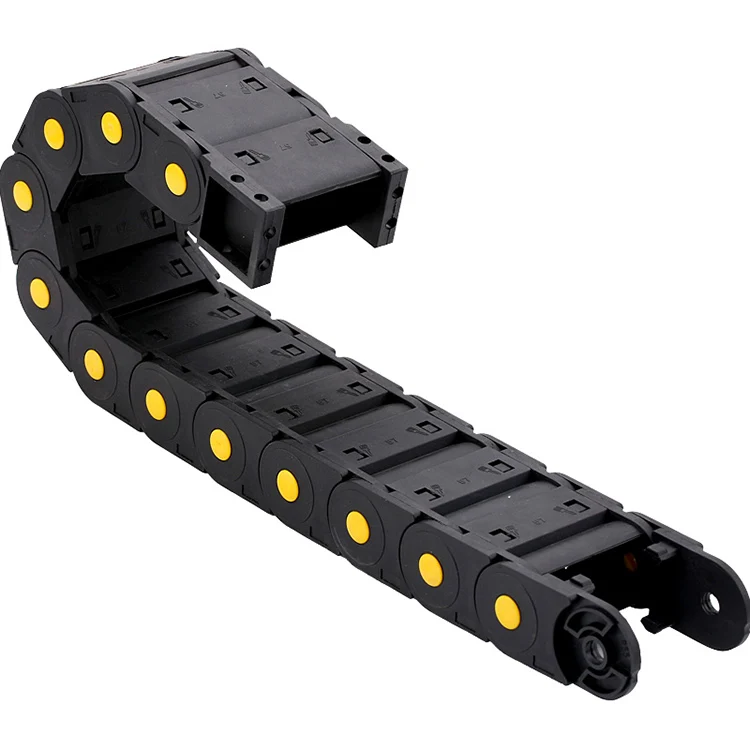

Bridge Opening Nylon Towline 15*30mm Plastic Towline Cable Drag Chain for 3D Printer

Contact inforamtion

Welcome your detail inquiry anytime.

Message in need when place an order,thanks

1.inside diameter

2.outside diameter.

3.bending radius

3.structure type

4.quantity

5.port.





Item Name 35 series 35x75mm Plastic Cable Chain Wire Drag Chain for Engraving MachineModelStandard
Rowas pictureApplicationMachinery Parts
Surface TreatmentSelf-color/sand-blasted/shot-peeningCertificationISO, ANSI, DIN, BS
PackingPackaged in boxes and wooden cases, or packaged in reels and then on pallets.PortAny sea port or airport in China





INTRODUCE

1.Materialof drag chain :PA66

2.Working temperatureof drag chain :-40°c---+80°c

3.Constructionof drag chain : Bridge,Semi-closed,Fully enclosed for choose

  •  a. the apprearance of the drag chain looks like the crawler of a tank consisting of certain number of joint.the joints of crawler are freely turned round.
  •  b. the same series of drag chain same inner height and same pitch but the inner width and bend radius can be made per different specifications.
  •  c. All lid of the TMY20 and above drag chain can be opened for installing wires into conveniently.
  •  d.Reinforced each part of  drag chain TMY20 and above.

4.Has long service life drag chain and anti-friction. repetitive motion times is more than million times.

5.Great carrying capacity drag chain , bend only one side

6.Small noise ,when it is moving,noise is very very small.

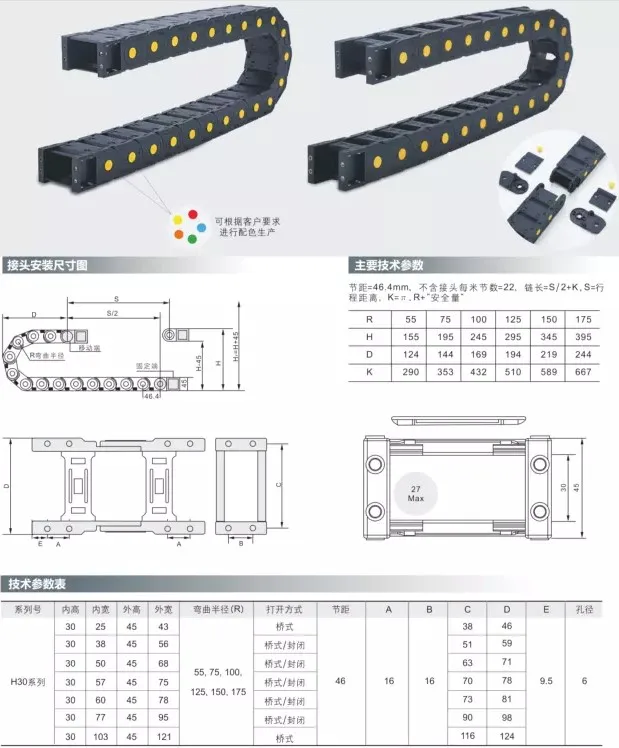

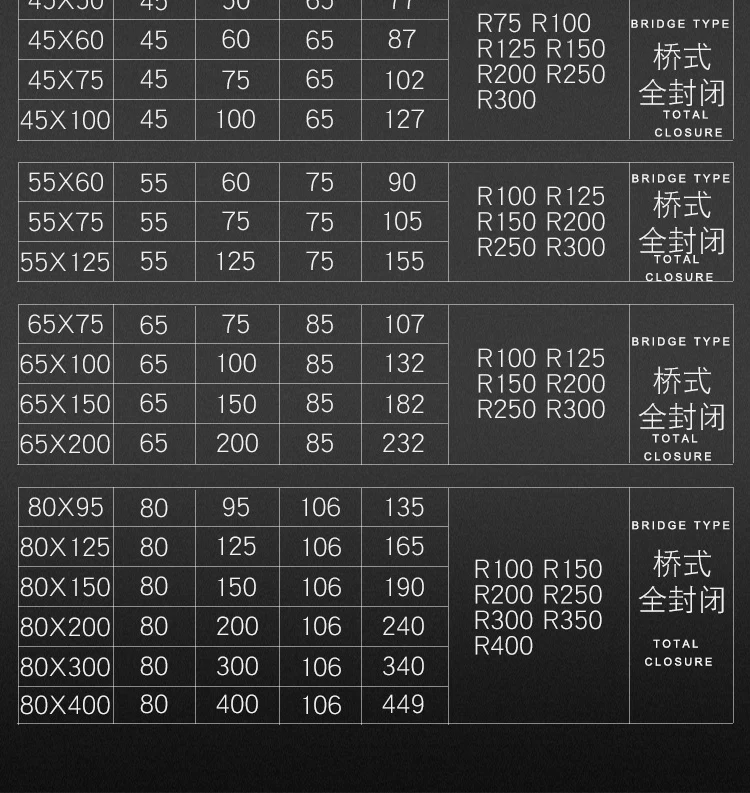

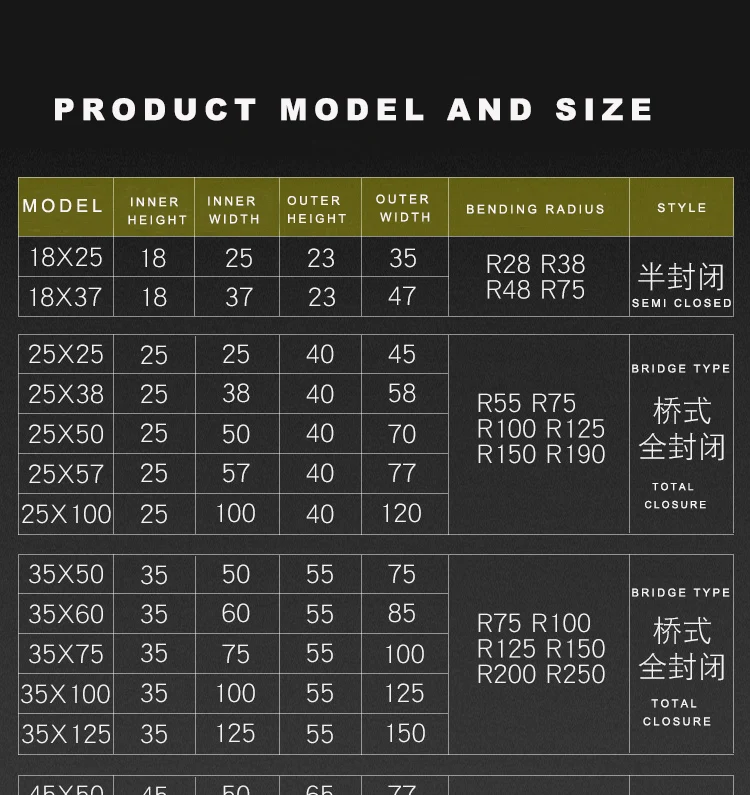

 Specification  sheet of drag chain

ModelInside Diameter           (height* width)

Outside Diameter

(height *width)

Bending Radius (R)Pitch(mm)Structure
GP77*710*1318/28 Bridge,All-in-One
GP1010*1015*1618/28/38 Bridge,All-in-One
10*1516*2318/28/3820
10*2016*2828/38
GP1515*1823*2628/38 Bridge,All-in-One
15*2023*2828/3820Semi-closed,Side open
GP1818*1824*3028/38/48 Bridge,Side open
18*2524*36
18*3724*4334
GP2020*2525.5*36.728/38/55 Bridge,Side open
20*5225.5*62.1
20*2535*4055/75/10047

Piecen,Reinforced,

Bridge/

Fully enclosed

20*3835*55
20*5035*65
20*6035*75
20*7535*90
20*10035*115
GP2525*2540*4055/75/125/150/175/20047

Piecen,Reinforced,Bridge/

Fully enclosed

25*3840*55
25*5040*65
25*6040*75
25*7540*90
25*10040*115
TMY3030*2540*4055/75/125/150/175/200      47

Piecen,Reinforced,

Bridge/

Fully enclosed

30*3840*55
30*5040*65
30*6040*75
30*7540*90
30*10040*115
GP3535*5055*7575/100/125/150/20066.5

Piecen,Reinforced,

Bridge/

Fully enclosed

35*6055*85
35*7555*100
35*10055*125
35*12555*150
35*15055*175
35*17555*200
35*20055*225
GP4545*5065*75100/125/150/20081

Piecen,Reinforced,Bridge/

Fully enclosed

45*6065*85
45*7565*100
45*10065*125
45*12565*150
45*15065*175
45*17565*200
45*20065*225
GP5555*5075*80100/125/150/200/250/30081

Piecen,Reinforced,

Bridge/

Fully enclosed

55*6075*90
55*7575*105
55*10075*130
55*12575*155
55*15075*180
55*17575*205
55*20075*230
GP6565*5085*82100/125/150/200/250/30081

Piecen,Reinforced,

Bridge/

Fully enclosed

65*6085*92
65*7585*107
65*10085*132
65*12585*157
65*15085*182
65*17585*207
65*20085*232
GP8080*75106*120150/200/250/300101

Piecen,Reinforced,

Bridge/

Fully enclosed

80*100106*145
80*125106*170
80*150106*195
80*175106*220
80*200106*245
80*250106*295
80*300106*345



 Application:

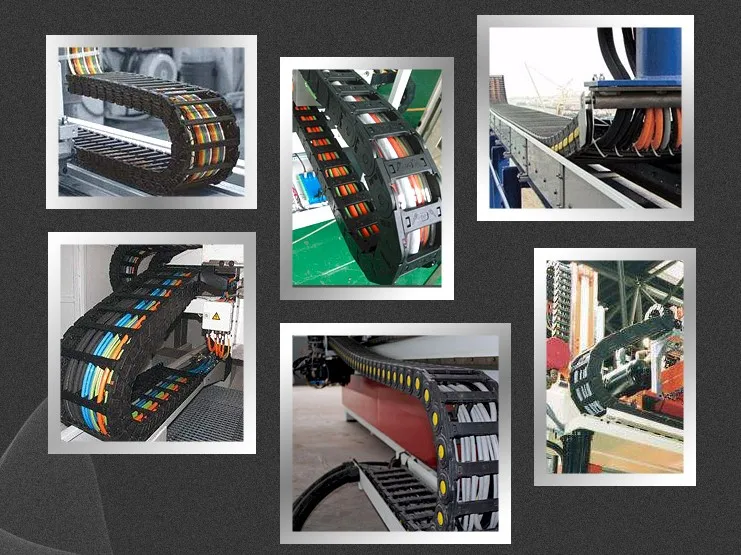

small drag chain has been widely used in CNC machine tools, electronic equipment, stone machinery, glass machinery, doors and windows machines, injection molding machines, mechanical hands, overweight transportation equipment, automated warehouses.
