Injection Unit Double-injection cylinder Double-carriage cylinder nozzle purge cover linear guide rail three kinds screw as option for every machine Nozzle contact force adjustment function nozzle central device Barrel cover Low-speed high-torque Hydraulic motor RPM sensor (4 times / 1 round) Removable hopper rail Clamping Unit Mould fixing designation referring Euromap 2 Robot mechanical interface referring Euromap 18 Ejection distribution referring Euromap 2 Big operation room for ejection anti-pitch slider (above BT150) Clamp transducer connect directly to cross head of toggle Central oil lubrication Hydraulic Unit Variable displacement pump One set sets core puller Oil temperature alarm Oil level meter and oil temperature indicator Low pressure clamping function Quick-clamping Mould height adjustment by gear mechanism Back-pressure control function Suckback Pressure relief valve for carriage moving (below BT650) Oil cooler High-precision bypass filter (above BT480) Fiter block alarm (above BT800) self-sealing filter (above BT800) nozzle moving function √ Electric and control part KEBA controller language (Chinese and English) Data lock and operation password SPC quality management Alarm and parameter resetting record PID temperature control Screw protection function Support current/voltage analogue output clamping force auto-adjust CAN interface injection 6 stage/pressure holding 5 stage/charge 5 stage mold clamp/open 5 stage /ejection 2 stage
BS component brand list
Hydraulics Internal gear pumps Pressure Sensor Hydraulic valve Plasticizing Motor Hydraulic motor for clamping High pressure hydraulic Hoses Electrics/Electronics Servo Motor Servo Driver Proximity Switch Photoelectric Switch Position Switch Three Phase Automatic Breaker AC Magnetic Contactor Heater Relay Solid state reply Intermediate relay Linear Transducer Computer Controller Others Screw &barrel Platen Lubrication System
Hydraulics Sunny Danfoss / IFM Yuken / TOKIMEC Calzoni/Rivazzi /STF Ji Ning Li Ke /Dali Alfagomma Electrics/Electronics BORCHE Inovance Sick/ Omron Sick/ Omron Nais/ Schneider ABB/Schneider Siemens/Schneider Siemens/Schneider Carlo/Crydom Carlo/Schneider TTC/Vishay KEBA Others Material : 38CrMoAl QT500 Herg
Hydraulics US/made in China Demark/Germany Japan/USA/Germany Italy/China China Italy Electrics/Electronics China China Germany/Japan Germany/Japan Japan/France Sweden-Swiss J.V/Germany Germany/France Germany/France Swiss&USA Swiss USA Austria Others China China-Hong Kong J.V Japan
Detailed Images

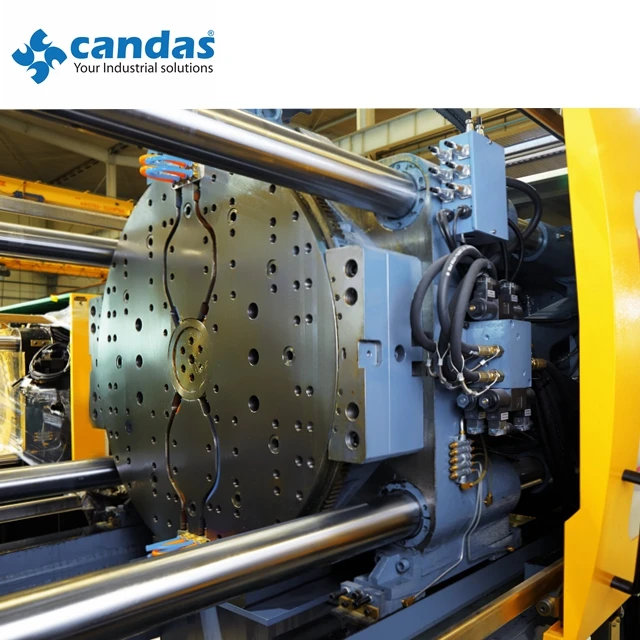

MOVING PLATEN CLAMPING
1-Tie bars move across clamping cylinder, no touch with seals, lessen pressing leakage; Module type clamping cylinder, can be assembled and disassembled together, easy for maintenance.
2-Pistons of four cylinders are controlled separately, which can adjust the locking position precisely, and assure fast and precise locking.
3-Clamping cylinder assembled in the moving platen can balance the load of mold, avoiding mold forward, improve stability of moud open and clamping movement.

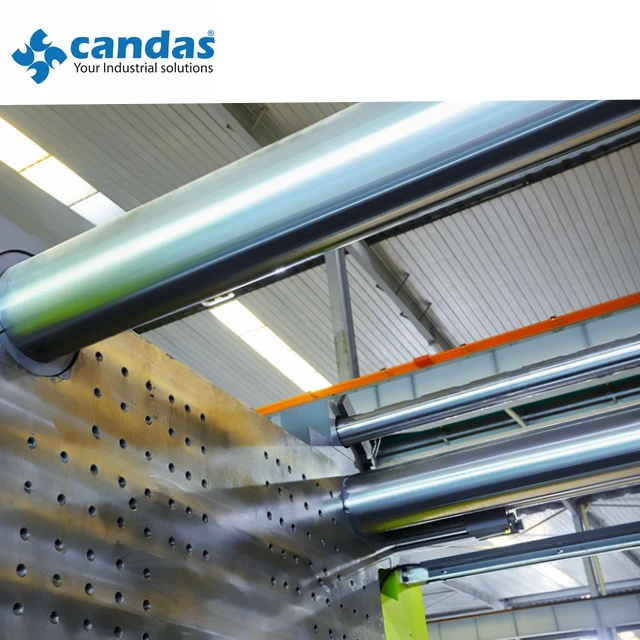

SUPER LONG LASTING TIE BAR
1-During high pressure locking, four tie bars under equal force, no unbalance loading occured, avoiding tie bar broken theoretically.
2-The machine is equipped with more than 20 nameplates, humanized design, always remind the operator to pay attention to safety
3-Adopt double - beam - shift structure, the platform is good to the neutral, the work is more stable

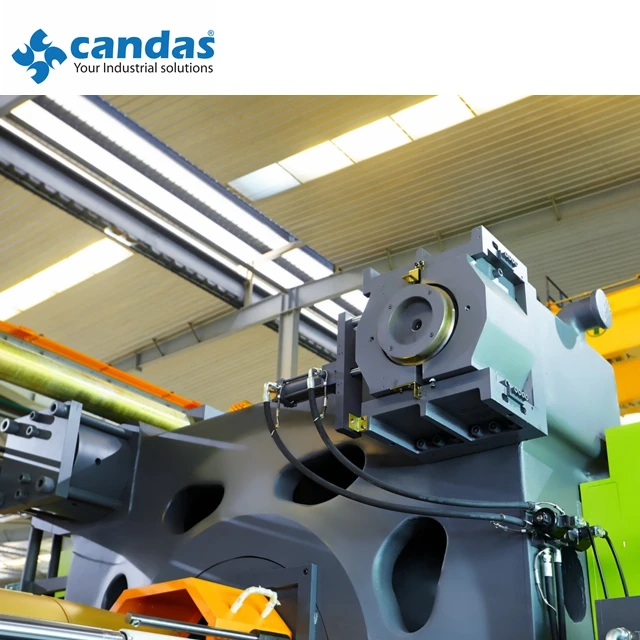

INNOVATED INJECTION STRUCTURE

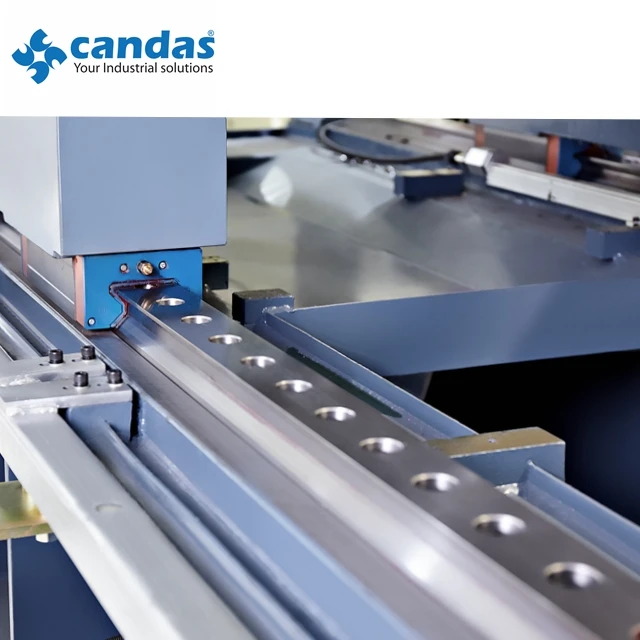

1-Both carriage cylinder and injection adopt linear guider, which guarantee stable and fast movement
2-injection supporting made by one piece casting, is rigid and compact.
3-Double carriage cylinder insures injection unit better centering, and movement stable.

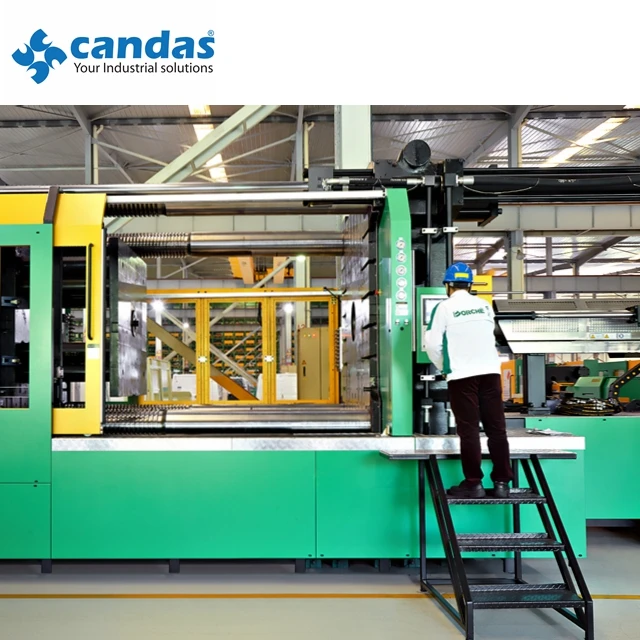

MACHINE SIZE
1-The machine shape is designed according to ergonomics, the machine appearance and operation performance is more humanized
2-After optimization, the rigidity of machine structure is greatly improved
3-The clamping frame is fully hollowed-out, which can adapt to the full automatic production system of three conveyor belts at the same time
4-Adopt transparent front safety door design, equipment monitoring is more intuitive
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Size
710×240×210
Weight
1.9T
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
710×240×210
Weight
1.9T
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Certifications
Related Products
Logistics
Machine Model: BU2500
Molding Technique: Enlarge Injection Weight
Product: septic tank
Weight:22.5kg
Material:PE
Borce BU machine has super large mold opening stroke, and strong opening force, which is perfect to make deep cavity products.
Auto Parts
Machine Model: BU3300
Molding Technique:
Charging during mold open
Core out/Ejection forward during mold open
Core in/Ejection backward mold open Product:bumper Weight:4.5kg
Material:Modified PP
Adopted servo charging, BU3300 realizes three parallel movements, lessen dry cycle time. Cycle can be reduced more if mold cooling time less.Servo valve used for injection increases shot repeatability, meets the high precision and efficiency requirement of auto part molding.
Think wall and complicated shape product, needs good plasticzing, high shot speed and stable injection end position. Special designed BU1200 can meet all the requirements of household appliance industry.
