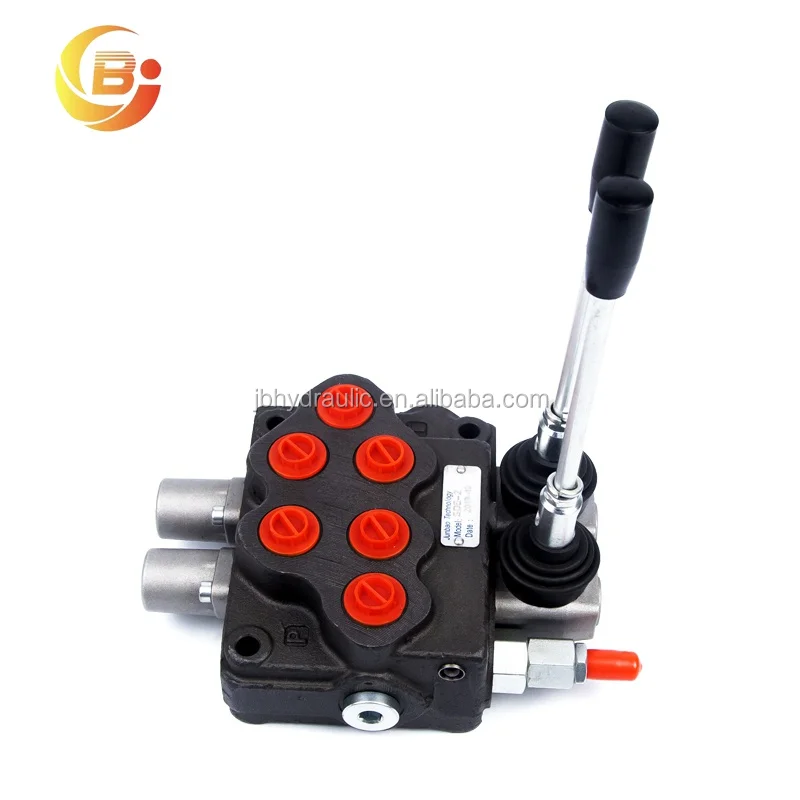

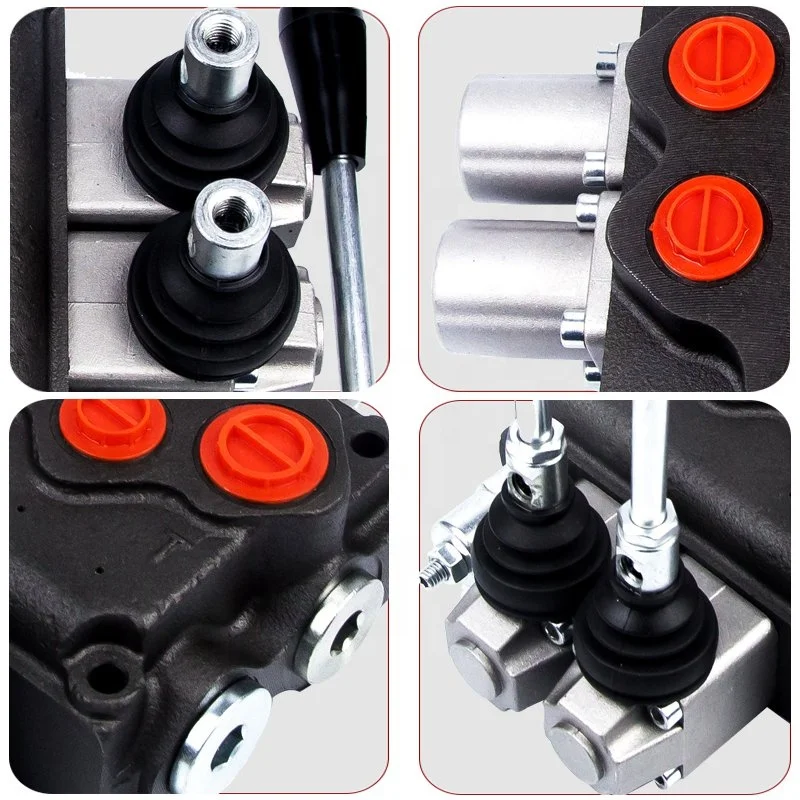

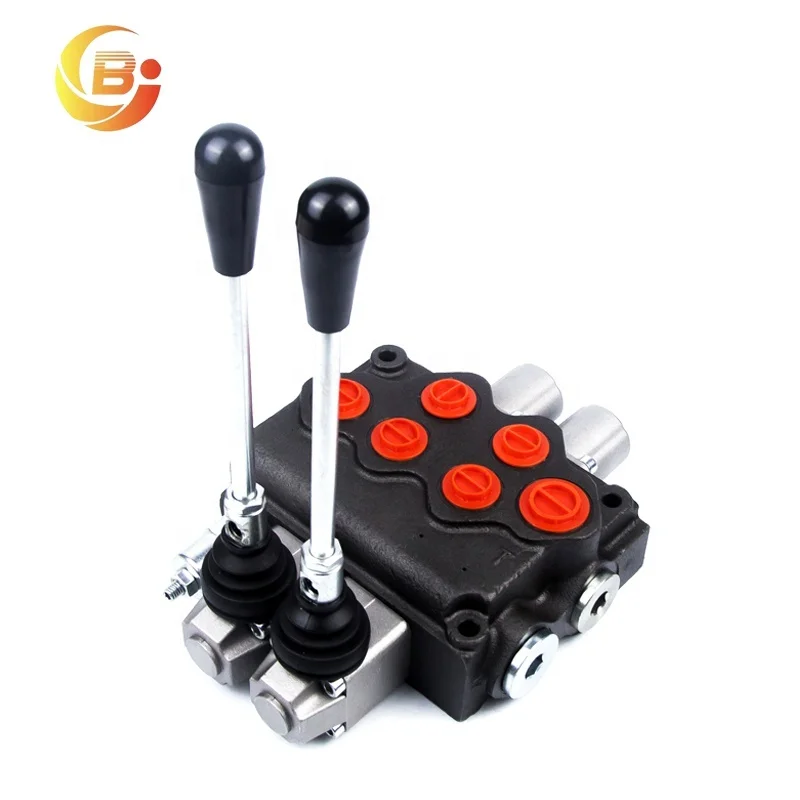

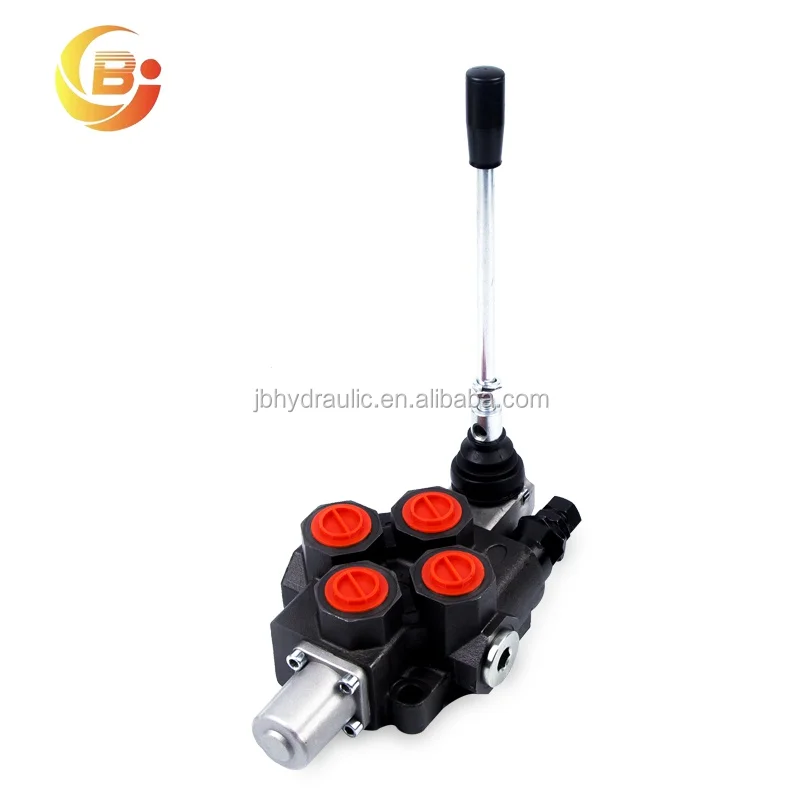

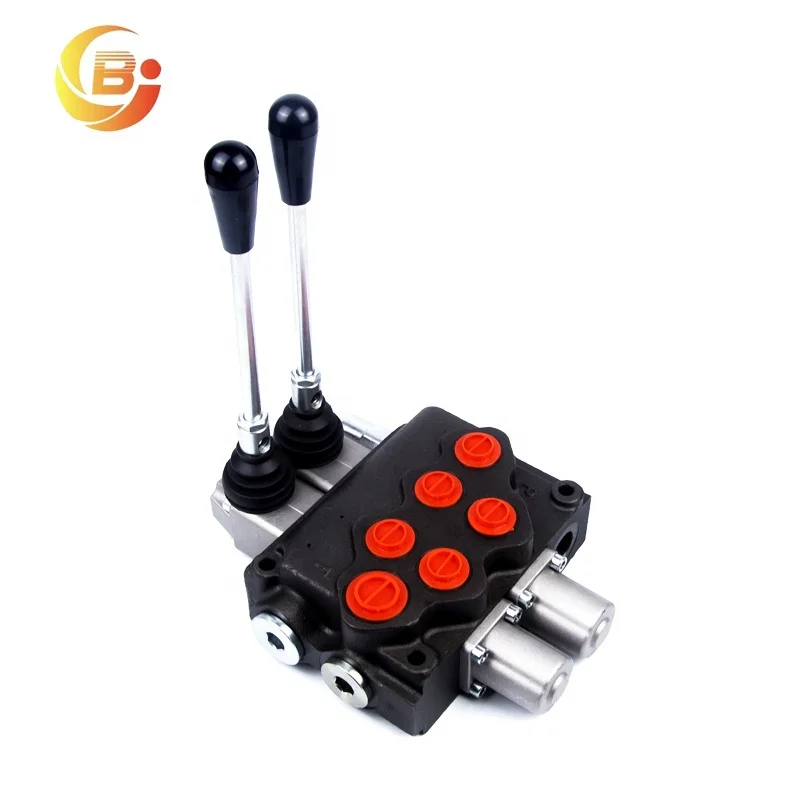

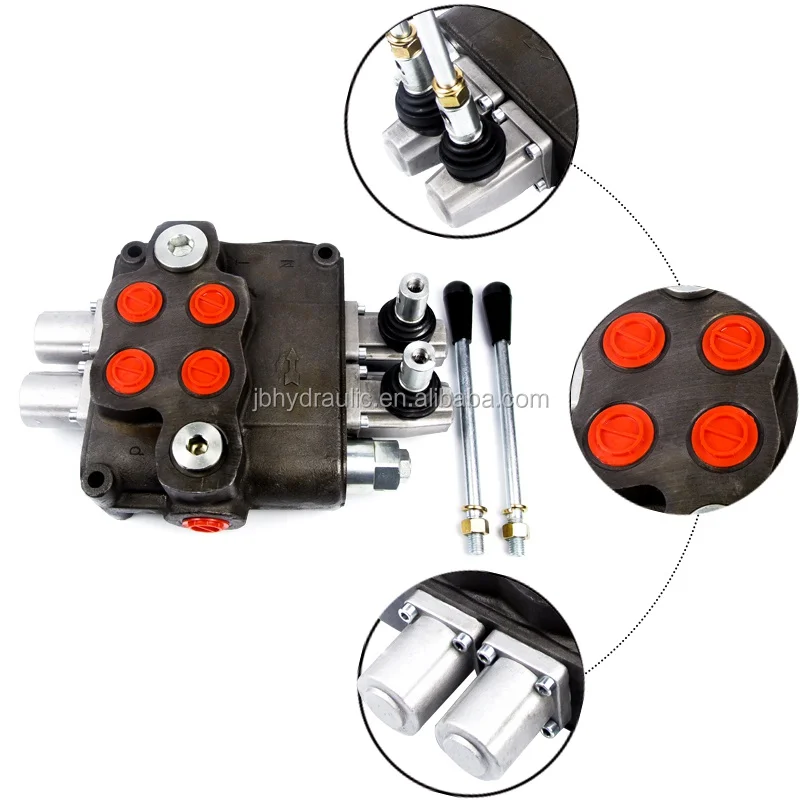

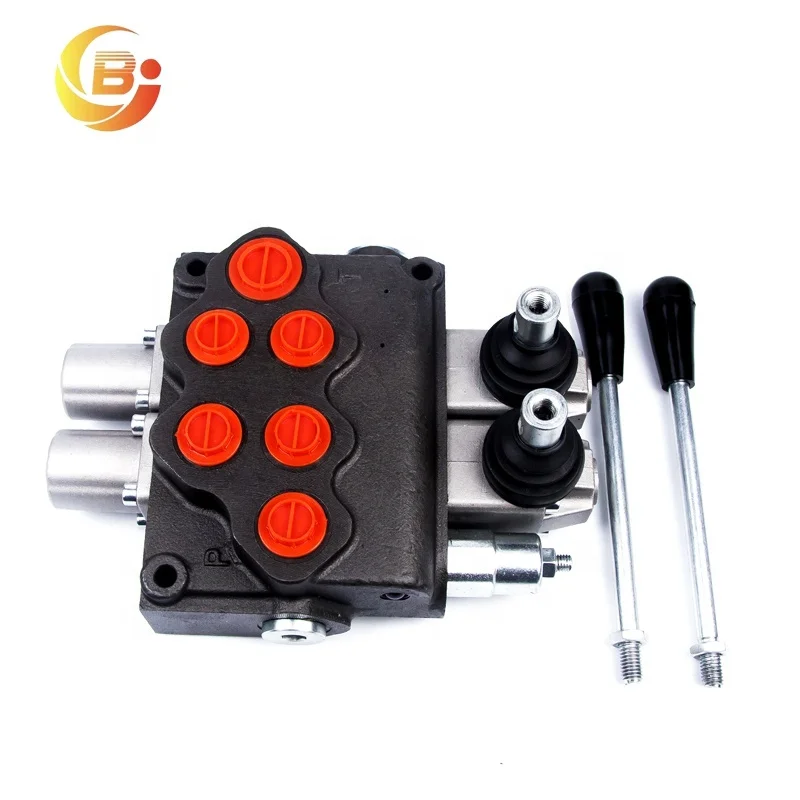

Junbao 70L/M Flow Rate SD11 Hydraulic Lever Monoblock Directional Manual Control Valve
- Category: >>>
- Supplier: Huai An Junbao Hydraulic Machinery Co. Ltd
Share on (62578449969):
Product Overview
Description
Product Description
Application
SD11/2 is lever operated with 2 sections, 1/2″ BSP ports and complete with 63-200 bar relief valve.
The valve is widely used in hydraulic systems of construction machinery, sanitation machinery, oil field equipment, mining machinery and other machinery.
Features
◆ Fitted with a main pressure relief valve and a load check valve;
◆ Available with parallel or series circuit;
◆ Optional carry-over port (only for parallel circuit);
◆ Diameter 20mm – 0.79in interchangeable spools;
◆ Wide variety of service ports and circuit valves;
◆Available with manual, pneumatic, hydraulic, electro-hydraulic and remote flexible cables spool control kits.

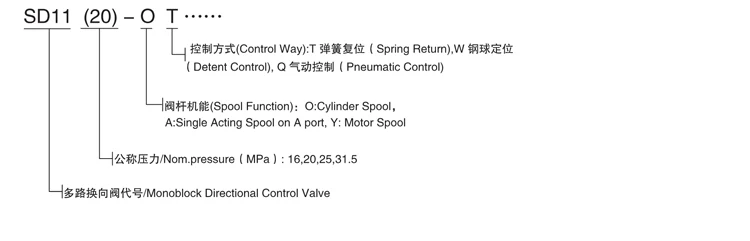

Model Code
Port Size
Main Ports | BSP | UN-UNF | METRIC |
Inlet P | G3/8 | 3/4-16(SAE 8) | M18*1.5 |
Ports A and B | G3/8 | 9/16-18(SAE 6) | M18*1.5 |
Outlet T | G3/8 | 3/4(SAE 8) | M18*1.5 , M22*1.5 |
Carry-over C | M20*1.5 | M20*1.5 | M20*1.5 |
Parameters
Nom. Pressure (MPa) | Max. Pressure (MPa) | Nom. Flow Rate (L/min) | Nom. Flow Rate (L/min) | Back Pressure (MPa) | Hydraulic Oil | ||||
ZT-L20 | Temp.rang | Visc.rang (mm2/S) | Filtrating accuracy (μm) | ||||||
20 | 31.5 | 45 | 45 | ≤1 | -20 ~ +80 | 10~400 | ≤10 | ||

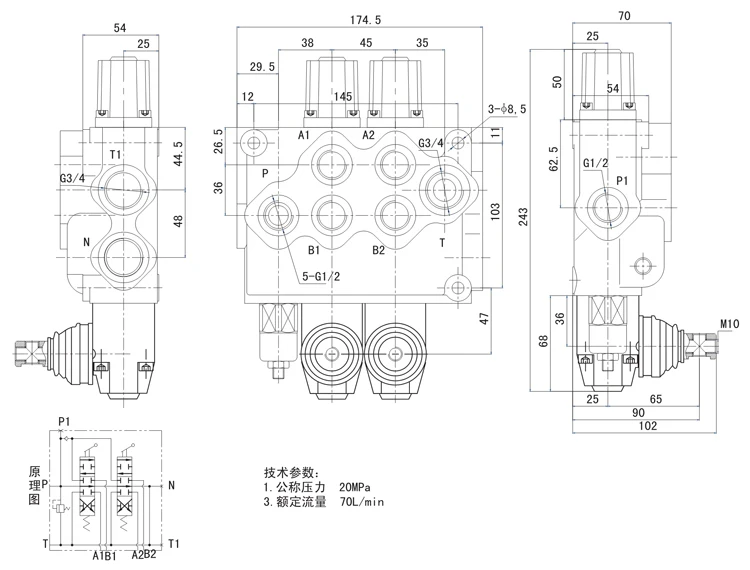

Size Information
Please click any model which you interested to watch product video.
Any questions,Just Click Here to Contact Me for More Information>>>
Related Products

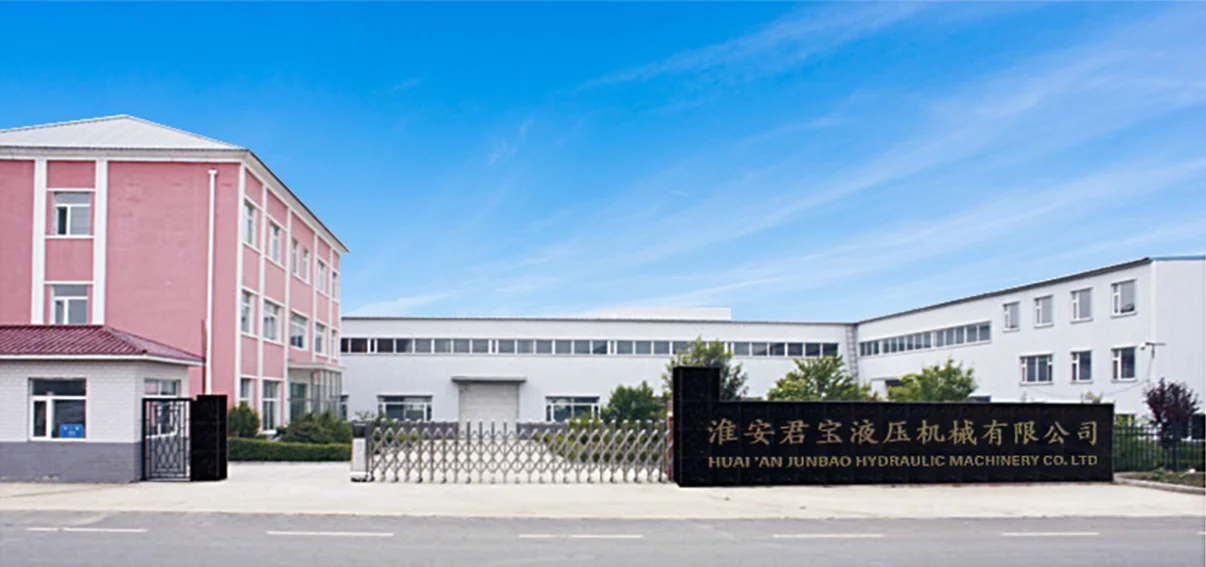

Company Introduction
