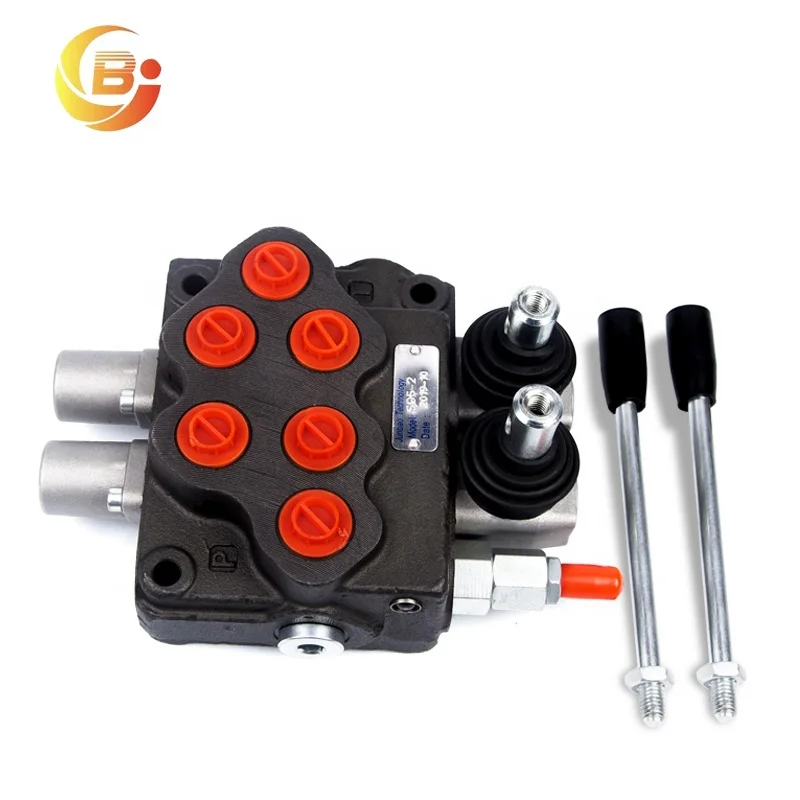

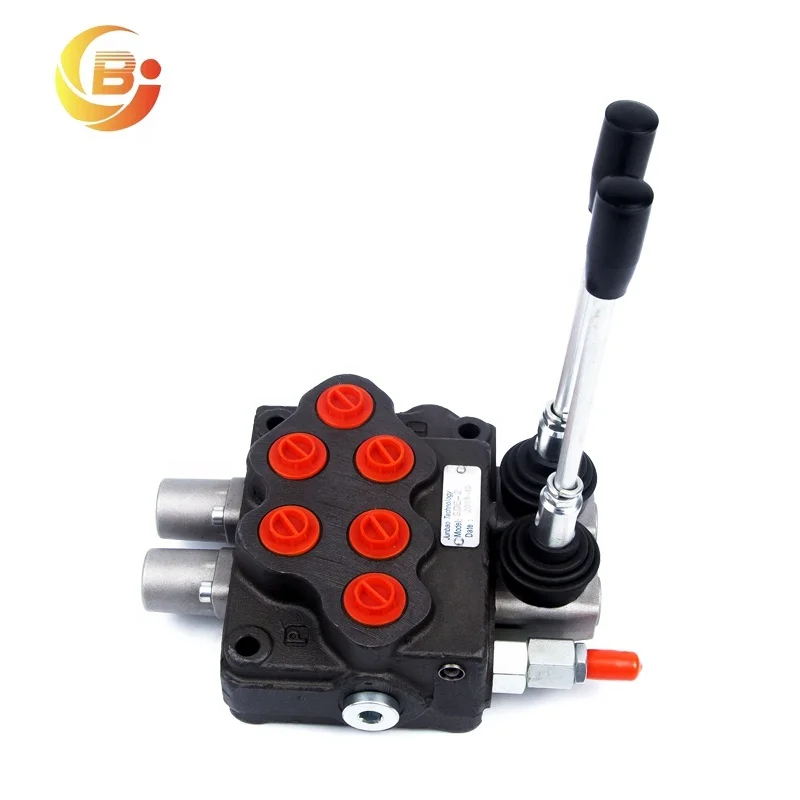

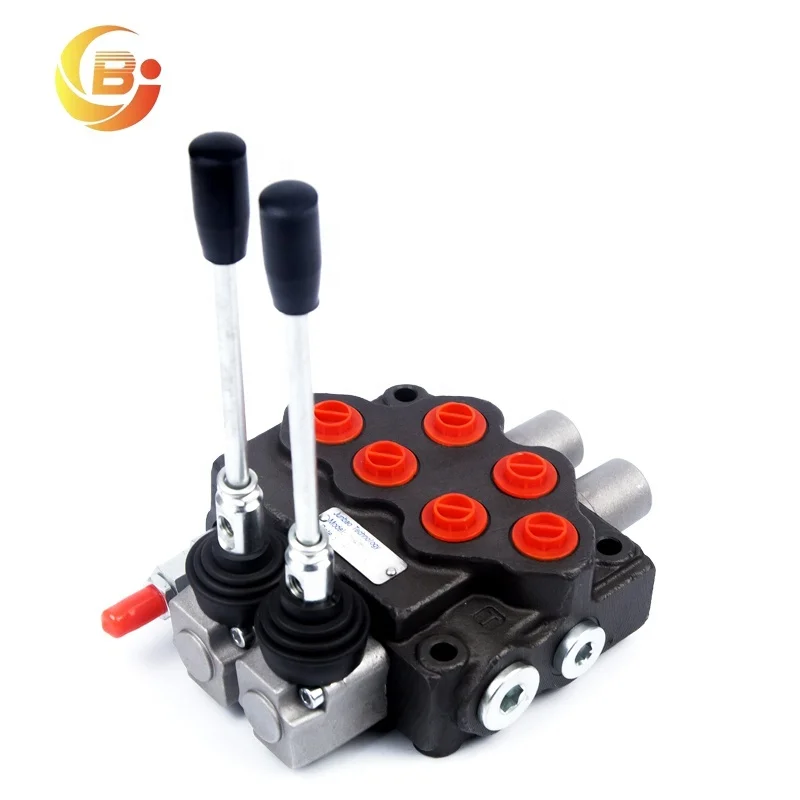

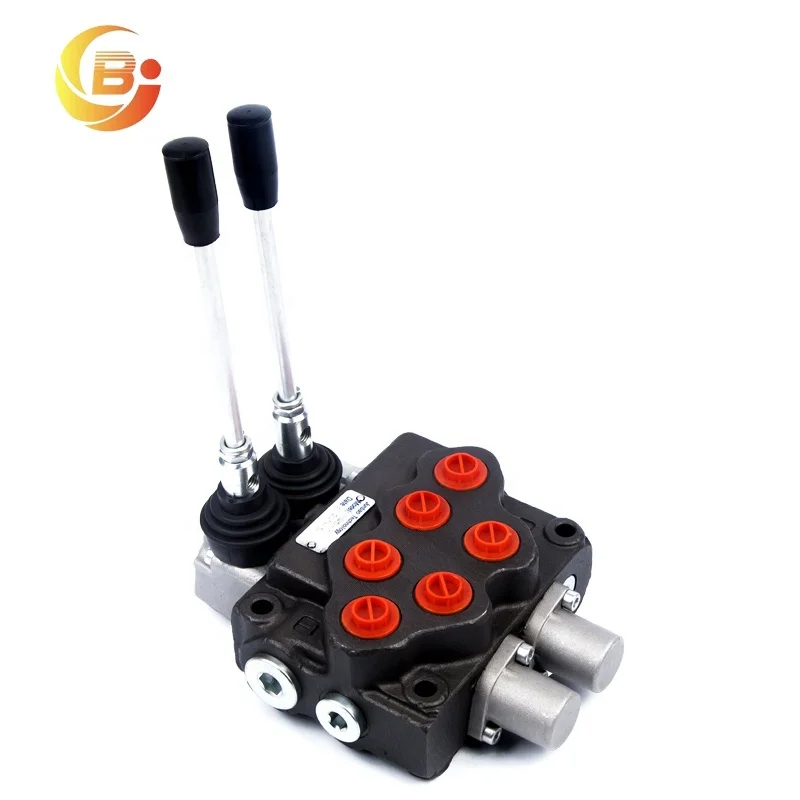

Sd5/2 Two Sections Monoblock Directional Hydraulic Control Valve with Spring Return
- Category: >>>
- Supplier: Huaian Junbao Hydraulic Machinery Co. Ltd.
Share on (62578455160):
Product Overview
Description
Product Description
Application
Model SD18 series monoblock valve introduced advanced European technology, which has a compact structure, 120L / min flow rate, light weight and high pressure resistance. The valve uses a parallel oil circuit and is designed with a pressure output port connected to other hydraulic components to provide a power source.
The valve is widely used in hydraulic systems of construction machinery, sanitation machinery, oil field equipment, mining machinery and other machinery.
Features
◆ Fitted with a main pressure relief valve and a load check valve.
◆ Avaliable with parallel,series or tandem circuit.
◆ Optional power beyond port.
◆ Diameter 25 mm-0.98 in interchangeable spools.
◆ A wide variety of service port valves.
◆ Available manual,pneunatic,electro-pneumatic,hydraulic and electro-hydraulic spool control.
◆ Option:Hydraulic lock is available to be added on A and B port.
Model Code
Port Size
Main Ports | BSP | UN-UNF | METRIC |
Inlet P | G3/8 | 3/4-16(SAE 8) | M18*1.5 |
Ports A and B | G3/8 | 9/16-18(SAE 6) | M18*1.5 |
Outlet T | G3/8 | 3/4(SAE 8) | M18*1.5 , M22*1.5 |
Carry-over C | M20*1.5 | M20*1.5 | M20*1.5 |
Parameters
Nom. Pressure (MPa) | Max. Pressure (MPa) | Nom. Flow Rate (L/min) | Nom. Flow Rate (L/min) | Back Pressure (MPa) | Hydraulic Oil | ||||
ZT-L20 | Temp.rang | Visc.rang (mm2/S) | Filtrating accuracy (μm) | ||||||
20 | 31.5 | 45 | 45 | ≤1 | -20 ~ +80 | 10~400 | ≤10 | ||
Related Products
Company Introduction
Are you an OEM?
As the China designers & manufacturers, Junbao Hydraulic take great pride in delivering exceptional customer service and bespoke design to OEM and our distributors. Contact our Sales Department Please.
With 10 years of designing and manufacturing experience and the latest machinery and equipment, Junbao Hydraulic have developed a comprehensive range of hydraulic control valves,such as P40 Series,P80 Series,RD5200 Series,SD Wavoil Series,DCV Series,CDB Series and so on,All but the monoblock ranges are produced in our factory in the China and our processes have been approved to the ISO 9001 quality standard. With design, manufacture and sales under one roof, we can offer excellent technical expertise and back-up.
Moving into the 21st century, we are now also able to offer our own radio Remote Control System with our electrically operated control valves. Our valves are well known in the mobile equipment market where their robust design is appreciated. We can offer bespoke designs for small OEMs at affordable prices.
As the China designers & manufacturers, Junbao Hydraulic take great pride in delivering exceptional customer service and bespoke design to OEM and our distributors. Contact our Sales Department Please.
With 10 years of designing and manufacturing experience and the latest machinery and equipment, Junbao Hydraulic have developed a comprehensive range of hydraulic control valves,such as P40 Series,P80 Series,RD5200 Series,SD Wavoil Series,DCV Series,CDB Series and so on,All but the monoblock ranges are produced in our factory in the China and our processes have been approved to the ISO 9001 quality standard. With design, manufacture and sales under one roof, we can offer excellent technical expertise and back-up.
Moving into the 21st century, we are now also able to offer our own radio Remote Control System with our electrically operated control valves. Our valves are well known in the mobile equipment market where their robust design is appreciated. We can offer bespoke designs for small OEMs at affordable prices.
