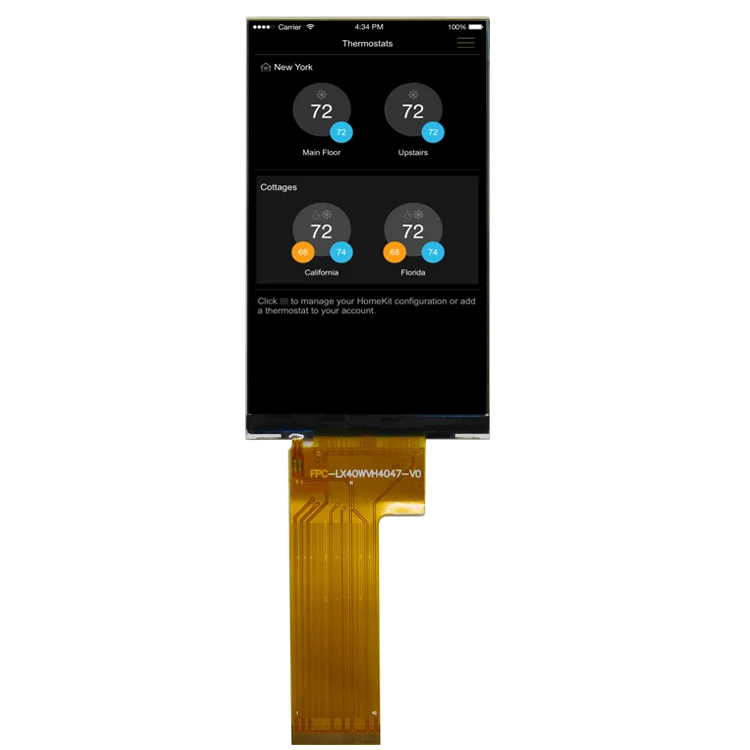

4 inch 450 Nits 480x800 IPS 40 pin RGB or MIPI DSI interface TFT LCD display Screen
- Category: >>>
- Supplier: Shenzhen Hct Electronics Co. Ltd.
Share on (62578665679):
Product Overview
Description
Product Description

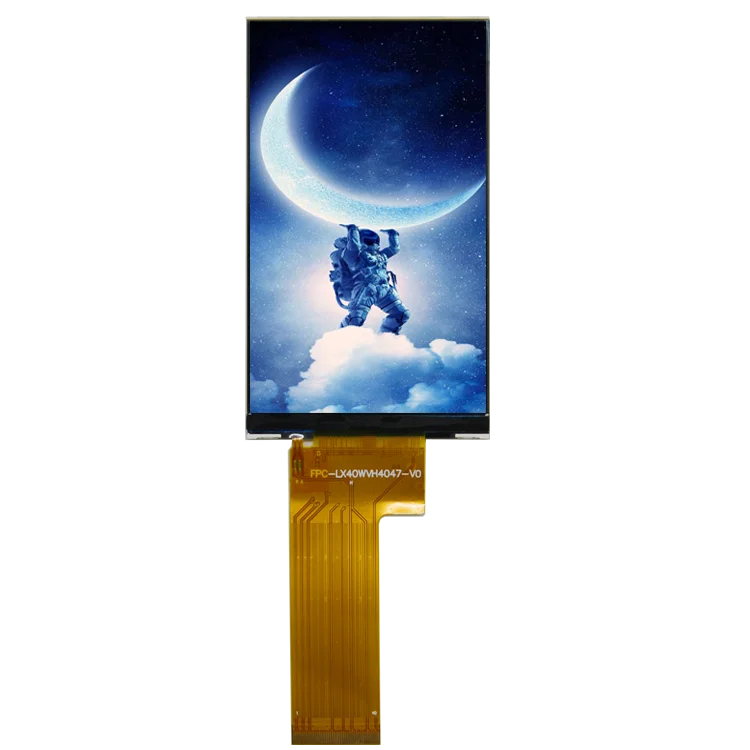

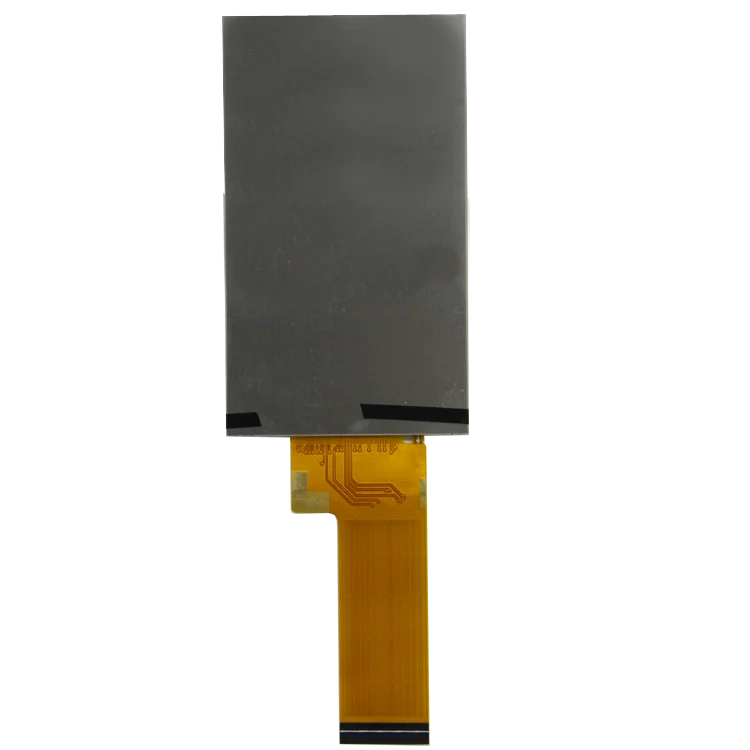

IPS 4 inch TFT LCD display, resolution 480x800, 40 pin RGB interface, built-in ST7701S controller with standard TFT LCD module brightness 450 cd/m2.
This 4 inch TFT LCD Display panel’s backlight is composed with 8 LED’s and backlight voltage as 13.2V, driving current as 40mA. It has outline dimension as 55.54x96.20x2.13mm and active area 51.84x86.4 mm, it can be operated at temperature from -20 to 70 degree, stored at temperature from - 30 to 80 degree with min.20,000 hours LED life time.
Features:
4.0 inch configuration
16.7M
RoHS /Halogen Free Compliance
MAIN PARAMETERS
LCD type | 4 inch TFT LCD Panel |
Dot arrangement | 480(RGB)x800 |
Color filter array | RGB vertical stripe |
Display mode | IPS |
Viewing Angle | 80/80/80/80 |
Module Size | 55.54x96.20x2.13mm |
Active area | 51.84x86.4 mm |
Interface | 40 pin RGB interface |
Brightness | 450 nits |
Backlight current | Typ.40mA |
Backlight Voltage | 13.2V Typical. |
LED life Time | Min.20000 hours |
FPC type | ZIF connector |
Touch Screen available | Yes |
Operating temperature | -20 ~ +70 |
Storage temperature | -30 ~ +80 |
Applications
This RGB interface 480x800 4.0 inch TFT LCD Display Module can be used for POS machine, mobile or other hand-held device.
Our Production
PRODUCT RANGE
TFT LCD Display | ² 2.4 inch to 15.6 inch TFT LCD Panel ² IPS and TN technology LCD ² Sun-readable TFT LCD ² Industrial TFT LCD ² Wide temperature TFT LCD ² High brightness TFT LCD screen ² Custom high brightness LCD panel |
Touch Screen | ² Up to 32 inch ² Capacitive touch screen ² 4 wire resistive touch ² 5 wire resistive touch ² Touch controller board and cables accessories ² Custom size touch screen |
TFT LCD Module | ² 3.5 inch to 19 inch TFT with VGA HDMI interface ² Custom controller board available |
TFT LCD Touch Screen | ² Up to 32 inch LCD touch screen ² Optical bonding OCR OCA LOCA ² Air bonding(double side tape) ² TFT with only glass optical bonding |
Currently we are working with international glass brands including Chimei/Innolux, BOE, Hanstar, AUO etc. To produce a complete TFT LCD Panel, our main production process is as below:
Ø Mother Glass-cutting
Ø COG (Chip on Glass) assembling
Ø FOG (Flexible FPC on Glass) assembling
Ø Backlight assembling
Company Information
Our Services
If the quantity of order is not very big,we could send them to you by express delivery,such as TNT,DHL,UPS OR EMS etc.
If order is big ,we will advise you use Air Shipping or Sea Shipping through your nominated forwarder agent.Our long-term cooperated agent also available
I
Packaging & Shipping
PACKAGE:
Standard export carton packin.
TFT packing:
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
