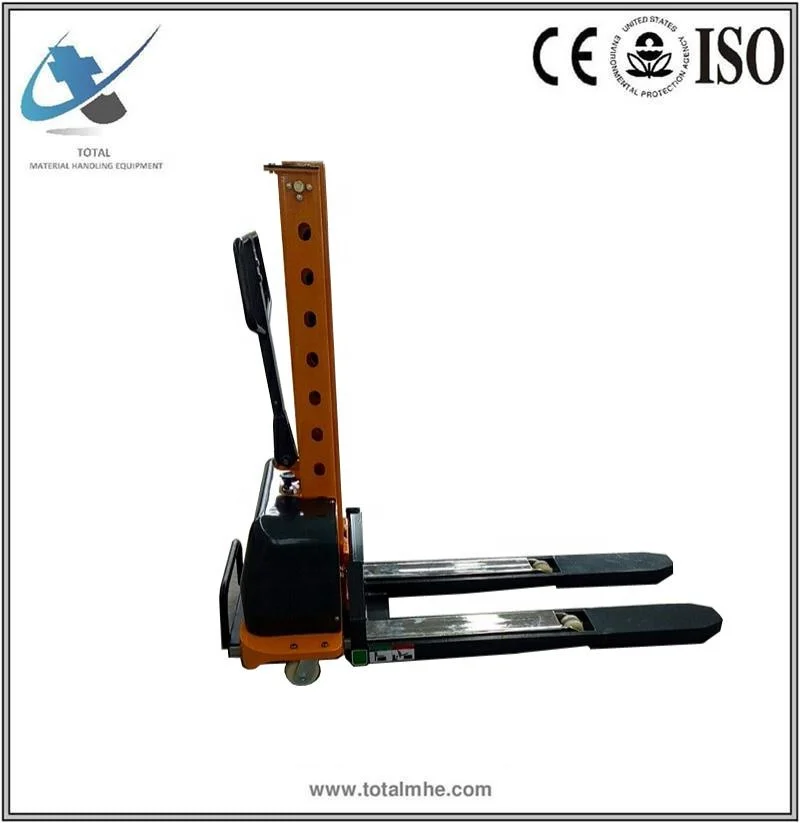

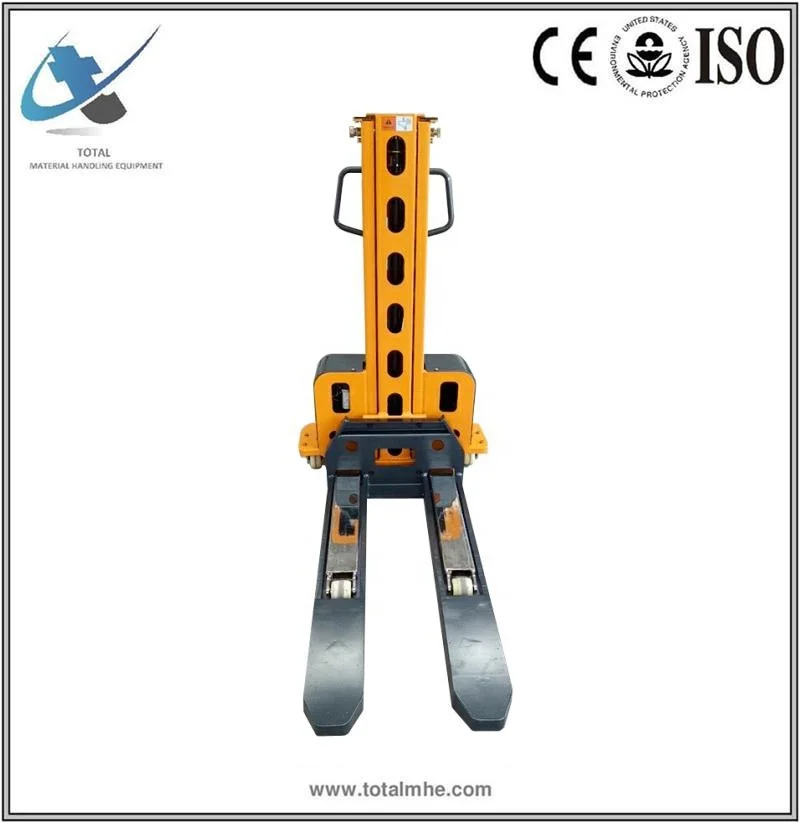

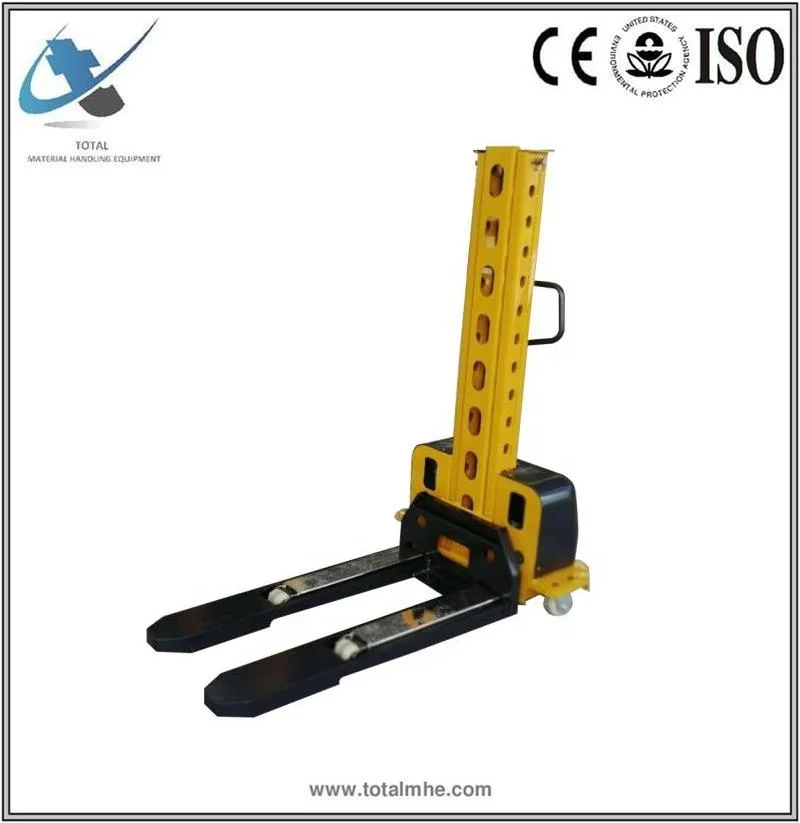

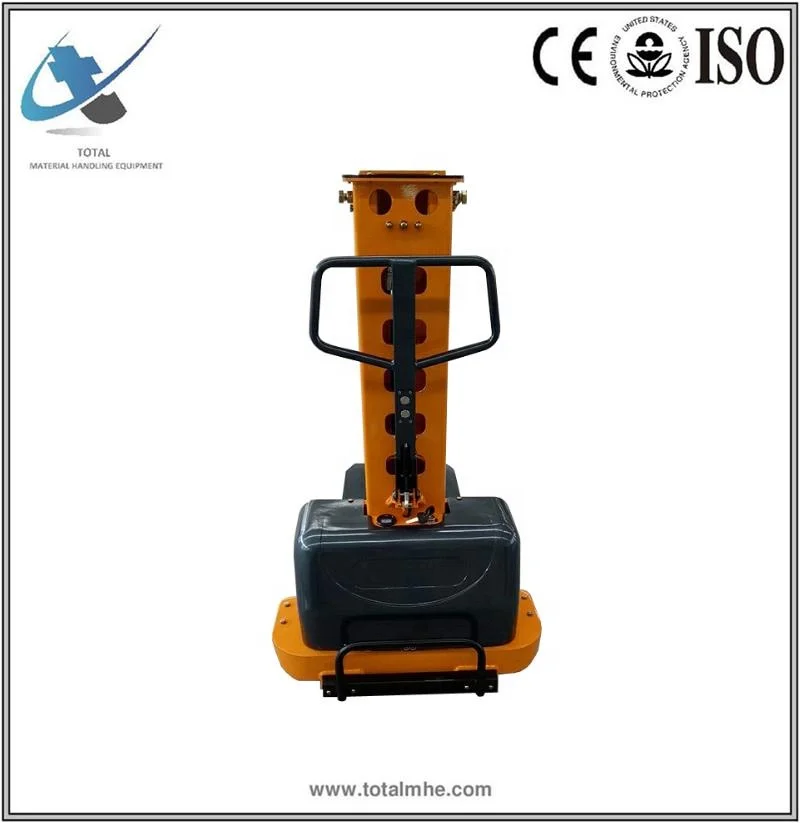

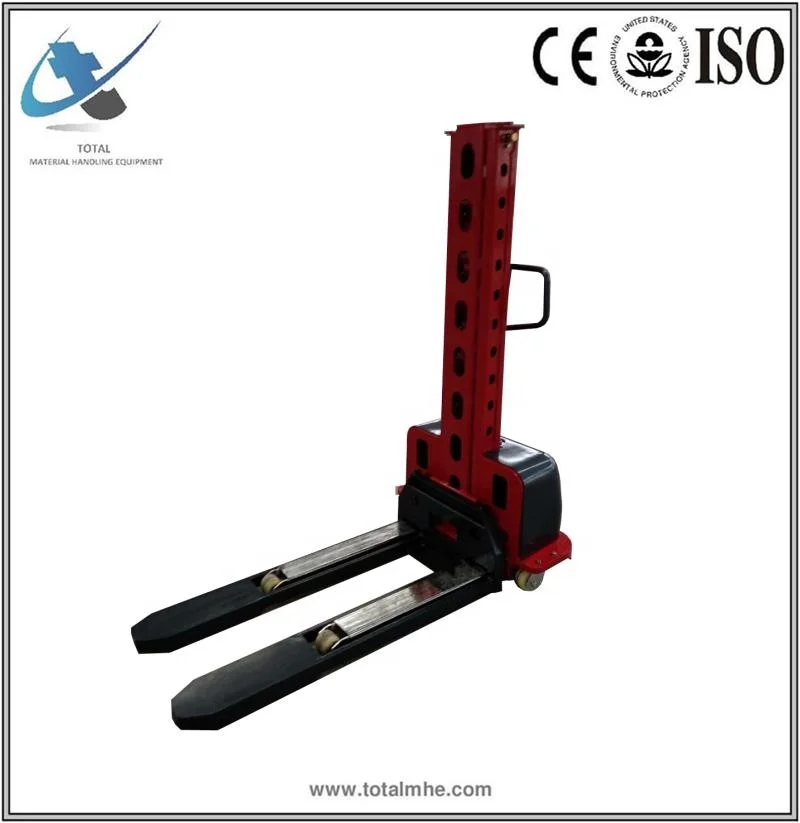

500kg self loading semi electric lifting stacker
- Category: >>>
- Supplier: Total Material Handling Equipment (hangzhou) Co. Ltd.
Share on (62578973558):
Product Overview
Description
Product Description
Innolift type stacker, self loader, self loading stacker, self lift stacker, 500kg load capacity is available. Lifting height with
800mm/1000mm/1200mm/1300mm.
1. Steering chain auxiliary device;
2. The foot brake, more stable;
3. Sealed batteries free of maintenance; safe operation and no pollution;
4. Explosion-proof valve design, down more stable and reliable;
5. Over discharge protection, extending battery life.
800mm/1000mm/1200mm/1300mm.
1. Steering chain auxiliary device;
2. The foot brake, more stable;
3. Sealed batteries free of maintenance; safe operation and no pollution;
4. Explosion-proof valve design, down more stable and reliable;
5. Over discharge protection, extending battery life.
Size Information
Brand | TOTAL | |||||
Model | TDD05 | |||||
Capacity | kg | 500 | ||||
Lifting height | mm | 800 | 1000 | 1300 | ||
Mast lowered height | mm | 1200 | 1400 | 1600 | ||
Total lifting height | mm | 1877 | 2277 | 2877 | ||
Overall length | mm | 1600 | ||||
Overall width | mm | 786 | ||||
Fork length | mm | 1150 | ||||
Fork width | mm | 540 | ||||
Battery | v/Ah | 12V/45Ah | ||||
Turning radius | mm | 1100 | 1200 | 1200 | ||
Operation | Manual driving, Electrical lifting | |||||
Tire | Nylon | |||||
Charger | Included | |||||

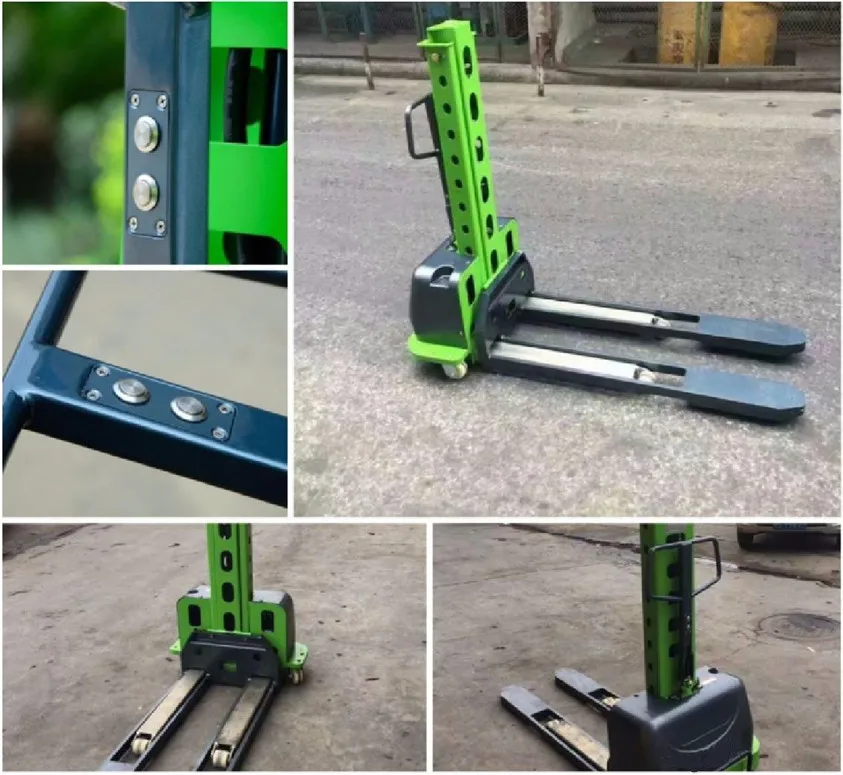

Detailed Images
Packing&Shipping
Related Products
Company Introduction
TOTAL Forklift(TOTAL Material Handling Equipment Co.,Ltd) is a material handling solution provider combining research,
manufacturing, sales and service.With rich experience in forklift business,we guarantee Total’s quality,our products are certified with ISO9001 certificate and ISO 14001 certificate, CE certificate & EPA certificate. Our headquarter locate in
Hangzhou,Zhejiang,China. very close to the Shanghai which is the financial and logistics center of China,with the additional
warehouse in Ningbo, channel partners and supplier,all these guarantee the quick delivery from single small bolts and nuts to the big equipment,so you can be sure that you will always get the high quality product and premium service.
manufacturing, sales and service.With rich experience in forklift business,we guarantee Total’s quality,our products are certified with ISO9001 certificate and ISO 14001 certificate, CE certificate & EPA certificate. Our headquarter locate in
Hangzhou,Zhejiang,China. very close to the Shanghai which is the financial and logistics center of China,with the additional
warehouse in Ningbo, channel partners and supplier,all these guarantee the quick delivery from single small bolts and nuts to the big equipment,so you can be sure that you will always get the high quality product and premium service.
