HELI 3ton diesel forklift CPCD30 made in China
- Category: >>>
- Supplier: Oriemac Machinery & Equipment (Shanghai) Co. Ltd.
Share on (62579182295):
Product Overview
Description
Product Description
HELI 3ton diesel forklift CPCD30 made in China
Contact Person: Ms. Phyllis
whatsApp/Tel/wechat:+86 15737137170
skype: wang.phyllis01
QQ:530090438
Features -- HELI Forklift CPCD30
1.longer time warranty: one year,
2.package:sea protecting package with film not nude wether by container or not.
3.quality is strong with good steel body frame, brand component, technology is mature.
4.suitable design that the length size of forklift is longer because of the suitable driving space
5.lower price compare the same machines
6.service is satisfied with our after-sales team and engineering team
Parameter -- HELI Forklift CPCD30
| SPECIFICATION | |||
| Model | CPCD30 | ||
| Power type | Diesel | ||
| Rated capacity | kg | 3000 | |
| Load center | mm | 500 | |
| Lift height | mm | 4500 | |
| Free lift height | mm | 145 | |
| Fork size | mm | 1220×125×45 | |
| Mast tilt angle | deg | 6/12 | |
| Front overhang | mm | 482 | |
Overall |
Length to face of forklift | mm | 2695 |
| Overall width | mm | 1225 | |
| Mast lowerd height | mm | 2070 | |
| Mast extended height | mm | 4250 | |
| Overhead guard height | mm | 2090 | |
| Turning radius | mm | 2420 | |
| Min.right angle aisle width | mm | 2885 | |
Speeds |
Drive speeds | km/h | 18/19.5 |
| Lifting speeds | mm/s | 470/520 | |
| Lowering speeds | mm/s | ≤600 | |
| Max.grade ability | % | 15 | |
| Total weight | kg | 4350 | |
Tires |
Frot | 28*9-12PR | |
| Rear | 6.5-10-10PR | ||
| Wheeslbase | mm | 1700 | |
Tread |
Front | mm | 1000 |
| Rear | mm | 970 | |
| Hold under mast | mm | 110 | |
Engine |
Model | Xinchang 490BPG | |
| Rated output | kw/rpm | 37/2650 | |
| Rated torque | N.m/rpm | 148/2000 | |
| No.of cylinder | 4 | ||
| Displacement | L | 2.54 | |
| Fuel tank capacity | L | 52 | |

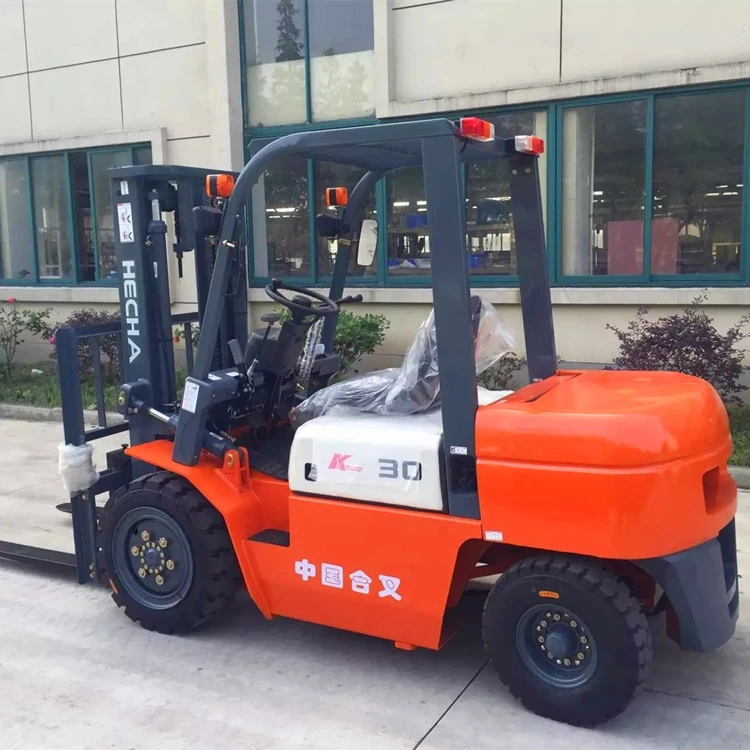

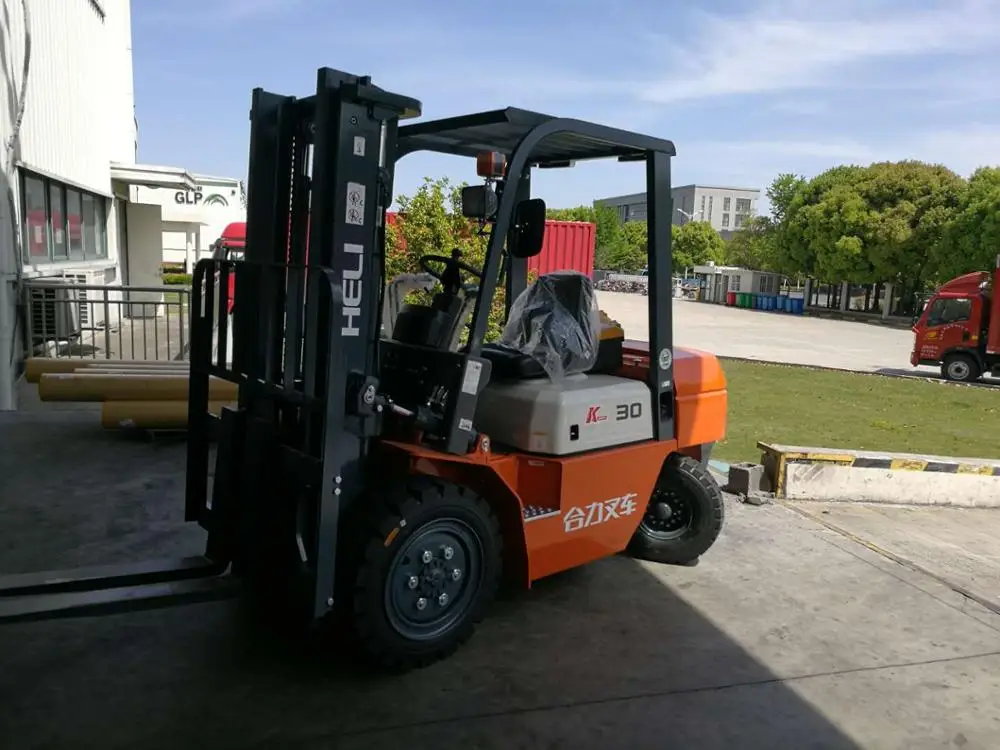

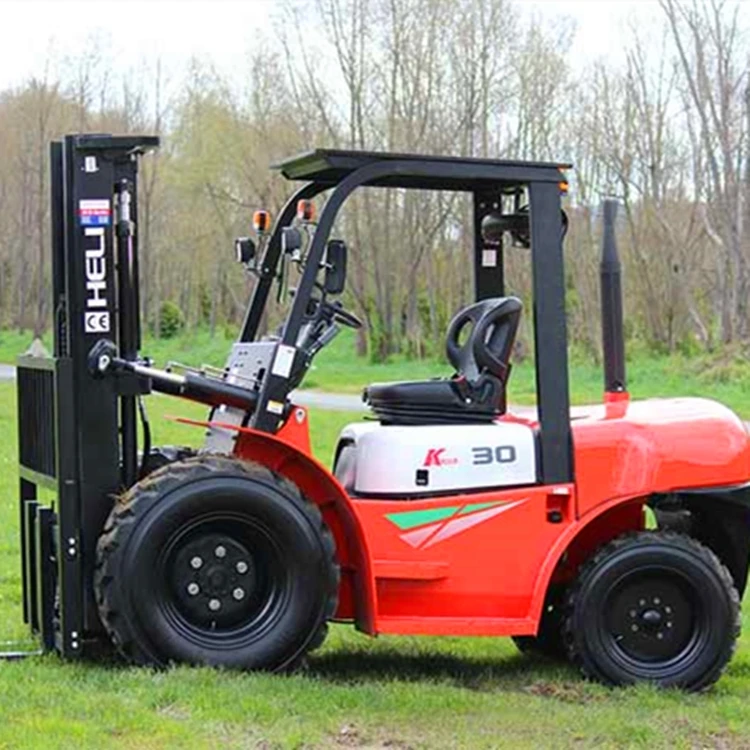

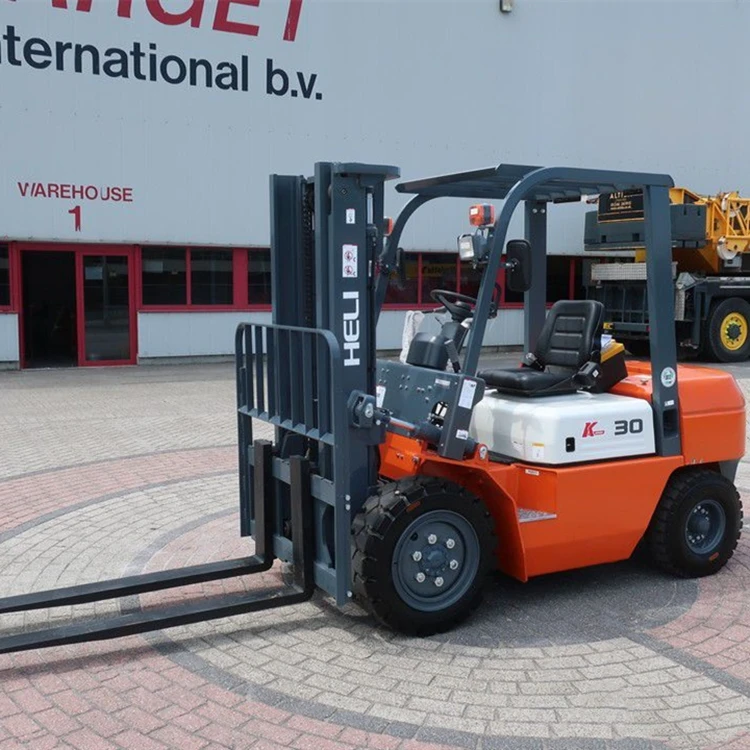

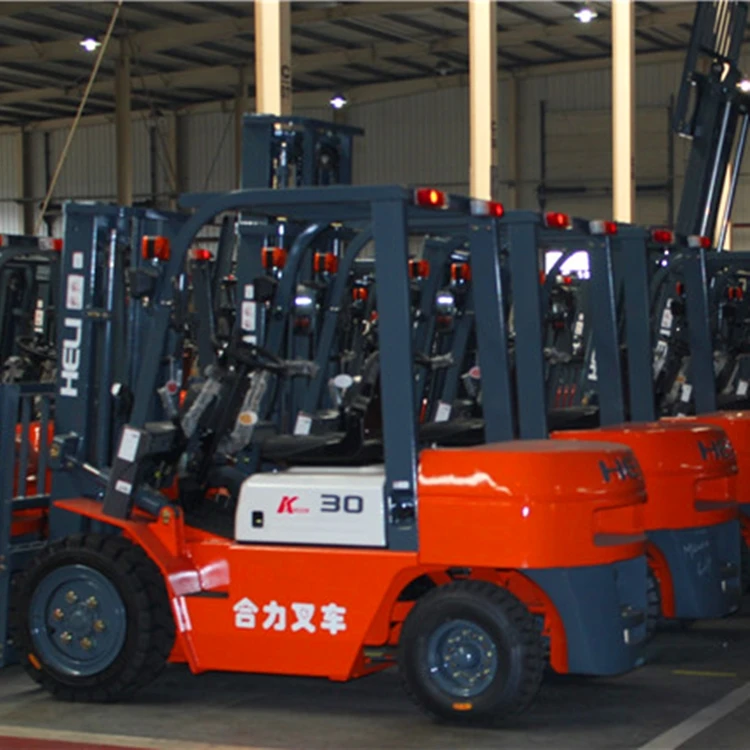

Photos -- HELI Forklift CPCD30
