Full functional and automatic ACCUTEK AT PRO Channel Letter Bending Machine for aluminum materials and channelume
- Category: Channel Letter Bending Machine >>>
- Supplier: Tianjin Wofeng Electromechanical Equipment Co. Ltd.
Share on (62579258682):
Product Overview
Description
Product Description

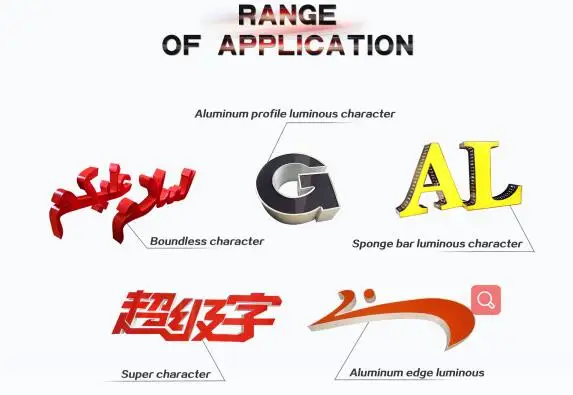

Product Application
Fully functional, which has combined both the plate and profile processing. This system integrated the most convenient switching function of material and cutter, the design of double slotting cutter and double bending tools can easily deal with stainless steel, galvanized sheet, aluminum plate and aluminum profile and other materials processing. Now the machine is the highest rate of return on investment in the market.

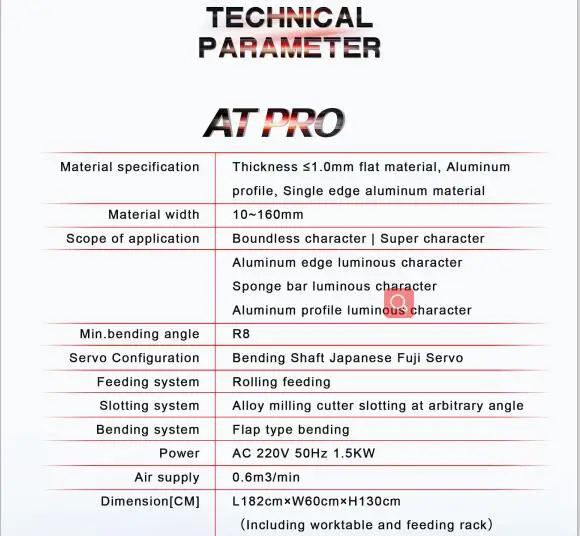

Feeding System | Rolling presure feeding system |
Slotting System | milling cutter slotting at arbitrary angle |
Bending System | flap type bending system |
Suitable Material | Aluminum, Aluminium profile and channelume materials |
Material Height | 10-160mm |
Material Thickness | Aluminum plate≤1.2mm Aluminium profile 1.0mm channelume 0.5-1.0mm |
Accuracy | ±0.1mm |
Input File Format | .dxf |
Dimensions | L1820mm×W600mm×H1300mm |
Power | AC220V 50Hz 1.5Kw |
Air Supply | 0.6m3/Min |
Total Weight | 350Kg |
Detailed Images
Main Features

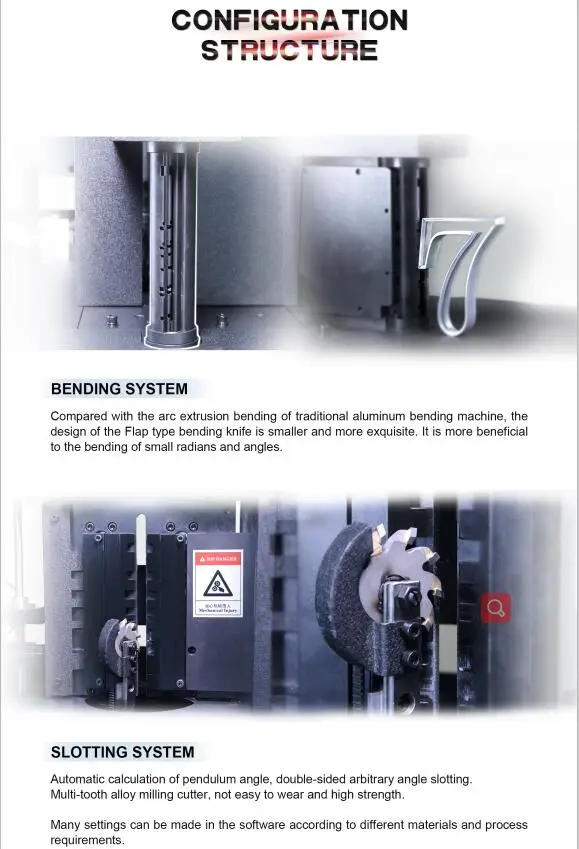

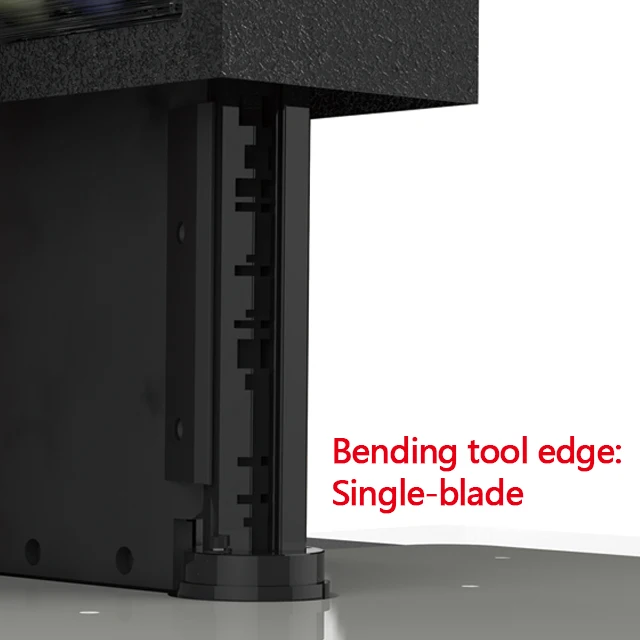

Bending system
compared with the arc extrusion bending of traditional aluminum bending machine, the design of the flap type bending knife is maller and more exquisite.It is more beneficial to the bending of small radians and angles.
Main Features

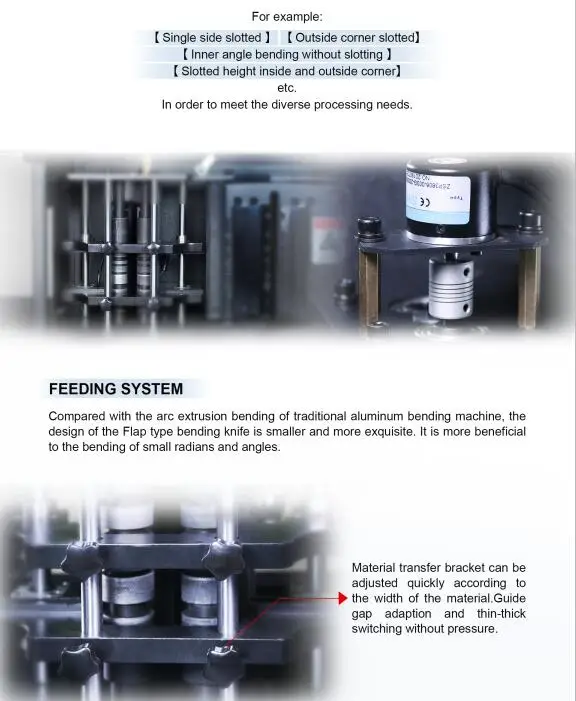

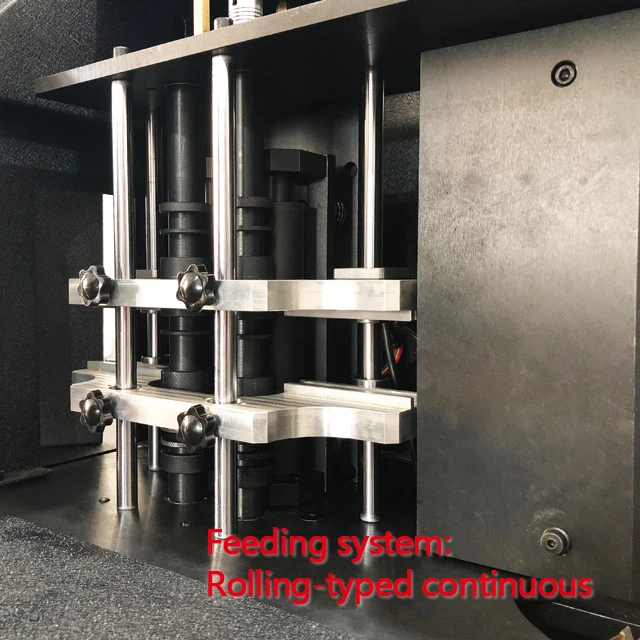

Feeding System
Rolling presuure feeding mode, the roller embossing treatment. No skid for feeding.Equipped with encoder to work together to ensure no error in feeding length.
Material transfer bracket can be adjusted quickly according to the width of the material. Gidue gap adaption and thin-thck switching without pressure.
Main Features

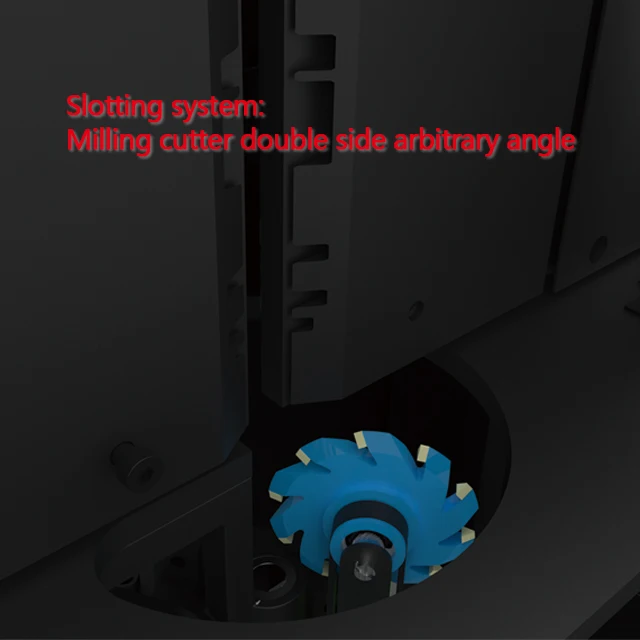

Slotting System
Automatic calculation of pendulum angle,double-sided arbitrary angle slotting. Multi-tooth alloy milling cutter, not easy to wear and high strength.
Many settings can be made in the software according to different materials and process requirement.
Main Features
board card,U-KEY,data expansion line, USB flash disk ,warranty card，bending tool adjusting picture ,mouse pad,2 Power lines, 1VGA line,hexagon wrench,
hardware tool, Insurance,mini cutter
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 1820 (L) * 600(W) * 1300 (D) | |
350kgWeight | 350kgs | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Requirements
Computer
To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration requirements: XP system or window7 32-bit system, and requires a PCI card slot to install the control card.
File Format
The software of bending machine is self-developed. Import file format supports .dxf.Plt We recommend using Coredraw or adobe illustrator tocomplete the file after the export file to.Dxf.Plt format. Then open the operating software, select the document.
Pump
The use of equipment should be equipped with
air compressor, we suggest that the selection of
more than 4kw, the gas flow is 0.6m³/Min.
