Cross Type tempered glass bending line Flat and bent Glass Tempering Line
- Category: >>>
- Supplier: Qinhuangdao Radiant Automation Equipment Co. Ltd.
Share on (62579424688):
Product Overview
Description

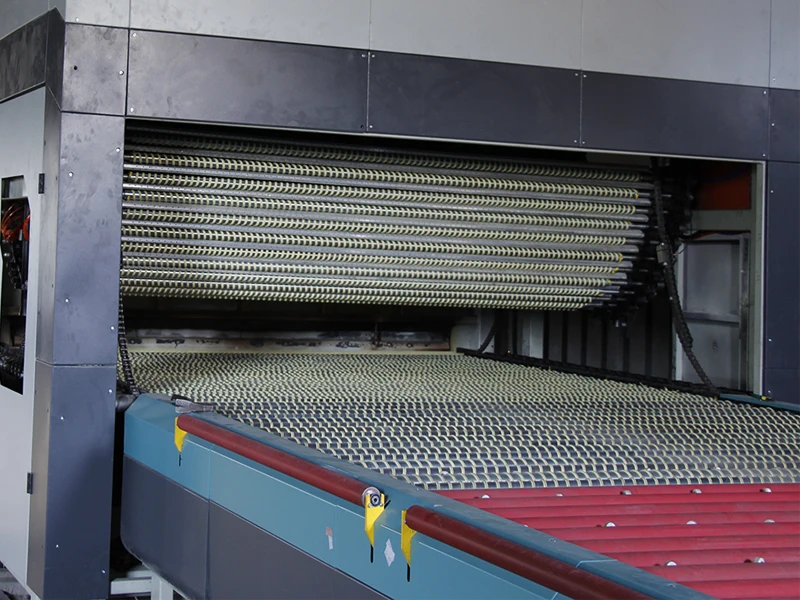

Cross Type tempered glass bending line Flat and bent Glass Tempering Line
It has both a bent and a flat tempering section at the two ends of the heating furnace. It can temper flat or bent glass by loading the glass from different direction
Hard roller horizontal bend
Hard roller bend section has an advantage of simple configuration, so it is easy to control.
Another advantage is very good bent curvature, and good curvature uniformity.
And small curvature radius bend glass can be done on this machine.

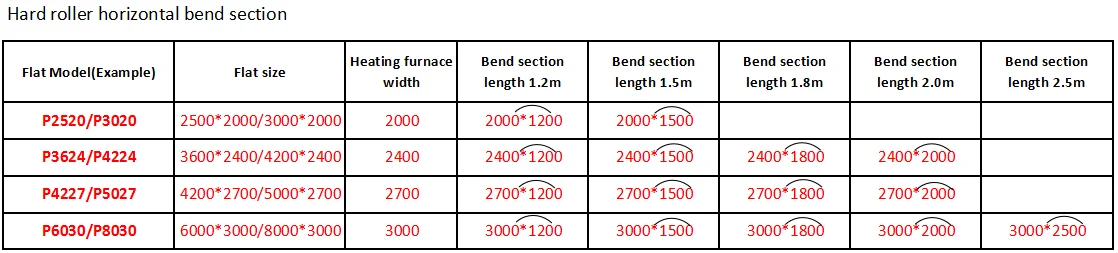

Models&Parameter
Remark:
1, Millimeter(mm) is the size&thickness unit.
2, The models are not limited to those listed in this table, and can be customized according to the actual needs of users.
Feature&advantage
Multi advanced technology are adopted on this glass tempering machine.

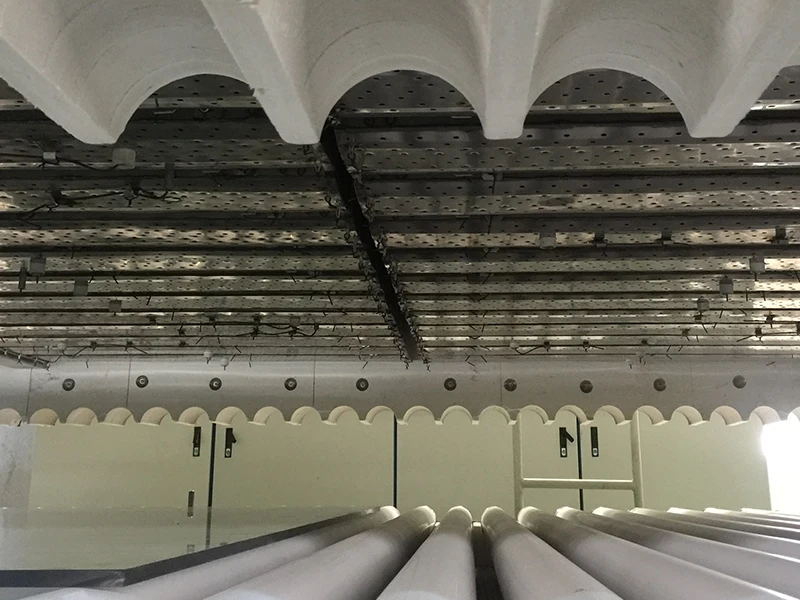

Heating technology:
1. Stepless frequency conversion technology and differential speed control technology
2. Joint temperature and thermal compensation technology
3. Multi-stage heating technology
4. CRUISER mode heating control
5. Fine-Dot mode furnace temperature control
6. Independent over-temperature protection function
7. Unequal roller spacing technology
Cooling technology:
8. Unique pass-through toughening technology
9. Special customized Kevlar rope
10. Multi-stage cooling technology
Package&container
Package:

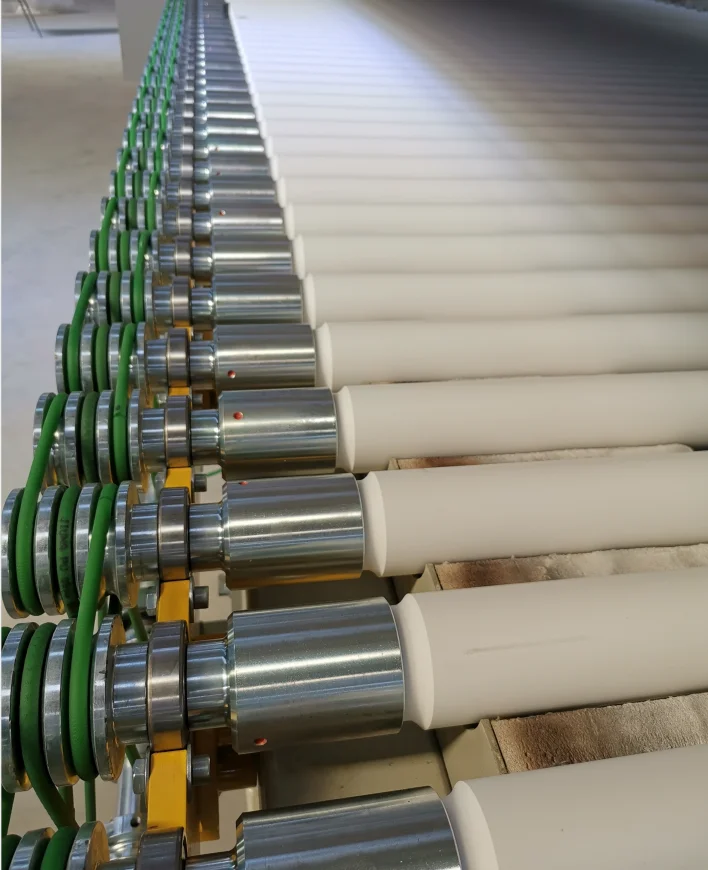

Ceramic rollers packed by non-fumigation carton.
Other parts packed by plastic film or brown paper.
Containers Charging:
Sectional design makes the machine be able to be put into normal 40 feet container, or normal 20 feet containers.
Each part will be fixed tightly to the container inside rings.
Similar products
Company Information
Radiant has passed the IS90001 Quality management system and CE Authentication system, our PV equipments are being sold to America,Japanese,Italy,Israel,Korea,India,Kazakhstan, Kampuchea, Egypt, Mexico, Iran,Taiwan and other countries and regions.
Our laminating machine and solar panel turnkey line are being used by many well-known enterprises such as Suntech,CEEG,Hyundai Group headquarters in South Korea,Huaneng,Shunfeng-pv, etc. At the same time, it is well-known research institutions and colleges of the Chinese Academy of Sciences, Beijing University, Nanjing University, South Korea sago Industrial University was selected as the experimental instrument.
With honesty, leading technology, the pursuit of excellence,we Radiant company, wish to cooperate with you to create a better future for the photovoltaic industry, and will be consistent and dedicated to serve you!
Our Services
Our Service:
1,The company has a dedicated sales service team, to provide pre-sale, sale, after-sale service.
2,Free installation and commissioning, equipment operation training and maintenance technology.
3,Fixed point quality tracking service.
4,One year warranty, life-long paid maintenance.
5,The warranty period, any damage caused by the quality of parts, the company replaced free of charge.
Note: Customized specifications are available upon requirements.
