Adjustable Prop jack Scaffolding and Steel Prop Building Construction Steel Support Prop for Construction Project

Product Overview

Description

Adjustable Prop jack Scaffolding and Steel Prop Building Construction Steel Support Prop for Construction Project

Our company was founded in 2014, focusing on two markets both home and abroad. At present, our products have opened up the market in foreign countries. Because we are a direct manufacturer, our products have advantages in price, fast delivery and guaranteed quality. We always believe that product quality is better than everything. At present, we have a perfect after-sales service system, and problems can be solved quickly.In addition to our common product specifications, we can also produceadjustable props for formwork according to customer needs.

product introduction:

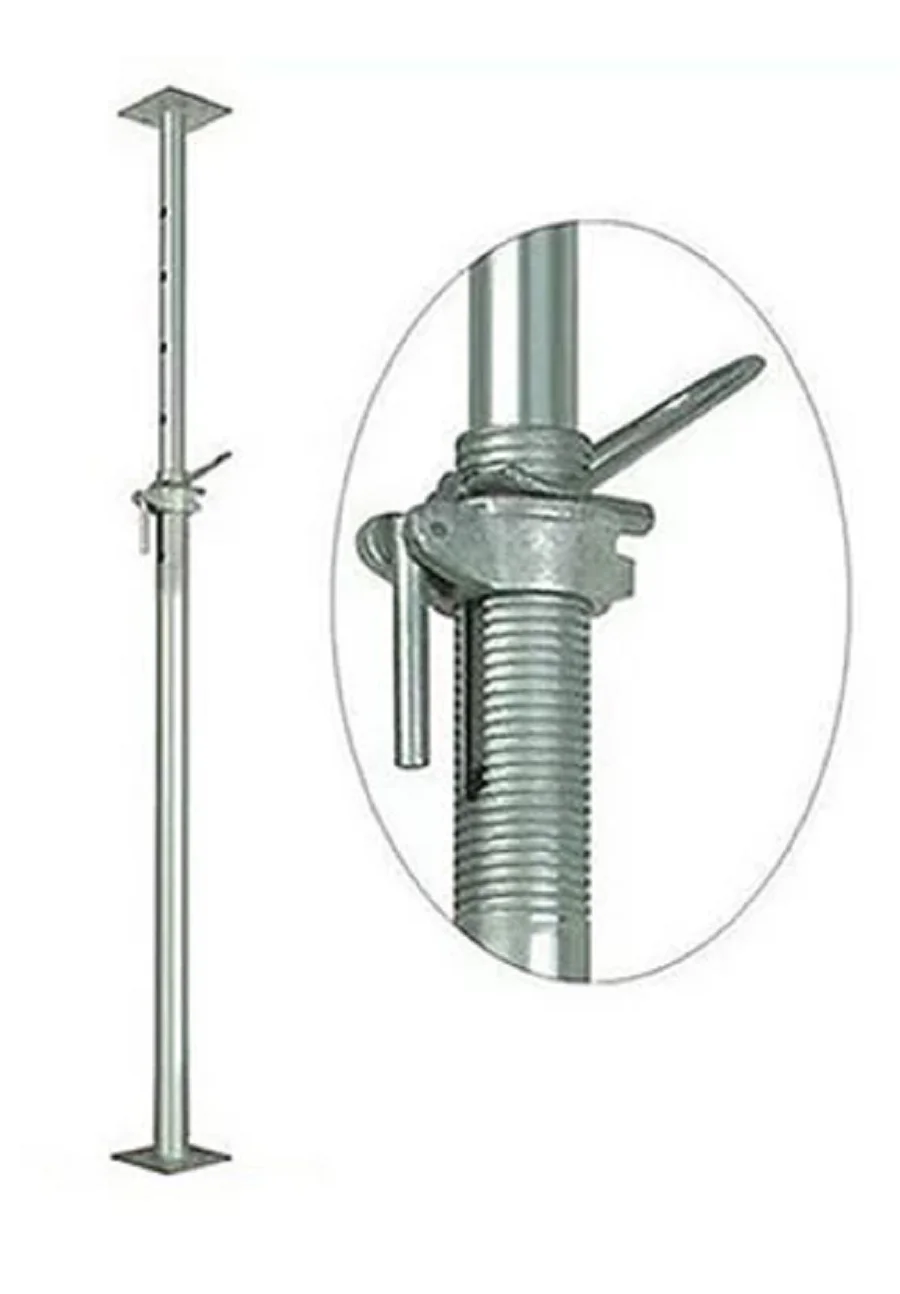

*            product : adjustable props.

*       Brand Name:Hengjie

*        application :  Supporting top aluminum formwork, constraction

*       specification: 2000*2200*2   2000*2200*3   3000*2200*3    1800*3200*2.5

*        using length:    2.3-4m          2.5-4m        1.2-2.4m

*       single weight:     11600g           17300g            20500g           12000g

*             diameter:   inner 48mm    outer 60mm

*      wall thickness:  2.75-2.5mm  3mm  2mm  1.8mm   1.5mm

*              Material:Q235 Steel

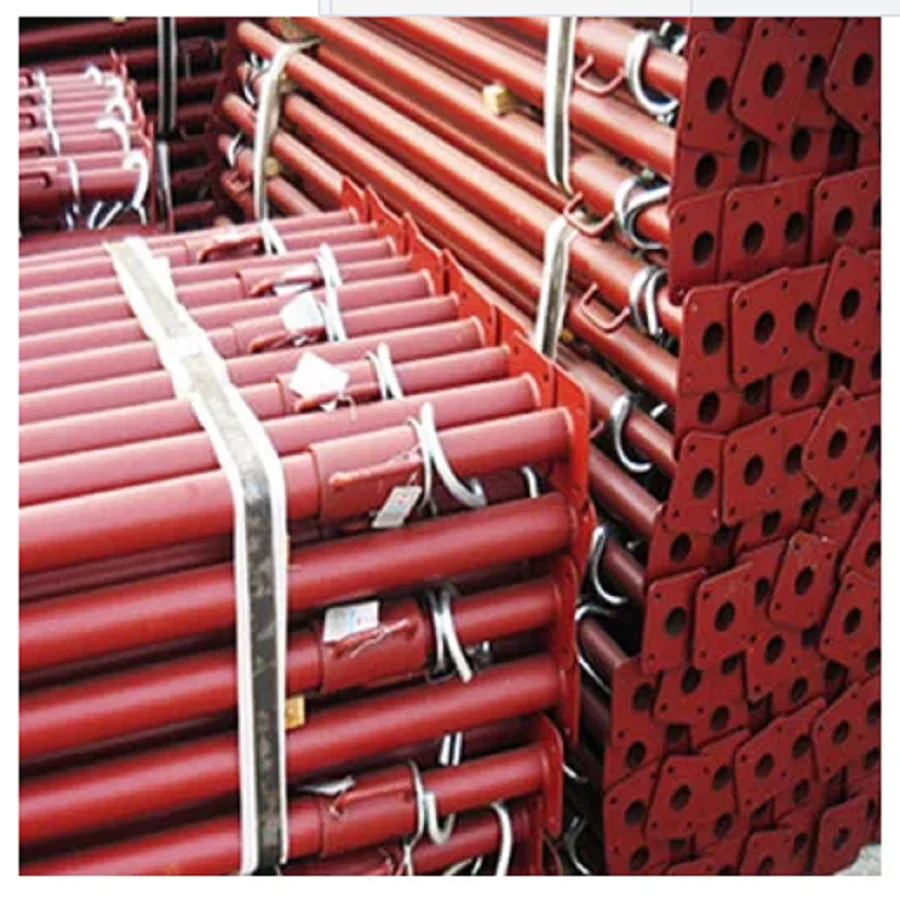

*                 Color:Dark red,Blue,Grey Or As Per The Customer's Requirement

* surface treament: Hot Dip Galvanized      Spray molding

*            Standard: Astm,BS,JIS,DIN.

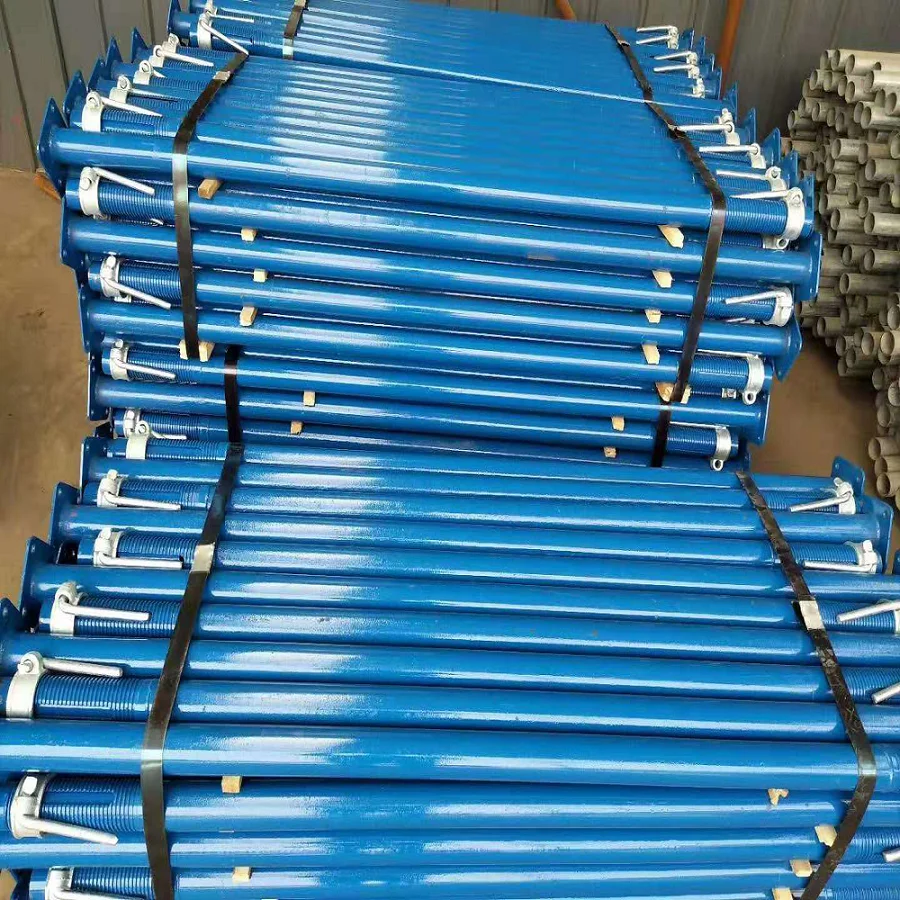

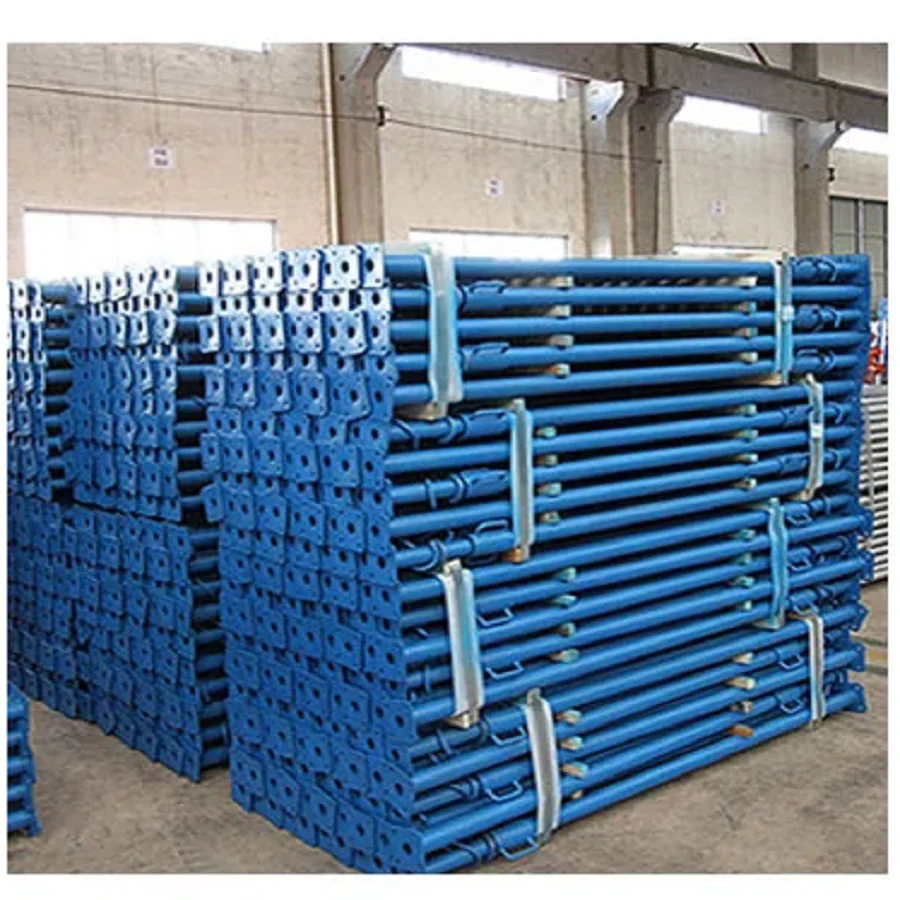

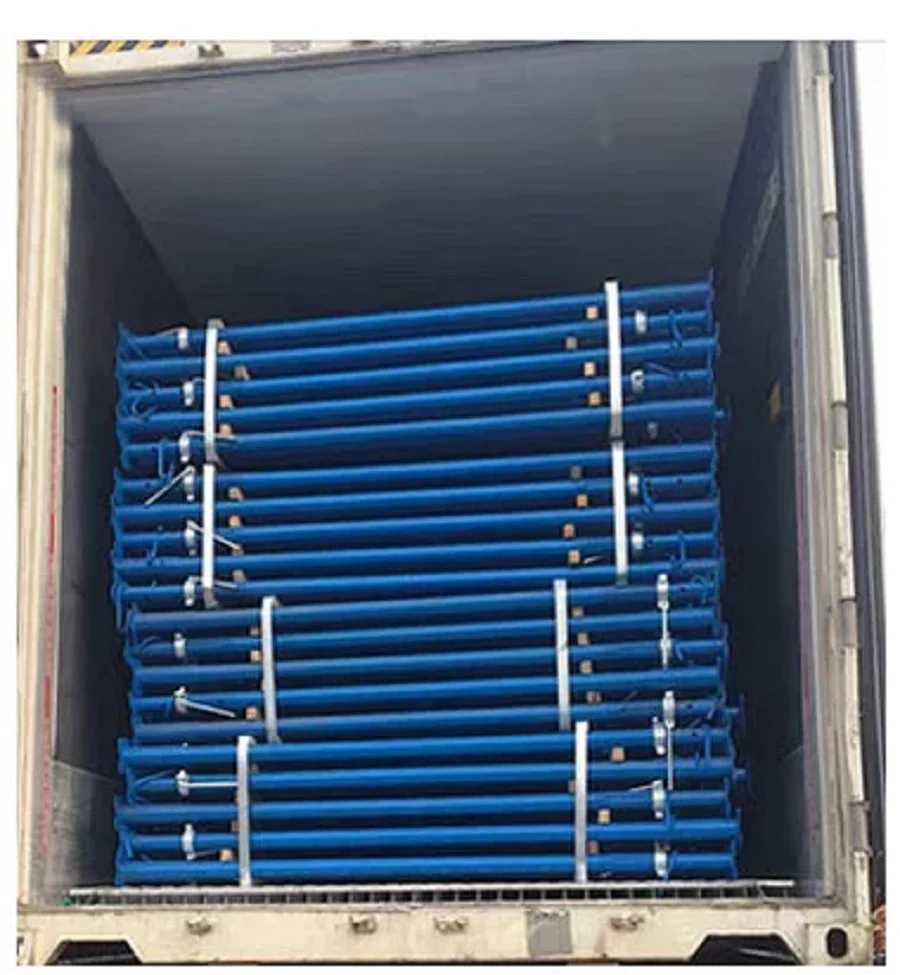

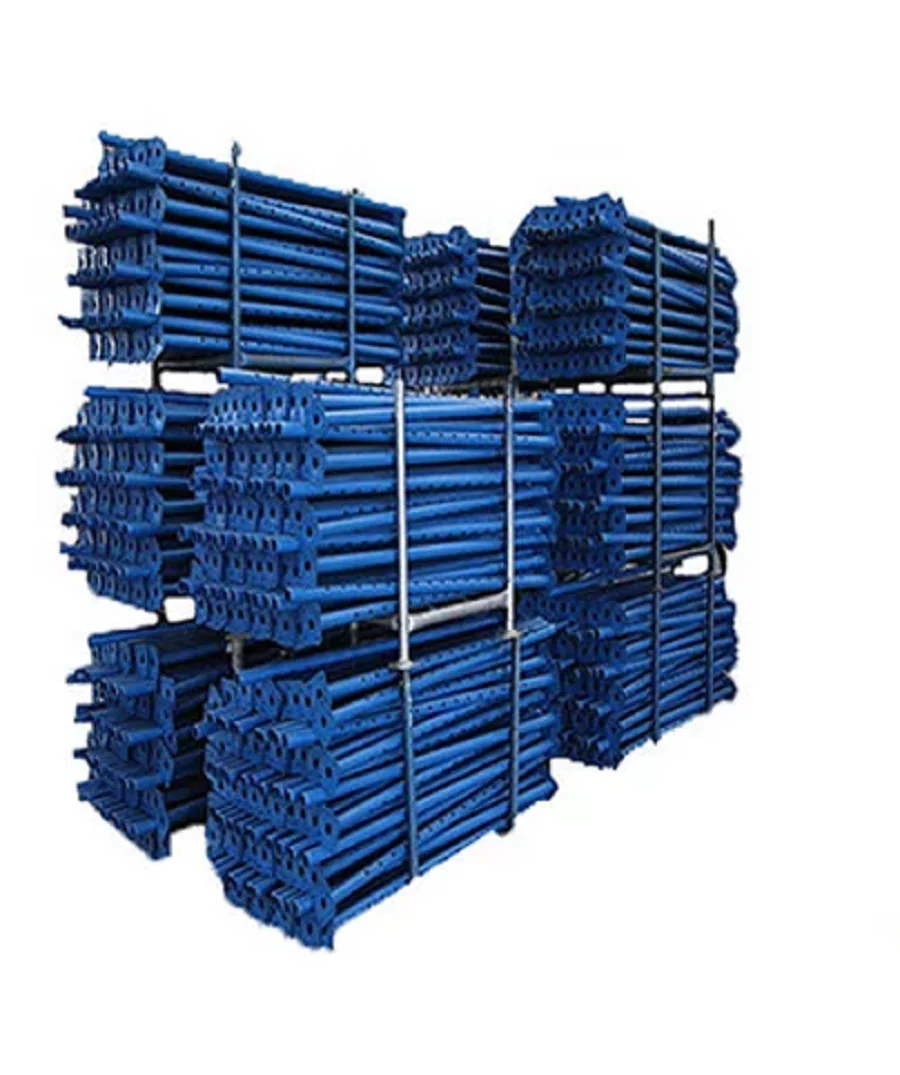

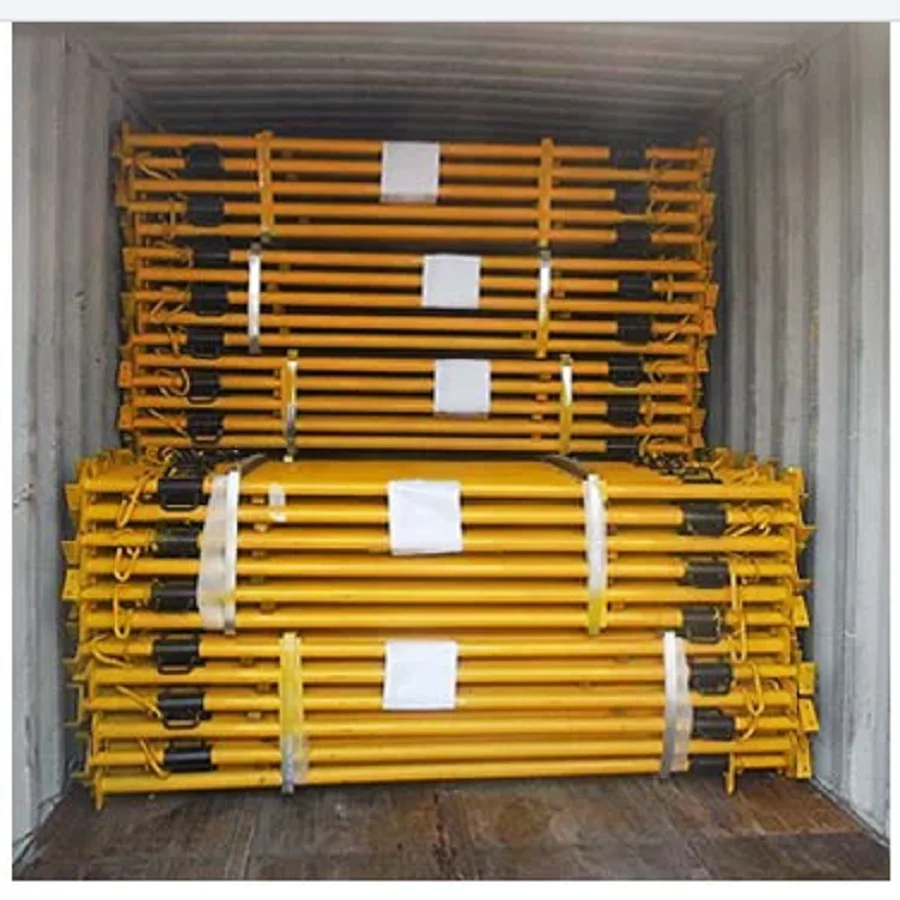

*              Packing: in bundle

*          Selling Units:Single item

*       Delivery time.:15days upon the prepayment.

*       Payment term: T/T or L/C.

*             Certificate:  Iso9001.

* After-sale Service:Online Technical Support

*        Custom order: please provide specific drawing, we will give you the quotation ASAP.

Adjustable Mechanical Prop jack Scaffolding and Steel Support  Building Construction Steel Support Prop for Construction Project

Heavy Duty Props
Adjustable Height	Outer Tube	Inner Tube	Top and Base Plates	Weight (+-5%)
2000-3600mm	60x2.0mm	48x2.0mm	120x120x4.0mm	11.7kg/pc
2200-3900mm	60x2.0mm	48x2.0mm	120x120x4.0mm	12.43kg/pc
2200-4000mm	60x2.0mm	48x2.0mm	120x120x4.0mm	12.71kg/pc
2400-3900mm	60x2.0mm	48x2.0mm	120x120x4.0mm	12.3kg/pc
2400-4000mm	60x2.0mm	48x2.0mm	120x120x4.0mm	12.59kg/pc
3000-5500mm	60x3.0mm	48x3.0mm	120x120x5.0mm	23.4kg/pc
3300-6000mm	60x3.0mm	48x3.0mm	120x120x5.0mm	25.3kg/pc
