Partaker Thin client FL120 all winner A20 high compatible with Win/Linux OS

Product Overview

Description

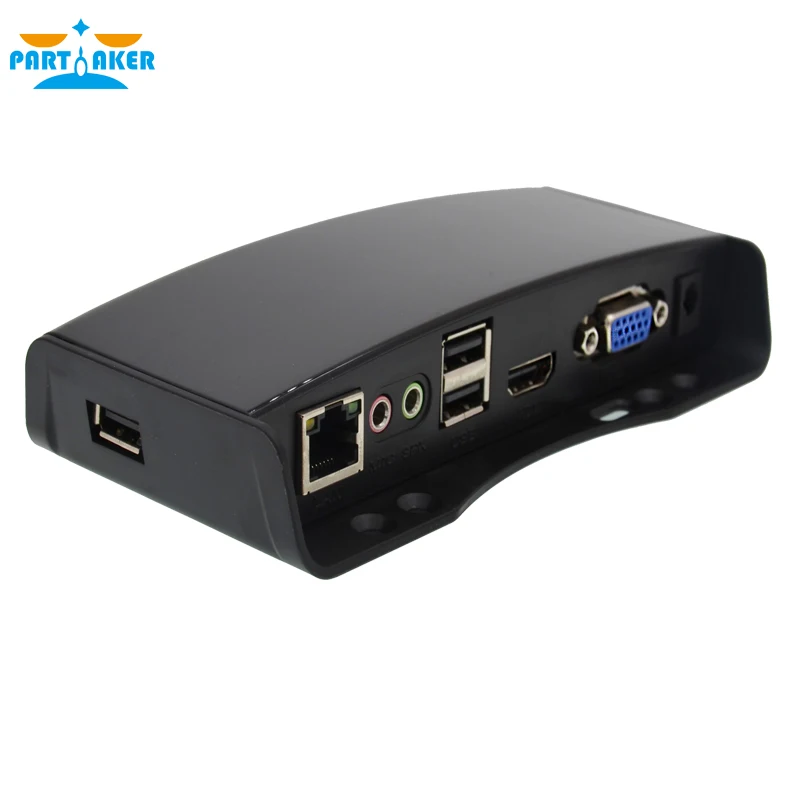

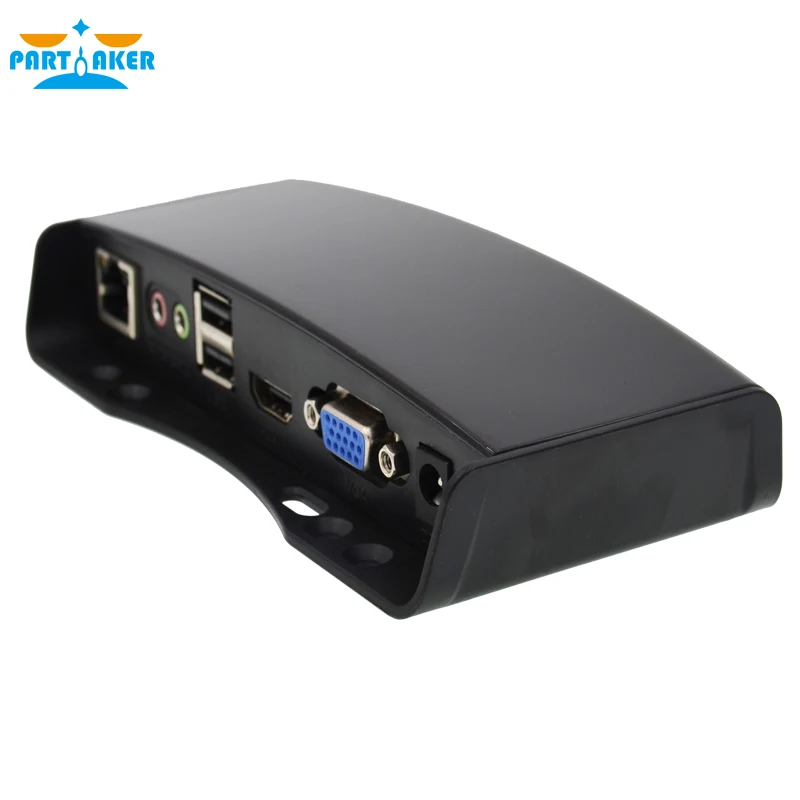

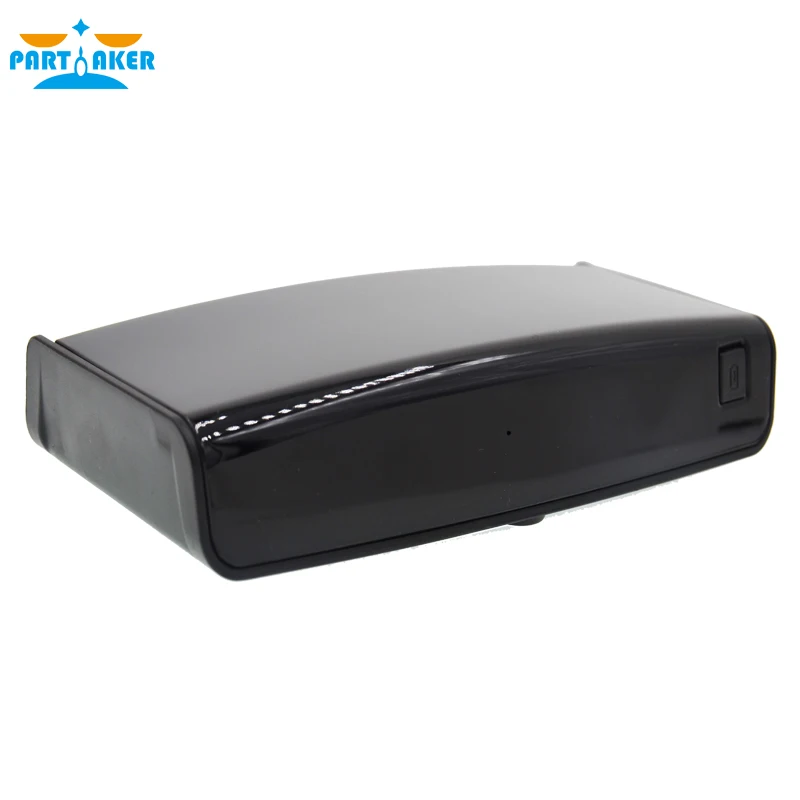

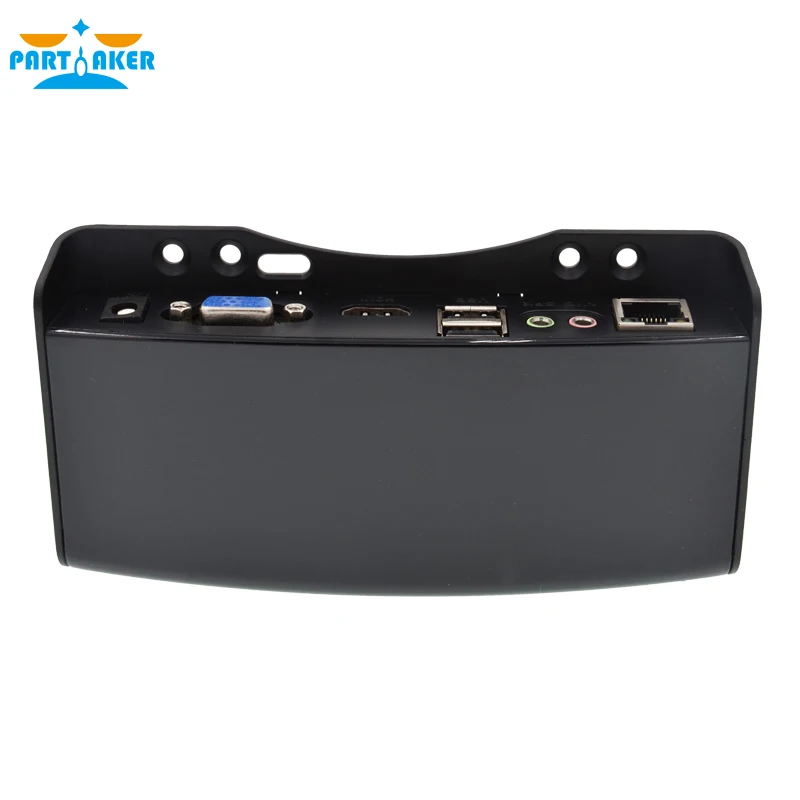

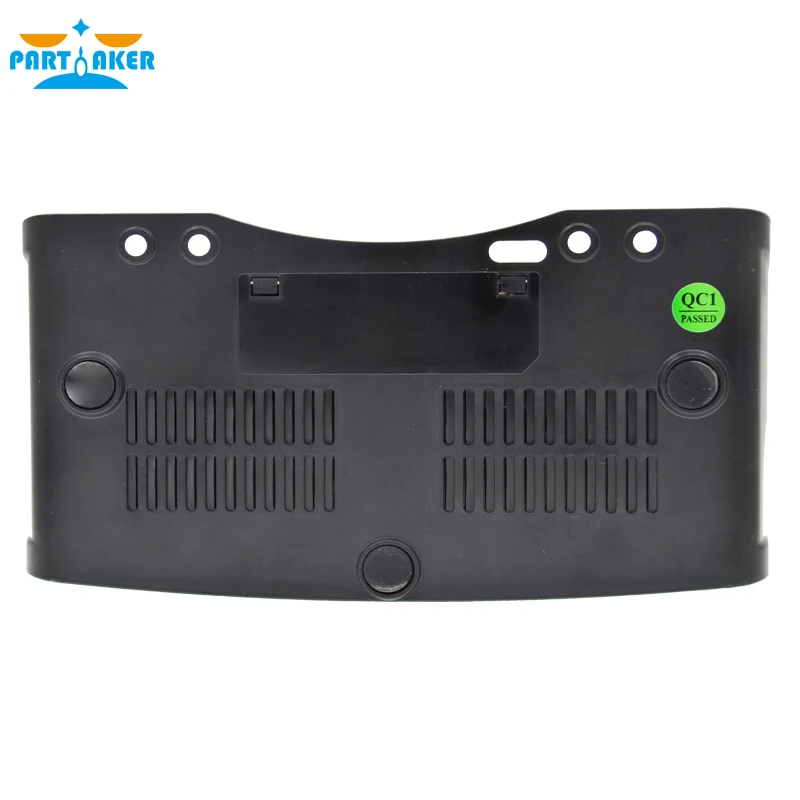

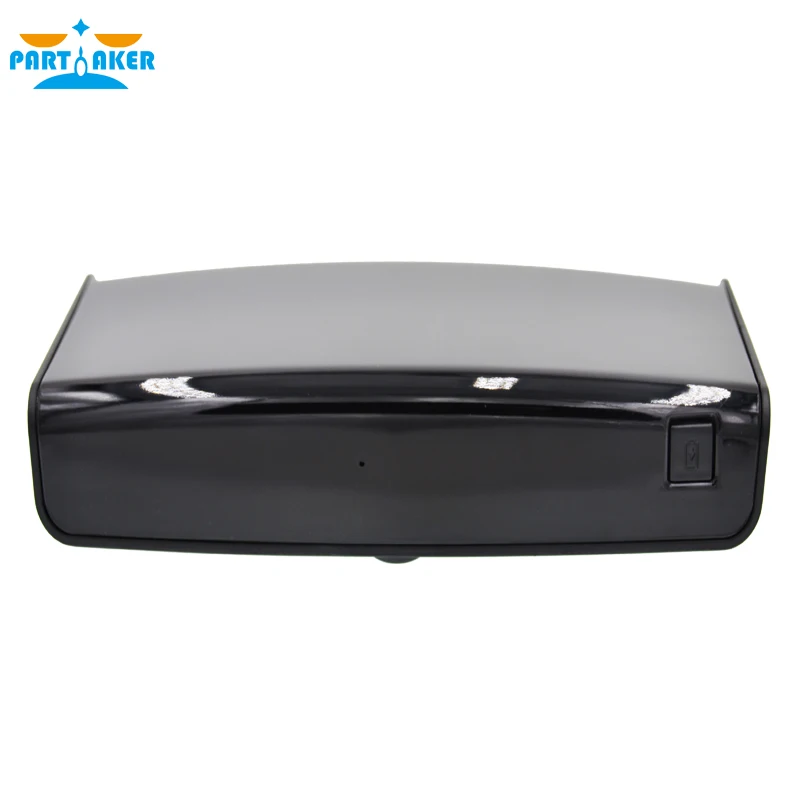

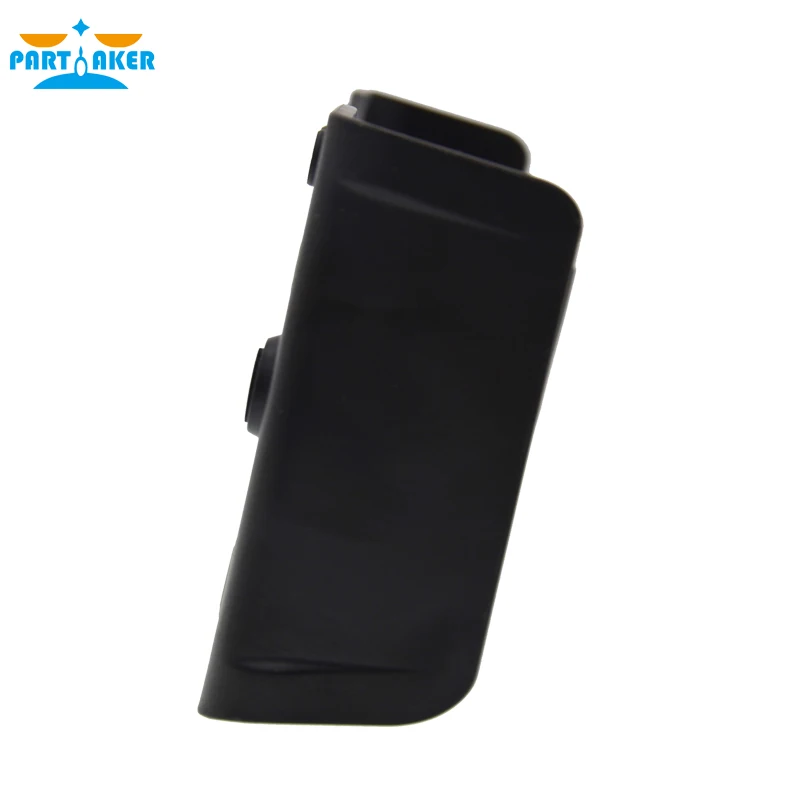

Thin Client FL120

  One PC share with many users. Saving!



Embedded with linux OS

No license fee

High compatibility

Attractive price & Excellent performance







 FL120 features



1.High compatible with Windows/Linux OS

No need to set time and date. Connect with host pc directly!









2. HDMI and VGA Resolution support

Max support HDMI 1920*1080P.

Support 1366*768 resolution which can support irregular monitor such as 15.6/18.5inch



3. Attractive price&Excellent working performance

N380(WIN CE 6 OS)<FL100 2 times faster=FL120 <FL300(Linux OS) 2 times faster <FL500(<FL600)3 times







Recommend configuration for Host PC





User Number	CPU	RAM	HDD
Below 10 users	Intel Core Duo2.0GHZor above	2GB-4GB	500GB
10-20 users	Intel Core Duo2.0GHZ above or Quad-Core	4GB-8GB	500GB
20-30 users	Core Quad-Core 2.6GHZ above	8GB	1TB
30-50 users	Xeon dual-core 2.3GHZ above or Quad-Core	8GB-16GB	1TB-2TB



















































Main function:



FL120 makes the remote connection to the server by RDP 7.1 protocol,it is free to use the softwares on the host after connection,such as office software,financial software,ERP software,real estate software,airline flight information software etc.

Fast to connect, easy to operate & maintain, FL120 is one green computer that not only reduces the cost of enterprise computer inputs,but also reduces maintenance costs,it meets the corporate office network construction and easy maintenance, and security requirements, greatly improves the corporate office efficiency, provides customers with unprecedented convenience.

RDP7.1 remote connection



Windows 7 OS is very stable,it features a higher security. FL120 thin client connects to windows 7 OS server by RDP 7.1 protocol,it unified customer service to each user,and upgrades and maintenance work in one step, make it being "zero" maintenance.

Overview HD big picture

Support most picture formats,such as JPG,BMP,GIF,TIFF,PNG etc,also supports picture zoom and other operations.

High-speed WIFI module



Without cumbersome wiring, more convenient to move,FL120 provides users a better network environment.



Specification:

CPU Model		All winner A20 Dual-core 1G
Protocol		RDP7.1
RAM		DDR3 512MB
Storage		4GB Flash
OS		Inner core Linux
Resolution		VGA: 800*600, 1024*768,1366*768,1280*1024, 1440*900 HDMI: 1280*720P,1920*1080P
OS supported		Windows XP / Windows 7/Linux OS(Recommend win7) Windows server 2003 and 2008 R2
I/O

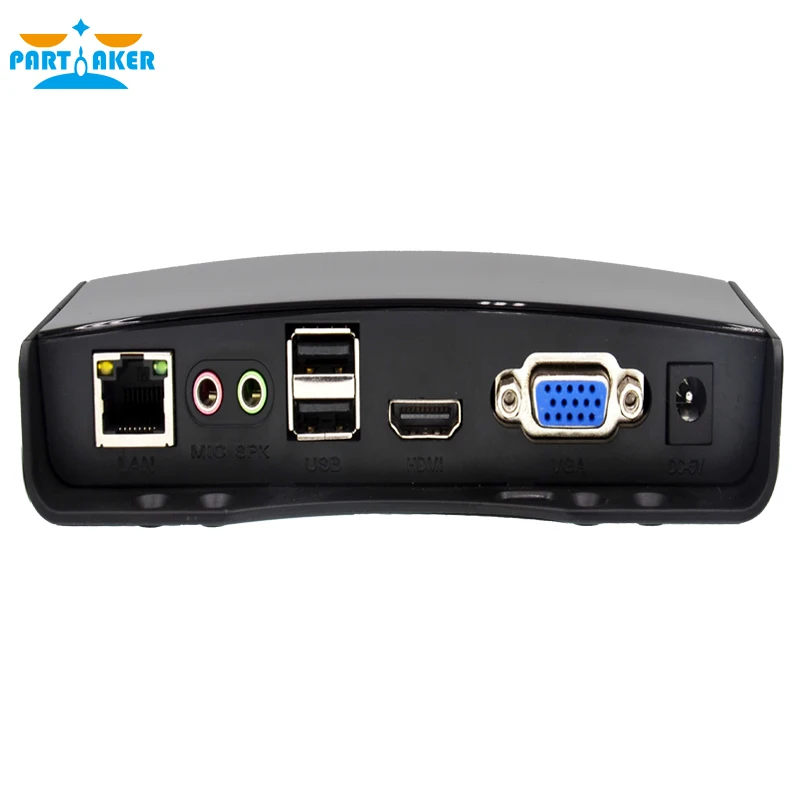

Output	1*HDMI port 1*VGA port 3* USB2.0 port 1*Audio output port
Input	1*power port 1* LAN port 1* Audio input port
Appearance
Size		155X8X25MM
Weight		0.5KG
Power		5V/2A
Consumption		5W
Performance
1	Strong compatibility
2	No time display problems
3	Dual mode display  HDMI /VGA
Compare	N380(WIN CE 6 OS )<FL100 2 times faster=FL120 <FL300 2 times faster <FL500(<FL600)3 times
