CE Certified Single Person Suspended Platform ZLP250 Construction Maintaining Electric Platform Cradle Gondola
- Category: >>>
- Supplier: Shandong Huiyang Construction Equipment Co. Ltd.Shandong Ltd.
Share on (62579561496):
Product Overview
Description
Marketing Campaign
ZLP250 Parameters
Working Principle:
The platform is driven by electric hoist and wire rope, running against the building facade while the suspension mechanism was erected on buildings or structures.
Usage and Application:
ZLP series Suspended Platform belongs to high-rise working construction machinery, mainly used to install curtain wall, facade cleaning or other works such as plaster pulp, veneer, paint coatings, oil paint, or cleaning and maintenance, etc., can also be used for large tanks, bridges, dams and other construction operations.
Above all, HUIYANG Platform can increase the efficiency greatly, with simple and flexible operation, easy transfer, convenient and practical, safe and reliable.
Parameters of ZLP250 Single Person Suspended Platform | ||||||
Type | Bolt Type | |||||
1. Rated Load | 250kg | |||||
2. Lifting speed | 9.3m/min | |||||
3. Lifting height | 100m | |||||
4. Hoist | LTD6.3 | |||||
4.1 Voltage | 380V 50 Hz 3PH | |||||
4.2 Power | 1.5kw | |||||
5. Safety Lock | OSL | |||||
6. Electric Cabinet | 1pcs, 380V 50 Hz 3PH, CHNT | |||||
7. Platform Sise | L=1m, W=0.69m, H=2.7m | |||||
8. Steel Wire Rope | 2pcs; 100m/pcs, D=8.3mm | |||||
9. Safety Rope | 1 pcs, 100m/pcs | |||||
10. Electric Cable | 1pcs, 100m/pcs, 2.0mm sq | |||||
11. Gross Weight (without counterweight) | 420kg | |||||
12. Counter Weight ( without, optional) | Cement; 900kg | |||||
13. Loading Quantity of one 20" Container | 25 sets | |||||

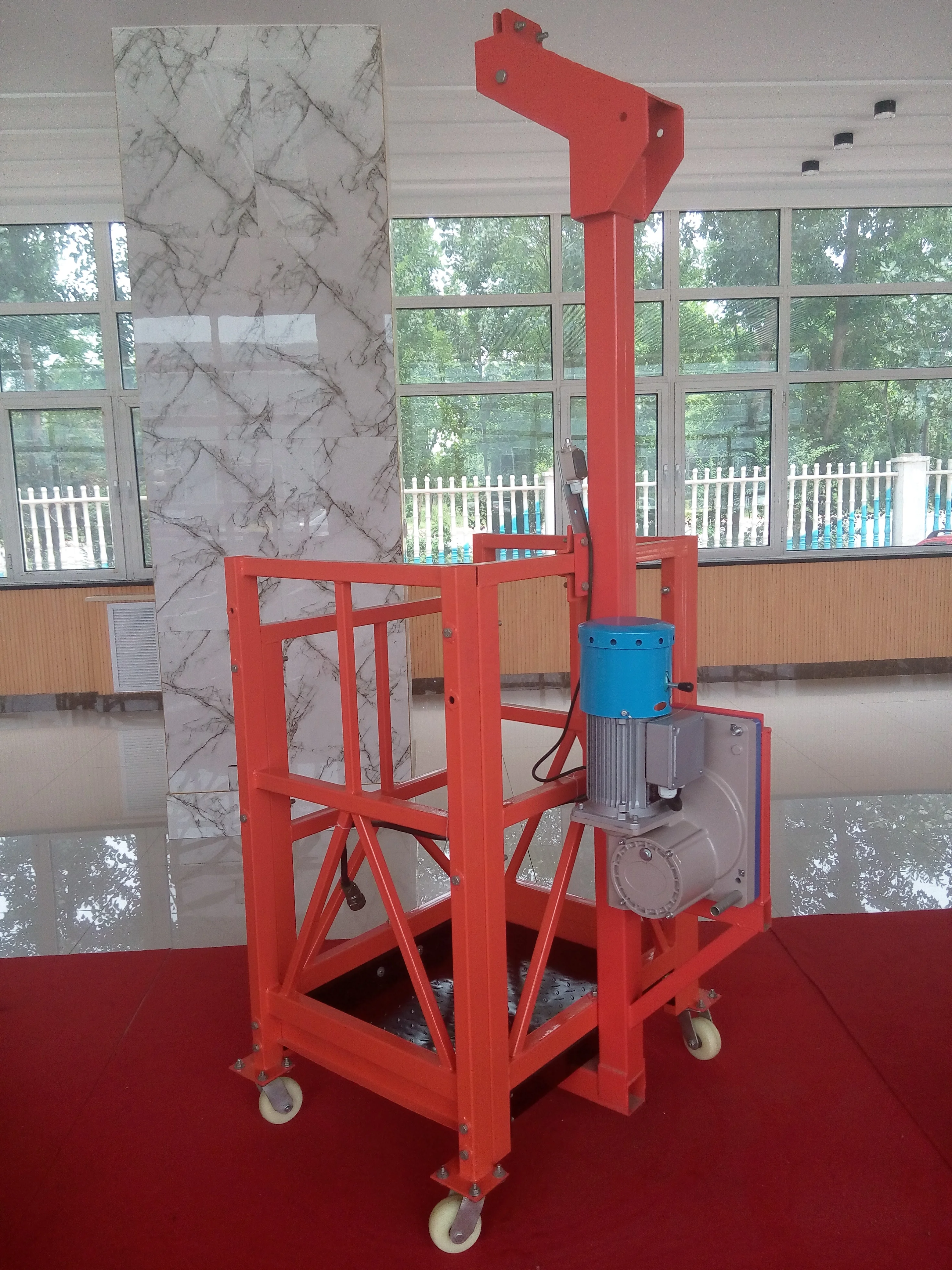

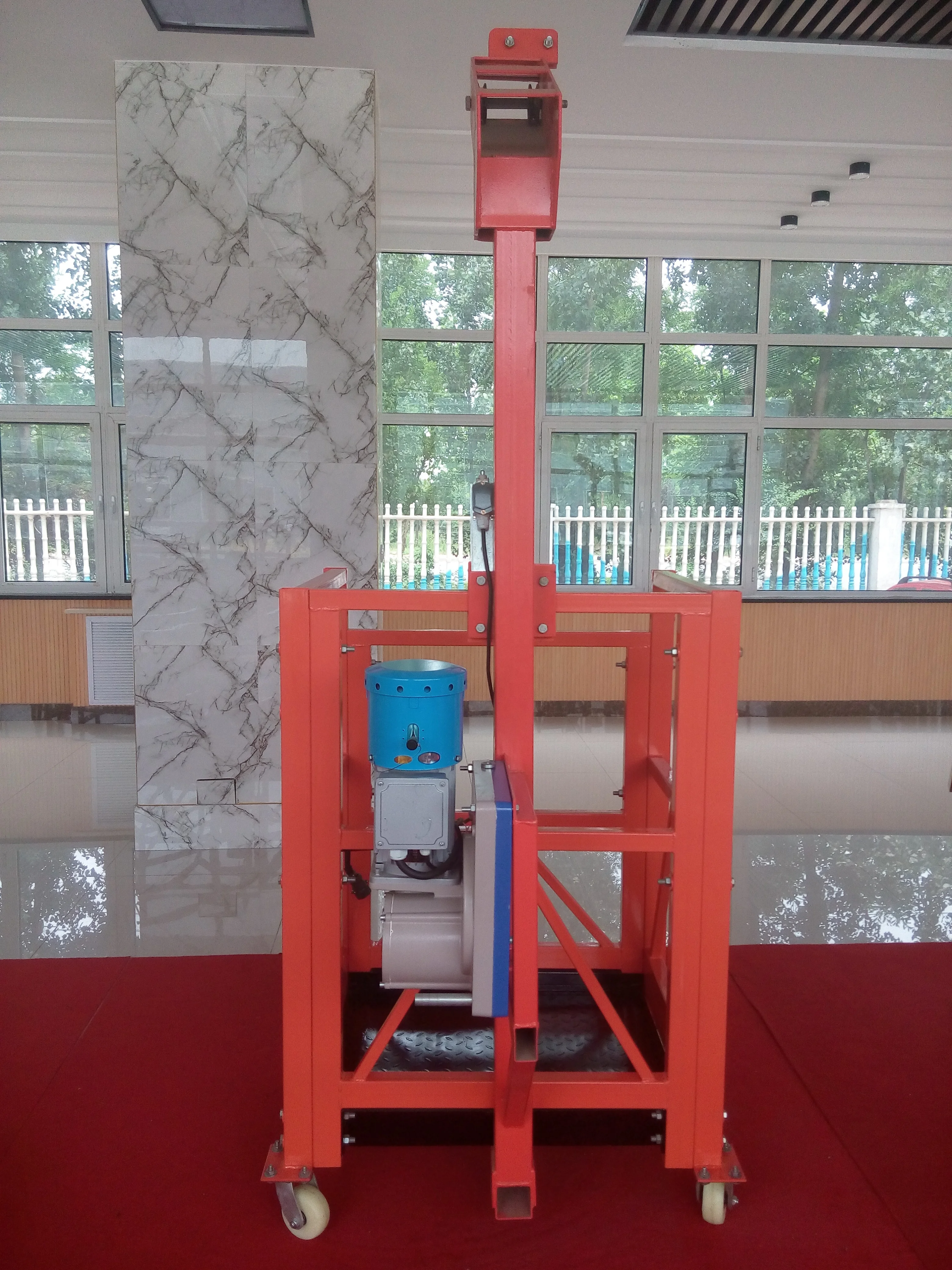

1. Working Platform: Steel + Painting; ( Steel+Galvanised or Aluminum Alloy+Painting is available also)
1.1 Working Cage is the workplace at heights for the workers.
1.2 L=1m W=0.69m H=2.7m;
1.3 With 4 pcs of Bottomsr Wheels fitted underneath, the platform is easy to move.

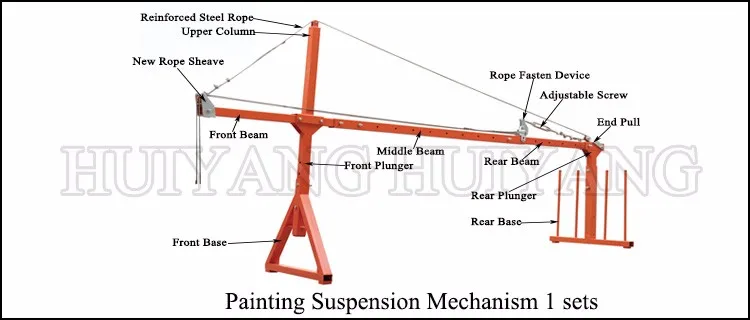

2. Suspension Mechanism: Surface with Painting or Hot-dipped Galvanized
Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.

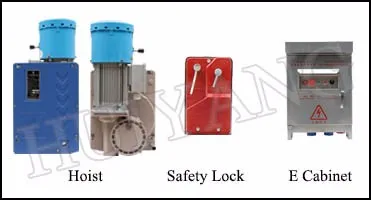

3. Components:
LTD6.3 Hoist, 1.5kw, 1 sets;
OSL Safety Lock, 1 sets;
Electric Cabine: 1 set;
Steel Rope: 2pcs, 100m/pcs; D=8.3mm;
Electric Cable: 1pcs, 100m/pcs, Rubber, 3x2.0+2x1.0mm sq;
Safety Rope: 1pcs; 100m/pcs; Nylon;
Counterweight (Optional): 20pcs, 25kg/pcs.

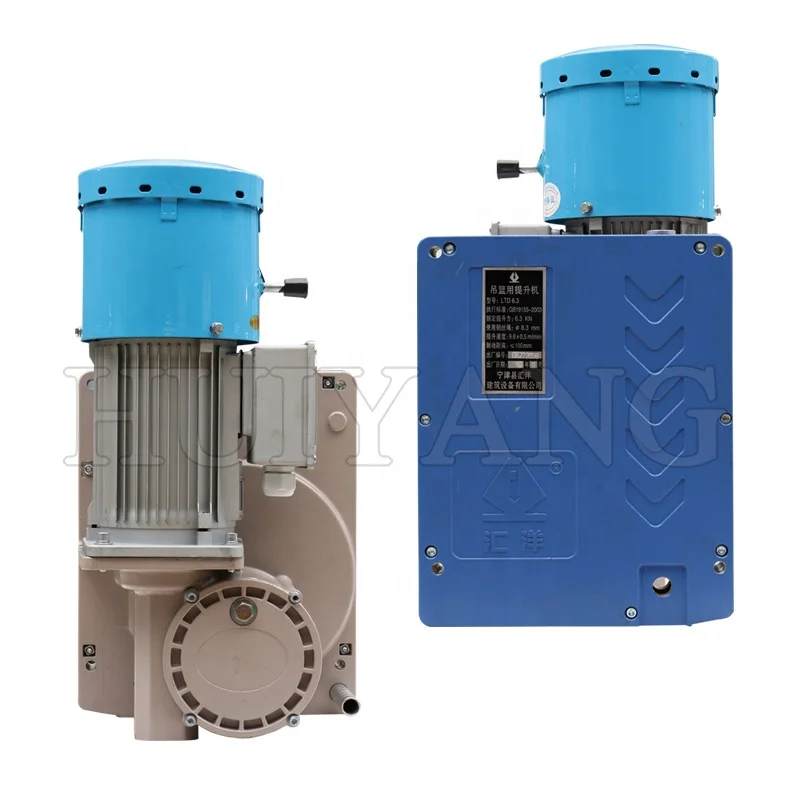

1. HOIST
Brand: HUIYANG
Model: LTD6.3
Quantity: 1 pc
Lifting Speed: 9.3±0.5m/min
Lifting Force: 6.3KN
Name: Motor
Brand: Tianjin YONGHENG
Power: 1.5kw
Voltage: 380V-3PH 50Hz
Rotational Speed\t1420rpm
Weight:48kg

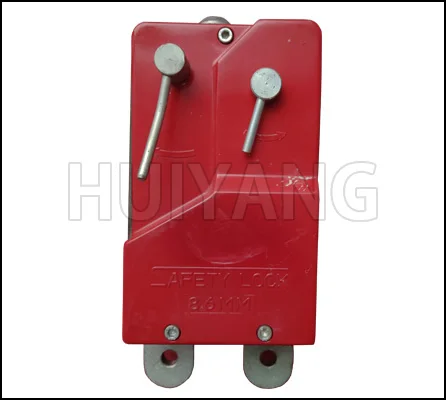

2. OSL Safety Lock
Brand: HUIYANG
Model: OSL
Quantity: 1 Pc
Steel Wire Diameter: 8.3mm
Weight: 11kg
Safety Lock is the protection equipment. When the platform goes acclivitous, or ropes are broken off and falling, the safety locks will lock the wire ropes automatically and quickly to ensure the safety of the operator from falling and inclining.

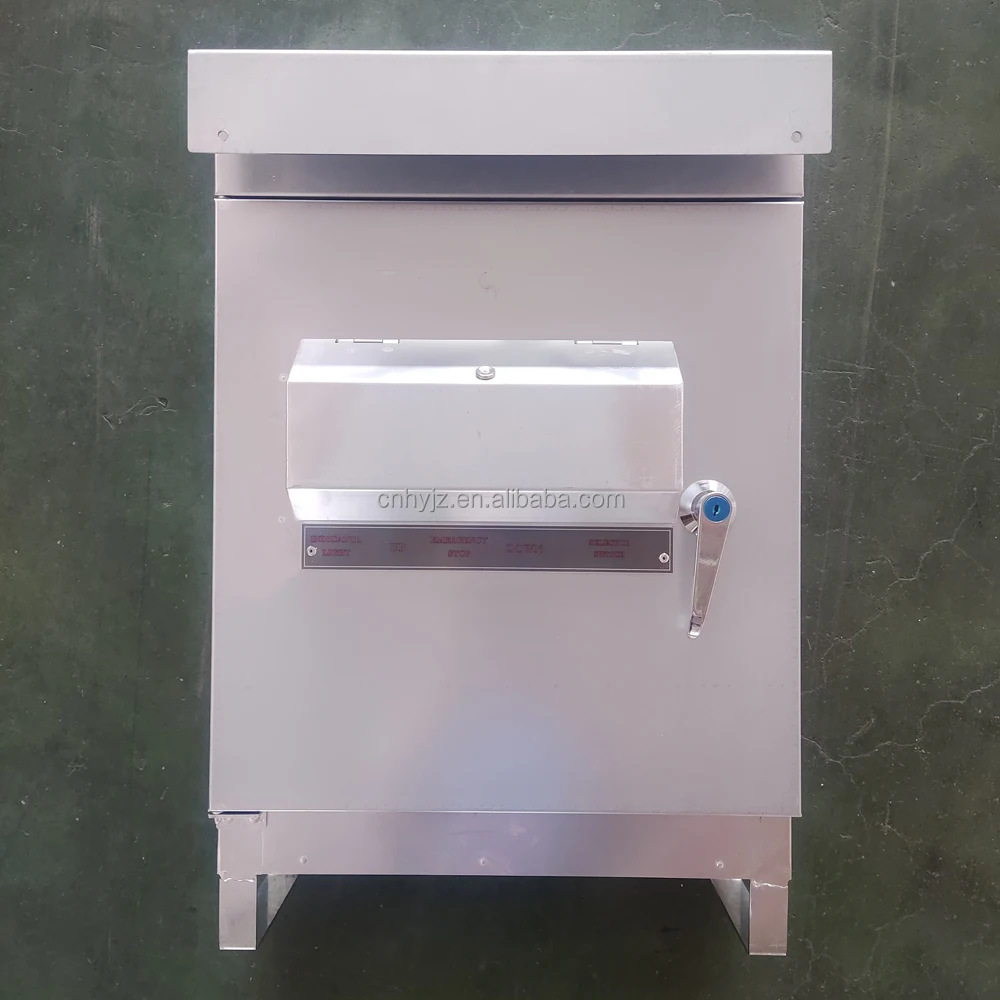

3. ELECTRIC CABINET
Brand: HUIYANG
Surface: Cold Galvanised
With manual Switch
Components Brand: CHNT

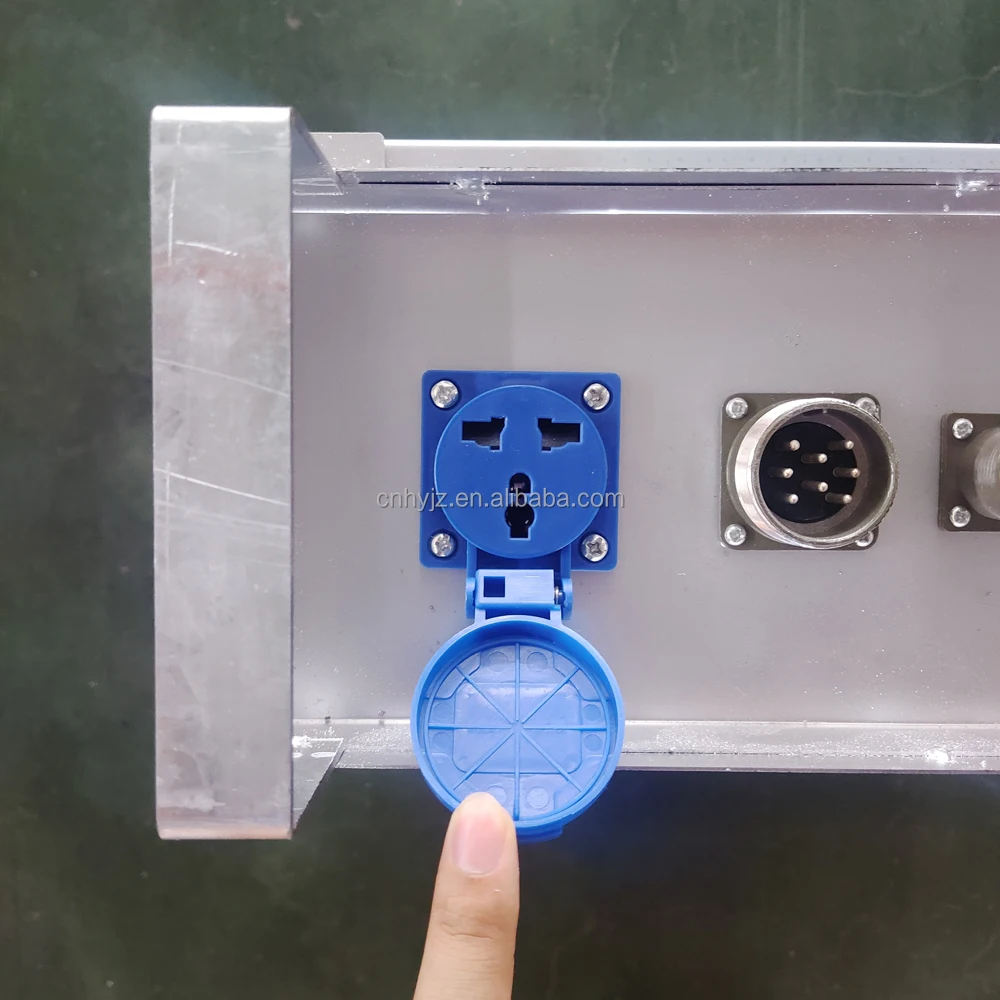

On Electric Control Cabinet, there are 4 buttons and a 220V
50Hz outlet for necessary use. ( Universal Switch, Power Indicator, Start Button and the Emergency Stop Button )
Other details
4. Steel Rope
Brand: Fasten
Quantity: 2pcs
Length=100m/pcs;
Diameter=8.3mm
Weight:25kgx2
5. Nylon Safety Rope 1Pcs=100m
6. Electric Cable: 1Pcs=100m, 2.0mm2
7. Counterweight: (Optional)
Cement or Cast Iron
Certifications
1) CE Certificate.
2) EAC Certificate.
3) ISO9001-2015 Certificate.
4) CCC Certificate.
2) EAC Certificate.
3) ISO9001-2015 Certificate.
4) CCC Certificate.
Company Introduction
HUIYANG Company Introduction.
Ningjin Huiyang Construction Equipment Co., Ltd，established in 2005,located at Dezhou City, is a professional and accurate technique corporation who is professional in the R&D production and sale of suspended access equipment on high operation, and the accessories such as Safety Lock, Hoists, Electric Control Cabinet, Fasten Wire Ropes, and etc.
Now Huiyang becomes the production base and research centre of exporting suspended access equipment in China. The quality of Huiyang Suspended Platform is in the first-class in China and our products have been exported to more than 20 countries, which can be comparable with European famous suspended platforms.
Huiyang Suspended Platform is one of the largest enterprises engaged in well-known suspended platform in China, and annual production capacity is up to 8000 sets. In China, Huiyang suspended platform owns the most complete categories, specifications, and applications compared with same industry. They have been used in every aerial area with the main models ZLP500, ZLP630, ZLP800 and ZLP1000. The Voltage and Frequency could be up to different countries' standard, such as single-phase 220V, triplicate-phase 220V, 380V etc.
No matter what structure needs, everything is easier with Huiyang!
Our Service
Pre-Sales Service
* Factory Show.
* Consulting Support
* Fast Quotation and PI Feedback
* View our Factory.
* Sample testing support.
After-Sales Service
* Video Training: Installation Instructions.
* Engineer Online Service.
* Email Instruction.
All products purchased from our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.
FAQ.
1. How much is this suspended platform?
Price will offer you immediately after telling us your requirements of loading capacity, material and voltage.
2. Are you a factory or trading company?
We are direct factory with 40,4000 square meters factory and supply qualified products with factory price.
3. What quality certificate you own for your products?
Our products own CCC, CE and ISO9001 certificate.
4. How about the price?
Please send us inquiry, a consideration solution or preferable will be sent within 24 hours.
5. Payment term? T/T or L/C at sight.
6. Spare parts & guarantee?
If any parts get damaged because of quality within 12 months after shipping date.
We will send new parts to replace right away.
7. Can you make suspended platform with our brand? Yes.
8. Delivery time? According to order quantity, 10-20 working days will be finished after getting the deposit.
Packing & Delivery
Packaging | ||
Size | 3m³ | |
Weight | 500kg (without Counterweight) | |
Packaging Details | MOQ: 1set 1-5 sets packed in wooden case. 5-13 sets be nude inside the Container. | |
