Product Overview

Description

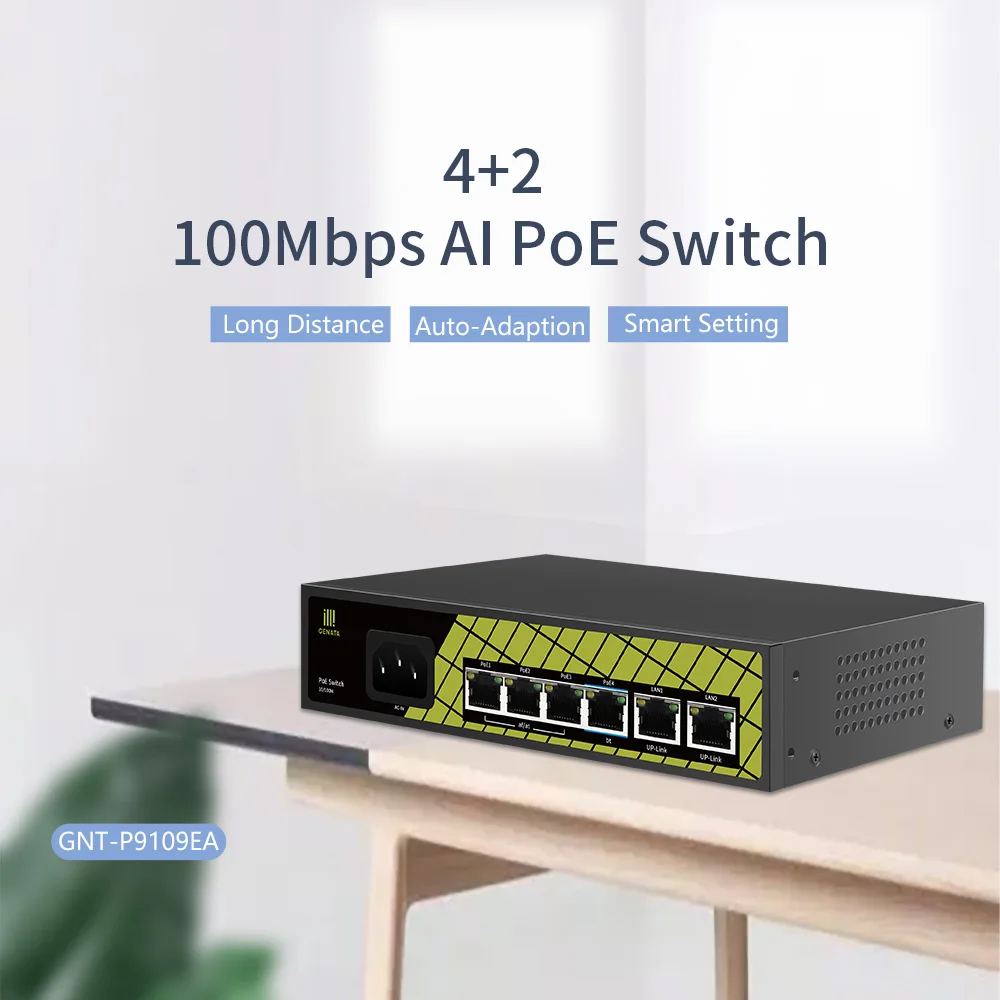

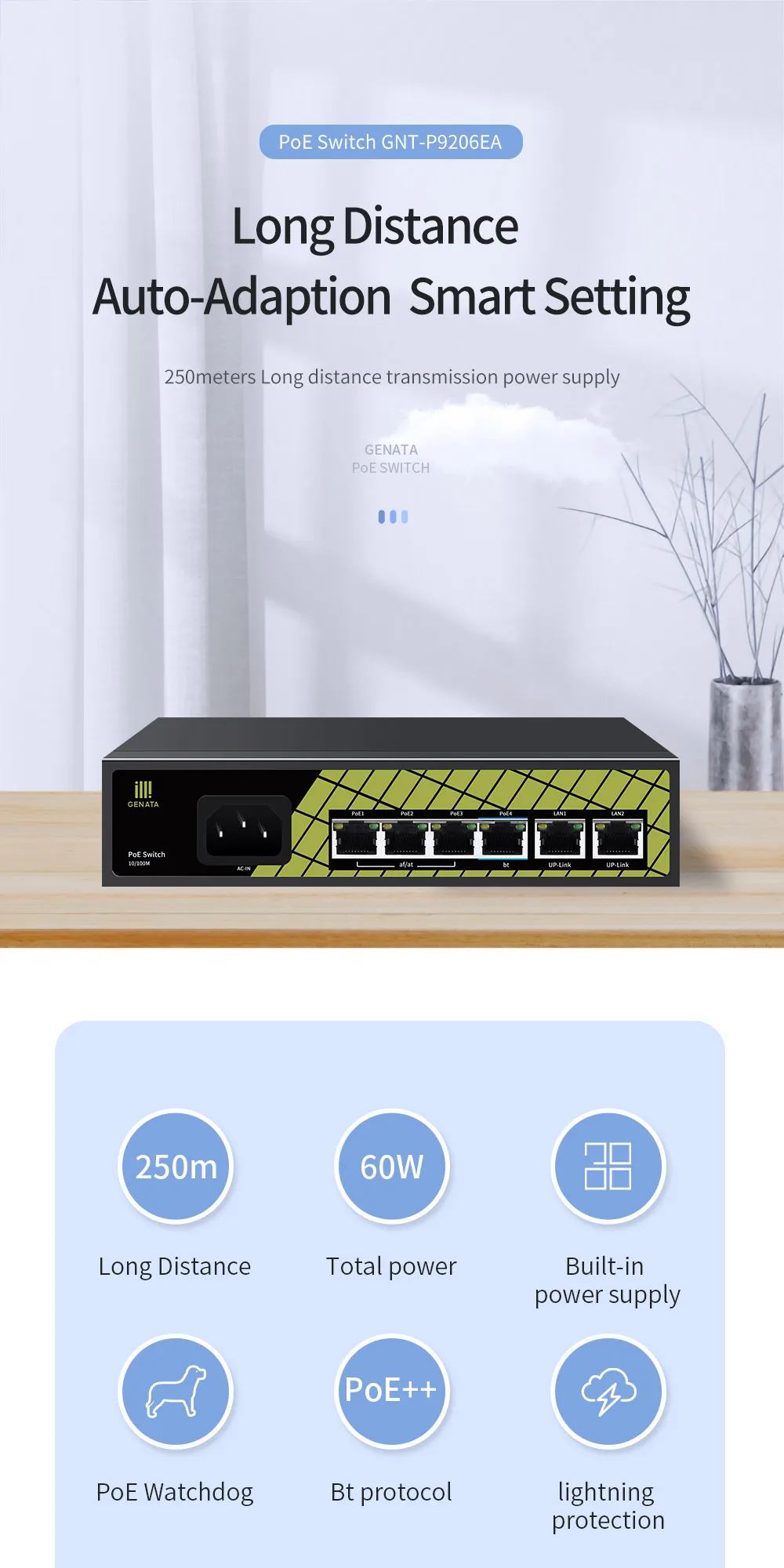

High Power 4 Port AI PoE Switches 48V Ethernet PoE Switch Adaptive 250M Unmanaged Switches with watchdog BT 60W output for PTZ



Product Description





   specifications:






1.Using CAT.5 network patch cords support power for the wireless AP/CPE and IP camera/PTZ

2.Networking standard: IEEE802.3af/at/bt

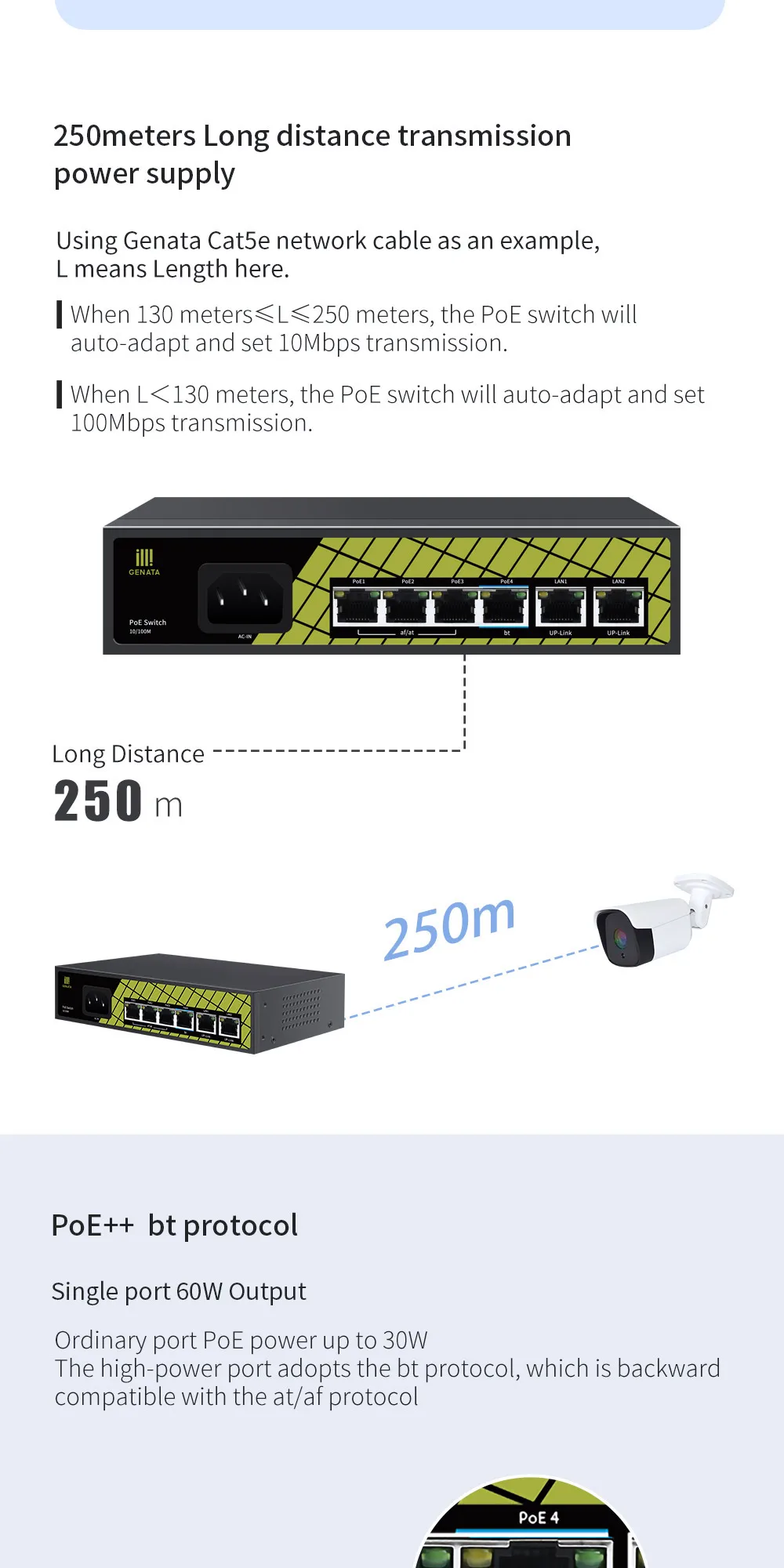

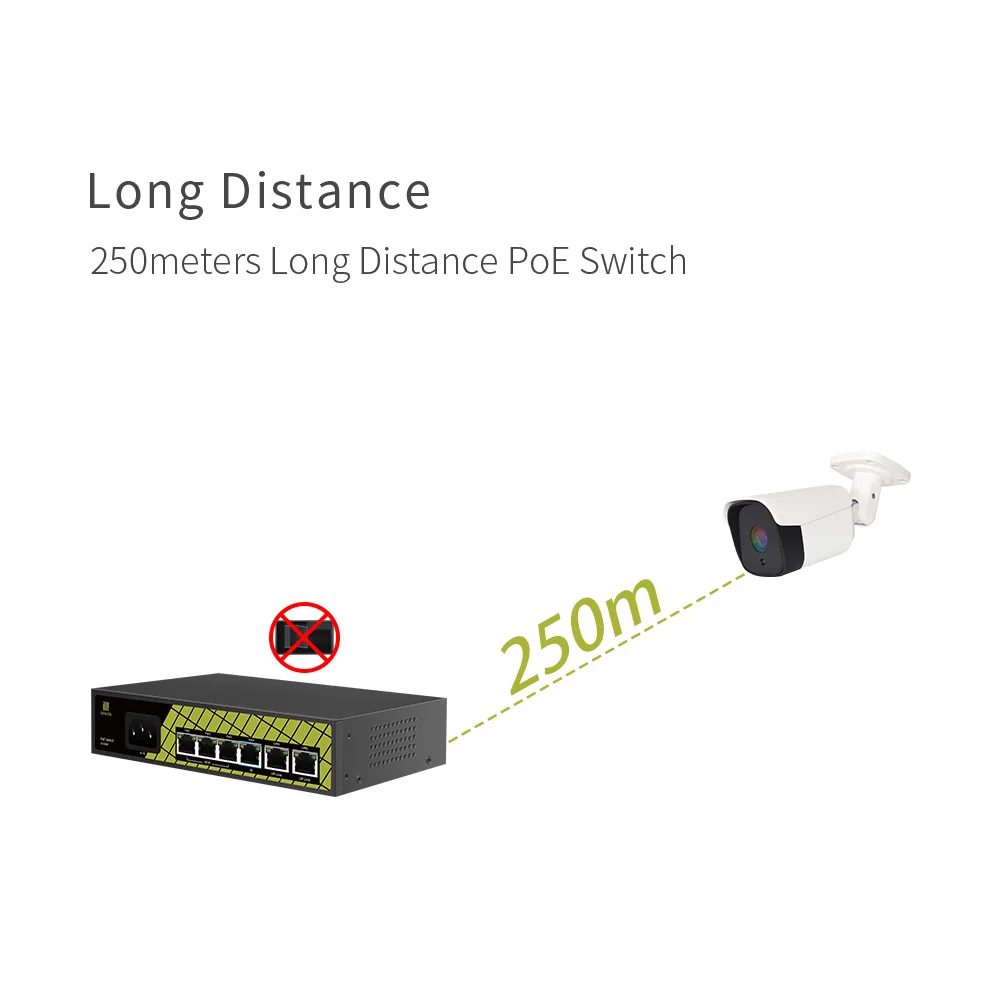

3.FE ports can support 250 meters long distance transmission automatically.

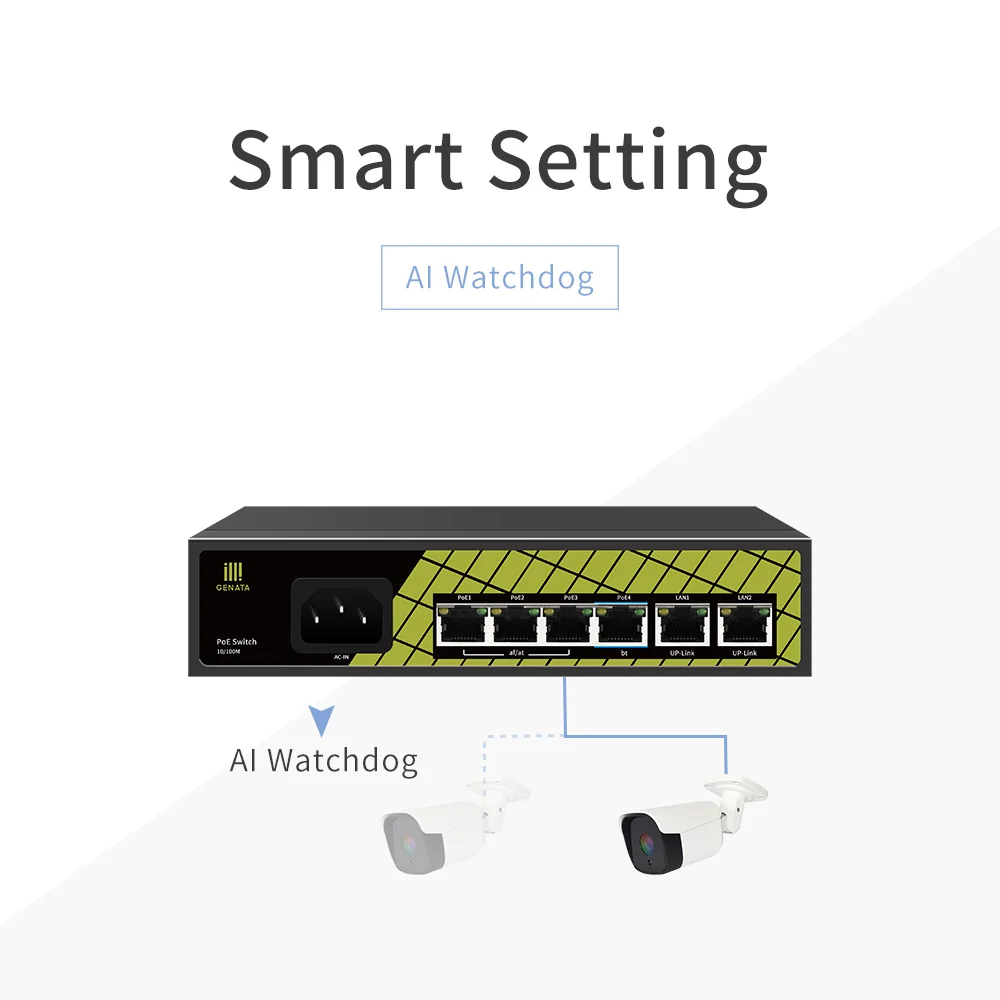

4.PoE Watchdog AI Function: Detection front-end PoE cameras and PD, Automatic detection, Automatic restart

5.Support 60W PoE receiving power, free of power adapter & simplify power supply

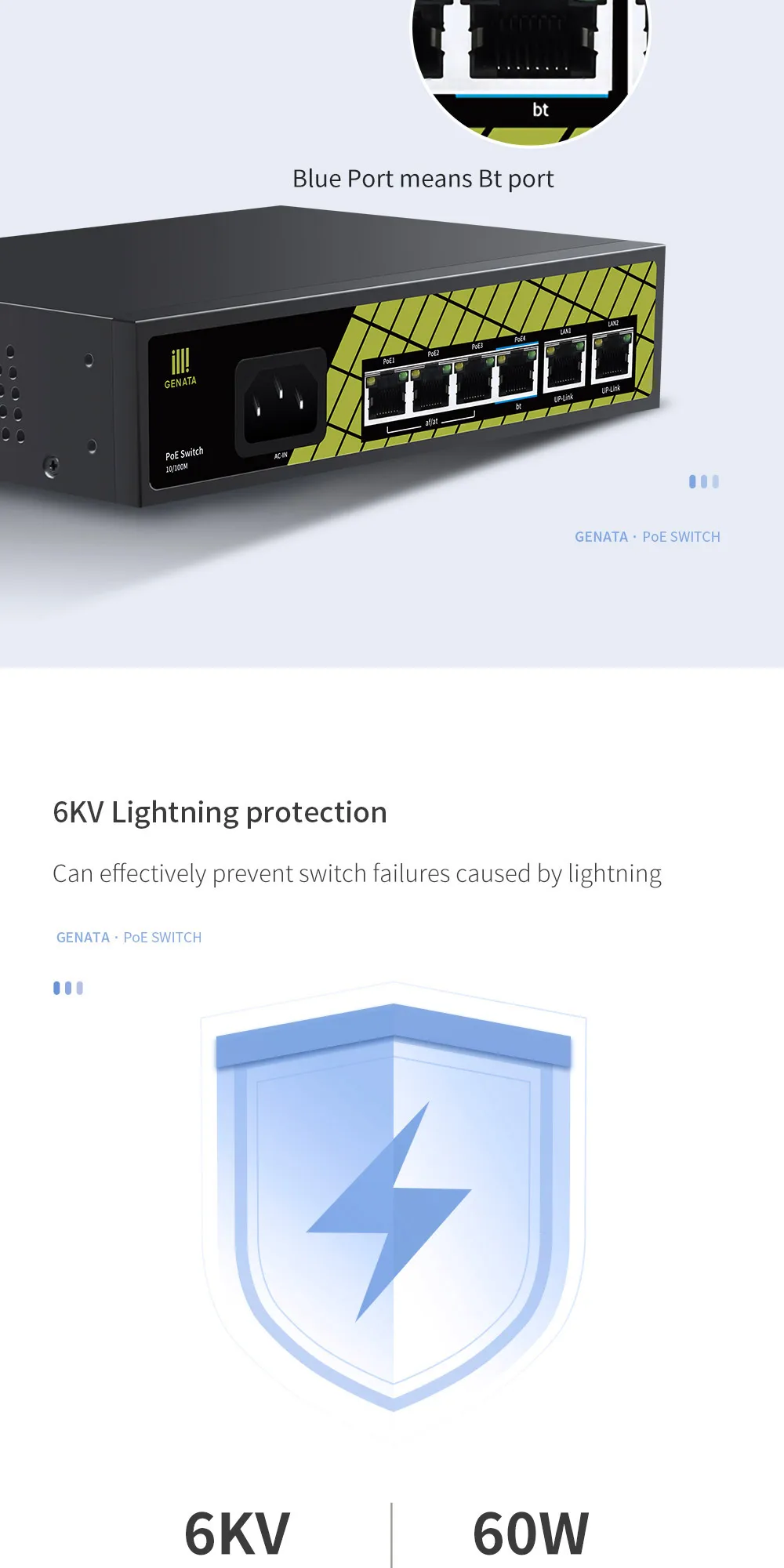

6.6KV lightning protection,8KV surge protection, anti-reverse connection, over-current protection, over-voltage

protection,over-temperature protection, Short circuit protection

7.The Max output power of the port is 60W, which is convenient for hi-power equipment

8.Zero configuration feature power supply is automatically supplied to the adaptive equipment

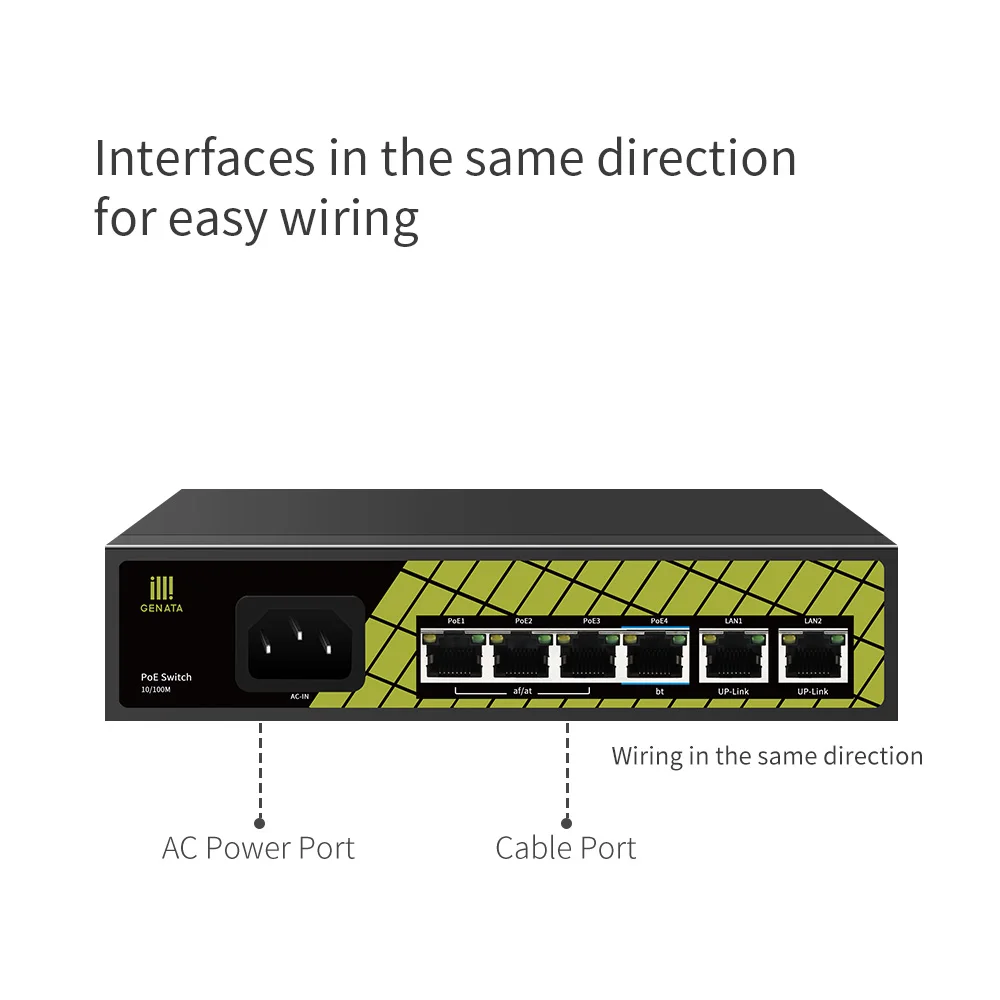

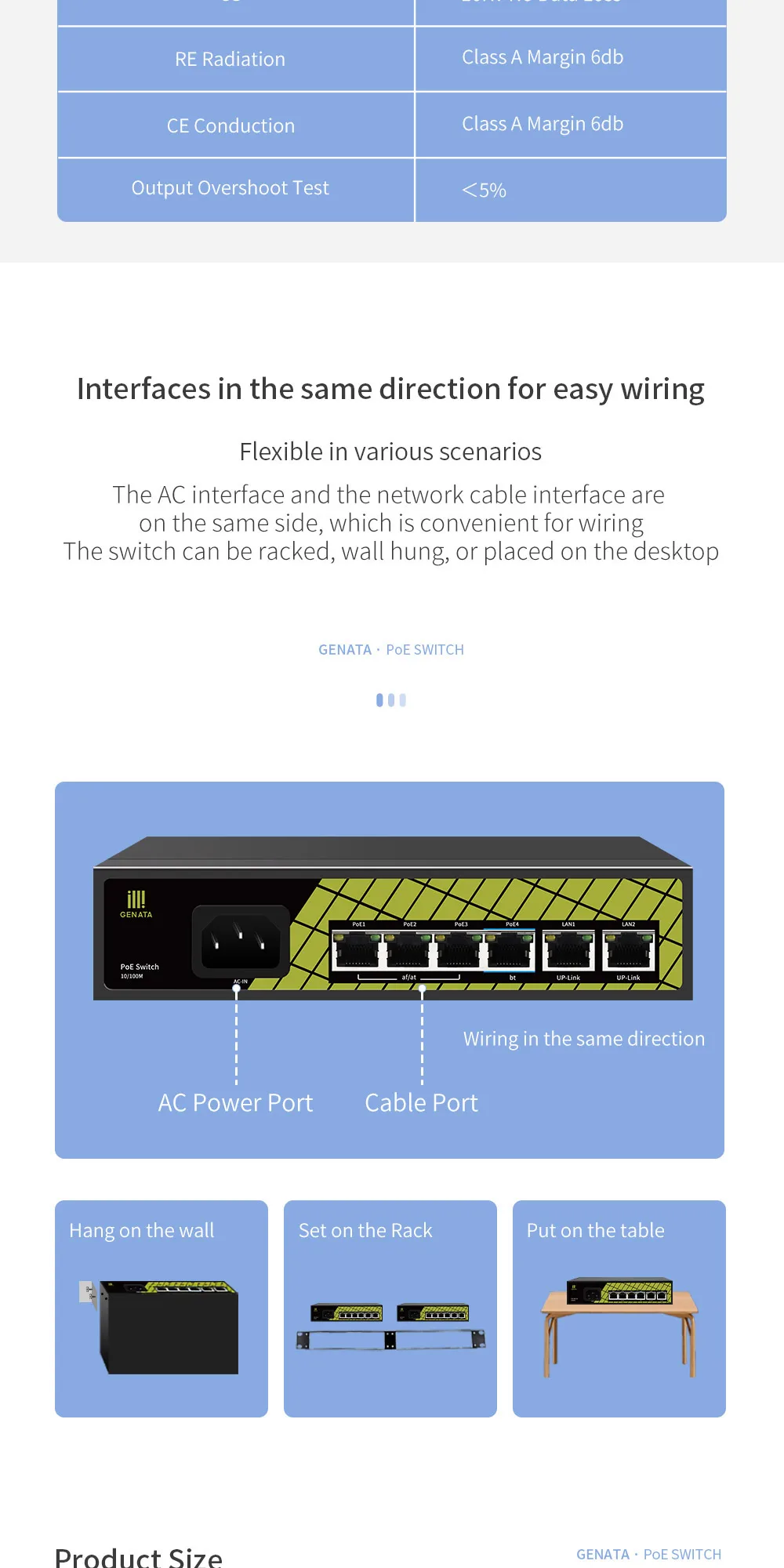

Ports


PoE (1~3) :10/100Mbps PoE ports (RJ45)

PoE (4) :10/100Mbps PoE port,BT port,Compatible uplink port (RJ45)

LAN (1~2):10/100Mbps uplink port (RJ45)


Transmission Rate


200Mbps Full Duplex; 10 or 100 Mbps Half Duplex


Transmission Distance


100Mbps /10Mbps Adaptive MAX 250m


Performance

Specification


Bandwidth: 1.2Gbps


Network Latency (10 to 1000Mbps): 16μs (use the 64byte package size)


MAC address table: 2K


The Frame Filter & Transmission Rate: 14800pps the most for 10M port, 148800pps the

most for 100M port


Networking

Standard


IEEE 802.3i 10BASE-T


IEEE 802.3u 100BASE-TX


IEEE 802.3xFlowControl


IEEE 802.3af/at/bt Power over Ethernet


Power Support


Power input: AC 110~220V Total≤65W

PoE Watchdog: Port 1~4

Power output: PoE1~3Port:1/2(+52V),3/6(GND)≤30W

PoE 4 Port:1245(+53V),3678(GND) compatible1/2(+52V),3/6(GND)≤60W

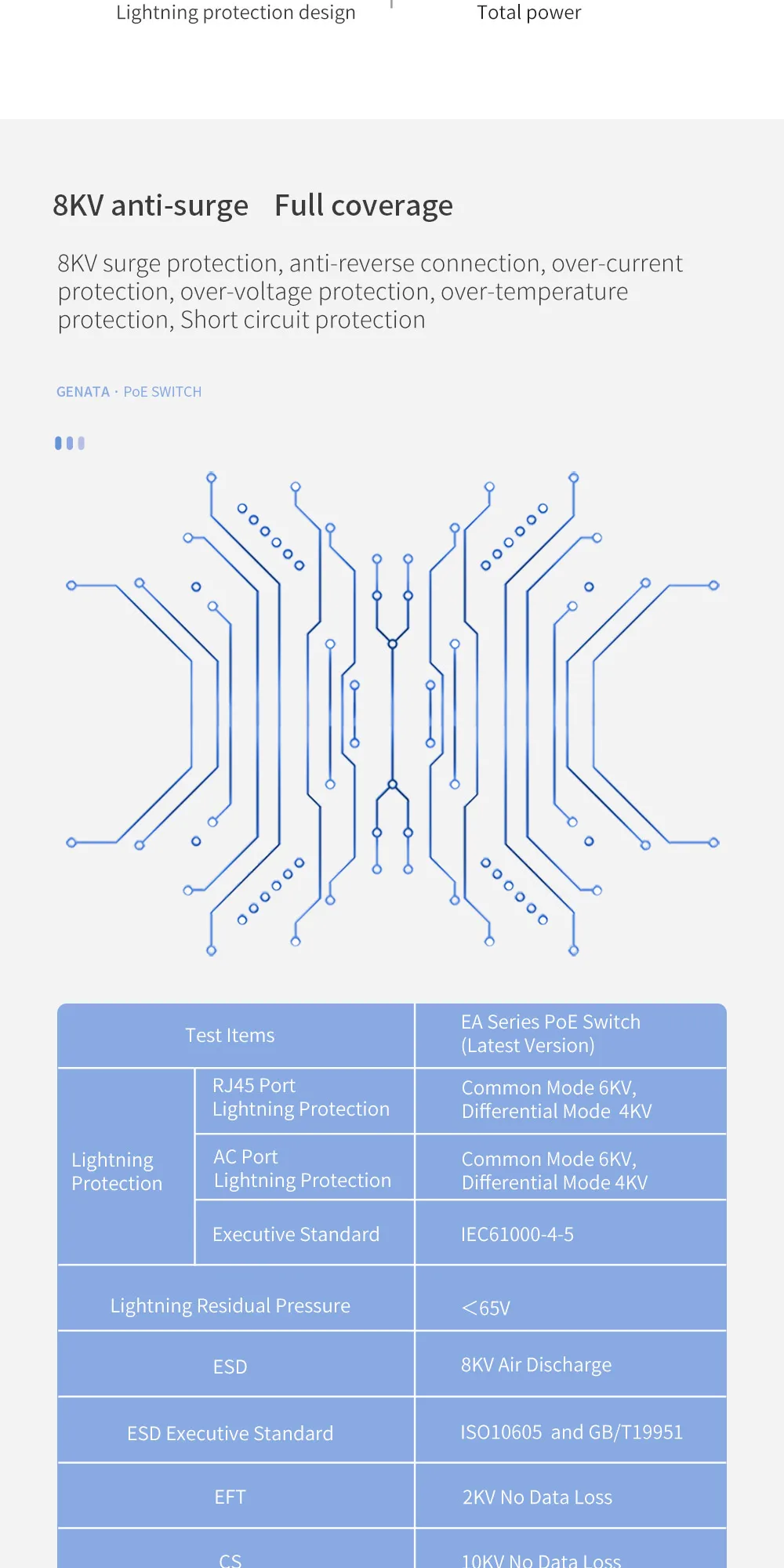

Protection Level


Lightning Protection:6KV, Per: IEC61000-4-5

ESD Protection:8KV, Per: IEC61000-4-2

Package Size

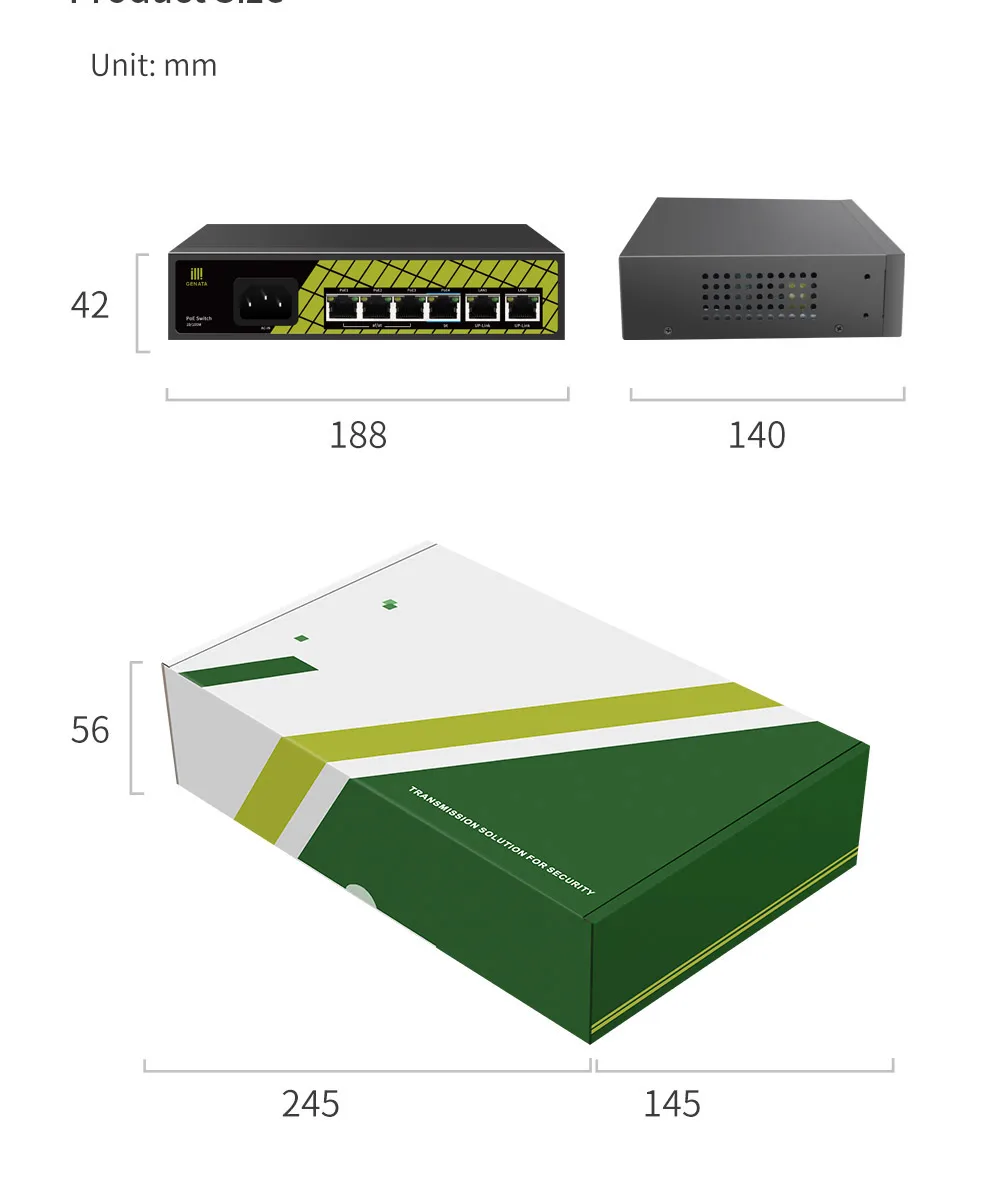

Size(L*W*H):187mm*139mm*43mm


Working

Environment


Operating Temperature: -30℃ ~60℃


Storage Temperature: -40℃ ~70℃


Operating Humidity: 10%~90% non-condensing


Storage Humidity: 5%~90% non-condensing


Electromagnetic

Compatibility


CE mark


FCCPart15,Class B


VCCI ClassBEN55022 (CISPR 22)


C-Tick


Warranty


Whole machine: 1 year


Package Content


Installation Manual



 1 poe++.jpg2 unmanaged switch.jpg3 poe.jpg4 port unmanaged switch.jpg5 802.3 af poe.jpg6 poe in cctv.jpg
