Automatic aerosol spray filling machine
- Category: >>>
- Supplier: Shanghai Alwell Machinery Equipment Co. Ltd.
Share on (62579630932):
Product Overview
Description

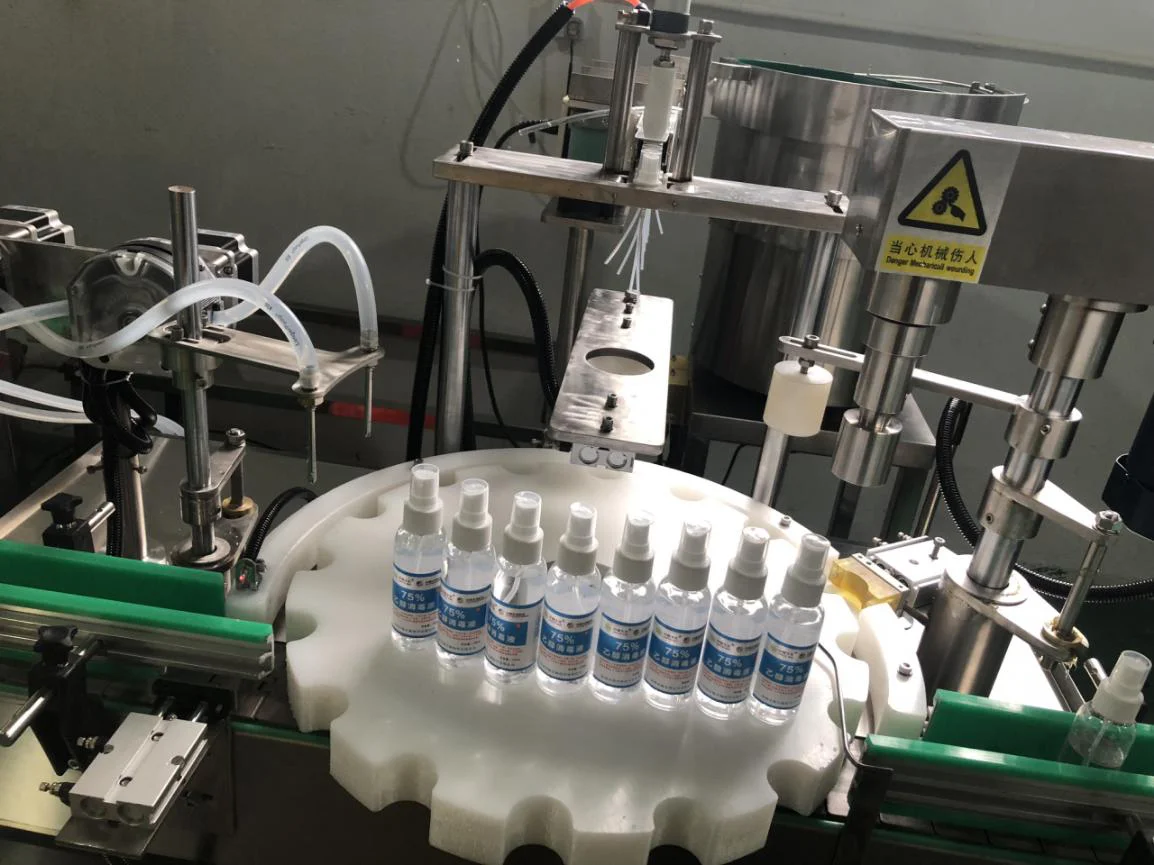

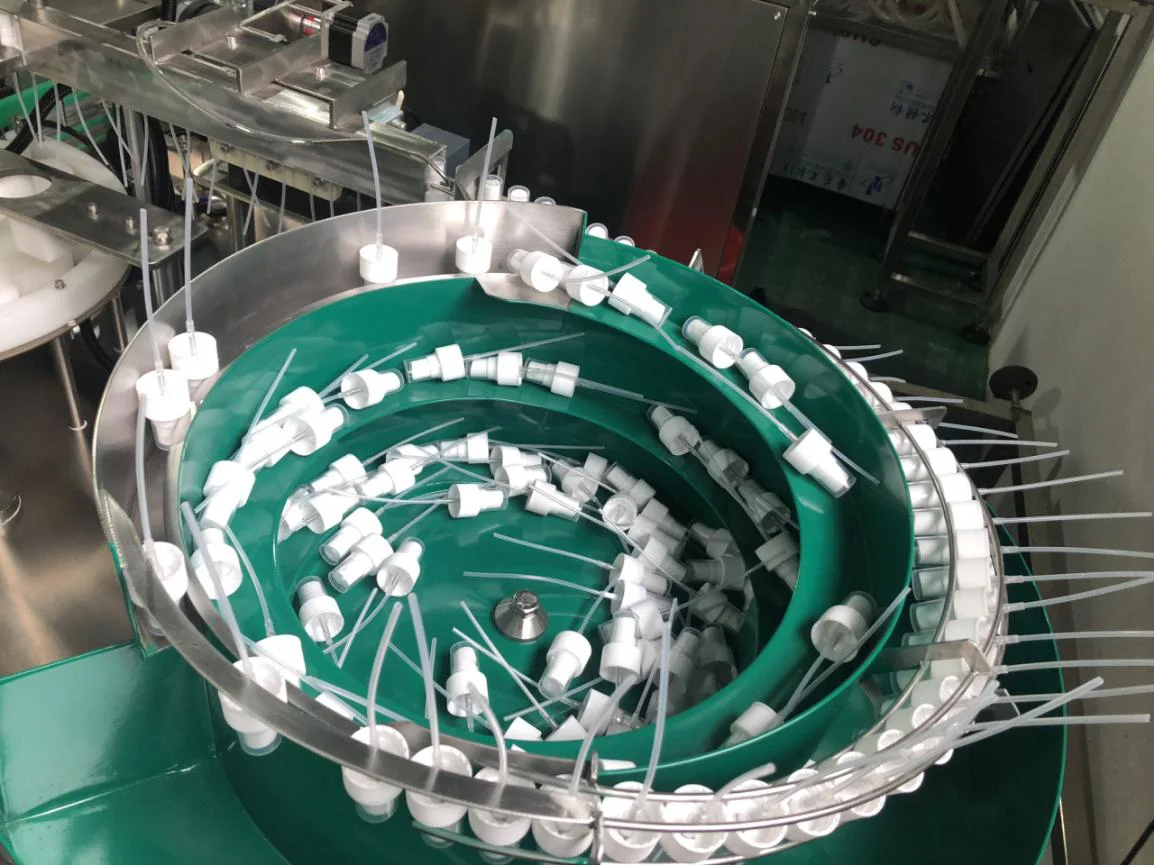

NO | Main System | Performance, features, configuration description Purpose and introduction: This machine is developed by our company on the basis of absorbing advanced foreign technology, and is a special equipment for spray filling. Suitable for filling and capping of round and shaped bottles of various materials and nozzles of various specifications. Adopt disc positioning type filling, disc positioning type upper sprinkler, screw cap, high degree of automation, solve the inconvenience of manual sprinkler, this machine uses peristaltic pump filling, pneumatic capping, lifting cap, man-machine interface Control has the advantages of accurate filling measurement, stable capping, simple operation and so on. In a leading position in the country. Widely used in medicine, daily chemical and other industries. Fully comply with GMP requirements! Features: 1. Automatic nozzle management and automatic upper nozzle, replacing manual, high efficiency. 2. PLC control, peristaltic pump filling, high filling accuracy. 3. Imported cam splitter provides precise equal division of work stations. 4. Reasonable design, stable operation and easy maintenance. 5. It is made of SUS304 and 316L stainless steel, which fully complies with the new GMP requirements. Technical parameter: Applicable specifications 50-100ml (different bottle specifications need to replace the mold) Production capacity 30-40 bottles / min Filling accuracy ≤ ± 1% Power 220V / 50Hz Cover rate ≥98% Air consumption 0.8-2m³ / h 0.3-0.8Mpa Power 2 kw Machine net weight 650 kg Dimensions 2000 * 1200 * 1600mm |
NO | Name | Brand | Countries |
1 | PLC | Mitsubishi | Japan |
2 | Inverter | Delta | Taiwan |
3 | Switch button | Schneider | French |
4 | low-voltage apparatus | Schneider | French |
5 | Touch screen | Weinview | Taiwan |
6 | Photoelectric | LEUZE | Germany |
7 | Proximity switch | Autonics | Korea |
8 | Servo motor | Panasonic | Japan |
9 | Pneumatic element | AirTAC | Taiwan |
10 | Filling valve | ESG | China |
11 | Three-way valve | ESG | China |
12 | Driving motor | Tong yu | China |

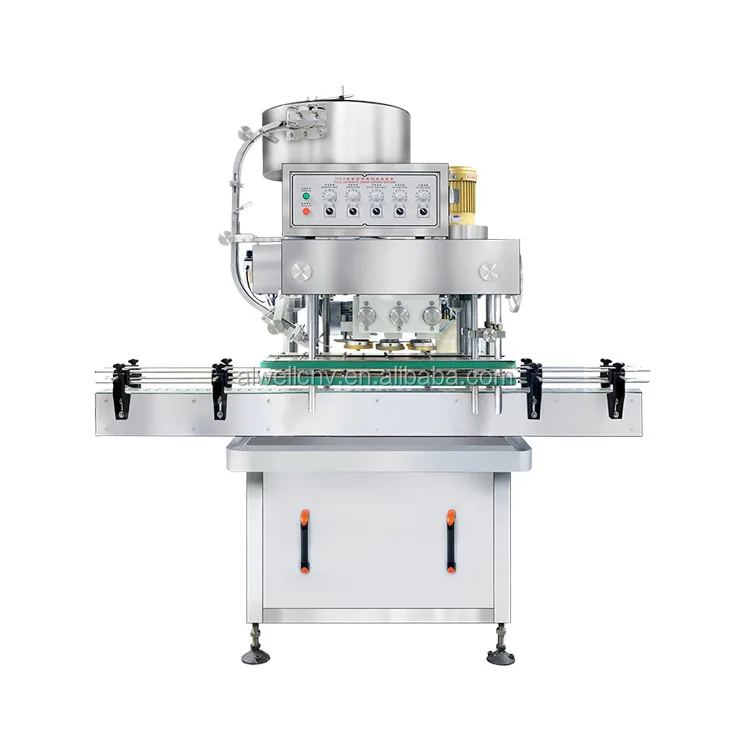

Capping part
The latest tracking capping machine, using tracking capping, does not damage the bottle cap, speed, safety and stability, high
efficiency capping.
The machine adopts multiple servo motors to control the upper and lower movements of the capping head. During the capping rotation
process, the bottle moves continuously, and PLC controls the operation of the whole machine without harming the bottle or the cap
.It also increases the speed and stability of production.
efficiency capping.
The machine adopts multiple servo motors to control the upper and lower movements of the capping head. During the capping rotation
process, the bottle moves continuously, and PLC controls the operation of the whole machine without harming the bottle or the cap
.It also increases the speed and stability of production.
1.With servo drive motor, the cap can be rotated quickly and accurately without damaging the bottle or the cap.
2.Belt type cap feeding, can be added the bad and crooked cap elimination device.
3.Servo motor control bottle belt, adjustable speed, no liquid overflow or bottle pour phenomenon.
4.Adjustment mechanism is simple and convenient, and equipped with instruments, can be accurately positioned.
5.Portable capping head design, just change capping head, can meet the production of new bottle.
2.Belt type cap feeding, can be added the bad and crooked cap elimination device.
3.Servo motor control bottle belt, adjustable speed, no liquid overflow or bottle pour phenomenon.
4.Adjustment mechanism is simple and convenient, and equipped with instruments, can be accurately positioned.
5.Portable capping head design, just change capping head, can meet the production of new bottle.
New design capping machine
Suitable for many materials. When you need to replace the bottle or cap, you only need to adjust the position of some parts
without replacing any accessories. The speed of the cap sorter, conveyor, capping machine, and bottle clamping belt can be
adjusted by buttons, which is suitable for each caps of similar specifications ，also can be customized
Labeling part
This machine is widely suitable for foodstuff, cosmetic, pharmaceutical, pesticide and other industries. It is single and double
side
labeling for flat, square and round bottle which volume below 1L. Automatic controlled by computer (PLC)easy operating.No bottle
no labeling. It can change specifications easily. It adopts servo motor, achieved closed loop control low malfunction rate. High
efficiency. Fast speed.
side
labeling for flat, square and round bottle which volume below 1L. Automatic controlled by computer (PLC)easy operating.No bottle
no labeling. It can change specifications easily. It adopts servo motor, achieved closed loop control low malfunction rate. High
efficiency. Fast speed.
UsingPLC automation control, simple operation, high precision label, fast production speed.
Servo motor control labeling,match with LEUZE Photoelectric,the accuracy is high.
NO | Name | Brand | Countries |
1 | PLC | Mitsubishi | Japan |
2 | Inverter | Delta | Taiwan |
3 | Switch button | Schneider | French |
4 | low-voltage apparatus | Schneider | French |
5 | Touch screen | Weinview | Taiwan |
6 | Photoelectric | LEUZE | Germany |
7 | Proximity switch | Autonics | Korea |
8 | Servo motor | Panasonic | Japan |
9 | Pneumatic element | AirTAC | Taiwan |
10 | Filling valve | ESG | China |
11 | Three-way valve | ESG | China |
12 | Driving motor | Tong yu | China |
Company Profile
Shanghai ALWELL have more than 2000 Square meters factory.
We have 10 years experience in the industry.
Factory direct sale,we can prove very competitive price and durable quality guarantee
Our main products are check weigher, metal detector, weight sorting machine, liquid filling machine, powder filling machine, Syringe filling machine,capping machine,labeling machine, and supporting production lines.
We have a large stock.
We can fast delivery within 5 days at the earliest.
We support OEM.
