High Power Fiber Laser Metal Cutting Machine with Exchange Pallet from STYLECNC
- Category: >>>
- Supplier: Jinan Style Machinery Co. Ltd.
Share on (62579709627):
Product Overview
Description
Video
Features
High power fiber laser metal cutting machine with exchange pallet has faster cutting speed and high power laser source (1000W, 2000W, 3000W, 4000W, 6000W, 8000W) compared to other cutting solutions, now the high power laser cutting machine for sale with affordable price.
Features and Advantages of 1000 Watts Fiber Laser Metal Pipe Cutting Machine:
1. Equipped with High power Fiber laser generator and can do cutting of any graphics .
2. Stable and good deformation resistance capability. Aging process technology ensures durable in use and accuracy of the machine.3. Automatic following focus device realizes dynamic focus continuous cutting on materials with different thickness.
4. The working table is equipped with universal wheel and pneumatic loading device (optional), which saves labor, avoids metal sheet damage and ensures good cutting quality.
5. Separate digitalized operating table and remote controller is convenient for operation. There are several input modes of USB flash disk data copy, USB cable data transmission, network connections and other data transmission methods.
6. Standard collocation of automatic nesting software and optional collocation of auto-recognition cutting, save materials and improves working efficiency.
7.The machine can be equipped with integrated rotary device or detached rotary device and can do fixed position punching, notching and cutting metal pipes.
Details

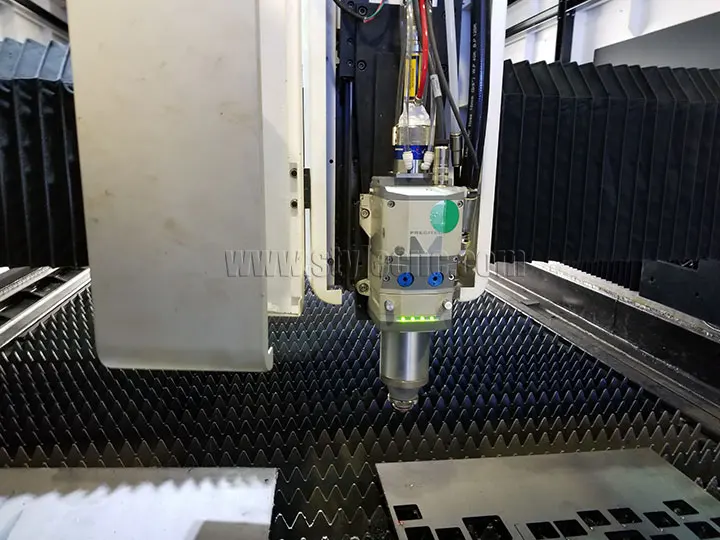

Germany Precitec Lightcutter Auto Focus laser cutting head
IPG fiber laser source 4000w
When one table working, the worker can load the metal sheet to another table, cutting one by one to save time

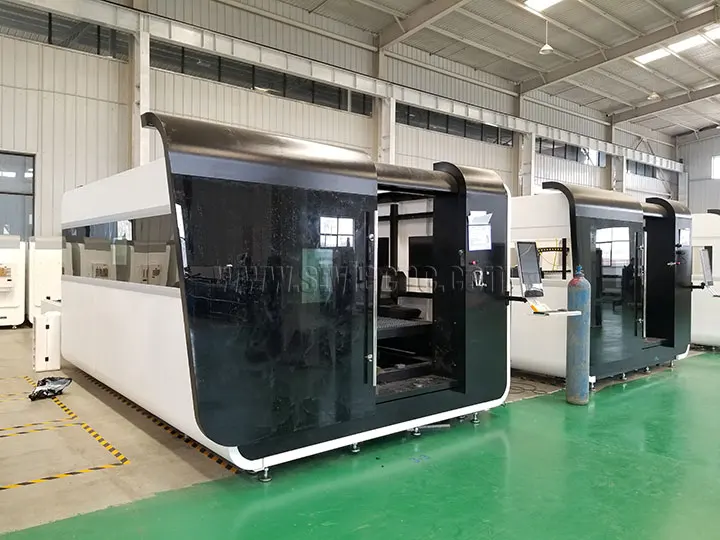

Fiber laser metal cutting machine exchnage pallet

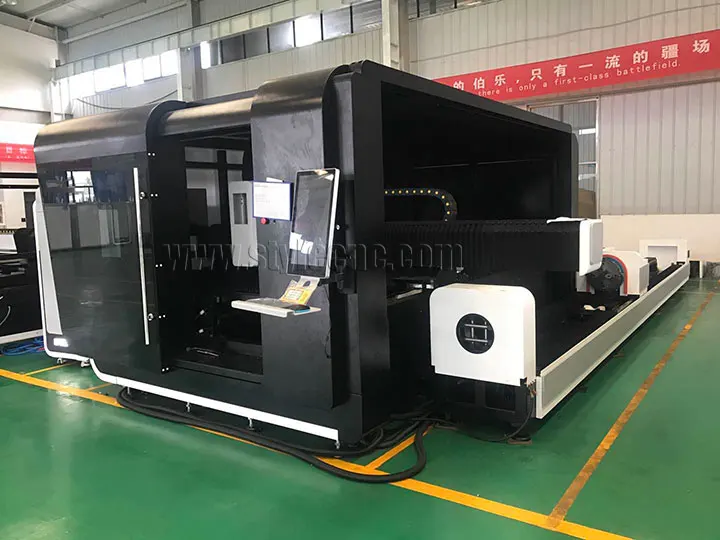

ST-FC4020GA can add rotary device to cut metal pipe and metal tubes
Technical Parameters
Model | ST-FC4020GA |
Working Area | 2000x4000mm |
Laser Type | IPG Fiber Laser Generator |
Laser Power | 1000W, 2000W, 3000W, 4000W, 6000W, 8000W |
Max running Speed | 120mm/min |
Max Acceleration | 1.5G |
Repeated positioning accuracy | ±0.02mm |
Water Cooling System | Constant temperature water chiller |
Machine Weight | 8000kg |
Machine Dimension | 10800X3350X2310mm |
Remark | Automatic exchange worktable, enclosed cover |
Applications
Application Materials of High Power Fiber Laser Metal Cutting Machine:
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet,
Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Application Industries of High Power Fiber Laser Metal Cutting Machine:
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
1. Cantilevel Mechanical construction, multi-function for cutting metal sheet and tube, convenient to change working table, it is not only able to cut round and square tube, but also can cut holes on the molding box.
2. Cut lines and holes with different diameters from different directions.
3. Cut inclined section at the end of the pipe.
4. Cut branch pipe intersected with the main circular pipe.
5. Cut squre hole, waist-shaped hole and circular hole on the pipe.
6. Cut all kinds of graphics on the surface of the square pipe.
7. Cut different size of metal sheets.
8. Cut holes on the molding box.
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet,
Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Application Industries of High Power Fiber Laser Metal Cutting Machine:
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
1. Cantilevel Mechanical construction, multi-function for cutting metal sheet and tube, convenient to change working table, it is not only able to cut round and square tube, but also can cut holes on the molding box.
2. Cut lines and holes with different diameters from different directions.
3. Cut inclined section at the end of the pipe.
4. Cut branch pipe intersected with the main circular pipe.
5. Cut squre hole, waist-shaped hole and circular hole on the pipe.
6. Cut all kinds of graphics on the surface of the square pipe.
7. Cut different size of metal sheets.
8. Cut holes on the molding box.
Package and Shipping
PACKAGE
1. Strong water resit bottom in plywood.
2. Metal laser cutting machine parts with separated plywood case.
3. Corner protect by foam and fixed by protective film.
4. All covered by strong and hard protective film.
5. Vacuum packing.
6. Inside steel frame protector.
7. Plywood packing and steel strip outside fixed the box.
8. Finishing packing by normal container or frame container.
3. Corner protect by foam and fixed by protective film.
4. All covered by strong and hard protective film.
5. Vacuum packing.
6. Inside steel frame protector.
7. Plywood packing and steel strip outside fixed the box.
8. Finishing packing by normal container or frame container.
SHIPPING
All the metal laser cutting machine can be shipped worldwide by sea. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
A metal laser cutting machine firstly should be packaged well in a free-fumigation wooden crate. Usually, we deliver the metal laser cutting machine by ship, sometimes, as customer's requirements, we can also deliver by air or by train. When the metal laser cutter arrived at your sea port or destination, you can pick up with the bill of lading we offered. We can also arrange the cargo agent to send to your door.
