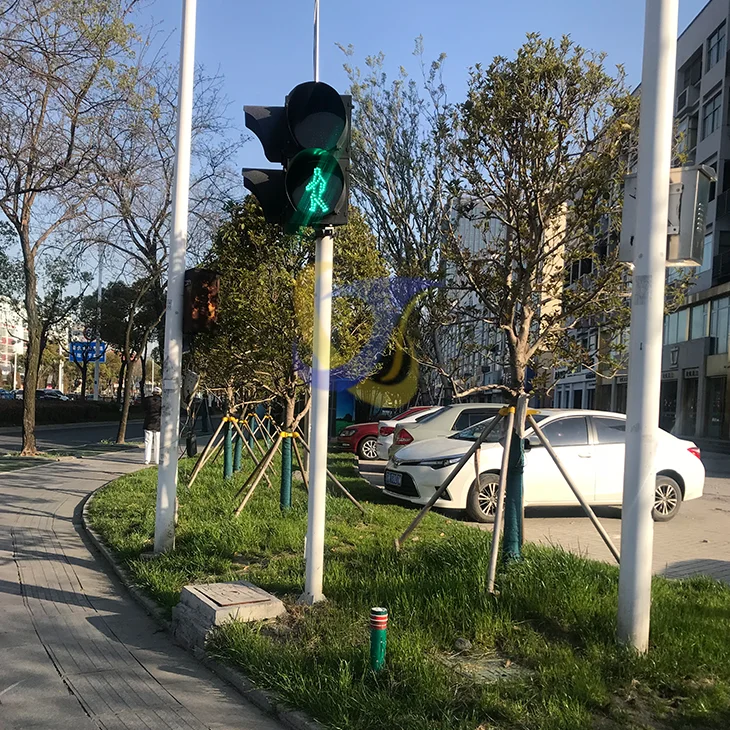

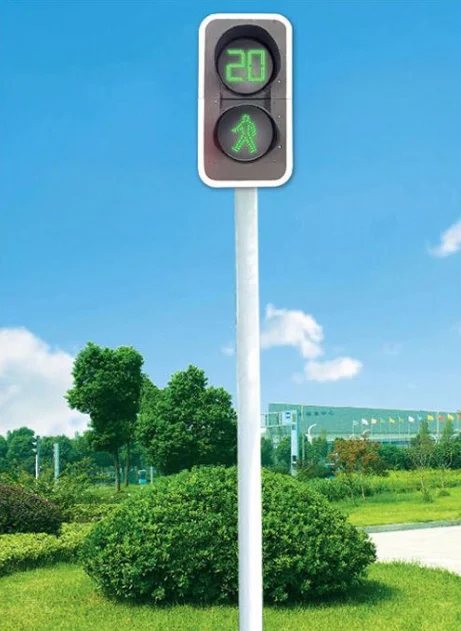

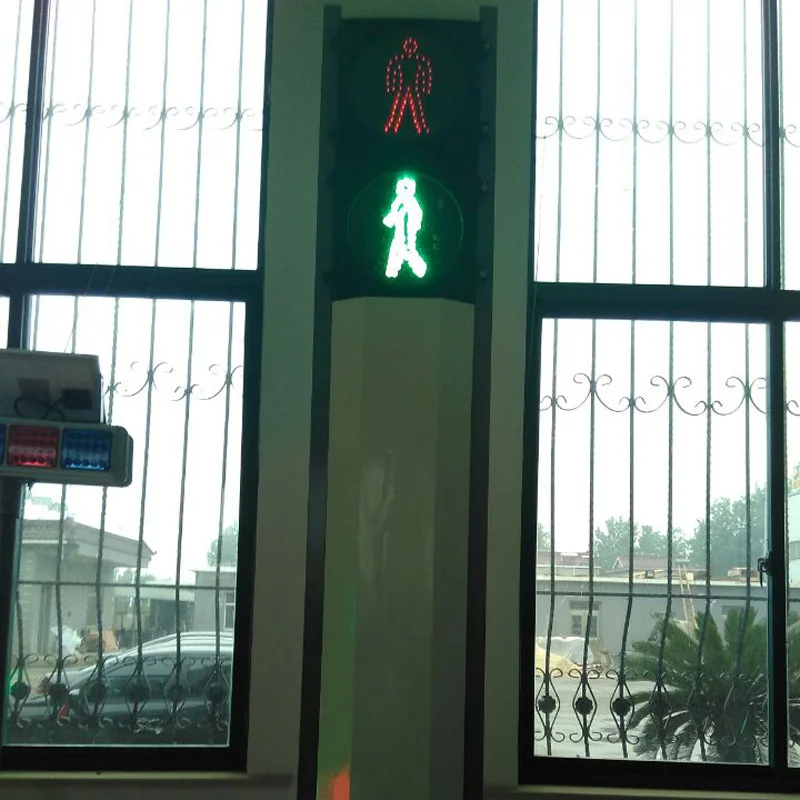

3M Light Pole Pedestrian Lights /Single column pedestrian signal
- Category: >>>
- Supplier: Yangzhou Qixiang Science & Technology Co. Ltd.
Share on (62579949899):
Product Overview
Description
Product Description
Traffic light poles are actually pole pieces for installing traffic lights. The traffic light pole is an important part of the traffic signal, and it is also an important part of the road traffic light. The company has advanced and complete production equipment. The lamp pole is molded at one time. There are a variety of molds to choose from. It can be used to press round rods, square rods, tapered rods, plum blossom rods, and polygonal rods. It can also be customized according to customer requirements. Special shape steel rod.
The material of the rod body is made of Q235 or Q345 steel, the vertical rod is a round rod, and the rod is welded by automatic shrinkage submerged arc welding. The welds are fully welded, smooth and smooth without pores. Bolts, fasteners, etc. are made of galvanized or stainless steel, grade 4.8 or 8.8.
The material of the rod body is made of Q235 or Q345 steel, the vertical rod is a round rod, and the rod is welded by automatic shrinkage submerged arc welding. The welds are fully welded, smooth and smooth without pores. Bolts, fasteners, etc. are made of galvanized or stainless steel, grade 4.8 or 8.8.

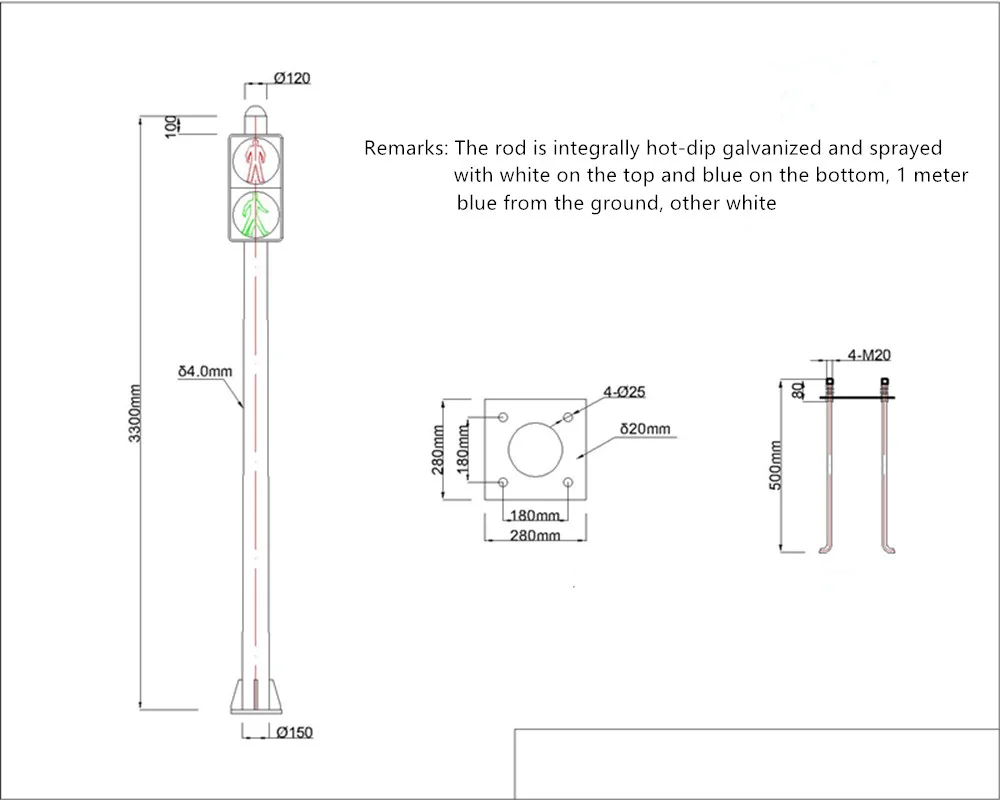

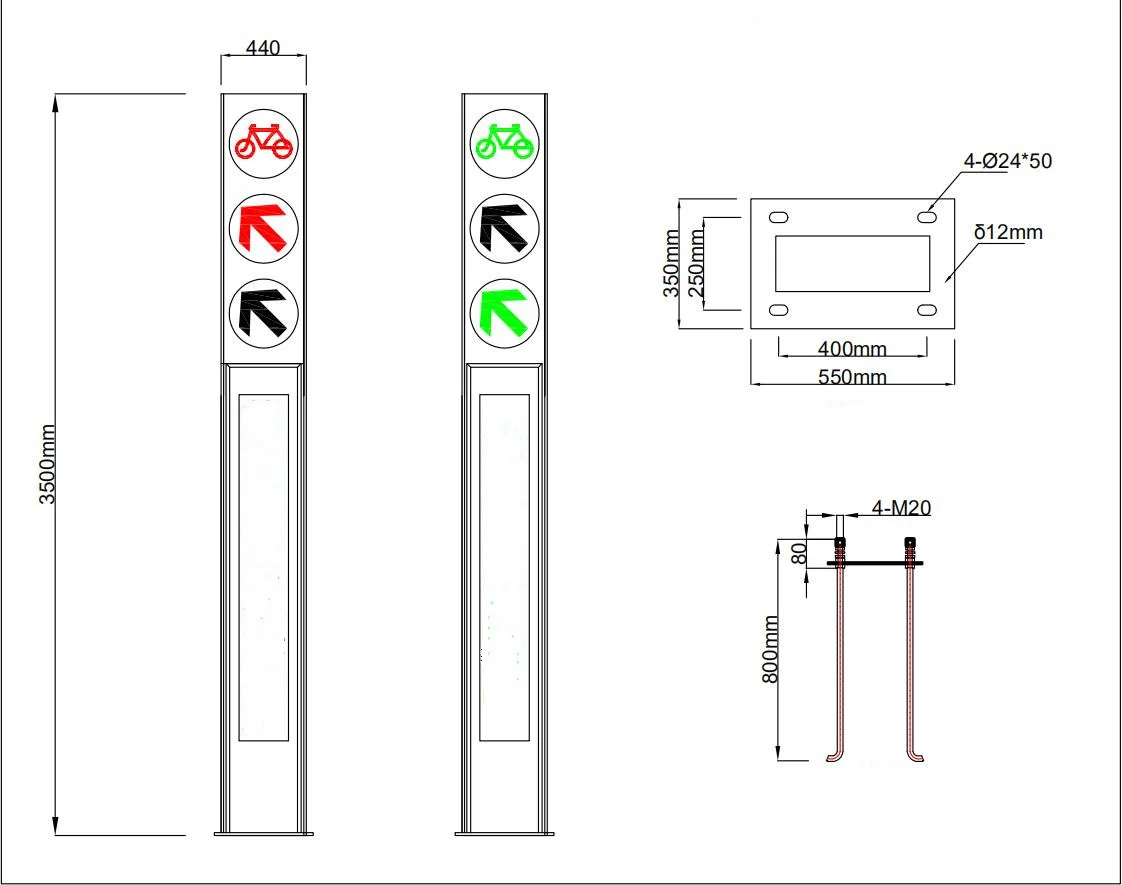

Specification
Rod height | 4500mm ～ 5000mm |
Main pole | φ165 steel pipe, wall thickness 4mm ～ 8mm |
Lamp surface diameter | φ300mm or φ400mm |
Chromaticity | red (620-625) green (504-508) yellow (590-595) |
Working power | 187∨ ～ 253∨, 50Hz |
Rated power | single lamp ＜ 20w |
Light source service life | > 50000 hours |
Ambient temperature | -40 ℃ ～ + 80 ℃ |
Protection grade | IP54 |
Hot-dip galvanized rod body, no rust for 20 years (surface or spray plastic, color can be Select)
Packing & Delivery
Model | Plastic shell Aluminium shell |
Product Size(mm) | 600 * 600 * 60 |
Packing Size(mm) | 620*620*230（2PCS） |
Gross Weight(kg) | 28kg（2pcs） |
Volume(m³) | 0.09 |
Packaging | Carton |

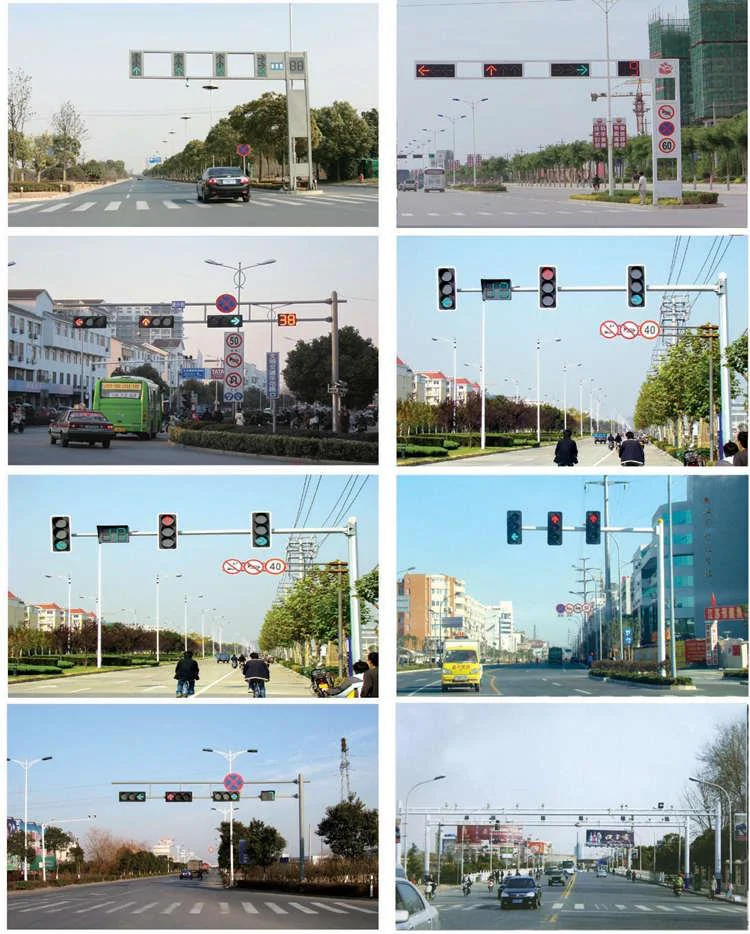

Project Show

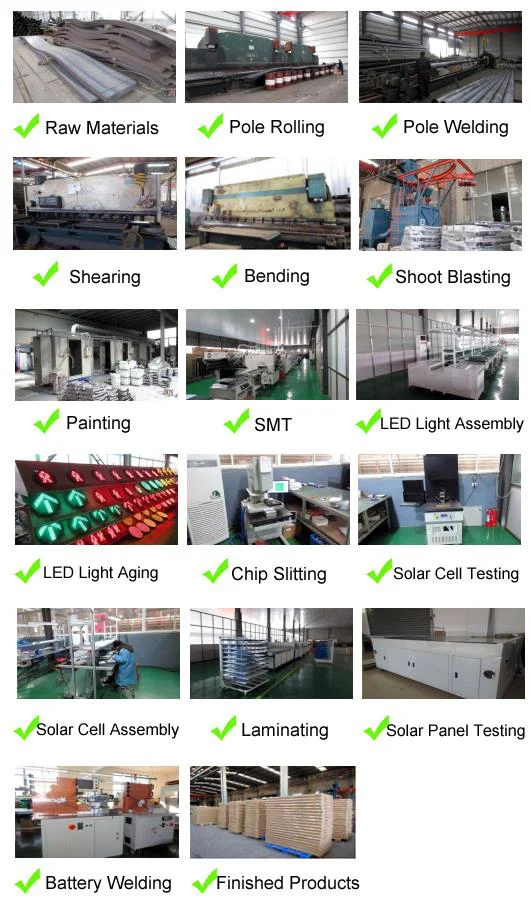

Product Process
Company Profie
1.For all your inquires we will reply you in detail within 12 hours.
2.Well-trained and experienced staffs to answer your inquires in fluent English.
3.We offer OEM services.
4.Free design according to your needs.
2.Well-trained and experienced staffs to answer your inquires in fluent English.
3.We offer OEM services.
4.Free design according to your needs.
FAQ
1.Do you accept Small order?
Large and small order quantity are both acceptable.We are a manufacturer and wholesaler,good quality at competitive price will help you save more cost.
2.How to order?
Please send us your purchase order by Email .We need to know the following information for your order:
1)Product information:
Quantity,Specification including size,housing material,power supply (such as DC12V,DC24V,AC110V,AC220V or solar systerm),color,order quantity,packing and Special requirements.
2)Delivery time:Please advise when you need the goods,if you need urgent order,do tell us in advance,then we can arrangle it well.
3)Shipping information:Company name,Address,Phone number,Destination seaport/airport.
4)Forwarder's contact details:if you have in China.
Large and small order quantity are both acceptable.We are a manufacturer and wholesaler,good quality at competitive price will help you save more cost.
2.How to order?
Please send us your purchase order by Email .We need to know the following information for your order:
1)Product information:
Quantity,Specification including size,housing material,power supply (such as DC12V,DC24V,AC110V,AC220V or solar systerm),color,order quantity,packing and Special requirements.
2)Delivery time:Please advise when you need the goods,if you need urgent order,do tell us in advance,then we can arrangle it well.
3)Shipping information:Company name,Address,Phone number,Destination seaport/airport.
4)Forwarder's contact details:if you have in China.
