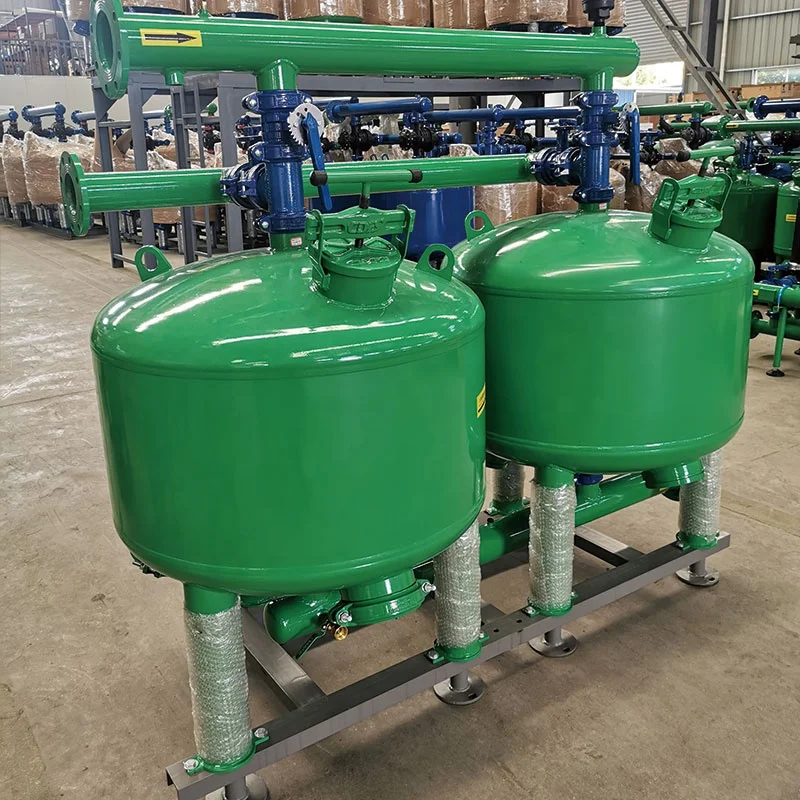

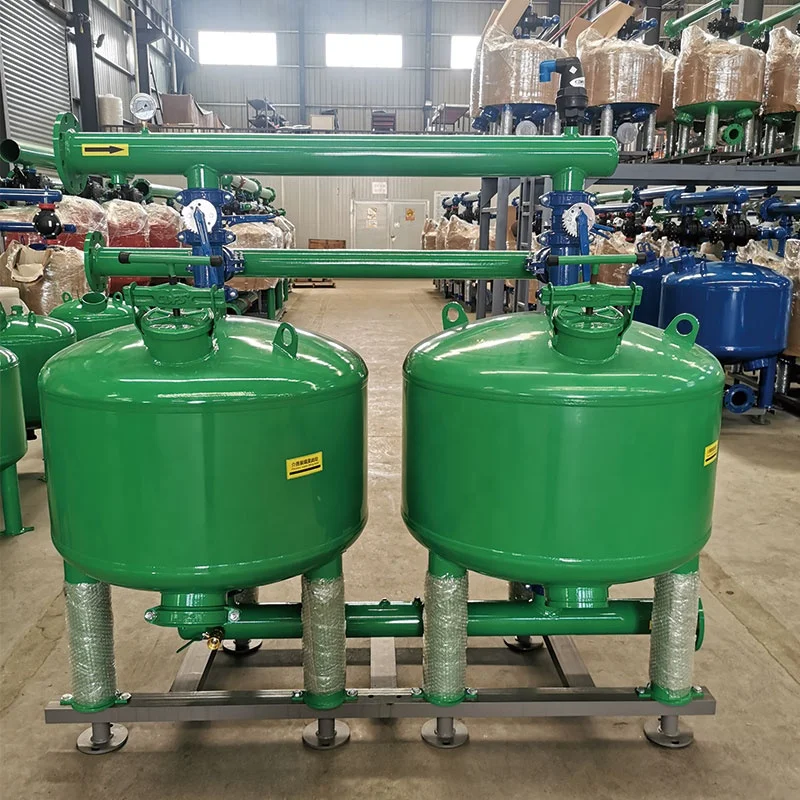

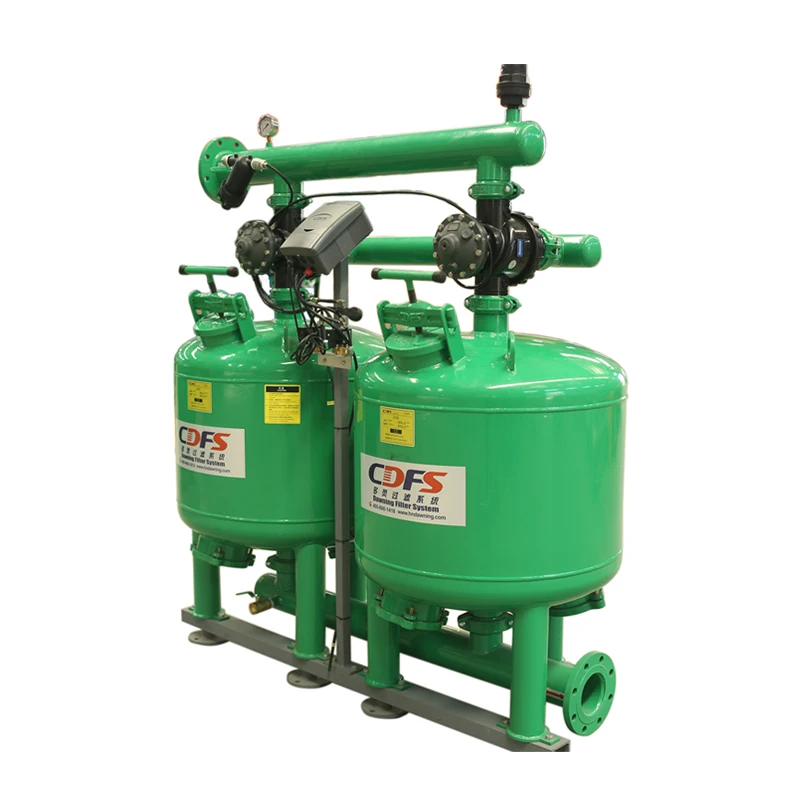

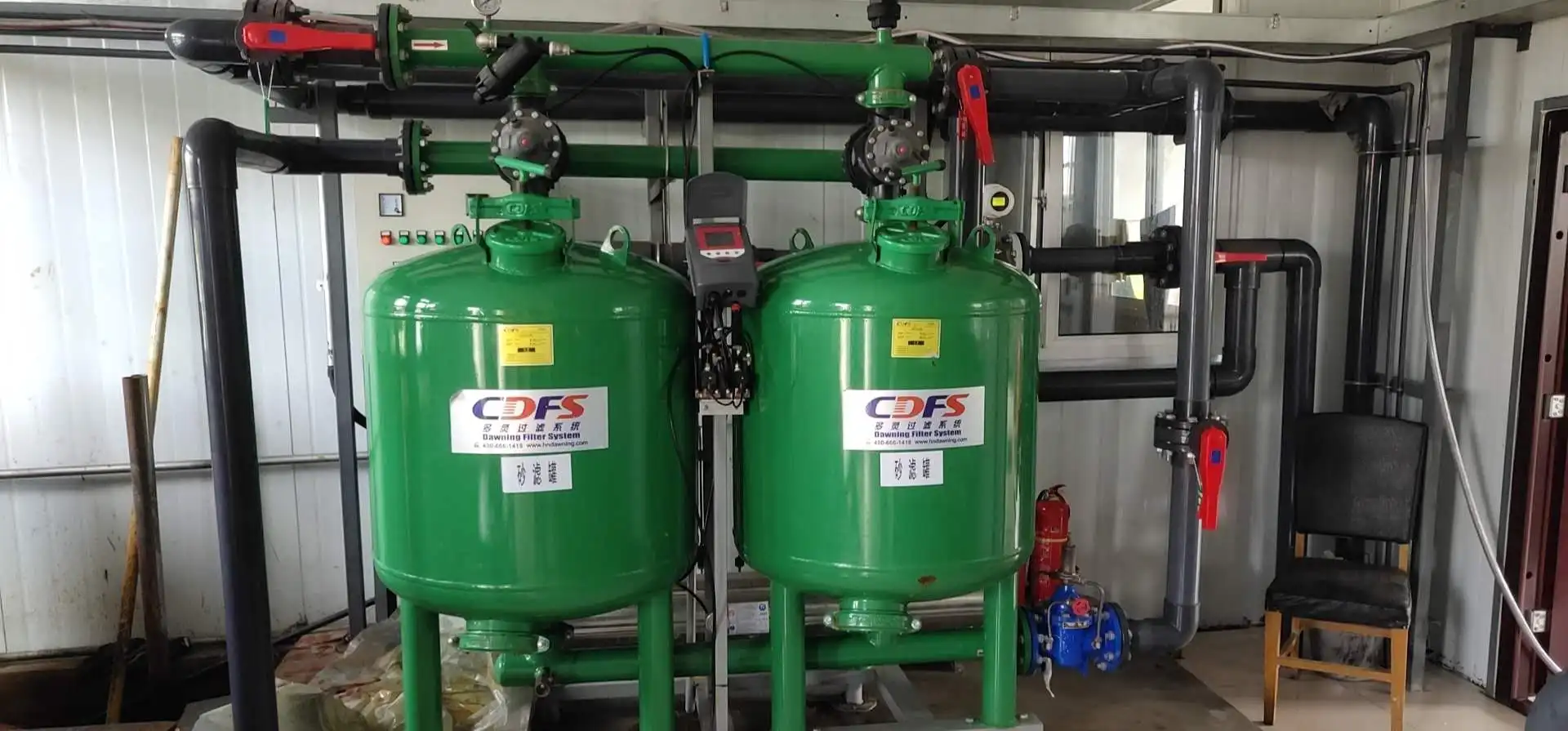

Large Agricultural Fields High Capacity Farm Irrigation water sand filter System

Product Overview

Description

900/1200 dia sand filtering machine for agriculture/waste water



Application

• Commercial - Golf course and sporting field irrigation systems.


• Industrial  - Pre-preteatment of UF/RO and waste water recycling.


• Irrigation - Primary filtration for the prevention of blockages in irrigation system


• HVAC- cooling tower side filtration and full system

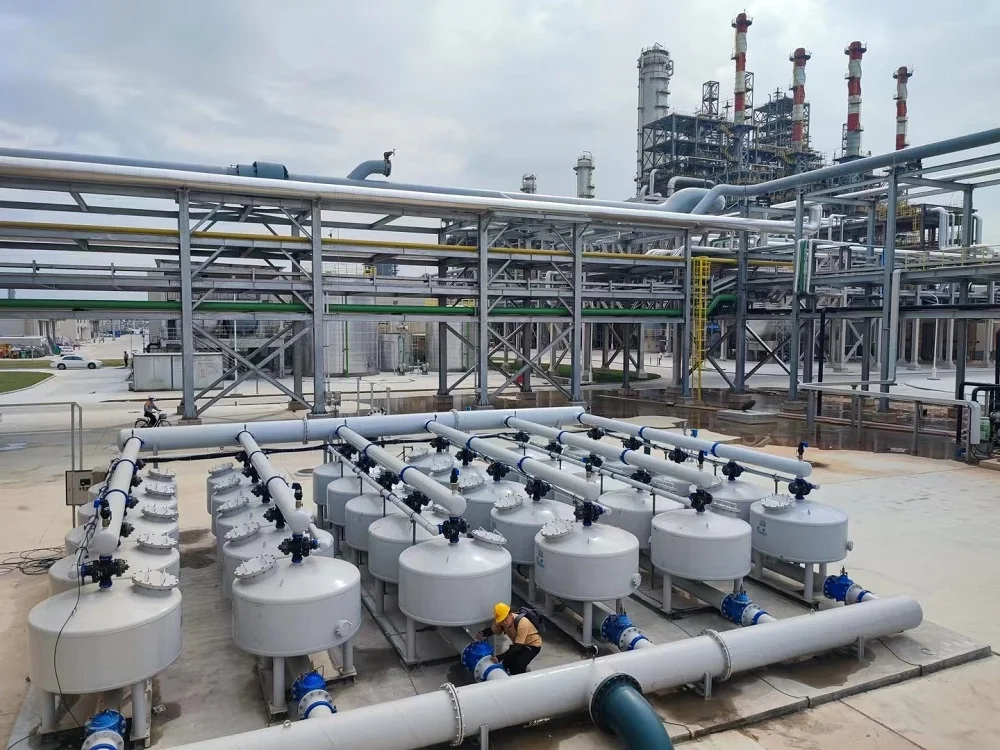

• Metal Processing Plants - Filtration for water cooling and spray nozzles.


• Mining - Cleaning of process and waste water.

Technical requirements

•  Min. pressure: 0.2Mpa


• Max. pressure:1.0Mpa


• Working temperature:<65℃


• Water in/out: 4 inch


• Power:220V/50Hz

Working princinple



The Filtering Process
Filtering with media filters, also known as depth filtration, is done by filtering water through a thick layer of graded particles, called the filter bed. These particles can be sand, gravel or other granular materials. The filtration degree depends on the effective size of the bedding and the water velocity through the filter.
Raw water enters from the filter inlet (1) and percolates through the filter bed (2). Suspended materials come into contact and attach to the media particles. Clean water flows through the filtration nozzles (3) and out of the filter via the outlet valve (4).
The gradual dirt buildup in the filter bed causes an increase in the pressure differential across the filter and when it reaches its maximum design value, a cleaning process should be performed. In automatic media filter installations a pressure differential switch senses the pressure differential and when it reaches a preset value, the self cleaning process begins.

The Cleaning Process
Cleaning is done by backwashing; pressurized water flows in reverse direction – from the nozzles upwards, causing suspension of the filter bed, thus releasing the suspended matter from the bedding. The dirt particles are then washed out of the filter through the back-flush valve. In automatic media filters installations the cleaning process is done by the system's controller. When the pressure differential switch senses that the differential pressure across the system reached a pre-set value, a signal is sent to the flushing controller and the self cleaning process begins.





The Control System

CDFS supplies several control systems for its sand filters such as Electrical Control Boards, Programmable Logic Controllers (PLCs) for supporting any size of media filters installation.



CDFS control systems starts the self-cleaning cycle under any one of the following conditions:

1. Receiving a signal from the Pressure Differential Switch

2. Time interval parameter set at the control system

3. Manual Start



 Sand filter specification sheet



Model	Vessels  QTY	Max.flow  (agri.)	Max.flow  (indus.)	Min. pressure	Max. pressure	Backwashing  flow	Water in/out (mm/inch)
DMF24-2-A	2	30	22	0.2	1.0	15	80 / 3
DMF24-3-A	3	45	33	0.2	1.0	19	80 / 3
DMF28-2-A	2	60	30	0.2	1.0	30	100 / 4
DMF28-3-A	3	90	45	0.2	1.0	50	100 / 4
DMF32-2-A	2	75	40	0.2	1.0	35	100 / 4
DMF32-3-A	3	115	60	0.2	1.0	50	150 / 6
DMF36-2-A	2	80	70	0.2	1.0	40	100 / 4
DMF36-3-A	3	120	105	0.2	1.0	50	150 / 6
DMF48-2-A	2	160	100	0.2	1.0	80	150 / 6
DMF48-3-A	3	240	150	0.2	1.0	80	200 /

Remark: 1. Agri - agricultral irigation, indus. -industrial.

2. The flow is different when used for irrigation and industrial



Sand filter dimensions





Model	D	L	W	H1	H2	H3	h (agri.)	h (Indus.)
DMF24-2-A	600	1330	630	130	1215	1450	400	600
DMF24-3-A	600	2030	630	130	1215	1450	400	600
DMF28-2-A	700	1520	720	140	1305	1580	400	600
DMF28-3-A	700	2320	720	140	1305	1580	400	600
DMF32-2-A	800	1720	820	140	1345	1620	400	600
DMF32-3-A	800	2620	820	170	1395	1695	400	600
DMF36-2-A	900	1920	920	140	1385	1660	400	600
DMF36-3-A	900	2920	920	170	1440	1740	400	600
DMF48-2-A	1200	2620	1220	170	1593	1925	400	600
DMF48-3-A	1200	4020	1220	200	1648	2005	400	600
