DPP 80 automatic blistering packing machine for snacks
- Category: >>>
- Supplier: Liaoning Fuyi Machinery Co. Ltd.
Share on (62580235466):
Product Overview
Description
Product Description

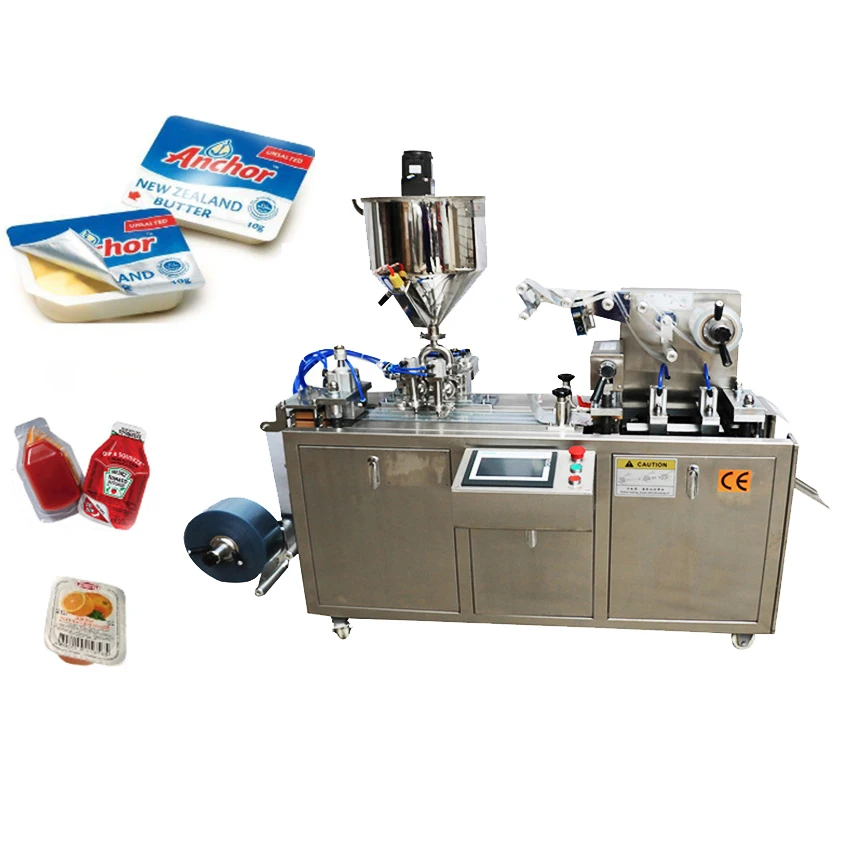

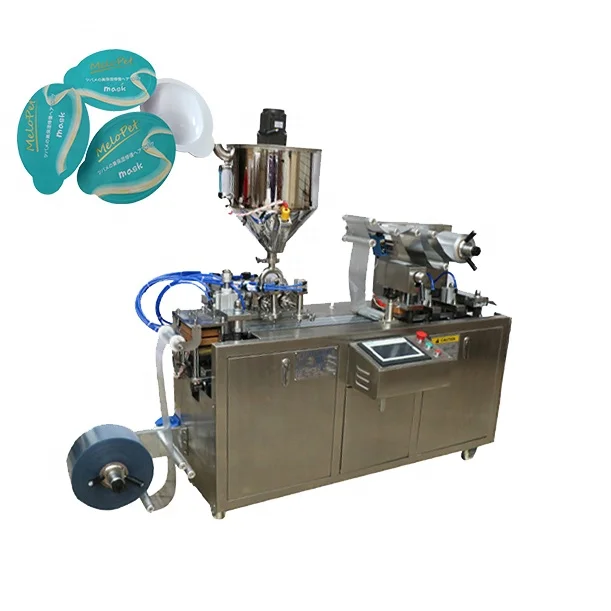

DPP-80 automatic blistering packing machine for snacks
Machine work progress :
Machine performance characteristics:
1. Variable frequency speed regulation and stroke adjustment are in place with one key.
2. The stroke is adjustable, and the adjustment range is 30~110mm. Easy adjustment and accurate synchronization.
3. The new large transmission mechanism in China is adopted, and the main transmission shaft is driven by the chain row, which eliminates the error and noise of other gear transmission.
4. The matching plate is used for heating to minimize the heat energy loss and greatly reduce the required temperature of the heater.

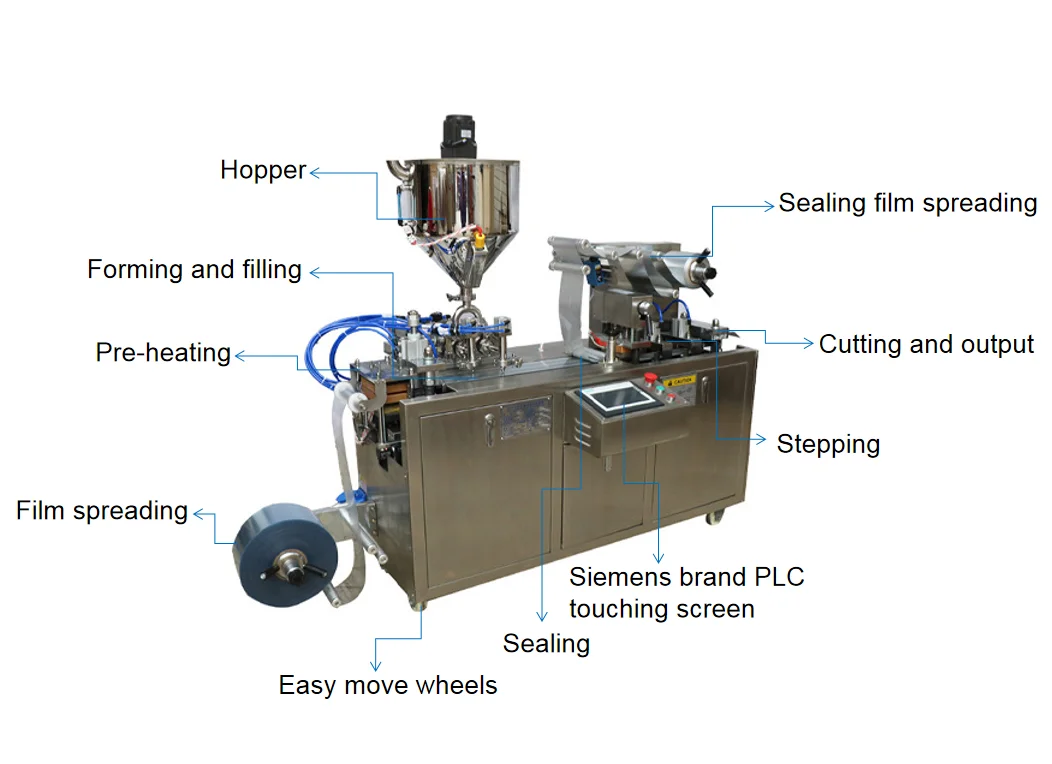

Forming (upper and lower heating) → heat sealing (upper heating) → code printing and numbering → indentation (micro heating) → blanking cutter → forming and outputting finished products
Machine performance characteristics:
1. Variable frequency speed regulation and stroke adjustment are in place with one key.
2. The stroke is adjustable, and the adjustment range is 30~110mm. Easy adjustment and accurate synchronization.
3. The new large transmission mechanism in China is adopted, and the main transmission shaft is driven by the chain row, which eliminates the error and noise of other gear transmission.
4. The matching plate is used for heating to minimize the heat energy loss and greatly reduce the required temperature of the heater.
Specification
Specification | ||
Item | Blister packing machine | |
Cutting speed | 10-33cut/min | |
Capacity | 2400pcs/hour | |
Forming size | 80*115mm,standard deapth 15mm(can be customized 26mm) | |
Air pressure | 0.6-0.8Mpa | |
Air consumption | ≥0.3m/min | |
Total power of power supply | 220V/50Hz/3Kw | |
Main motor power | 0.75Kw | |
PVC hard sheet | 0.15-0.5*110mm | |
PTP aluminum foil | 0.02-0.035*110mm | |
Dialysis paper | 50-100g*110mm | |
Mold cooling | Tap water or circulating water | |
Overall dimensions | 1500*490*1055mm | |
Gross weight | 465kg | |
Noise index | ≤70dBA | |
Packing & Delivery
Company Profile
Liaoning Fuyi Machinery Co.,Ltd.is a professional manufacturer and supplier of food packaging machinery and equipment in China.We have a well-experienced team to manufacture filling and packing machinery and equipment and a professional design institute. With rich experiences in machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipment including clean room project, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, powder packaging machine, filling machines, cartoner and rollers, etc.
We made the Standard, we beyond it.
Welcome you come to FUYI for visiting and guiding.
We made the Standard, we beyond it.
Welcome you come to FUYI for visiting and guiding.
FAQ
Q1: Where is your factory? How can I visit there?
A1: Our factory location is Liaoyang City , Liaoning Province, China.If want to visit our company , you can fly to Shenyang
Taoxian Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's your advantages compared to your competitors?
A3: Quality and experience, as evidenced by 40 patents and over 35 years of experience.
Q4: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
A1: Our factory location is Liaoyang City , Liaoning Province, China.If want to visit our company , you can fly to Shenyang
Taoxian Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's your advantages compared to your competitors?
A3: Quality and experience, as evidenced by 40 patents and over 35 years of experience.
Q4: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
