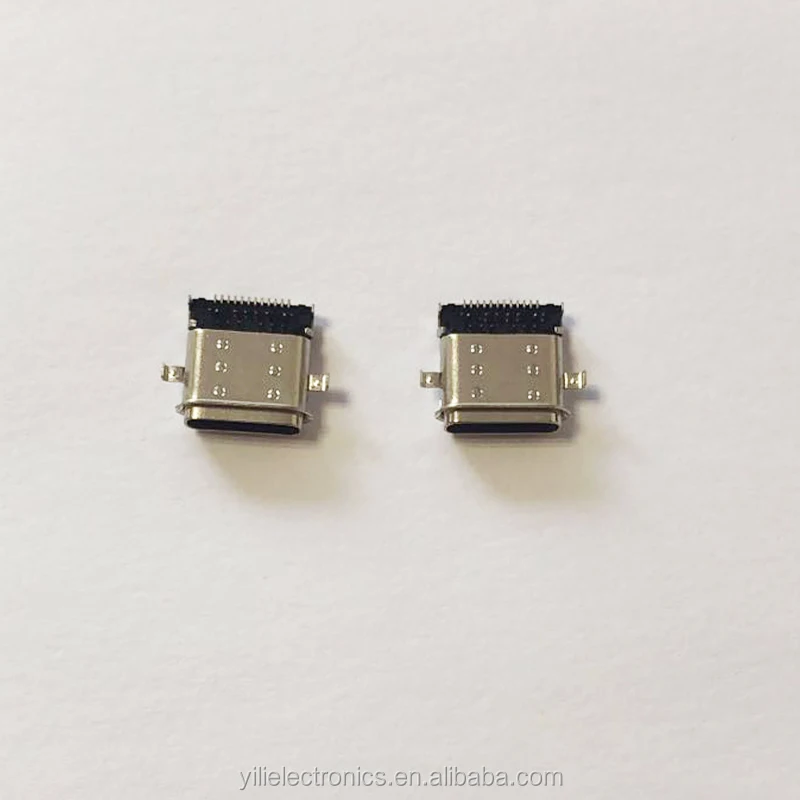

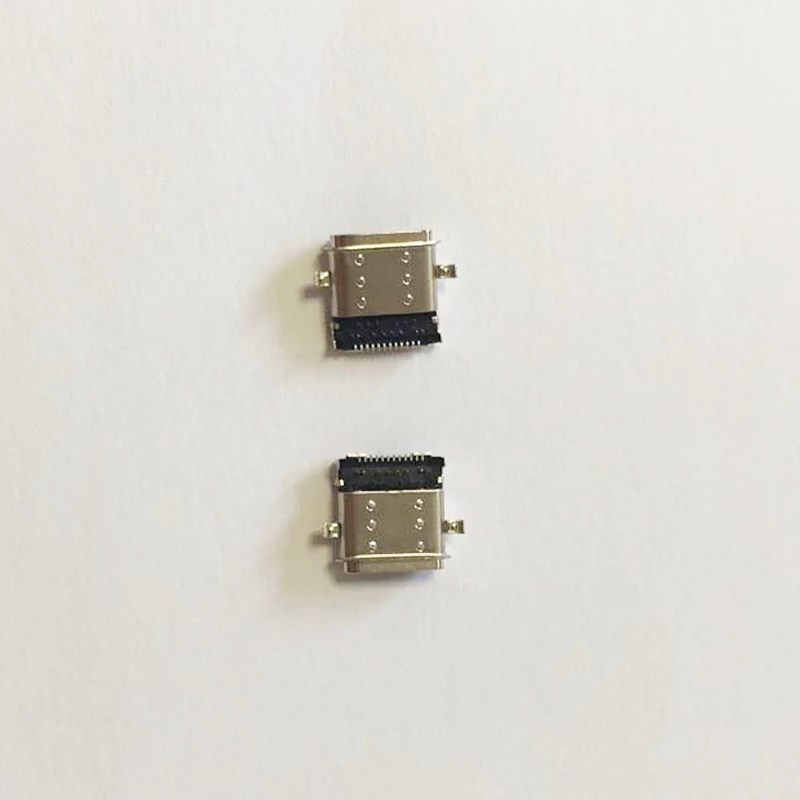

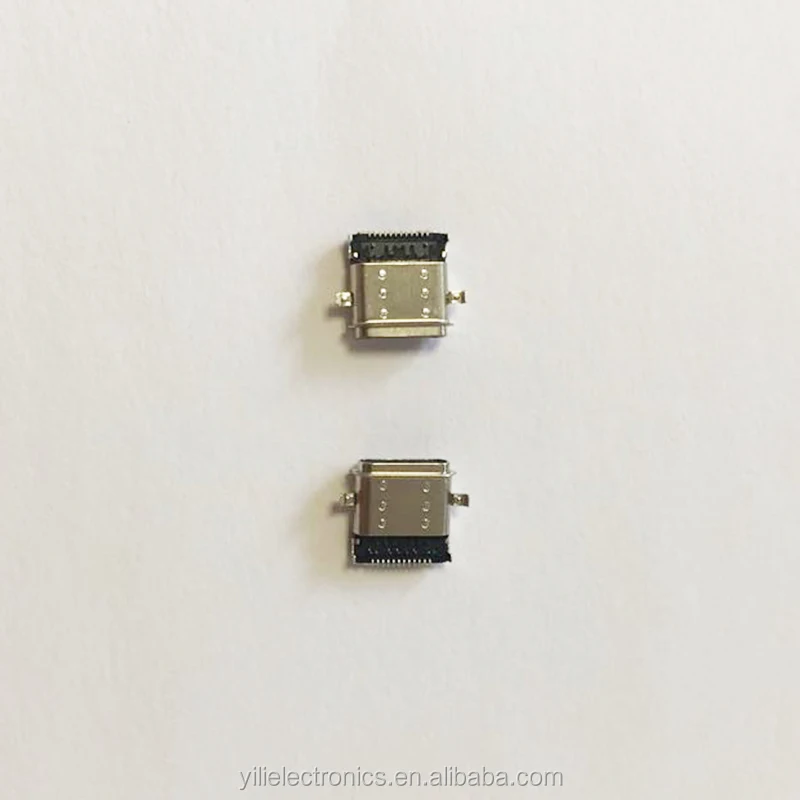

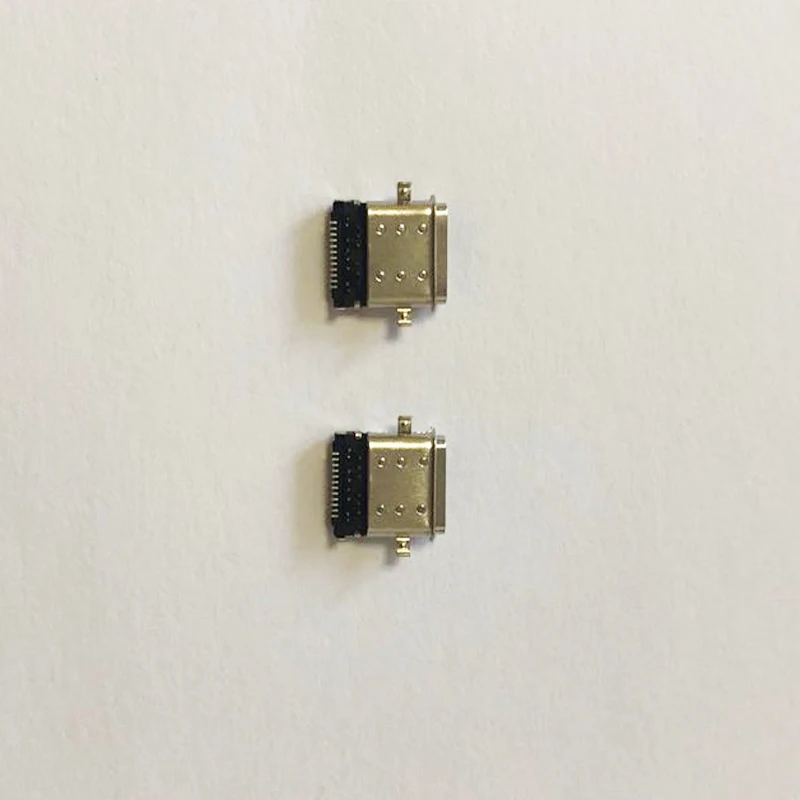

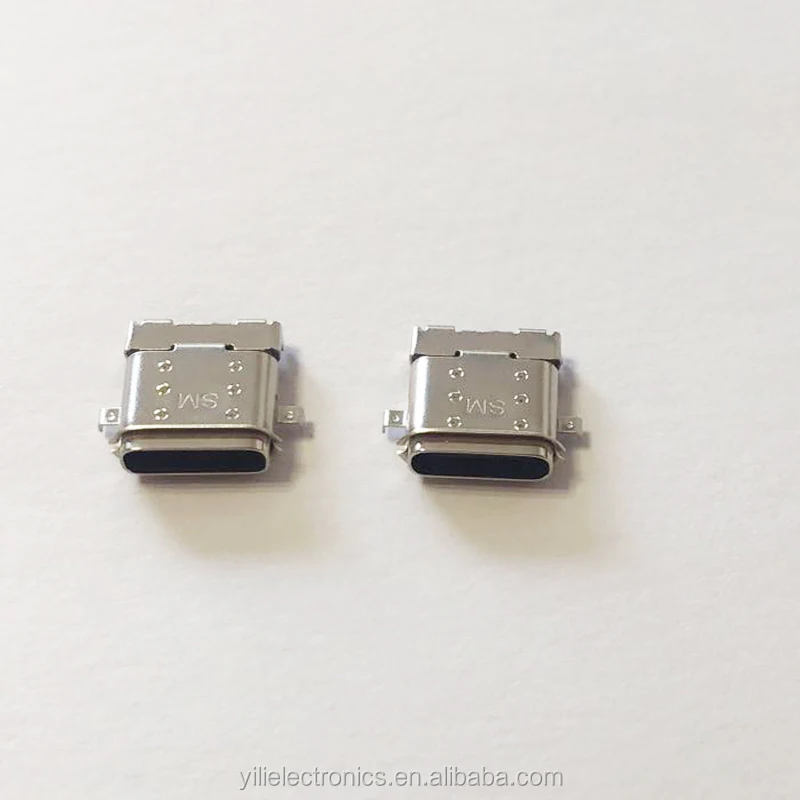

Waterproof USB 24pin USB 3.1 Type C Female Socket Connector SMT type connector


1.MATERIAL:
1-1.OUTSIDE SHELL:
SUS301-1/2H T=0.20mm
1-2.INNER SHELL:
SUS301-1/2H T=0.20mm
1-3.SIGNAL:
SUS301-H T=0.10mm
1-4.RFI PAD:
SUS301-H T=0.10mm
1-5.HOUSING:
LCP+30%G.F. UL94 V-0 BLACK
1-6.TEMINARL:
COPPER ALLOY C19400-H.T=0.10mm
2.PLATING SPECIFICATION
2-1.TERMINAL:
GOLD PLATED.
2-2.SHELL:
NICKEL PLATED 60μ"MIN.
3.MECHANICAL PERFORMANCE
3-1.INSERTION FORCE:
5N~20N.
3-2.WITHDRAWAL FORCE:
 INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N.
3-3.DURABILITY:
10000 CYCLES.
4.ELECTRICAL PERFORMANCE
4-1.CURRENT RATING:
3A.
4-2.LLCR: CONTACT:
40mΩ MAX(INITIAL).
4-3.INSULATION RESISTANCE:
UNMATED: 100MΩ MIN.
4-4.DIELECTRIC WITHSTAND VOLTAGE:
100V/AC.
5.IR REFLOW:
THE PEAK TEMPERATURE ON BOARD SHALL BE MAINTAINED FOR 10 SECONDS AT 260±5°C.
6.OPERATING TEMPERATURE RANGE: -55°C~105°C.
7.RoHS COMPLIANT OR HALOGEN FREE COMPLIANT.
