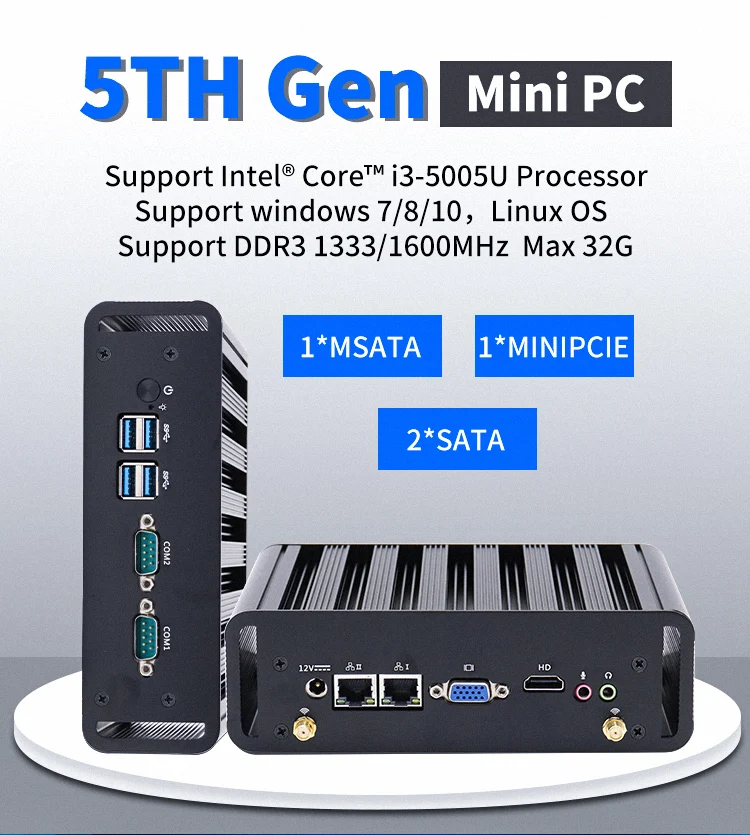

Fanless X86 PC i5 4200U with 2 lan 2com i3 5005U for Linux mini pc RS485 RS232
Please note: this model can support processor including:4th /5th generation of i3 / i5 /i7.If you want to know more details,please contact us.
Model name
GY-K31
Processor
CPU
I3 5005U(2 cores, 4 Threads)
Base Frequency
1.6GHz
Burst Frequency
2.6GHz
Memory
Technology
Dual Channel DDR3L
Capacity
2G/4G/8G/16G/32G

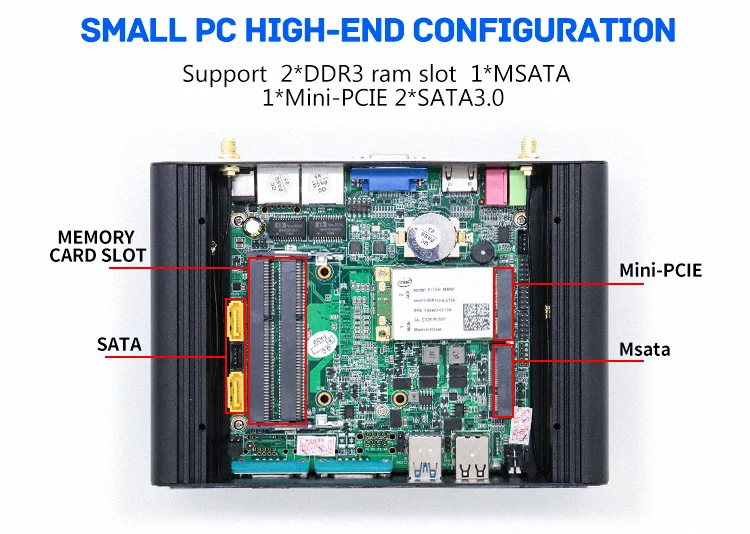

Storage
SATA
Support 2*2.5 inch SATA laptop HDD or SDD
MSATA
16G/32G/64G/128G/256G/512G/1T etc
Graphics
Processor
HD Graphics 5500
Interface
1*HD+VGA
Ethernet
LAN
2*RTL8111 Gigabit NIC

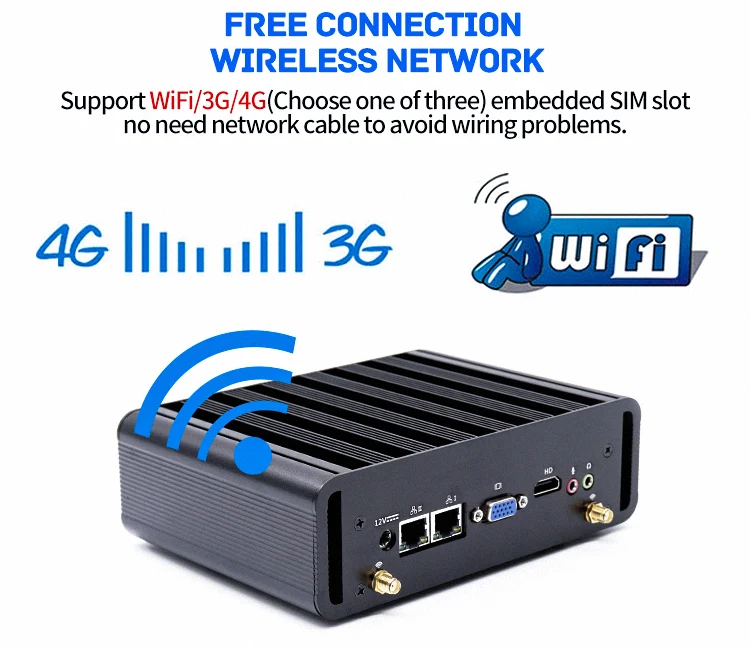

WAN
Full height Mini PCIE + 2 external antennas (Optional)
4G
Support (Optional)

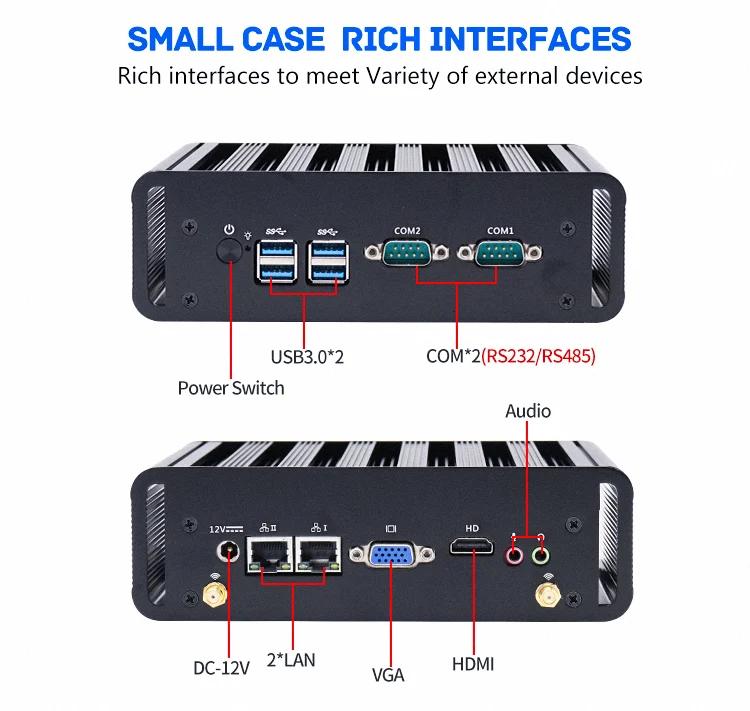

IO interface
Front side

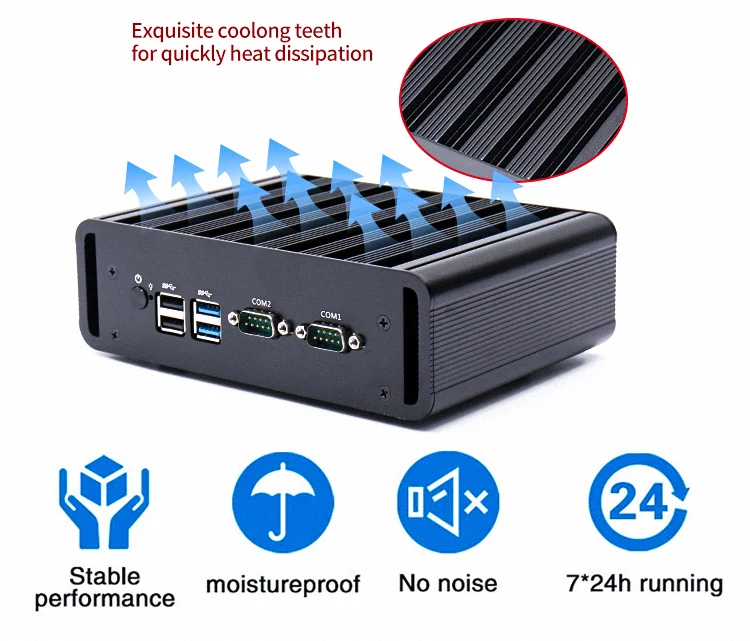

4*USB3.0,1*power,2*COM(RS232/RS485)
Back side
1*DCIN,2*LAN,1*VGA,1*HD,1*MIC,1*SPK
Power requirement
Power type
External power adapter mode
Power adapter
12V 5A(Huntkey brand)
TDP
15W
Audio
ALC662
OS support
Win 7, 8, 10 and all kind Linux OS
Chassis
Construction
Aluminum housing

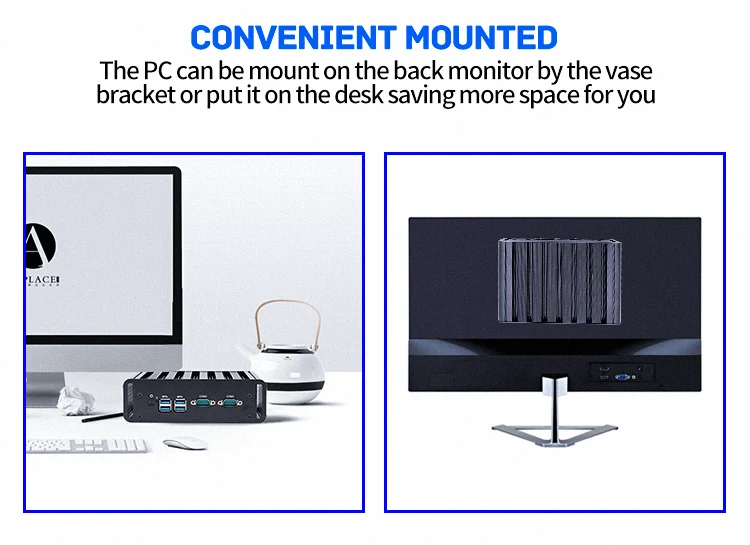

Mounting
4 wall mounting hole
Dimensions
180*128*55mm
Weight
N.G 0.65KG
Working environment
Humidity
5%~95% Relative humidity with non-condensation
Storage temperature
-40~80℃
Working Temperature
-20~60℃
Gross Weight
1.2kg
Certifications

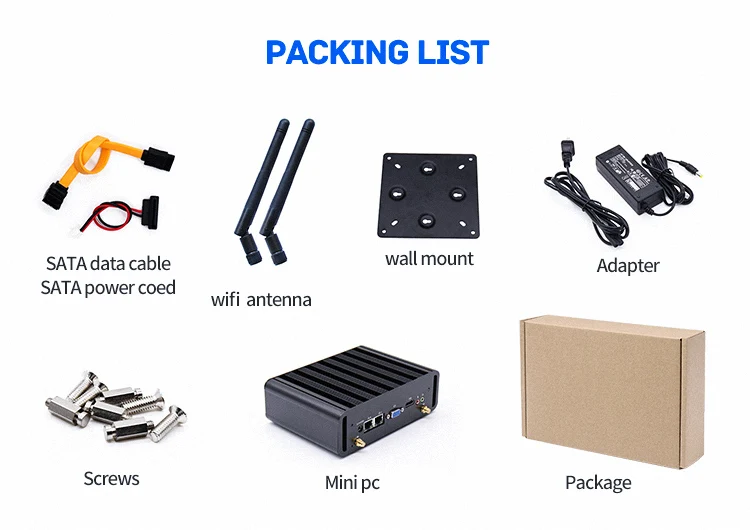

Packaging & Shipping
Our Services
Our service 1.Warranty: 1year, the second year and the third year, we can repair it free. but we will charge for the parts that need to change. 2. We can sell one sample for your test. 3. We can provide OEM/ODM services. 4.We 24h online, you can send a message any time to us, will answer as soon as we can. 5. We ensure offer great products, services, and favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you a quick response.
Company Information
FAQ
Q1. Can I get a sample for testing?
Re: Yes ,you can. After paid sample and shipping cost, we will deliver it according to your request.
Q2. What's your MOQ?
Re: MOQ 1 set.
Q3. How many goods in one carton?What is its size?
Re: Our standard carton is 5 sets/ carton, its size is 42*8.5*34.5CM .
Q4. This is my first time buying computers, could you provide some advice?
Re: Yes, it's our pleasure. Different use have different options, pls contact us to get more details
Q5. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. Pls contact us to get more information, thanks.
Q6. Can you print my logo on the mini computer and customize logo on boot-screen?
Re: Yes, we can silkscreen logo on computer case, and customize logo on boot-sreen.
Q7.What is your warranty? Re:All of our devices warranty is for 3 years.
Q8. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q9. Do you have FCC,CE,ROSH Certificates?
Re: Yes, we have all of them.
Q10. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty)
