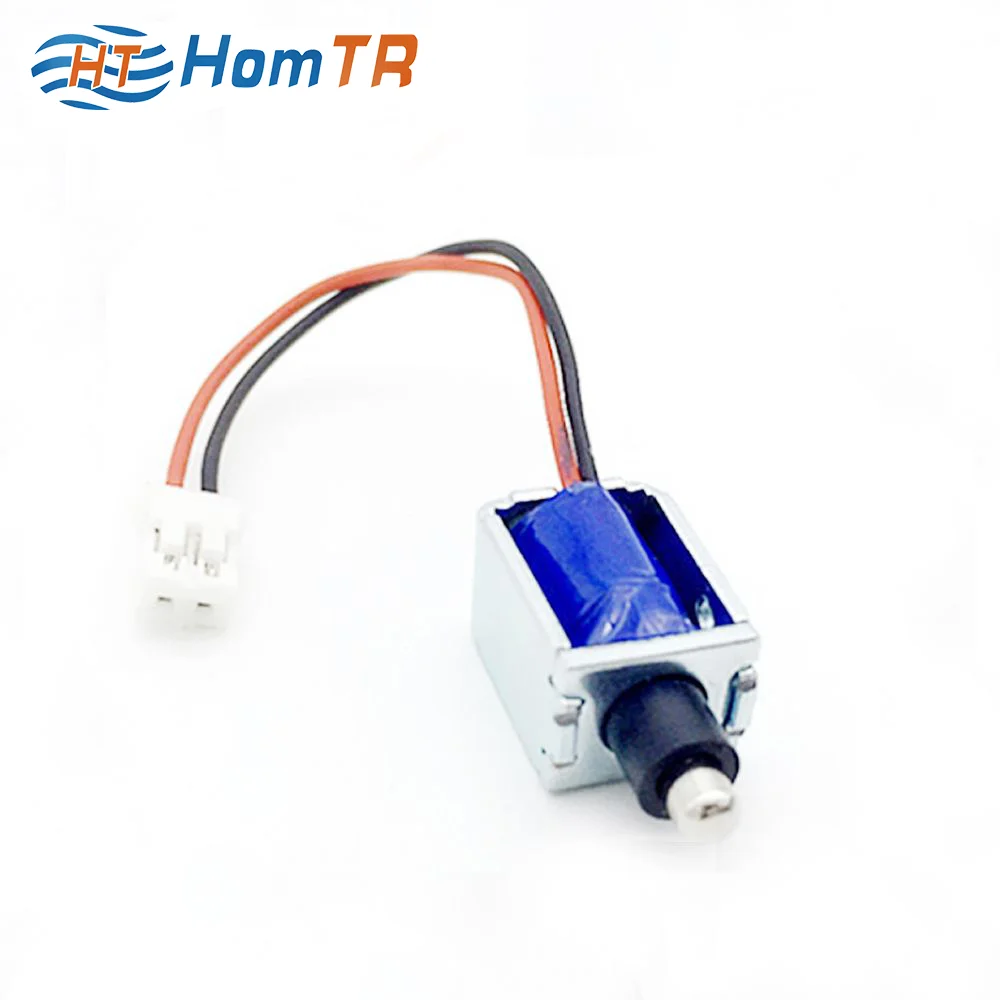

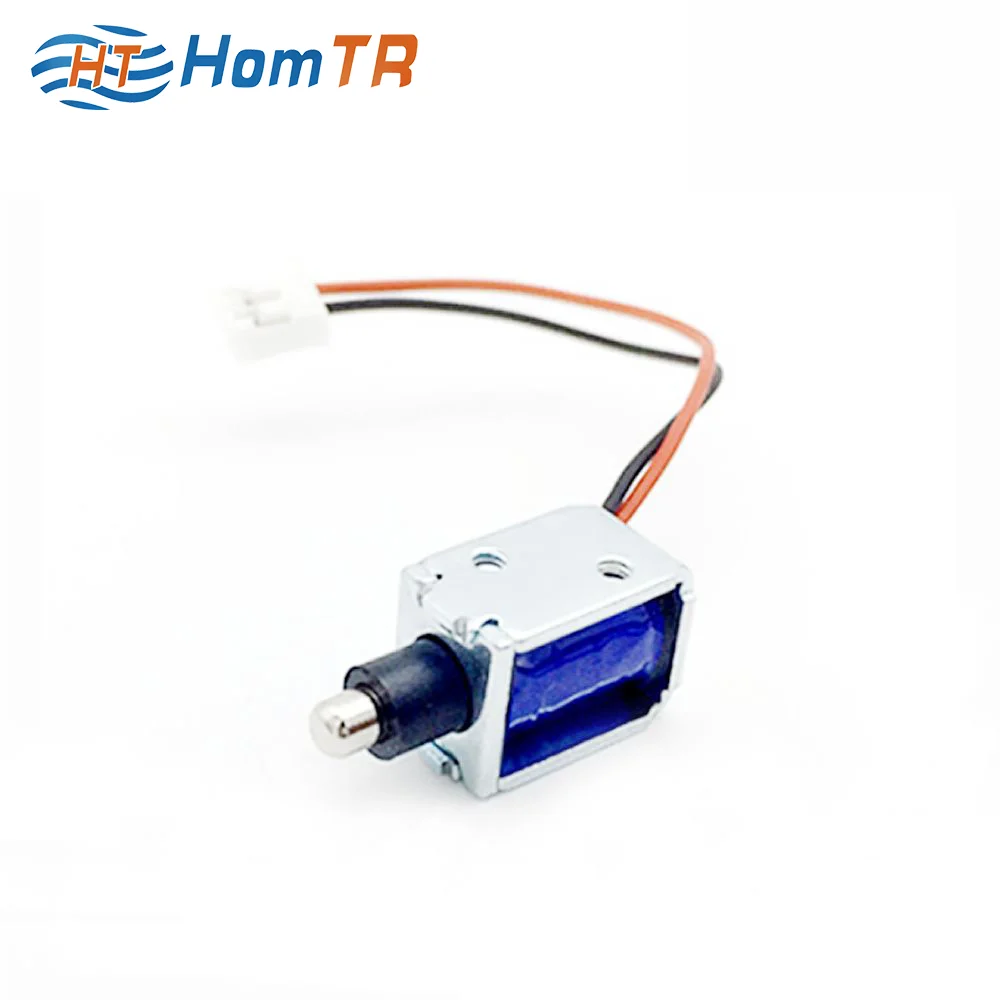

HomTR DC12V open frame push pull solenoid HTO 0415L
- Category: >>>
- Supplier: Shenzhen Hongqi Electromagnetic Technology Co. Ltd.
Share on (62580439348):
Product Overview
Description
Specification: low noise, low power consumption, long lifetime
ROHS, REACH, CE, ISO9001:2008 compliant
Application: medical device and home appliances like head message, message chair, coffee machine,tourniquet, vacuum juice blender
ROHS, REACH, CE, ISO9001:2008 compliant
Application: medical device and home appliances like head message, message chair, coffee machine,tourniquet, vacuum juice blender
Modle | HTO-0415LAF |
Voltage | DC12V |
Resistance | 5Ω±10% at 20℃ |
Ampere | 2.4A |
Watts | 28.8W |
Insulation withstand voltage | 600VAC/1Sec |
Insulation resistance | 500VDC/100MΩ |
Duty Cycle | 3% ( Power-on 0.1s Max) |
Insulation class | Class B (130℃） |
NOTE
Please take the electromagnet put down gently when you install it. The screw thread can make a corresponding change according to your demand. This product is small in size, please pay attention to in the process of using electricity, so as not to damage the electromagnet.
Pull Type, open frame, linear motion, DC electromagnet. ; the electromagnets are suitable for operating mechanism of mechanical equipment and automatic system. Such as cash register, lock, storing, cabinet, payphone and so on.
Packaging:
Carton: 50 PCS /CTN or customize according to customer's requirement. Material of Package: K=K Reinforcement Strength Carton
Shipping:
Sea /air freight, Express( DHL, UPS, FedEx, TNT, EMS, etc) for your choice. You can also use your logistic agent.
Carton: 50 PCS /CTN or customize according to customer's requirement. Material of Package: K=K Reinforcement Strength Carton
Shipping:
Sea /air freight, Express( DHL, UPS, FedEx, TNT, EMS, etc) for your choice. You can also use your logistic agent.
ABOUT US
Shenzhen HomTR Electromagnetic Technology Co.,Ltd is a professional gold supplier of parcel cabinet lock, solenoid and valves in Shenzhen, China.HomTR has professional teams and customers spread all over the world. And products wildly used in from cabinet to5Gbase station,from personal used to enterprises used. Hongqi hope get more win-win cooperation in near future. HomTR has qualified for ISO9001 international quality management system certification and our products got RoHS and CE certificate. Improving quality, increasing production efficiency, reducing defect rates, and committing to technology upgrades &new product development to meet customer & market needs are what Hongqi does all the time
Our Factory
Founded in 2016, HomTR is a leading solenoid valve manufacturer in China with an engineer team with 18 years of research and development experience. It is committed to innovating electromagnetic electronic lock actuators to meet the specific requirements and needs of customers in different industries. The product number is 130000s, and the annual output of electromagnetic products is about 8 million pieces. The plant area is more than 2000 square meters. We have 10 production lines and a large group of more than 100 employees
1. Voltage/current required for solenoid valve ?
2 Form factor What is the required size?
3 Please provide solenoid valve needs air flow or other use flow rate .
4 Solenoid valve operation time after demand energization and power-off time after completion of the operation, (energization and power-off time of a single operation are cycles)
5 Whether there are special requirements for the use of ambient temperature or waterproofing and chemical resistance 6 Appearance of salt spray test required or not (regular 24 hours) 7 Solenoid valve seal pressure, valve opening size and controlled substances(water, air, gas, oil)
8 Are there any other requirements?
9 Sample quantity required, cycle time (regular 3 days / custom 4 weeks or more depending on the actual situation), estimated quantity of post-production, how long to place the order, typical daily capacity is 5K .
3 Please provide solenoid valve needs air flow or other use flow rate .
4 Solenoid valve operation time after demand energization and power-off time after completion of the operation, (energization and power-off time of a single operation are cycles)
5 Whether there are special requirements for the use of ambient temperature or waterproofing and chemical resistance 6 Appearance of salt spray test required or not (regular 24 hours) 7 Solenoid valve seal pressure, valve opening size and controlled substances(water, air, gas, oil)
8 Are there any other requirements?
9 Sample quantity required, cycle time (regular 3 days / custom 4 weeks or more depending on the actual situation), estimated quantity of post-production, how long to place the order, typical daily capacity is 5K .
Q: Are you a factory or trading company?
A: We are a factory.
Q: What is your sample policy?
A: Free samples could be sent to test as request. We can arrange sample by DHL or TNT, but the courier fee would be paid by customer.
Q:How many days do you need for prepare samples?
A: If without extra demand, it will be sent within 7days.
Q: How many days for mass producing? A: It depend on the order quantity.If order quantity is less than 1000pcs, delivery would be within 3 working days.
Q: What payment terms do you do?
A: We can accept T/T, ali payment .
Q:What's package do you use for the products?
A: We have standard package for the products. Accept Customized package .
Q:Can I print my own brand logo on your product? and custom solenoid product ?
A: OEM orders are highly welcome. Please send us solenoid requires before you send us inquiry. In this way we can offer you most accurate answer at the first time.
A: We are a factory.
Q: What is your sample policy?
A: Free samples could be sent to test as request. We can arrange sample by DHL or TNT, but the courier fee would be paid by customer.
Q:How many days do you need for prepare samples?
A: If without extra demand, it will be sent within 7days.
Q: How many days for mass producing? A: It depend on the order quantity.If order quantity is less than 1000pcs, delivery would be within 3 working days.
Q: What payment terms do you do?
A: We can accept T/T, ali payment .
Q:What's package do you use for the products?
A: We have standard package for the products. Accept Customized package .
Q:Can I print my own brand logo on your product? and custom solenoid product ?
A: OEM orders are highly welcome. Please send us solenoid requires before you send us inquiry. In this way we can offer you most accurate answer at the first time.
