Delta vfd Agent price C2000 plus delta 3.7kw 4kw 5.5kw VFD Variable Frequency Drive for three phase motor
Delta vfd Agent price C2000 plus delta 3.7kw 4kw 5.5kw VFD Variable Frequency Drive for three phase motor
Delta vfd Agent price C2000 plus delta 3.7kw 4kw 5.5kw VFD Variable Frequency Drive for three phase motor
Delta vfd Agent price C2000 plus delta 3.7kw 4kw 5.5kw VFD Variable Frequency Drive for three phase motor
Delta vfd Agent price C2000 plus delta 3.7kw 4kw 5.5kw VFD Variable Frequency Drive for three phase motor
Delta vfd Agent price C2000 plus delta 3.7kw 4kw 5.5kw VFD Variable Frequency Drive for three phase motor
Delta vfd Agent price C2000 plus delta 3.7kw 4kw 5.5kw VFD Variable Frequency Drive for three phase motor

Delta vfd Agent price C2000 plus delta 3.7kw 4kw 5.5kw VFD Variable Frequency Drive for three phase motor

Share on (62580689073):


Price:$100.00 - $300.00

Quantity:


Product Overview

Description



Product Description


Product Name:Delta Agent price C2000 plus delta 3.7kw 4kw 5.5kw vfd for three phase motor
Model:VFD037C43A-21 VFD040C43A-21 VFD055C43A-21


▪ Product name
Delta Agent price C2000 plus delta 3.7kw 4kw 5.5kw vfd for three phase motor
▪ Model
VFD037C43A-21 VFD040C43A-21 VFD055C43A-21
▪ High Performance
1. High bandwidth control
2. Speed / torque / position control mode
3. Dual rating design(normal duty / heavy duty)
4. 4-quadrant torque control and limit
5. For both synchronous and asynchronous motors
▪ Environmental Adaptability
1. 50℃ operating temperature
2. Built-in DC reactor
3. Coated circuit boards
4. Built-in EMC filter
5. International safety standard (CE/UL/cUL)
▪ Versatile Drive Controls
1. Built-in safe stop function

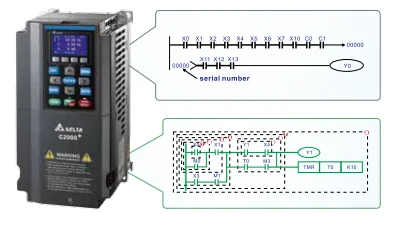

2. Built-in PLC function
3. Built-in brake unit
4. Supports various network protocols
5. Position control

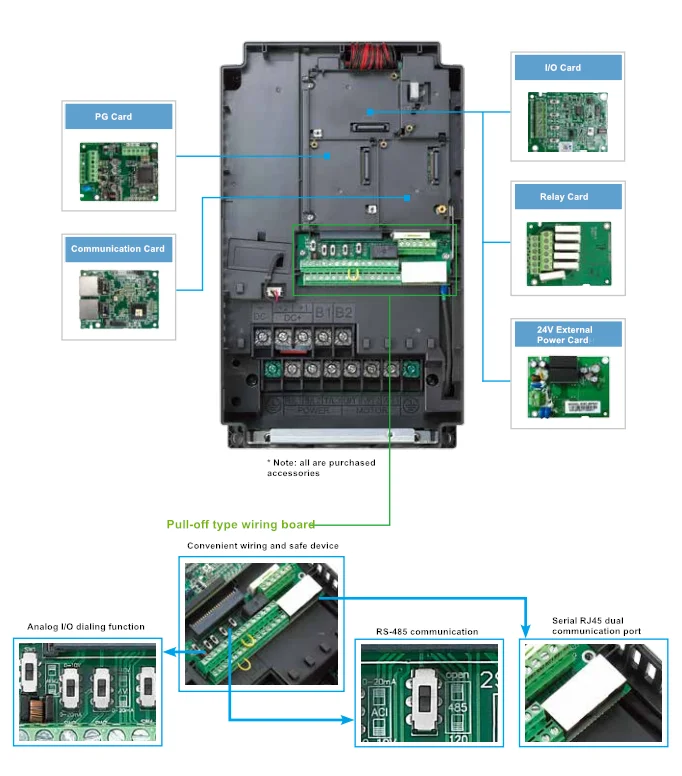

▪ Modular Design
1. Hot pluggable LCD keypad
2. I/O extension cards
3. Various PG (encoder) feedback cards
4. Network cards for fieldbus modules
5.Removable fan


>>Why to choose Delta VFD?




1. High Performance Driving Technology
►Control dual mode setting of induction motor and synchronous motor
►Double rated design (HD heavy load/SHD super heavy load)
►Speed/torque/position control mode
►High control bandwidth




2. Diversified driven control
►Built-in safe parking function
►Built-in programmable controller
►Built-in brake unit
►Drive system networking
►Position point-to-point control function

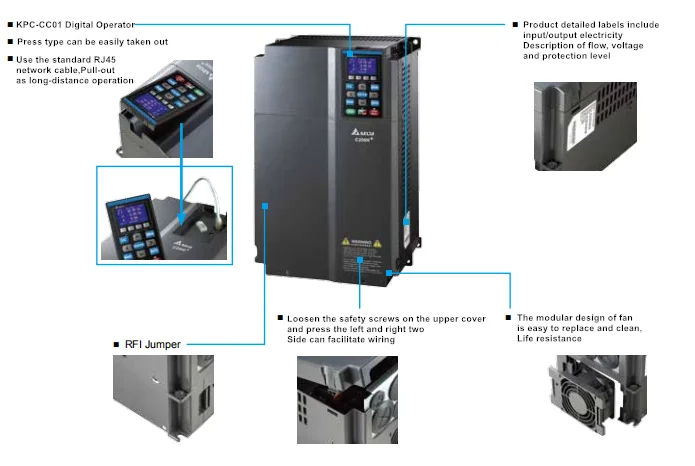

3. Compact Modular design

►Hot-plug LCD digital operator
►Output into I/O expansion card
►Diversified PG feedback cards
►Fieldbus network card
►Removable fan






4. Environmental adaptability
►50℃ operating environment temperature *
►Built-in DC reactor *
►Treatment of protective coating
►Built-in EMC filter *
►Global safety regulations are compatible with CE/UL/cUL
* Note: Please refer to product specifications



►Control characteristics
Control way
Pulse width adjustment (PWM)
Control mode
230 V / 460 V model : 1: V/F，2: SVC，3: VF+PG，4: FOC+PG，5: TQC+PG，6: PM+PG，7: FOC sensorless，8: TQC sensorless， 9: PM sensorless
575 V / 690 V model : 1: V/F，2: V/F+PG，3: SVC

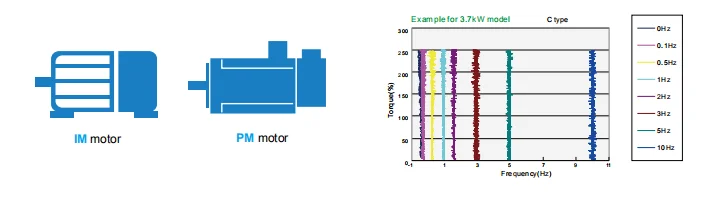

Starting Torque
The rated speed of induction motor (IM) at 1/50 can reach more than 150%; the rated speed of permanent magnet synchronous motor (PM) at 1/100 can reach more than 150%
V/F curve
V/F curve 4 points arbitrary ,V/F curve & 2 power curve
Speed Response Capacity
5 Hz (vector control can reach 40Hz)
Torque limit
230 V/460 V model: Heavy load: maximum 180% torque current; Super Heavy load: maximum 220% torque current ;575 V/690 Vmodel:maximum 200% torque current
TQC mode output torque accuracy
TQC + PG：±5%
TQC Sensorless：±15%
Maximum output frequency
0.00~599.00Hz
Frequency output accuracy
Digital instruction: ± 0.01%,-10°c ~ + 40 ° C, analogy instruction: ± 0.1%, 25 ± 10 ° C
Frequency setting resolution
Digital instruction: 0.1Hz, analogy instruction: 0.05% maximum output frequency (parameter 01-00), 11bit




Overload tolerance degree
230 V/460 V model: Heavy load: when rated output current at 150% , 1 minute/5 minutes; when rated output current at 180%, 3 seconds/30 seconds. Overload: 1 minute/5 minutes when rated output current at 150% ; 3 seconds/30 seconds when rated output current at 200%.
575 V/690 V model: Light Load: when rated output current is 120%, last for 1 minute General load: last for 1 minute when rated output current is 120%; last for 3 seconds when rated output current is 150% Heavy load: last for 1 minute when the rated output current is 150%; last for 3 seconds when it is 180%.
Frequency setting signal
+10 V ~ -10V，0 ~ +10 V，4 ~ 20 mA，0 ~ 20 mA，Pulse input
Acceleration/deceleration time
0.00 ~ 600.00 / 0.0 ~ 6000.0 m





Main control functions
Torque control, speed/torque control switching, feedforward control, zero servo control, instantaneous power failure restart,speed search, over-torque detection, torque limit, 16-stage speed (including main speed), speed/deceleration time switching, S curve plus/deceleration, 3-wire control, automatic adjustment (rotational, stationary), Dwell, Slip compensation, torque compensation,
JOG frequency, setting of upper and lower frequency, starting/stopping DC brake, high slip brake, PID control (with sleep function), energy saving control, MODBUS communication (RS-485 RJ45, up to 115.2 Kbps), abnormal restart and parameter
replication.


Wind speed control
230V ：VFD150C23A-21 above model PWM control；VFD110C23A-21 below model ON / OFF toggle key
460V ：VFD185C4XX-21 above model PWM control；VFD150C43A below model ON / OFF toggle key
575V / 690V ：PWM control


►Protection features
Motor Protection
Electronic thermal relay protection




Overcurrent protection
230 V/460 V : overcurrent protection 240% rated current of heavy load; 250% rated current of super heavy load Current conversion [Heavy load: 190 ~ 195% 』; 『 Super Heavy load: the same heavy load as the controlled current 』
575 V/690 V  (except 630 kW): overcurrent protection 240% rated current of General load Current preset "light load: about 125~ 145% 』; 『 General load: about 170 ~ 175% 』; 『 Heavy load: about 200 ~ 250% 』 630 kW: over current protection 240% rated current of General load Current system "light load, General load, Heavy load: All about 170 ~ 175% 』

Overvoltage protection
230 V : When DC bus voltage exceeds 410 V, inverter will stop running;
460 V: When DC bus voltage exceeds 820 V, inverter will stop running
575 V/690 V: When DC bus voltage exceeds 1189 V, inverter will stop running
Overtemperature protection
Built-in temperature sensor
Speed loss prevention
Speed loss prevention in acceleration/deceleration/operation
Instant power failure and restart
Parameter settings can reach 20 seconds
Connection with floor drain current protection
Leakage current is 50% higher than rated current of inverter
Short circuit current rating (SCCR)
According to UL 508C, matched fuse is suitable for power supply system with short circuit capacity below 100kA


Product model


>>How to choose Delta VFD?

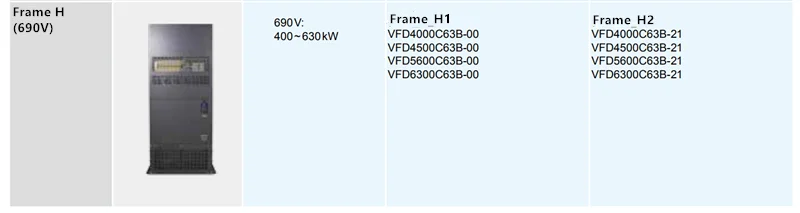

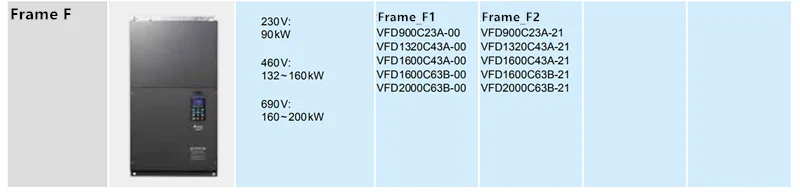

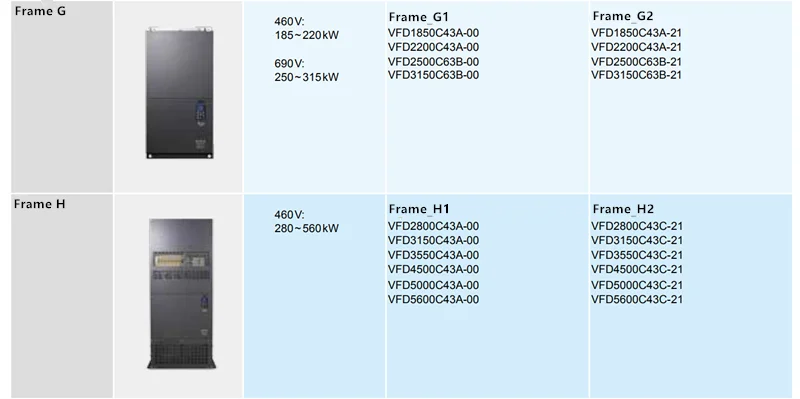

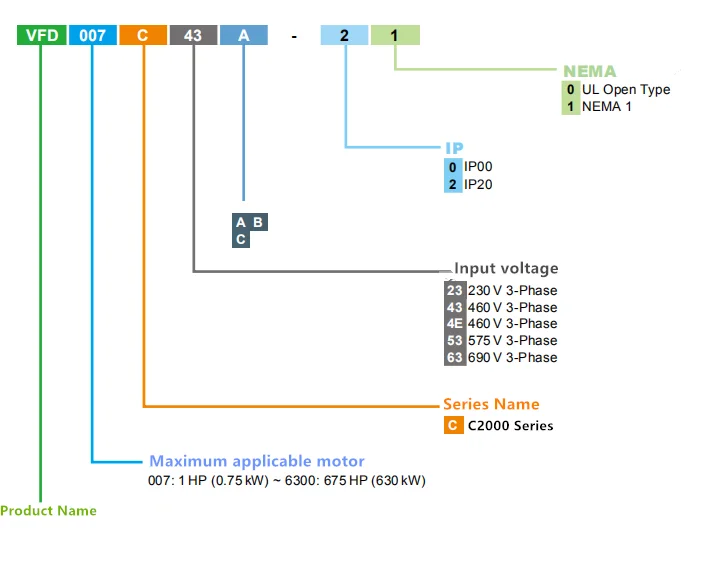

►Model introduction














VFD007C23A-21
VFD007C43A-21
VFD2200C43A-00
VFD370C43S-21
VFD007C4EA-21
VFD015C23A-21
VFD015C43A-21
VFD2800C43A-00
VFD450C43S-21
VFD015C4EA-21
VFD022C23A-21
VFD022C43A-21
VFD3150C43A-00
VFD550C43A-21
VFD022C4EA-21
VFD037C23A-21
VFD037C43A-21
VFD3550C43A-00
VFD750C43A-21
VFD037C4EA-21
VFD055C23A-21
VFD040C43A-21
VFD4500C43A-00
VFD900C43A-21
VFD040C4EA-21
VFD075C23A-21
VFD055C43A-21
VFD5000C43A-00
VFD1100C43A-21
VFD055C4EA-21
VFD110C23A-21
VFD075C43A-21
VFD5600C43A-00
VFD1320C43A-21
VFD075C4EA-21
VFD150C23A-21
VFD110C43A-21
VFD1600C43A-21
VFD1600C43A-21
VFD110C4EA-21
VFD185C23A-21
VFD150C43A-21
VFD1850C43A-21
VFD1850C43A-21
VFD150C4EA-21
VFD220C23A-21
VFD185C43A-21
VFD2200C43A-21
VFD2200C43A-21
VFD185C4EA-21
VFD300C23A-00
VFD220C43A-21
VFD2800C43C-21
VFD2800C43C-21
VFD220C4EA-21
VFD370C23A-00
VFD300C43A-21
VFD3150C43C-21
VFD3150C43C-21
VFD300C4EA-21
VFD450C23A-00
VFD370C43S-00
VFD3550C43C-21
VFD3550C43C-21
VFD007C4EA-21
VFD550C23A-00
VFD450C43S-00
VFD4500C43C-21
VFD4500C43C-21
VFD015C4EA-21
VFD750C23A-00
VFD550C43A-00
VFD5000C43C-21
VFD5000C43C-21
VFD022C4EA-21
VFD900C23A-00
VFD750C43A-00
VFD5600C43C-21
VFD5600C43C-21
VFD037C4EA-21
VFD300C23A-21
VFD900C43A-00
VFD3150C43C-21
VFD3150C43C-21
VFD040C4EA-21
VFD370C23A-21
VFD1100C43A-00
VFD3550C43C-21
VFD3550C43C-21
VFD055C4EA-21
VFD450C23A-21
VFD1320C43A-00
VFD4500C43C-21
VFD4500C43C-21
VFD075C4EA-21
VFD550C23A-21
VFD1600C43A-00
VFD5000C43C-21
VFD5000C43C-21
VFD110C4EA-21
VFD750C23A-21
VFD1850C43A-00
VFD5600C43C-21
VFD5600C43C-21
VFD150C4EA-21
VFD900C23A-21
VFD220C4EA-21
VFD300C4EA-21
VFD185C4EA-21


Related Products


>>More Delta Products to Choose


►VFD
►Servo


►Power Supply

►HMI
►PLC Controller


We sell China Taiwan Delta products:

Delta inverter series: (MH300 / MS300; C2000; CP2000; CT2000; C2000+; CH2000; REG2000; AFE2000; IED-G; VFD-DD; VFD-ED; VFD-E /VFD-EL; HES)

Delta Servo Drives and Motors: (ASDA-A3; ASDA-A2; ASDA-B2; ASDA-M; ASDA-A2-E)

Delta programmable controller series: (AS; AH500; DVP-EH3; DVP-ES2 / EX2; DVP-SE; DVP-SV2; DVP-SS2; DVP-SA2; DVP-SX2; DVP-MC;DVP-PM )

Delta text-type human-machine interface / PLC all-in-one machine: (TP70P-RM0; TP04G-AL-C / TP04-AL2 / TP04-BL-C; TP08G-BT2; TP70P;TP04P)

Delta modules: (DVPEN01-SL; DVPPF02-SL; DVPCOPM-SL; DVPDNET-SL; RTU-EN01; RTU-PD01; RTU-DNET; RTU-485; IFD6500 / IFD6503 /IFD6530; IFD8500 / IFD8520; IFD9502 / IFD9503 / IFD9506 / IFD9507)

Delta Industrial Power Supply: (CLIQ / CLIQ II / CLIQ M / LYTE / CHROME / SYNC / DVP; PMH / PMR; PMC / PMF / PMT; PJ / PJB / PJT)

Temperature controller: (DTK; DT3; DTA; DTB; DTD; DTE; DTV)

Pressure sensor: (DPA; DPB)

Machine vision system: (DMV2000 / DMV1000)


Our advantage
1.Factory direct supply,competitive price.
2.Professional Experience of inverter more than 10 year.
3.Prompt delivery and remarkable services.
4.100% new materials for production and 100% reliable hight quality.
5.Free After-Sale Service,solve all your problems.




Feedback


>>Comments from customers




Our Services


>>Why Choose Craftsman?

1. Guarantee the quality:
►All goods are from original factory, we are the only agent of Delta group in Guangxi,China.

2.Technology support:
►We're in this field many year. If there's any problem, please contact with us,we'll provide suggestion from our engineer and the Manufacturer to help you solve problem.

3.Warranty:
►Except for man-made damage,all products we sell have 12 months maintenance-free policy from the day of shipment, but the buyer is responsible for all the shipping cost incurred.

4.Repairing:
►We can provide the repairing service for PLC,Inverter,servo motor&driver,HMI etc.

5.Collect products:
►We can help our customers to collect products from other suppliers,and send them together for saving shipping charge.

6.Help to buy:
►We can help our customers to buy other kind of goods in china.


Packaging & Shipping






About us


Craftsman electromechanical is committed to creating a "craftsman" brand abroad, the main promotion of frequency inverter,PLC,Soft starter, Industrial touch screen, Servo and other automation equipment products.

At the same time of ensuring reliable product quality standards, we can also provide you with competitive prices and value for money aftersales service, we look forward to establishing a long-term partnership with you.Our staff are always ready to provide you with the best quality, the fastest and the most professional technical services,In the field of motor drive, our company has the most professional engineers and technical team, who are familiar with international famous brands such as Delta,Siemens,ABB,schneider, continental, Emerson, walken, yaskawa, mitsubishi and Fuji,ect. and can provide remote technical support and services.
