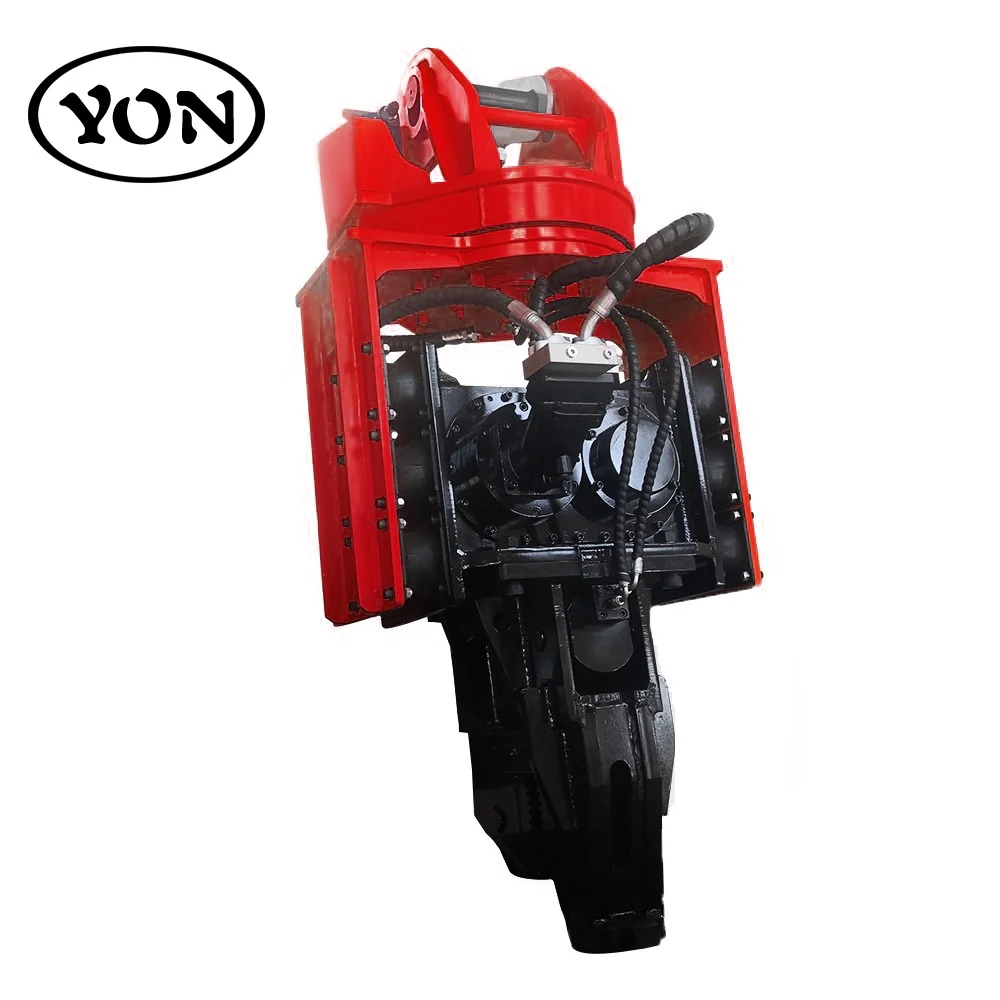

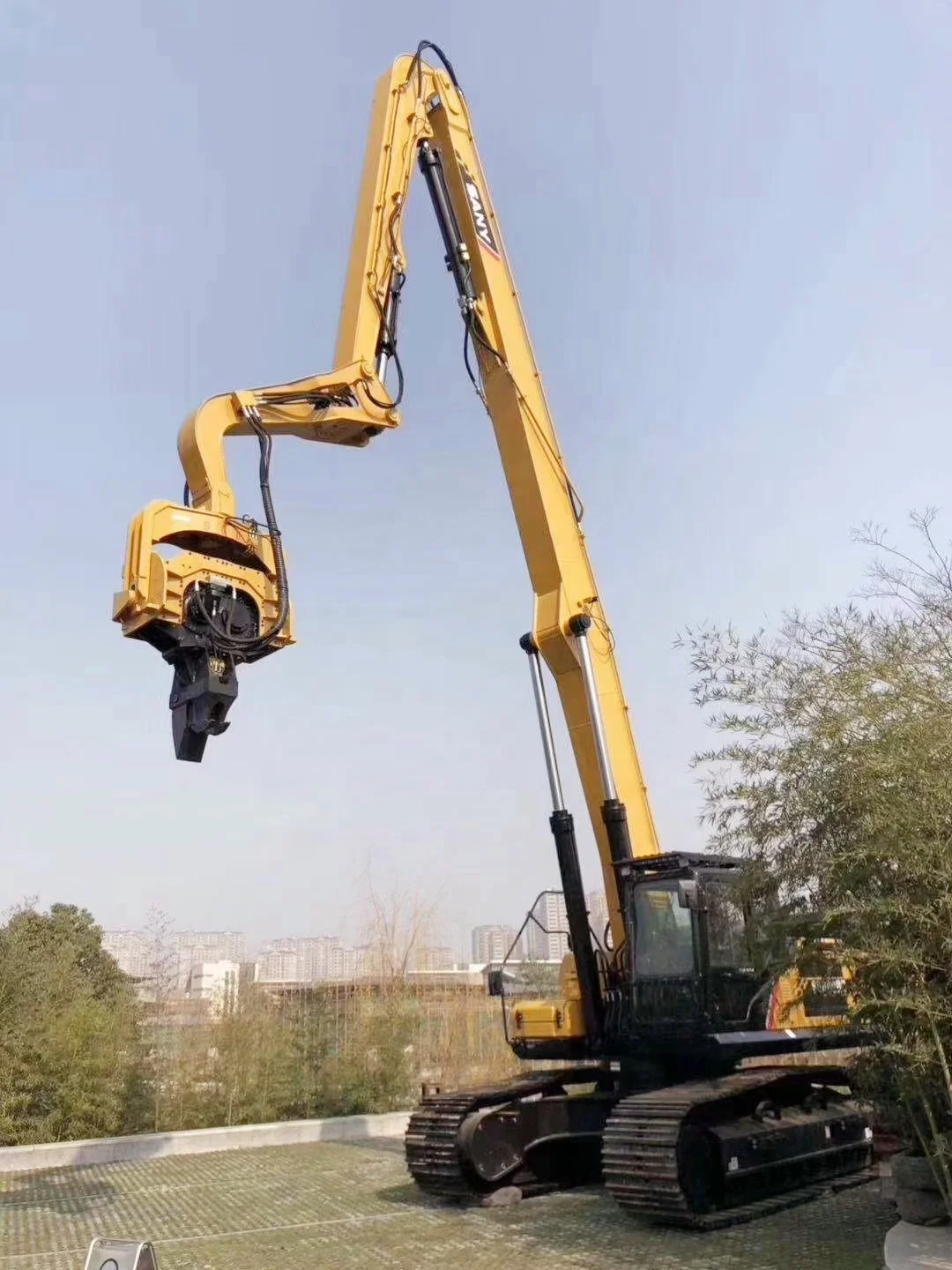

hydraulic vibro hammer is the vibratory driving piling equipment which is popular among a wide variety of foundation projects.
Model
Units
Y08
Y10
Y14
Excavator
Ton
20-30
30-40
40-45
Frequency
rmp
3000
2800
2800
Hz
50
45
45
Centrifugal Movement
kN
500
650
750
Eccentric Moment
Kgm
5
5
6
Oil Pressure
Bar
250
250
280
Oil Flow
L/min
160
180
210
• Lower cost of maintenance • Outstanding workability and mobility. • Easier operate in critical regions such as chaotic section of city, bridge area and the vicinity of high-voltage wires • Equipped with high-powered hydraulic piston motor and suitable bearing for high frequency vibration.
• Install vibro isolating rubber for high frequency purpose. • Easy connect and disconnect the hammer by the use of excavator’s breaker hydraulic lines. • The clamping lug can handle and move construction objects easily. • Pile driving power 20% up compared to the existing equipments. • Sufficient wear-resistant design and 360-degree revolution.
Detailed Images
Rotary motor
After strict screening, the failure rate is less than 0.5%
Hydrualic Vibrating Motor
Imported plunger hydraulic motor from France
Bearing
SKF Bearing from German
The clamp can be customized according to piling project requirements, it is suitable for sheet pile, round pile, concrete pile in different sizes.
