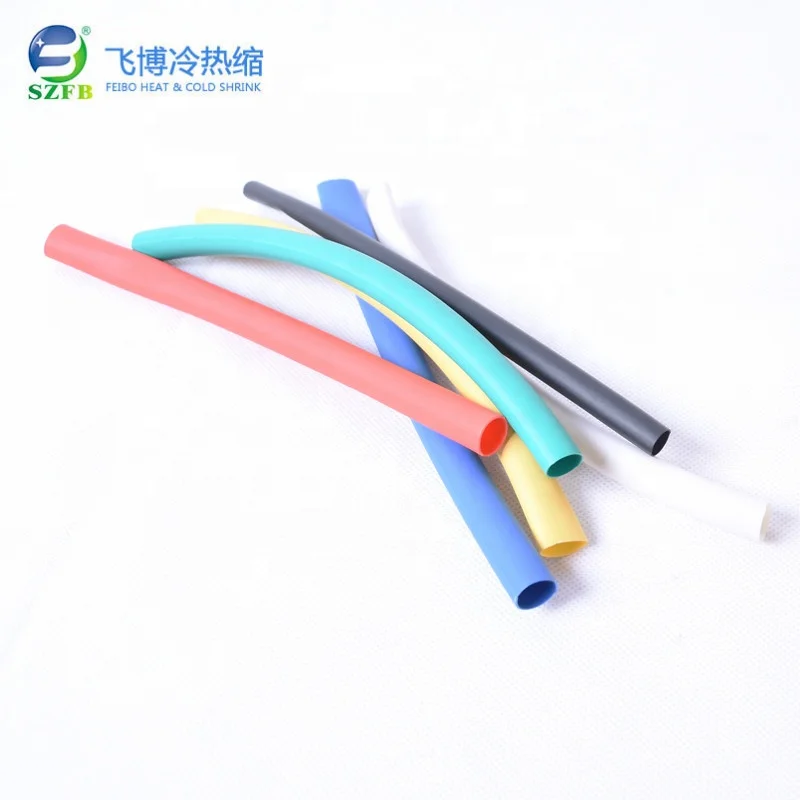

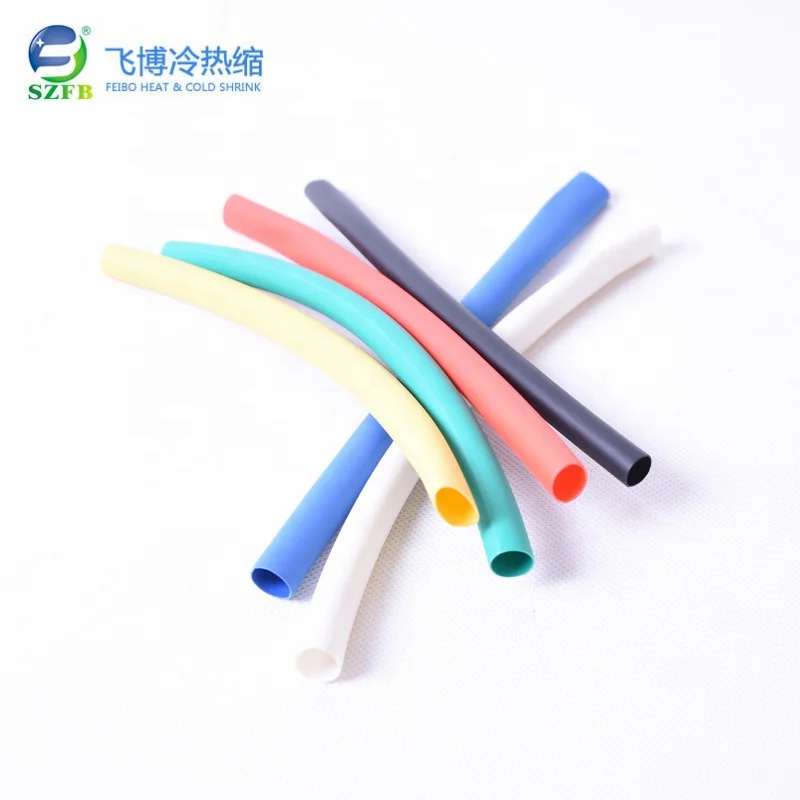

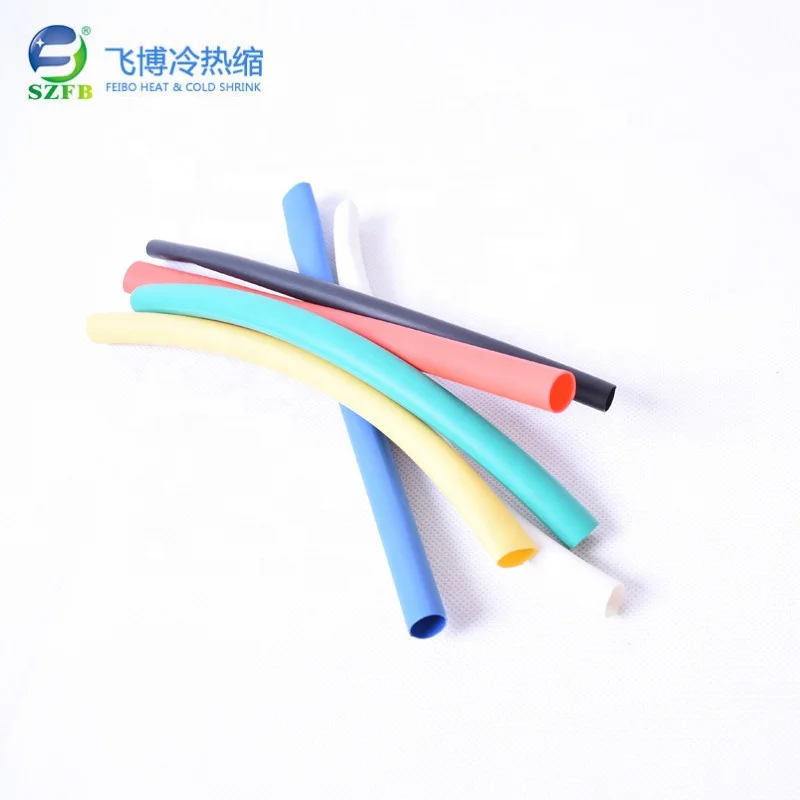

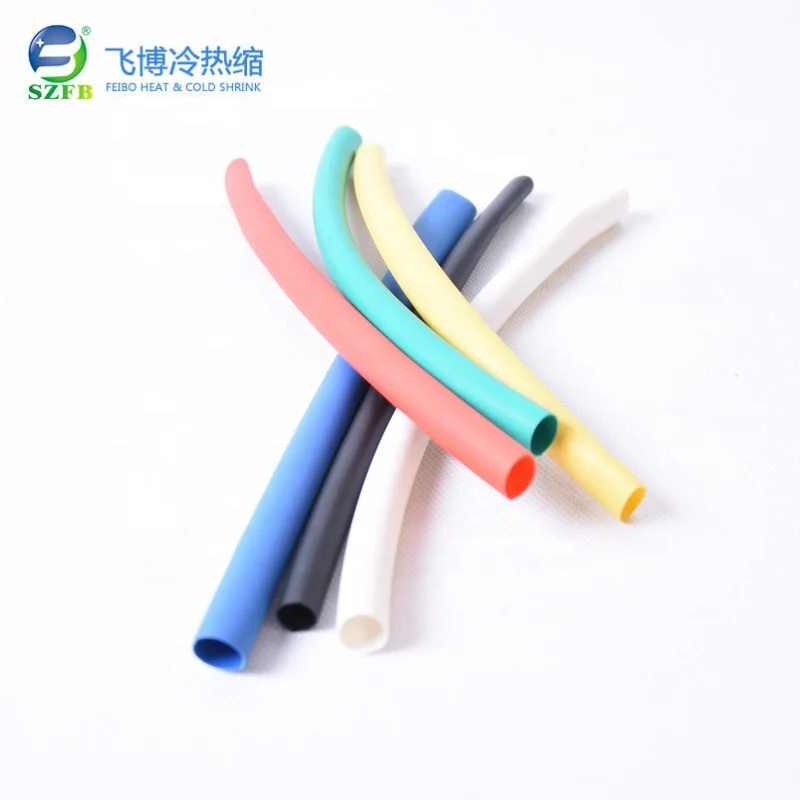

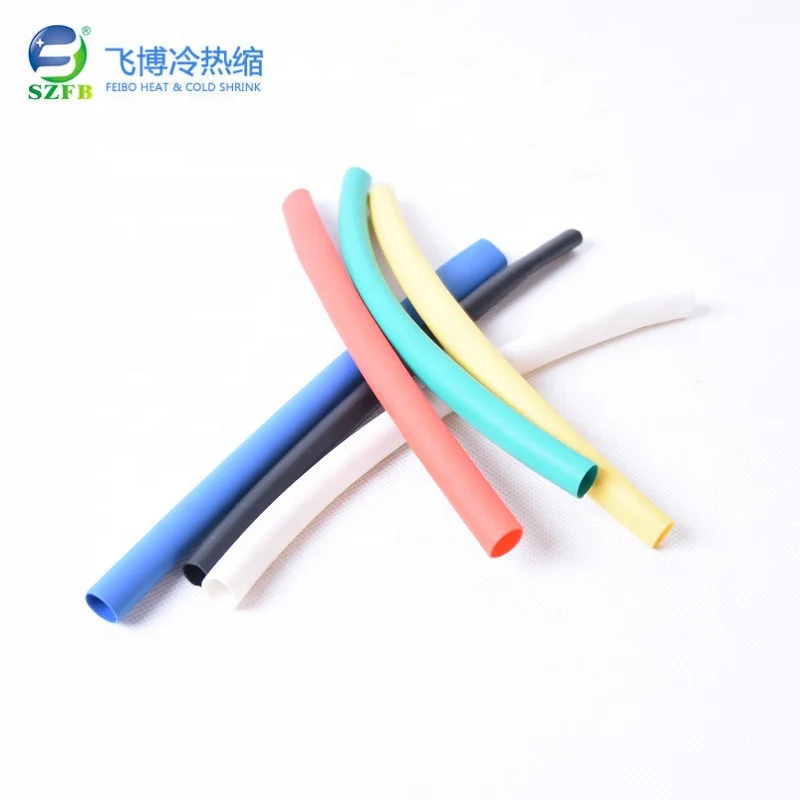

Sleeve Double Wall Silicone Rubber Shrinkable Heat Shrink Tubing With Glue

Share on (62580921818):


Price:$1.00 - $2.50

Quantity:


Product Overview

Description




The outer wall is made of Polyolefin and with inner wall of hot melt adhesive. Suitable for electrical applications where good
longitudinal water tightness is needed.High shrink ratio( 3:1 4:1), having properties of excellent insulating, environmental
sealing, and resistant to impact and abrasion.

Applications:
Protects and seals electronic components, wire splices, back end connectors and cable breakouts.
High expansion ratio for repairing damaged wire and cable jacketing without removing connectors.
Protection from fluids, moisture and corrosion in outdoor, automotive and marine applications.
Rugged protection against abrasion, vibration and flexing.
Product Name
Insulating Sleeve Double Wall Heat Shrink Tubing With Glue Inside
Material
1, PE,EVA;     2. hot-melt adhesive
Color
black, white, red, green, yellow, blue, transparent, and customized
Tensile Strength
≥12Mpa
Elongation
≥300%
Tensile strength after aging
≥7.3Mpa
Elongation at break after aging
≥200%
Dielectric strength
≥15kv/mm
Volume resistance
≥1x10^14
