KEYE ZC 23 side discharge install type swamp cooler with 23000 cmh air flow
- Category: >>>
- Supplier: Guangzhou Keye Environmental Technology Co. Ltd.
Share on (62581025377):
Product Overview
Description
Product Description

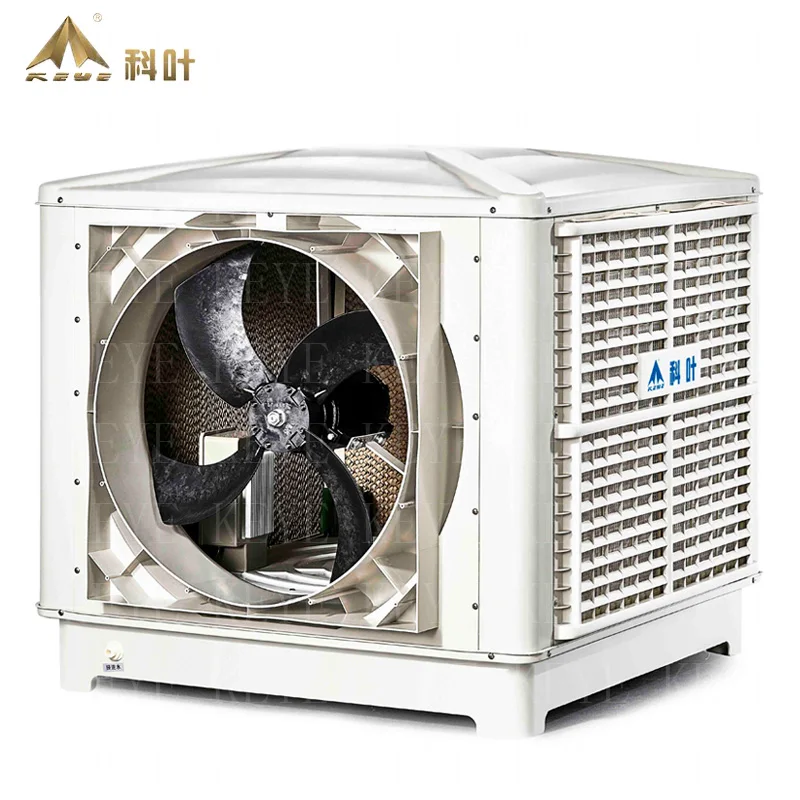

KEYE ZC-23 side discharge install type swamp cooler 23000cmh air flow
Full-automatic electronic display controller, easy operation;
This model adopts high pressure mute fan having powerful airflow. It has less energy consumption, low noise and wide adaptability.
Auto-controlled water supply system, water distributor, supplying water evenly and smoothly
Weathering injection shapes the shell having high strength, corrosion protection, anti-aging and anti-UV.Attractive, durable and stable performance

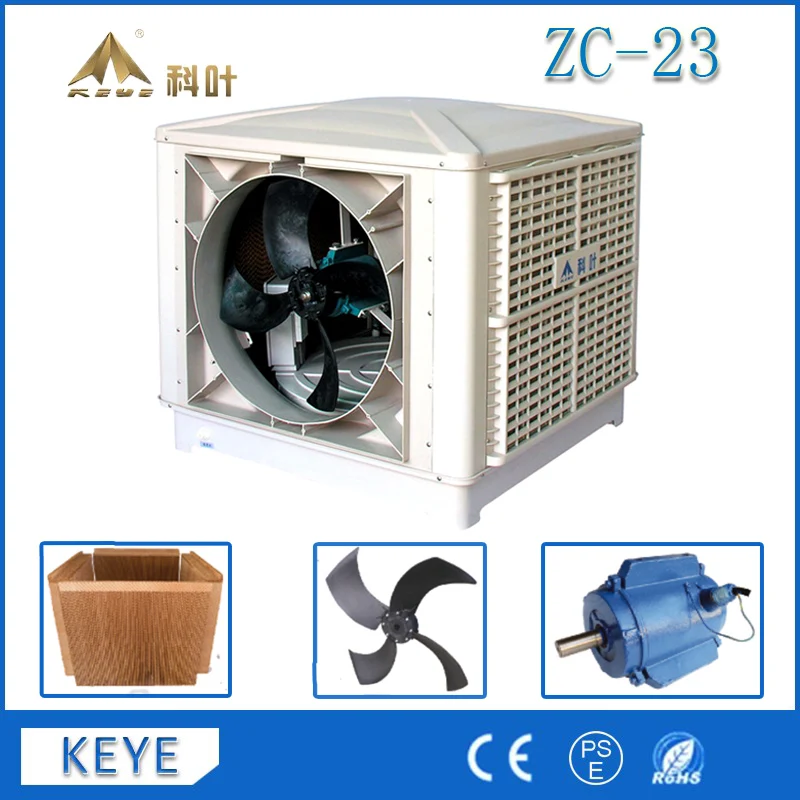

Adopts high-performance evaporator (Cellulose cooling pad) processed by high technology, amazing evaporation,wonderful cooling effect, no any smell
Uses high quality cast iron motor which has strong power.
Detailed Images

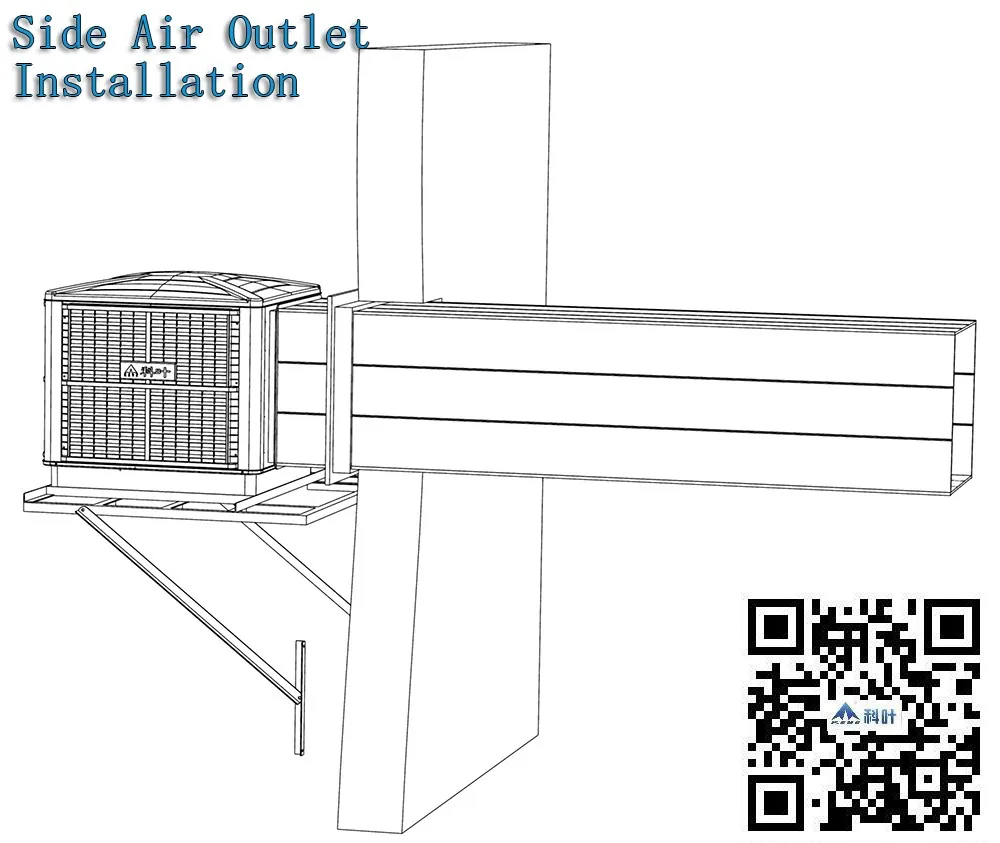

Install

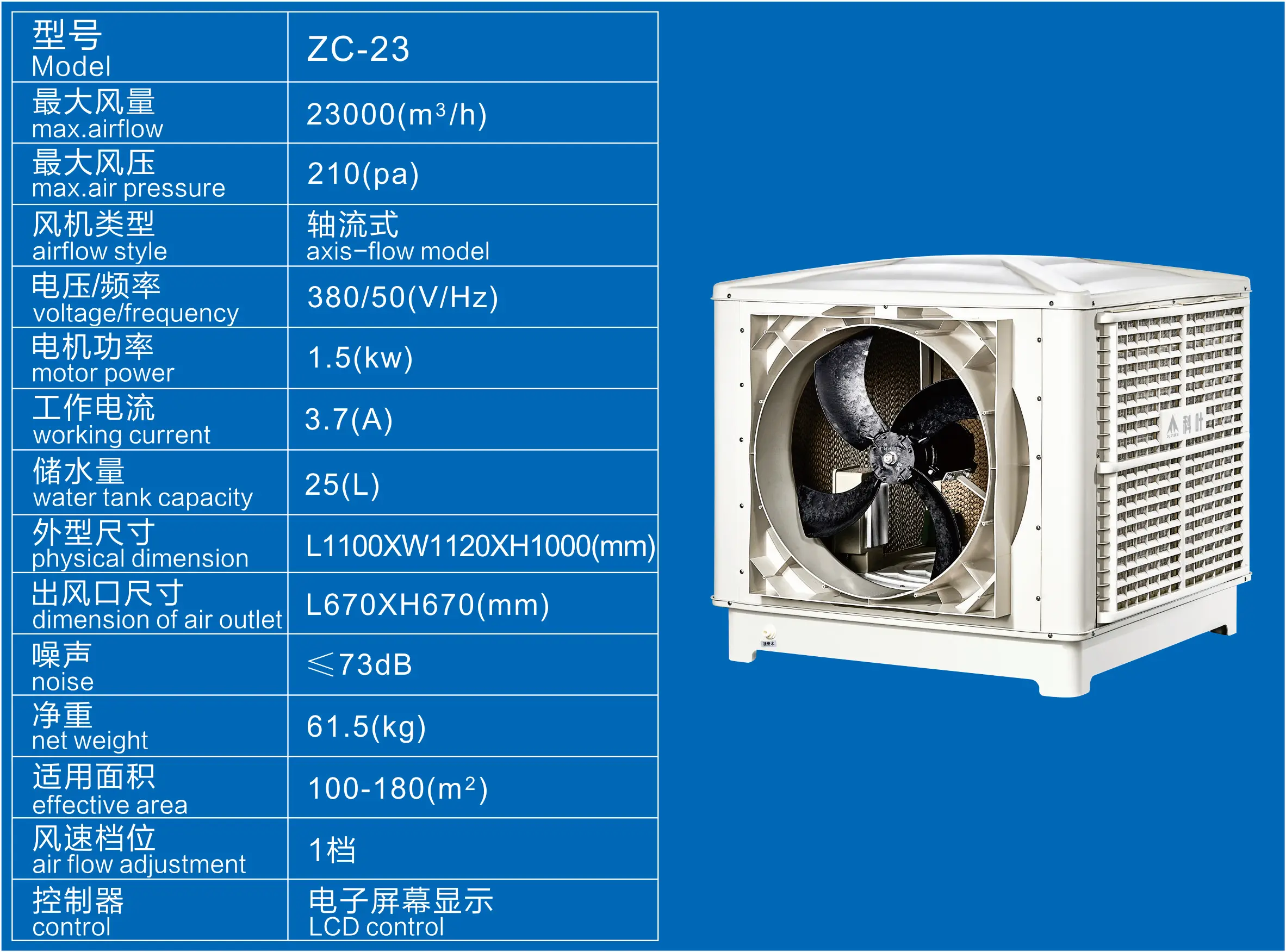

Product Data
Model | ZC-23 (Side wind outlet) | |
Max airflow rate | (m³/h) | 23000 |
Max air pressure | (pa) | 210 |
Airflow style | Axis-flow | |
Voltage /frequency | (V/HZ) | 380/50 |
Motor Power | (KW) | 1.5 |
Working Current | (A) | 3.7 |
Wind distance | (m) | 30 |
Water tank capacity | (L) | 25 |
Dimension | (LWH)(mm) | 1100×1100×1000 |
Dimension of air outlet | (mm) | 700×687 |
Noise | (dB) | ≦76 |
Net weight | (KG) | 61.5 |
Effectve area | (m²) | 100-180 |
Air flow level | 1' | |
Controller | LCD control (Single speed) |

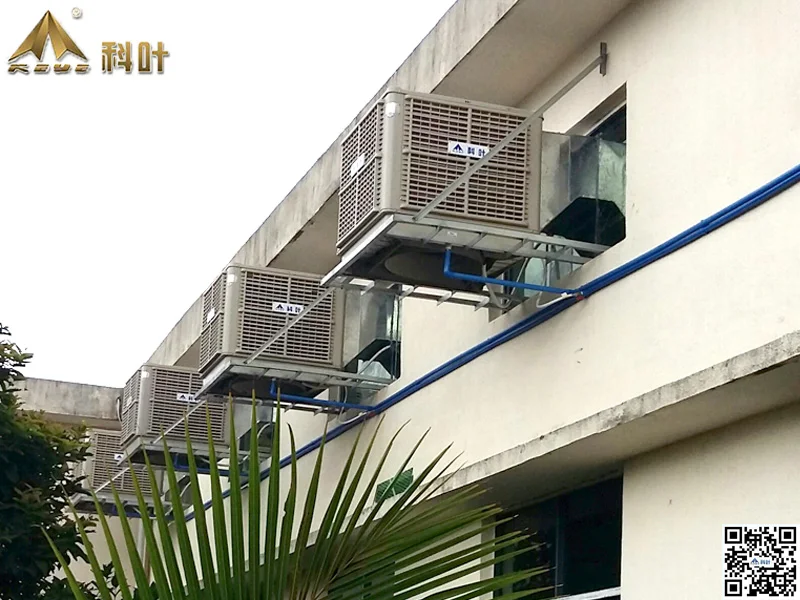

Project case

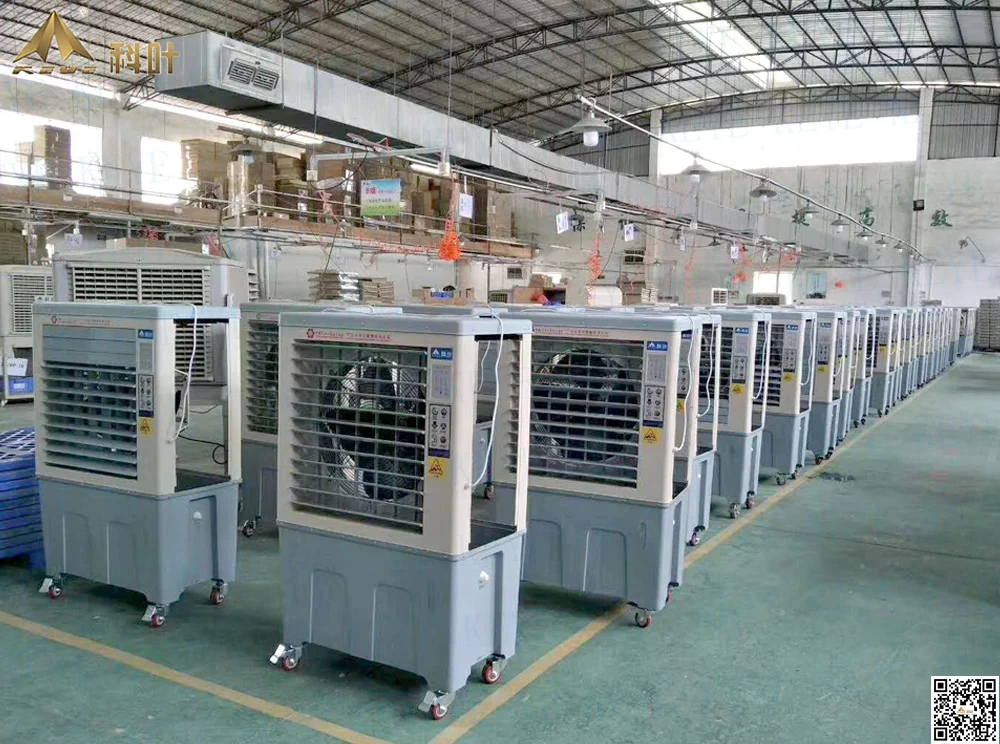

Our Company
Guangzhou KEYE Environmental Technology Co.,Ltd was set up by Popula Fan Co.,Ltd in Panyu district Guangzhou city in 2008. KEYE company is the production base of Popula's environmental evaporative air coolers.
Our main products include Movable Axial Evaporative Air Cooler, Movable Centrifugal Evaporative Air Cooler,Window Type Evaporative Air Cooler, Wall Mounted Evaporative Air Cooler (airflow capacity from 5,000 to 60,000 m3/h), Mist Cooling Fan & Pipeline Centrifugal Ventilating Fans etc.
Our products are widely used in homes, factories, mining industry and public places. Many famous enterprises such as GREE and CHIGO use our air coolers, and our products are appointed to be used as "Canton Fair Complex Designated Cooling Equipment" due to the outstanding advantages.Our sales volume reaches 80,000 units each year.
"Cutting-edge Technology, Green KEYE" is our endless pursuit. We have applied MGS & CAT automatic testing system in the midst of production. And we fully utilize CAD and CAXA auxiliary system to research and develop new products. The products designed by ourselves have obtained many patents and qualification certificates. Our products are not only sold all over the country but also exported to more than 30 countries in Western Europe, South American, Mid-east, Africa, East Asia and South-east Asia.
