cheap price C5 C7 GRADE sfu1605 ball screw For automation
- Category: Linear Motion >>>
- Supplier: Lishui Greenleaf Automatic Technology Co. Ltd.
Share on (62581229141):
Product Overview
Description
Model No. | Rolled SFU2005 / same size as TBI |
Size and others | screw dia 20mm/ lead 5mm/ thread direction: R or L / longest screw length 4000mm/ end process :allowed/ material:Gcr15 |
drawings | According to drawings or samples ,or the model number of supports |
Features | High reliability/Smooth operation/durable/High rigidity and preload/Low lost,only 1/2 of TBI,but same quality |
Price Composition | 1 set ball screw nut+1000mm units screw |
Direction for use

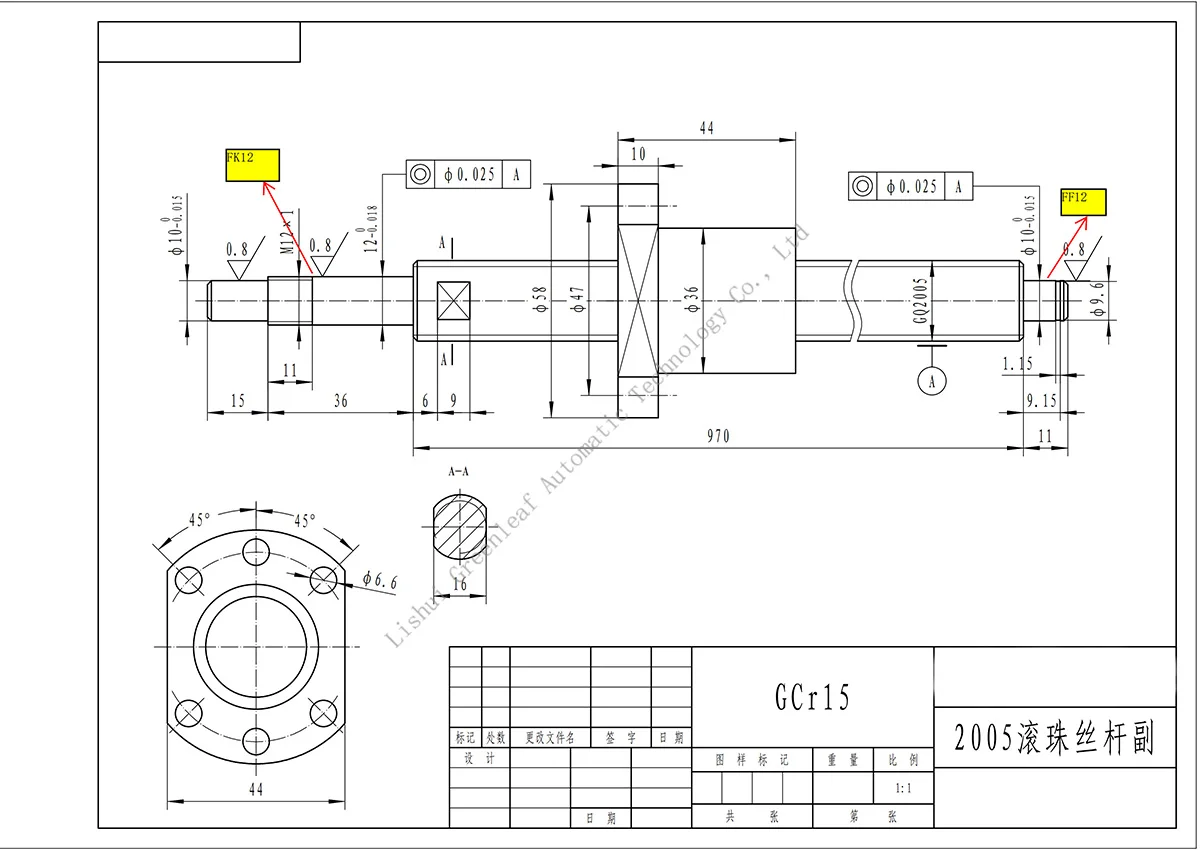

We can machine it as your drawing
With support BK,BF,FK,FF,EK,EF.
Feature
1. Space saving nternal circulate design
2. Low friction force with 1/3 over acme screw
3. Ensure for high accuracies
4. Zero backlash, high stiffness.
1. Space saving nternal circulate design
2. Low friction force with 1/3 over acme screw
3. Ensure for high accuracies
4. Zero backlash, high stiffness.

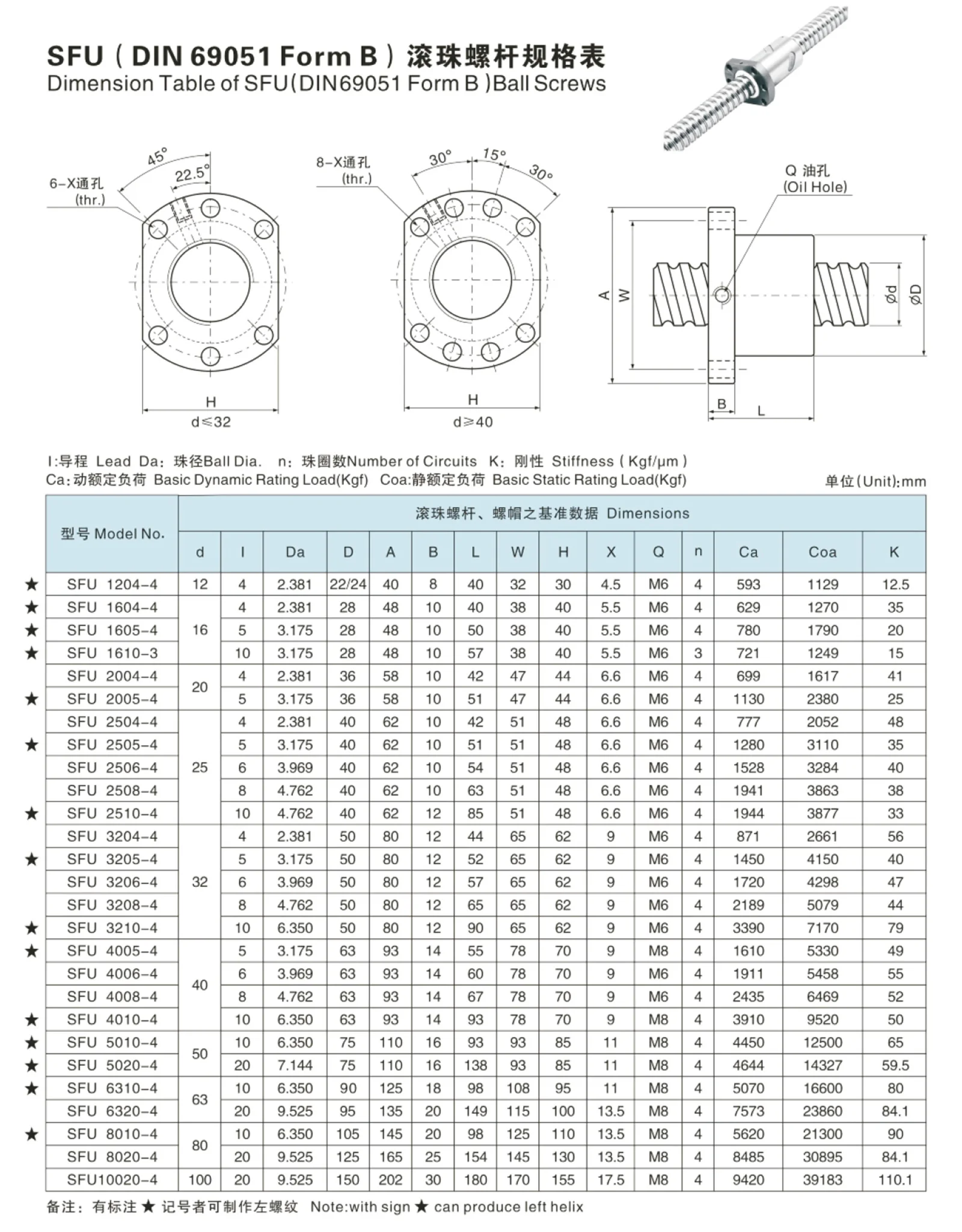

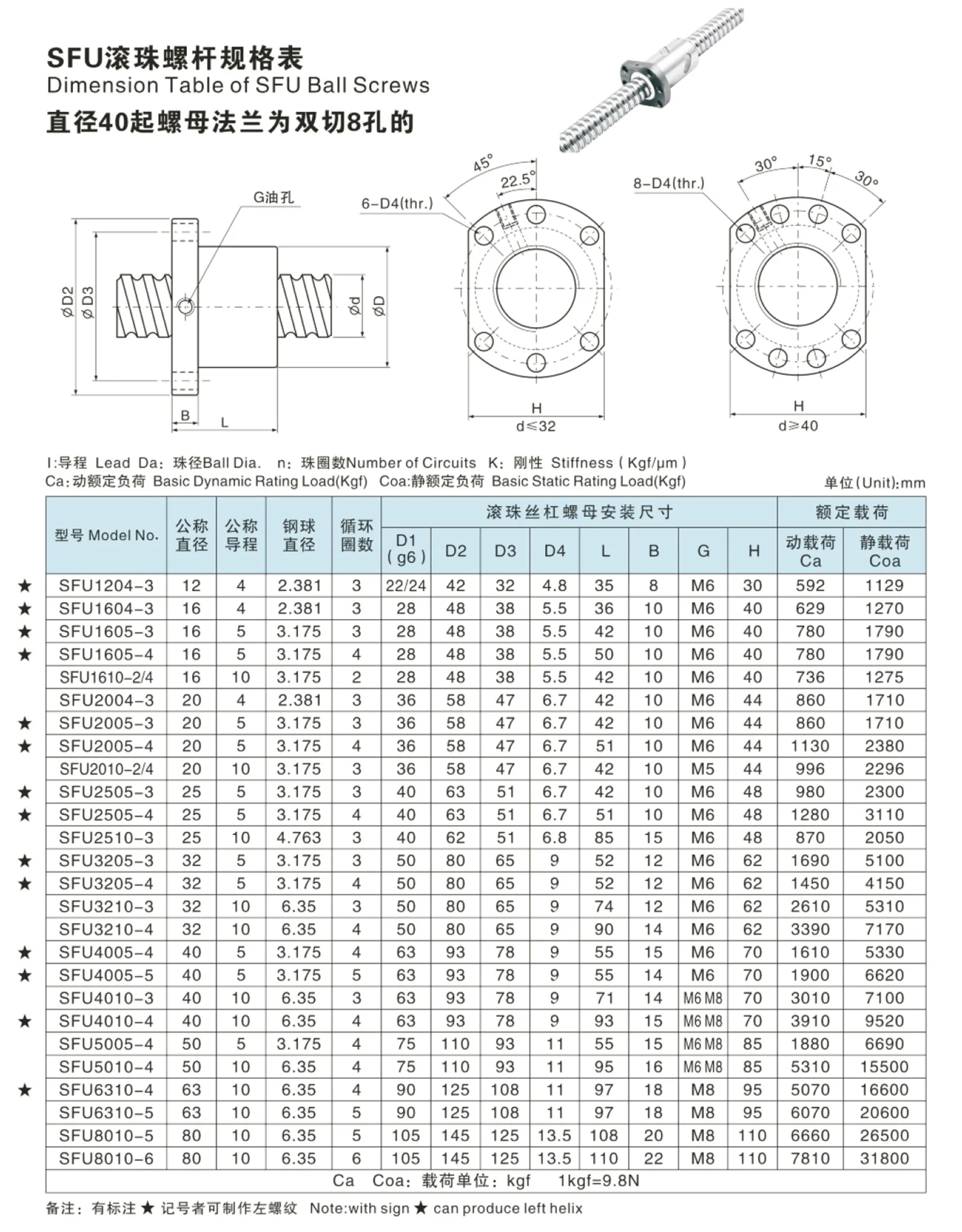

Size Information
Ball screw model available
Pitch 1mm | SFK00401,SFK00601,SFK00801 | ||||||
Pitch 2mm | SFK00802,SFK01002,SFK01202,SFK01402,,SFK01602,SFK02002,SFK02502 | ||||||
Pitch 4mm | SFK01004,SFU1204, SFU1604, SFU2004, SFU2504 for example | ||||||
Pitch 5mm | SFU1605, SFU2005, SFU2505, SFU3205, SFU4005, SFU5005 for example | ||||||
Pitch 8mm | SFU2508,SFU3208,SFU4008 for example | ||||||
Pitch 10mm | SFU1610, SFU2010, SFU2510, SFU3210, SFU4010, SFU5010, SFU6310, SFU8010 for example | ||||||
Double nut | DFU1604,DFU1605, DFU2005, DFU2505, DFU2510, DFU3205, DFU3210, DFU4005, DFU4010, DFU5010, DFU6310, DFU8010 for example | ||||||
Big lead | SFS1616,SFS1620,SFS2525,SFE1616,SFE2020,SFE2525,SFE3232,SFE4040, SFE5050,SFY1616,SFY1632,SFY2020,SFY2040,SFY2525,SFY2550,SFY3232,SFY3264,SFY4040,SFY4080,SFY5050,SFY50100 for example | ||||||
Ball screw parts | Ball screw nut, nut housing,ball screw support BK,BF,EK,EF,FK,FF，motor bracket | ||||||
End machining | As your drawing | ||||||
Left and right thread | SFU,DFU,SFI,DFI can made | ||||||
Non standard ball screw | First pls sent yr drawing or product requirements to us ,we'll communicate with engineers | ||||||
Packing&Shipping
Company Introduction
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory with a land of 23000 square metes. Welcome to visit us.
Q: How long is your delivery time?
A: We have large quantity in stock.Sample needs 3-5 days, mass production needs 1-2 weeks for bulk order after received payment.
Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q:Do you have any MOQ limit for order?
A: Low MOQ, 1pc for sample checking is available
Q: What is your terms of payment ?
A: We usually accept TT,LC,PAYPAL,West Union,Money Gram.
Q: How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q: If you can not find the product on our website,how do you do?
A: Please contact us, we'll check and reply you ASAP.
Q: Can you do OEM?
A:yes, we can.when you give me brand authorization, we can do what as your request.
Q: How about your packing?
A: Our normal packing is white box with model No. then in wooden box,neutral packing.
shaft with paper tube, and wooden box.
