Spunbond Melt Blown Nonwoven Fabric Production Machine

Product Overview

Description

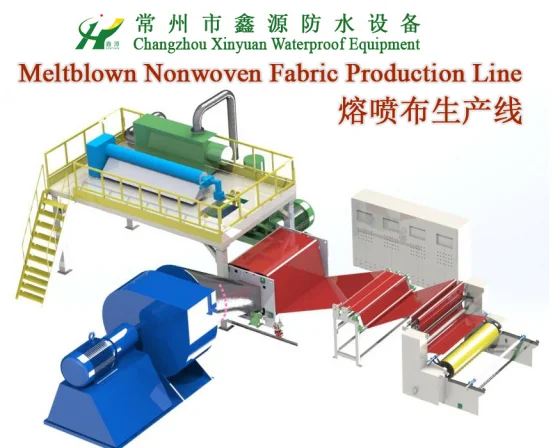

Meltblown Nonwoven Fabric Making Machine





Meltblown fabric making machine is an equipment that uses high speed hot air flow to draw out the polymer melt trickle which be squeezed out from spinneret orifice, thus forming microfiber and collecting on the roller, at the same time, self-adhesive to become a melt blown cloth which is used to produce the face mask. One equipment only needs 2 staff (1 person to operate the machine,1 person to collect the roll ), fully realize the high-speed production. The equipment is stable, beautiful in style, hygienic and environmentally friendly.





Technological process:

automatic suction----meltblown extrusion----filtration, quantitative feeding----meltblown---positive and negative pressure adsorption----meltblown receiving-electrostatic electret----slitting and winding







Specification:

Place of Origin	China
Weight	50-170T
After-sales Service Provided	Engineers available to service machinery overseas
Dimension(L*W*H)	11M*7M*4.3M
Voltage	380V 50HZ
Brand Name	XINYUAN
Condition	New
Warranty	One Year Warranty
Automatic Grade	Automatic
Power(W)	130KW-800KW
Certification	CE/ISO9001
Machine Type	Hot Sale Pp Meltblown Nonwoven Fabric Making Machine
Annual output	1500-8000 Tons Based on Model
Power Consumption	580 KW*H/TON
Transformer Required	250-1000 KVA
Container Required	(3-10)* 40'HQ containers
Effective Width	1600mm/2400mm/3200mm/customized
Raw material	Polypropylene (Pp)
Advantage	High Output, Eco-friendly, German Style
