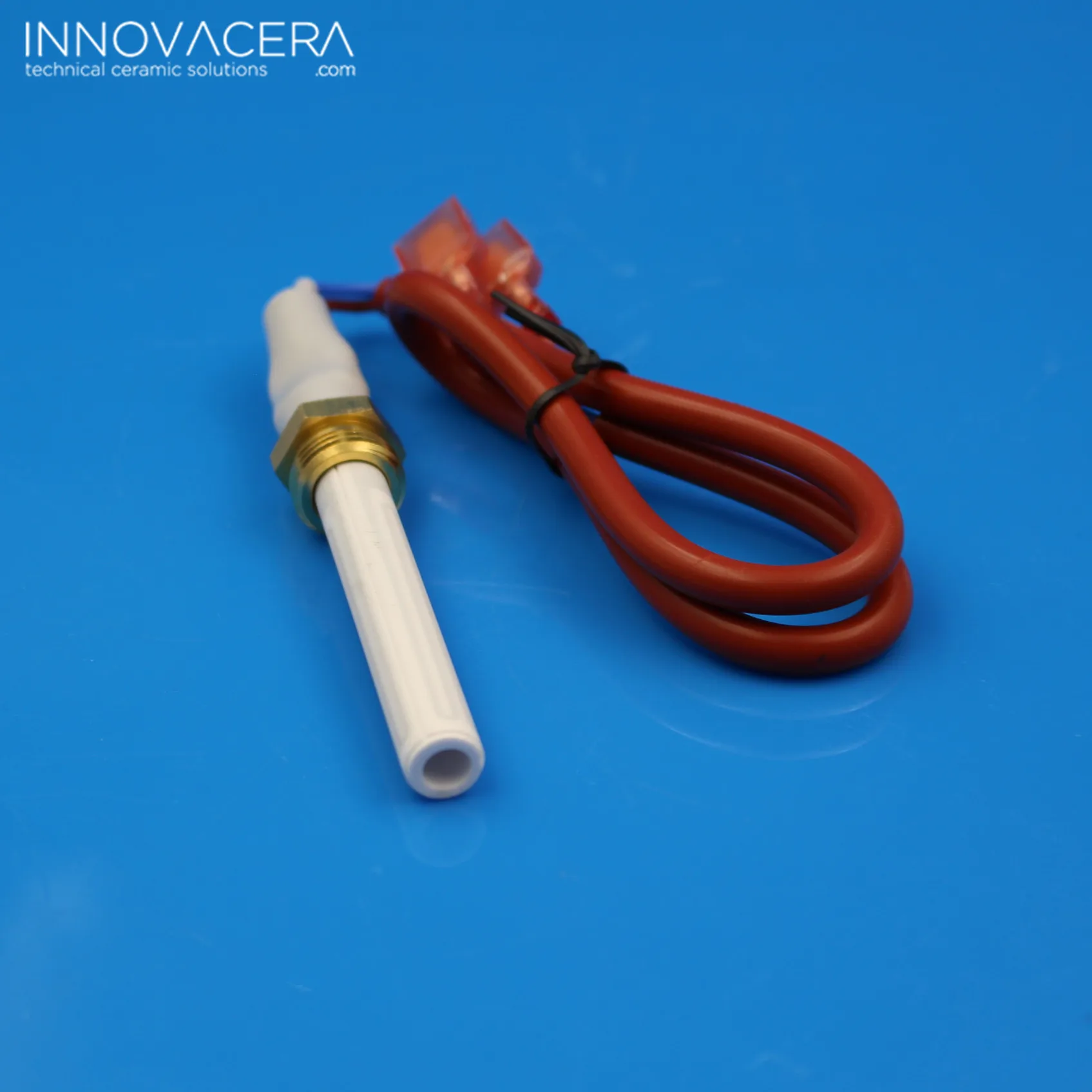

INNVOACERA MCH Alumina Ceramic Heater Element MCH High Temperature 800 Degree Metal Ceramic Heater
- Category: >>>
- Supplier: Xiamen Innovacera Advanced Materials Co. Ltd.
Share on (62581298855):
Product Overview
Description
Ceramic Heater Element
MCH Ceramic Heating Element is produced by implementing unique metallization and ceramic lamination
processes. Due to the advanced manufacturing techniques utilized in the electric element. Alumina heaters
can provide higher reliability than ever before. Currently, applications include use as innovative types of
heaters in the automotive and semiconductor industries.
Specification: | ||||
Dimension | OD7*T0.6 | Resistance range(Ω): 0.4-0.6 | ||
OD11*T0.8 | Resistance range(Ω): 0.3-0.4 | |||
OD24*T1.2 | Resistance range(Ω): 3.7-4.5/10-13/16-22/9-11/11.3-13.7 | |||
OD20*T1.2 | Resistance range(Ω): 17-20/7.5-8.8/1.5-2.0 | |||
OD14*T1.2 | Resistance range(Ω): 95-101/70-84/110-145/200-290/140-170/25.5-30.5/25-33/270-330/100-120 | |||
OD30*T1.2 | Resistance range(Ω): 1.4-1.69/0.8-1.1/12-16/4-5/1.7-2.1/2.53-2.77/2.0-2.53/2.5-2.8 | |||
OD38*T1.2 | Resistance range(Ω): 2.0-2.59/450-550/2.5-3.2/5-6/2.6-3.2 | |||
Rated Voltage | 5V, 12V, 24V ( all can be customized ) | |||
Application | Heating Hemp, Moxibustion, Coffee Machine, Car Water Heatet Up ... ... | |||

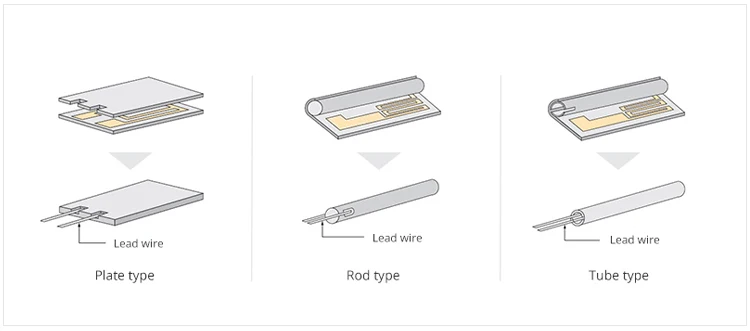

Design Structure

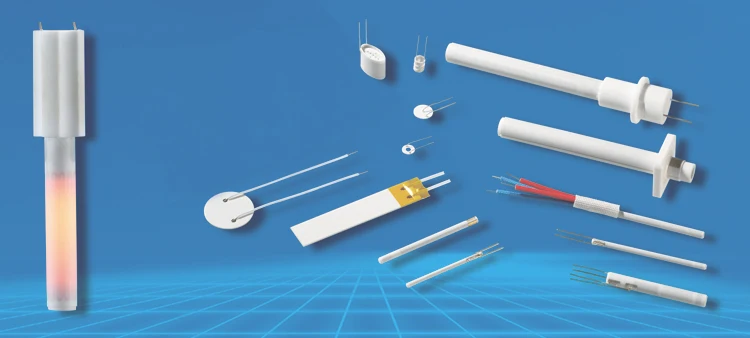

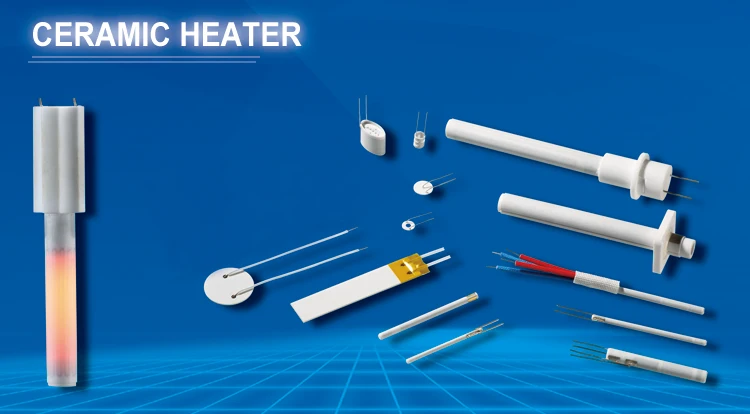

Types:
■ Rectangular alumina ceramic heating element

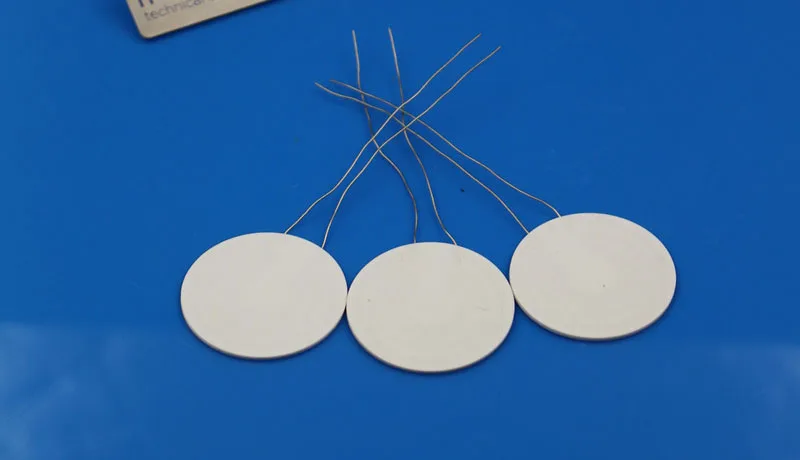

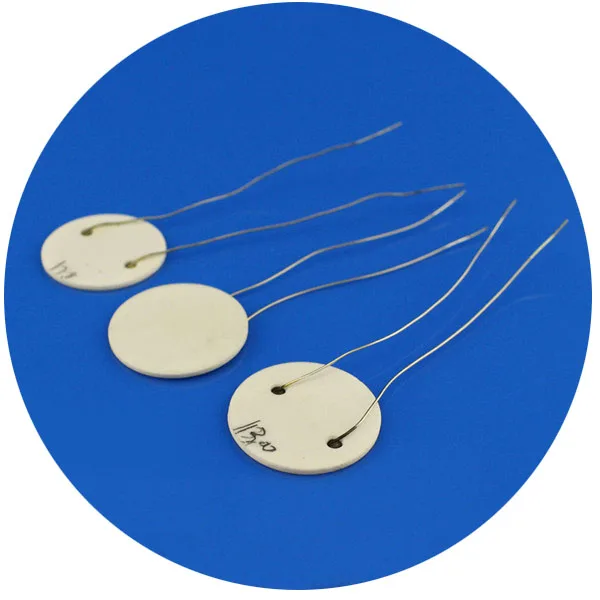

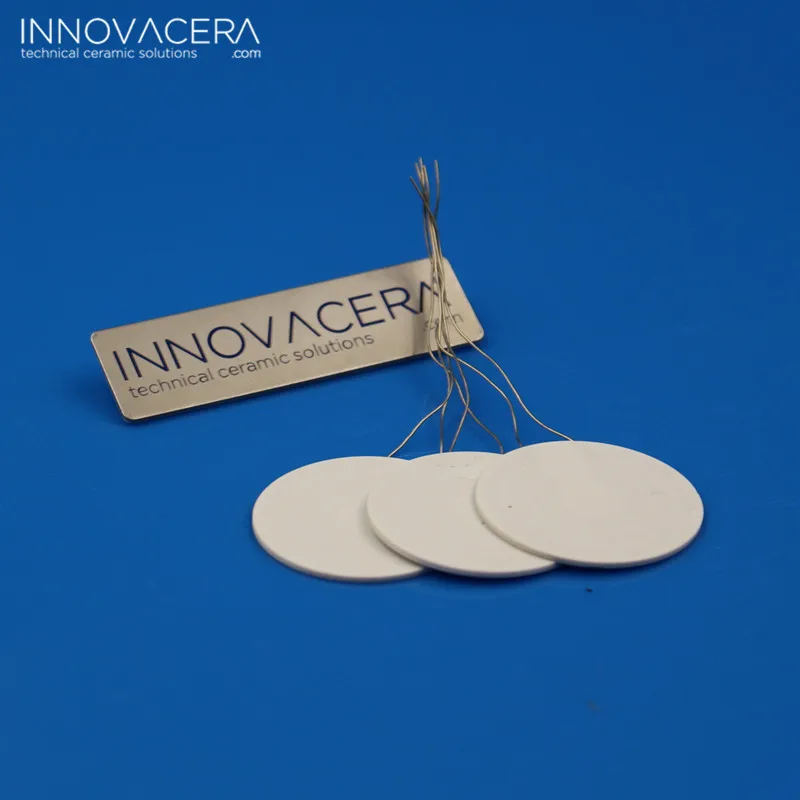

■ Round shape alumina ceramic heating element

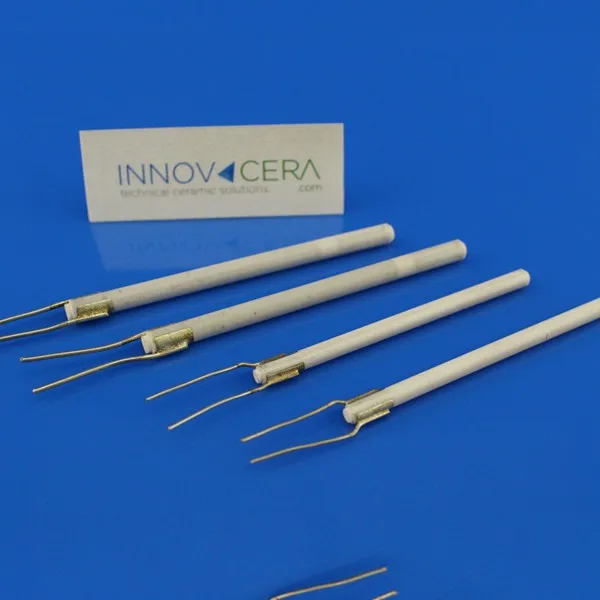

■ Rod shape alumina ceramic heating element

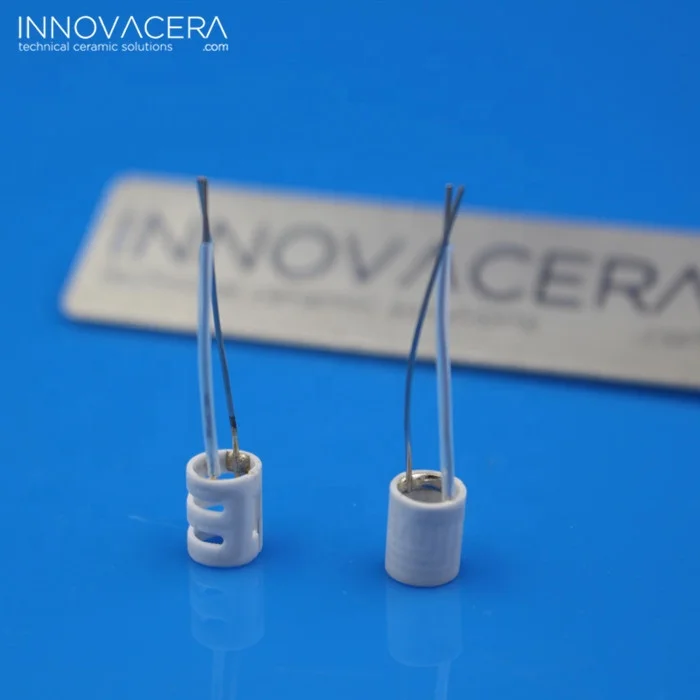

■Tube shape alumina ceramic heating element
Configuration and Dimensions
Design | Diameter/Length/Width | Tolerance | Thickness | |||
Tube/Rod | D:2.5~12 L:10~120 | D: Above 8mm±0.3mm, Below8mm±0.2mm L:Above80±2.0mm Below80mm±1.0mm | ||||
Plate:Square | L: 10~100 W: 5-50 | Above:70 ±2mm Below:70±1mm | 0.5~2 | |||
Plate:Round | D:10~70 | Above:30 ±2mm Below:30±1mm | 0.5~2 | |||
● We can provide OEM service.Please feel free to let’s know when you have any idea about the HTCC products. ● Welcome to contact with us for more informations about Alumina Ceramic Heaters. | ||||||
Advantage
* Compact, Lightweight and Energy Efficient
■ High watt density, good thermal efficiency
■ Multiple heating elements per unit is available
■ Withstand high temperature
■ Multiple heating elements per unit is available
■ Withstand high temperature
* Superior Thermal Properties
■ Rapid Heat Increase
■ Excellent thermal conductivity and thermal compensation rate.
■ Custom designed temperature distribution available
■ High levels of insulation allow direct contact with water,
kerosene and metal and water
■ Excellent thermal conductivity and thermal compensation rate.
■ Custom designed temperature distribution available
■ High levels of insulation allow direct contact with water,
kerosene and metal and water
* Environmental Qualities
■ lectric noise
■ ergy-saving due to the superior thermal efficiency
■Complying with RoHS requirements and other environmental requirements Alumina Ceramic Heaters doesn’t contain harmful materials(likelead,cadmium,mercury,hexavalent chrominu and so 1. on)
■High cost performance
■ ergy-saving due to the superior thermal efficiency
■Complying with RoHS requirements and other environmental requirements Alumina Ceramic Heaters doesn’t contain harmful materials(likelead,cadmium,mercury,hexavalent chrominu and so 1. on)
■High cost performance
* High Reliability
■ Superior dielectric strength and electrical insulation
■ Longer life Circle due to oxidation-proof design
■ Superior chemical resistance, corrosion-resistance
■ Longer life Circle due to oxidation-proof design
■ Superior chemical resistance, corrosion-resistance
Application
