Constant Current 350mA Isolated DALI Dimming LED Driver
- Category: >>>
- Supplier: Okystar Technology Co. Ltd.
Share on (62581310468):
Product Overview
Description
Products Description
1. Input Voltage 180-265VAC, withstand 380VAC high voltage short-time shock.
2. <0.5S, standby power consumption<0.5W.
3. Output current could choose by end user through DIP switch.
4. With SCP/OCP/OVP/OTP.
5. Flick free and soft dimming at any brightness;could be closed.
6. Achieve dimming synchronization effect in condition of any combination of lamps.
7. Built in correction of the output current ± 1% accuracy.
8. High efficiency, up to 90%, low THD<7%.
9. Built in DALI/1-10V&10VPWM/PUSH dimming function.
10. Compatible with external wireless dimming methods: BLE、2.4G、Zigbee、Sensor.
11. Passed ENEC、RCM、CCC、SAA、SUD-TUV certification.
12. Dali member.
13. 5 years warranty.
14. Buit-in IoT digital interface.
3. Output current could choose by end user through DIP switch.
4. With SCP/OCP/OVP/OTP.
5. Flick free and soft dimming at any brightness;could be closed.
6. Achieve dimming synchronization effect in condition of any combination of lamps.
7. Built in correction of the output current ± 1% accuracy.
8. High efficiency, up to 90%, low THD<7%.
9. Built in DALI/1-10V&10VPWM/PUSH dimming function.
10. Compatible with external wireless dimming methods: BLE、2.4G、Zigbee、Sensor.
11. Passed ENEC、RCM、CCC、SAA、SUD-TUV certification.
12. Dali member.
13. 5 years warranty.
14. Buit-in IoT digital interface.
Product Specifications
SKU NO. | Output Power | Input Voltage | Output Voltage | Output Current | transfer efficiency | Product Size（MM） |
DMP010-0250AD | 7-12W | 200-240V | 3-42V | 150-250mA | 86.2% | 131*44*30 |
DMP018-0450AD | 12-18W | 200-240V | 3-42V | 300-450mA | 86% | 131*44*30 |
DMP030-0700AD | 20-30W | 200-240V | 3-42V | 250-700mA | 87% | 103*68*30 |
DMP042-1100AD | 30-40W | 200-240V | 3-42V | 700-1100mA | 88% | 103*68*30 |
DMP060-2000AD | 50-60W | 200-240V | 3-42V | 1100-2000mA | 88% | 123*79*30 |

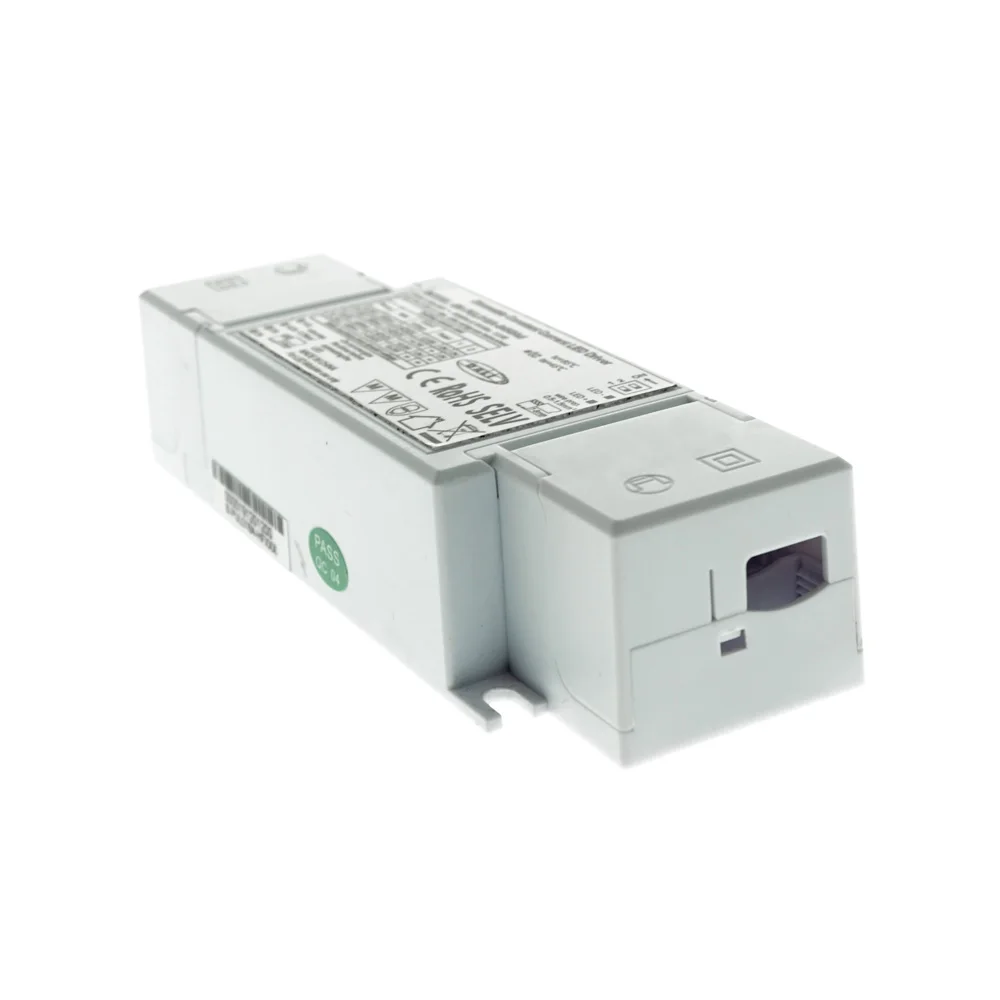

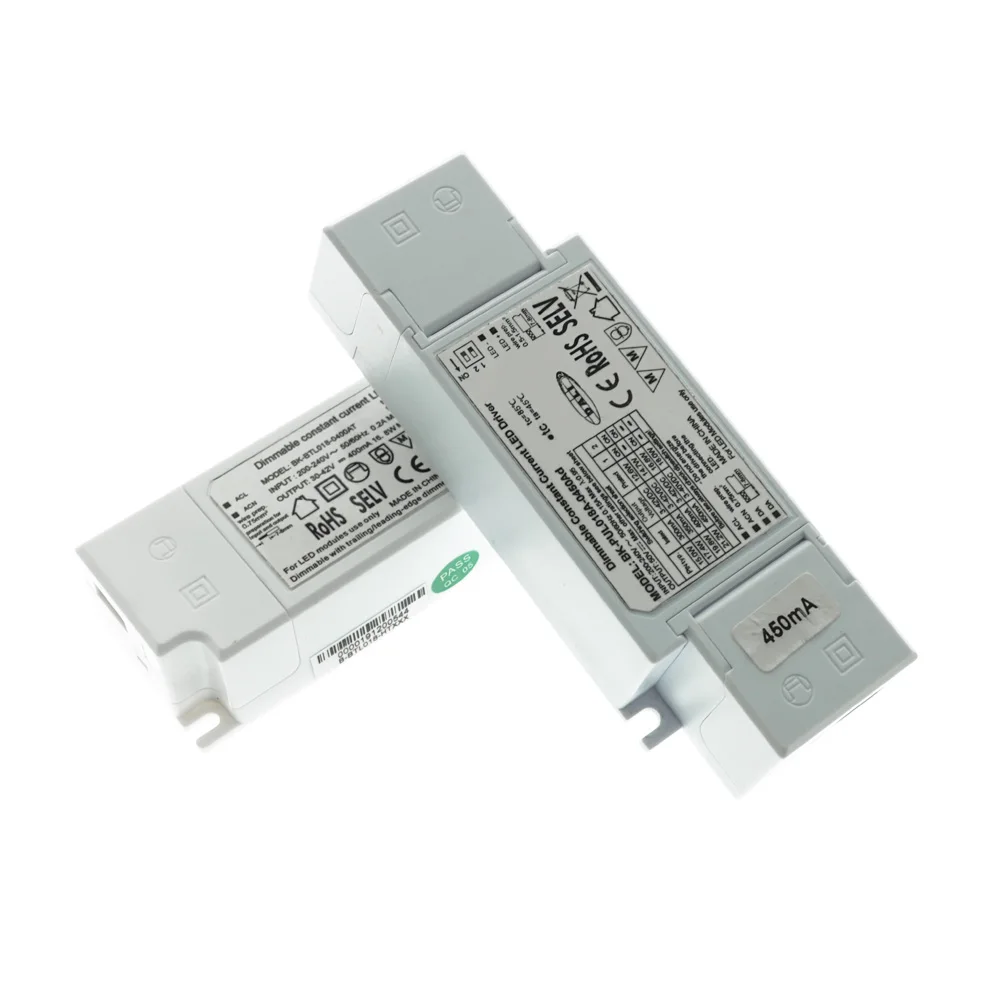

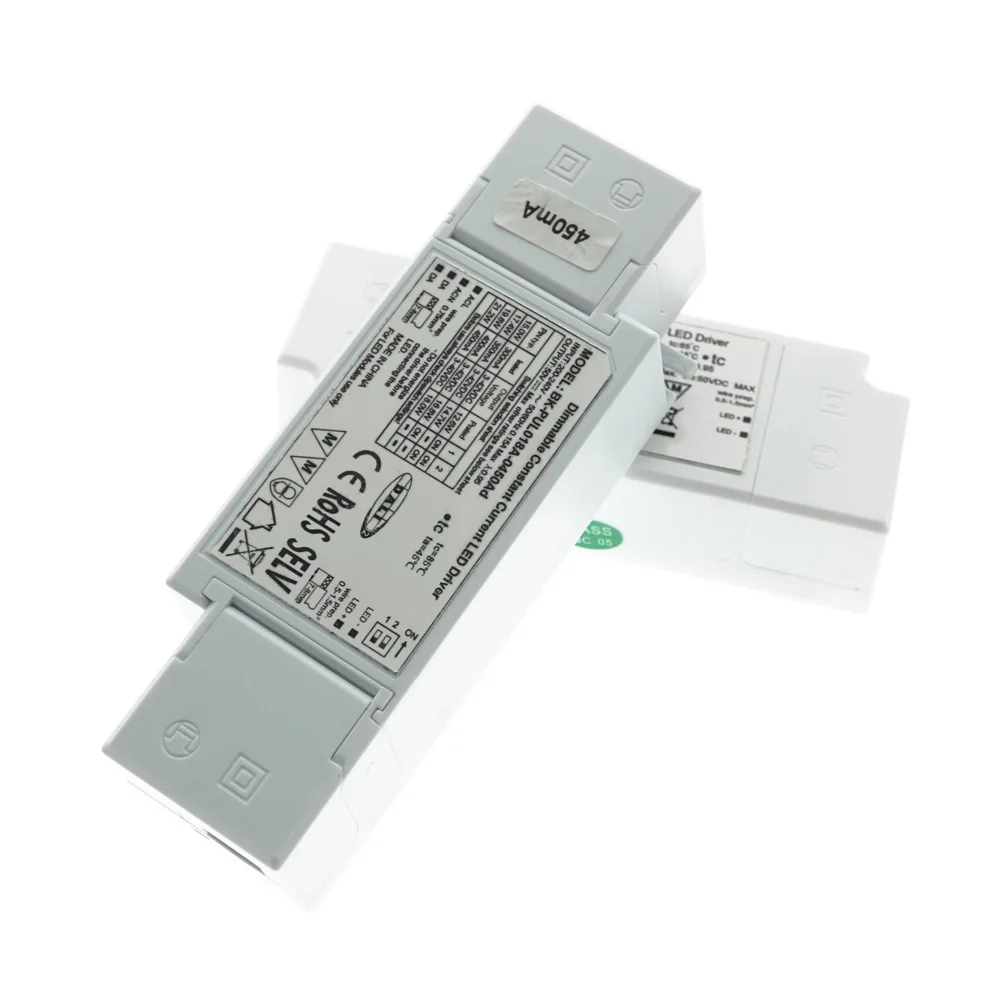

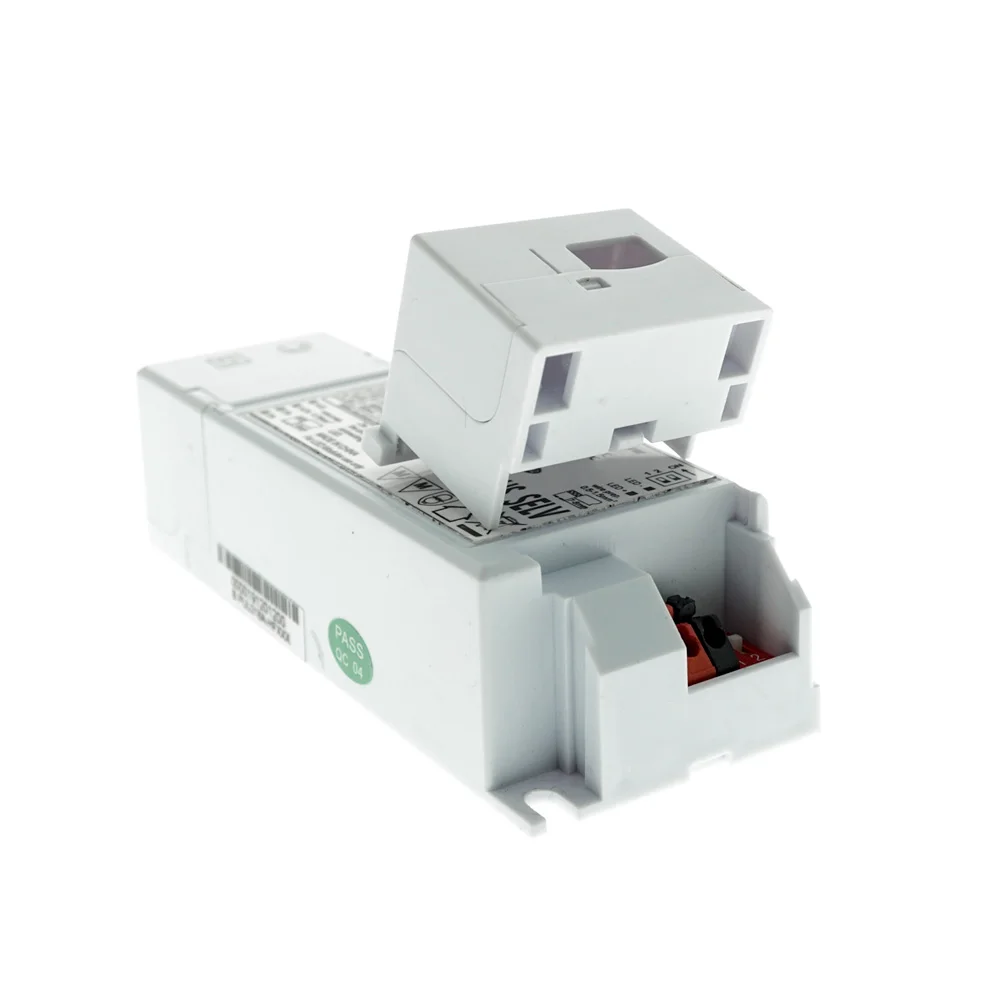

Product Photo
