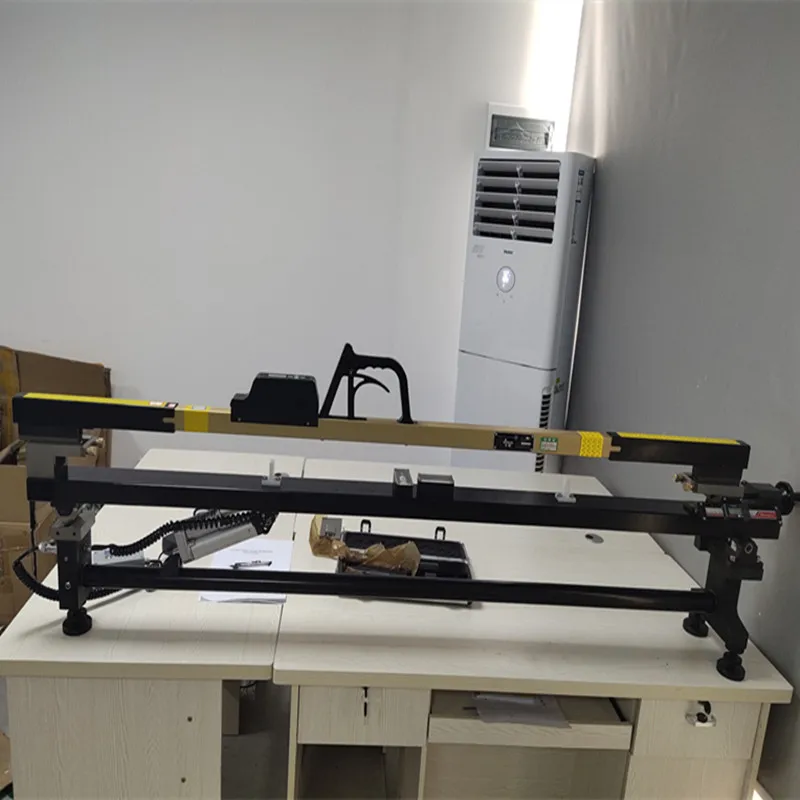

Calibrator for railway track gauge
The JDQ-I is a calibrator that reproduces the superelevation according the sin principle.The calibrator is a railway measuring instrument that used to verify the range of the 1435mm track gauge ,the guard rail check gauge,the guard rail face gauge and the superelevation.


Model
JDQ-I
Track gauge measure range
1410-1470mm
Accuracy level
1level
Track gauge distance(1435)indication max error
±0.04mm
Track gauge distance(1410-1470)
±0.06mm
Superelevation range
0-185mm
Superelevation indication error
±0.06mm
Work gauge length
1435±0.2mm


Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

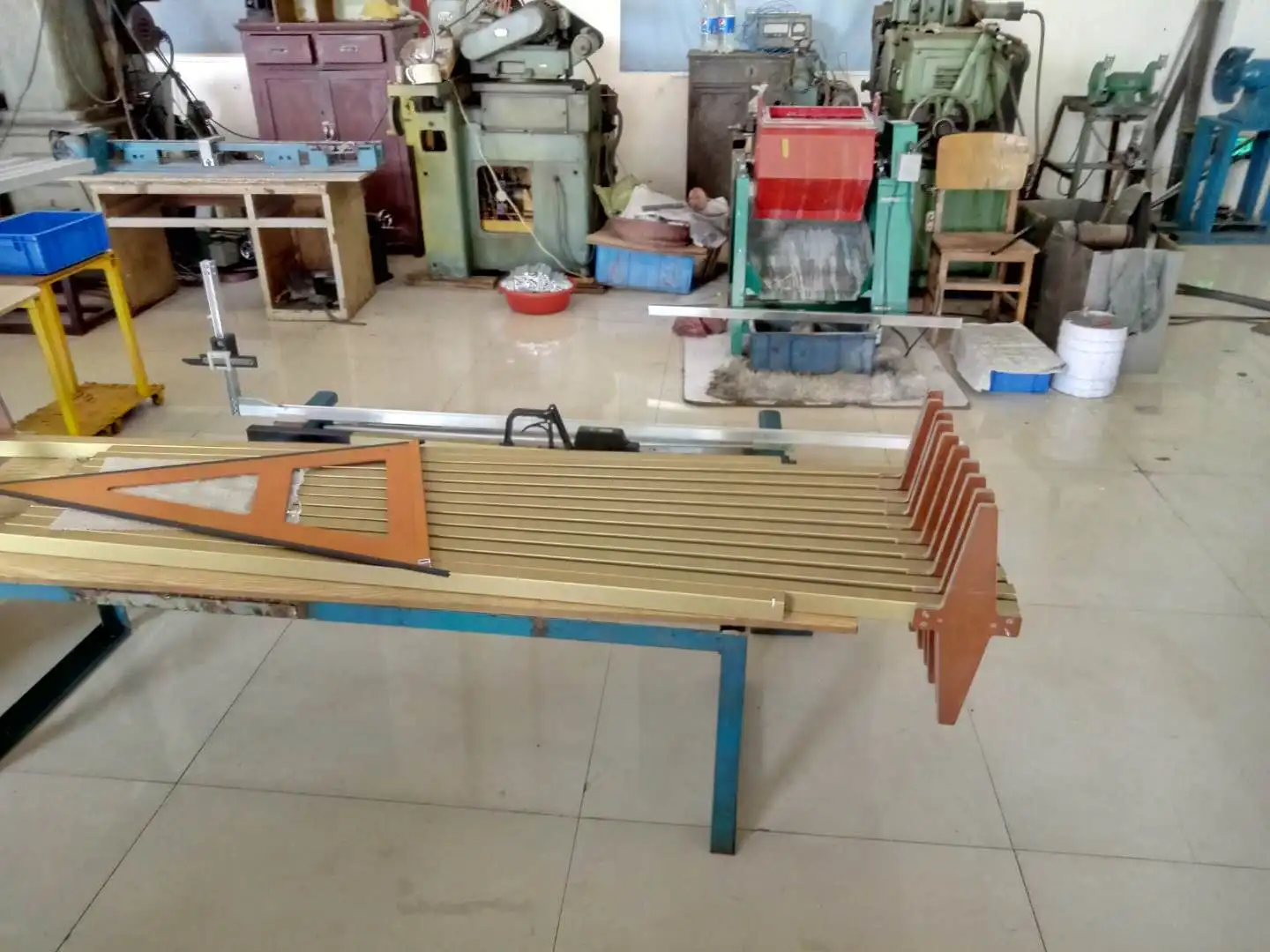

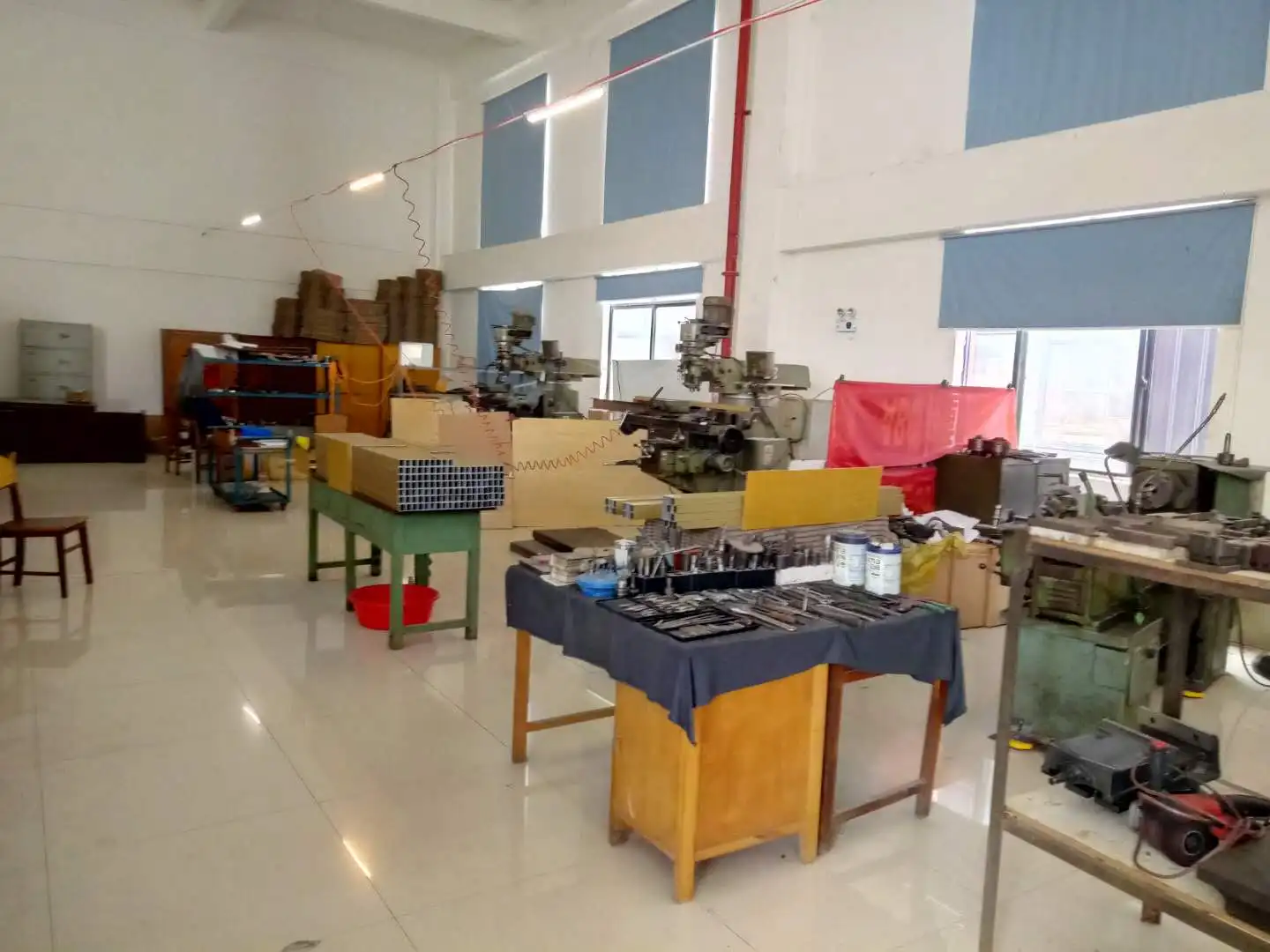

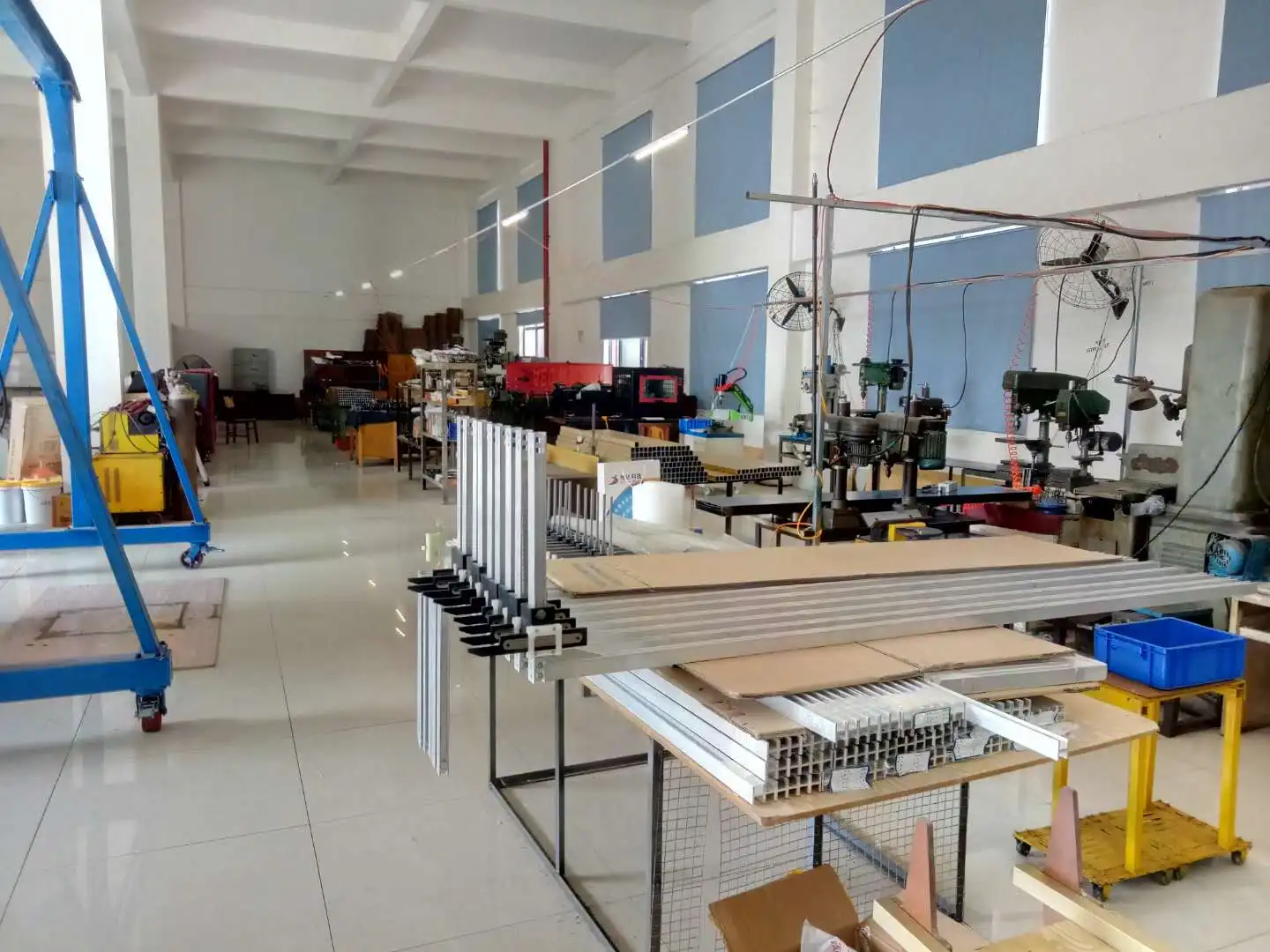

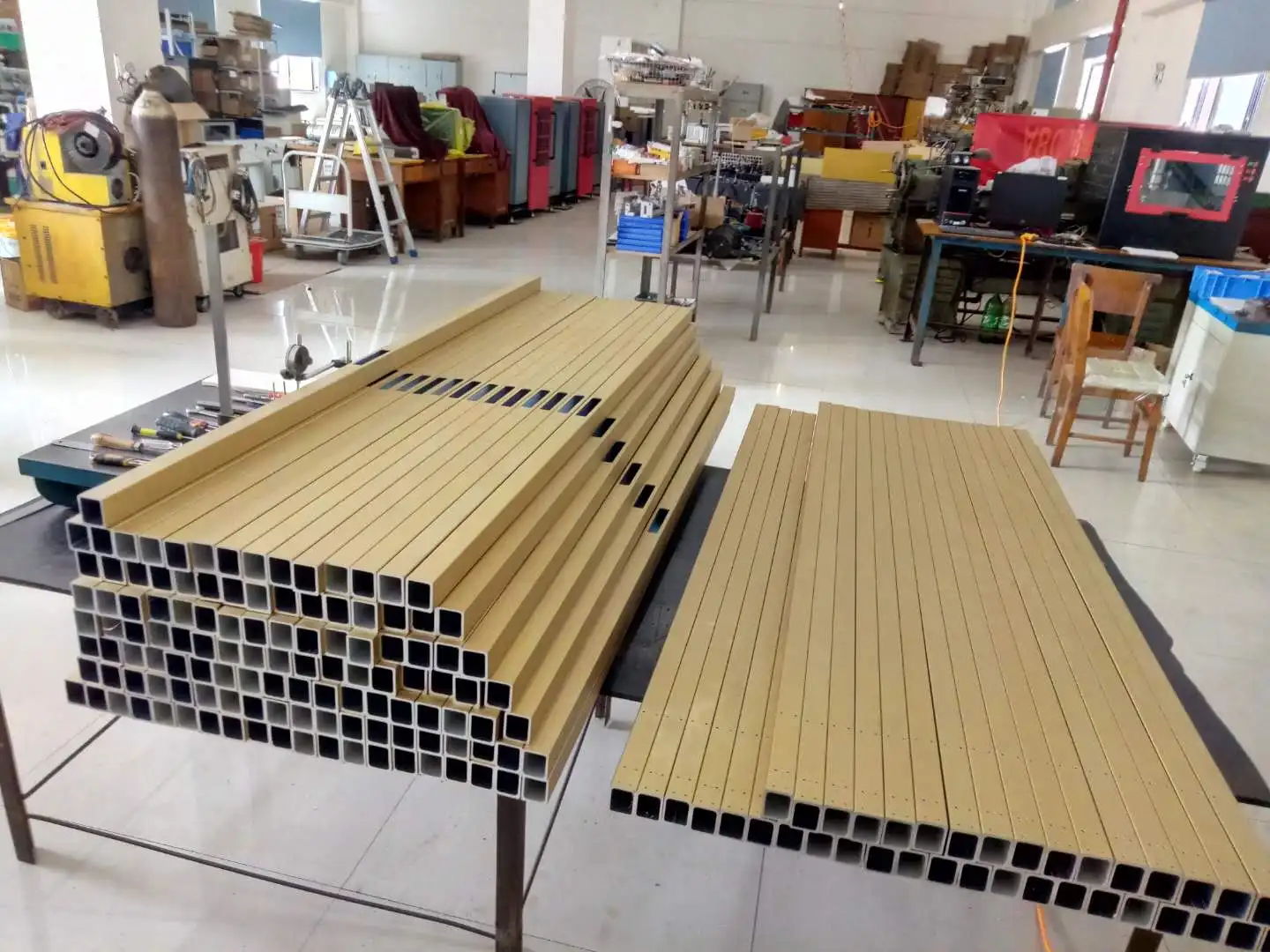

Company Profie








FAQ


Q1. how long can use the digital display track gauge?
A: the use of a general 50000 times is ok, our factory already done the experiment.

Q2:How to guarantee your product quality?
A:Our factory supplied high quality railway measuring tools for 10 years, we have very strict inspecting rules during the
producing and before packing.also we provide good after-sales service
Q3: Can we have our own logo/brand on the products?
A:Yes,of course
