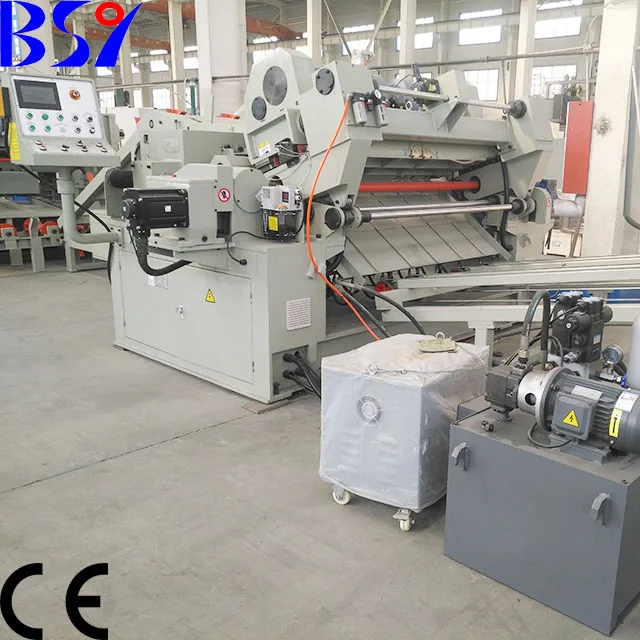

Фанерные машины BSY, токарный станок с ЧПУ без шпинделя для облицовки шпона/роторный режущий станок в Китае

1,This machine is one of the main engines for the production of plywood.

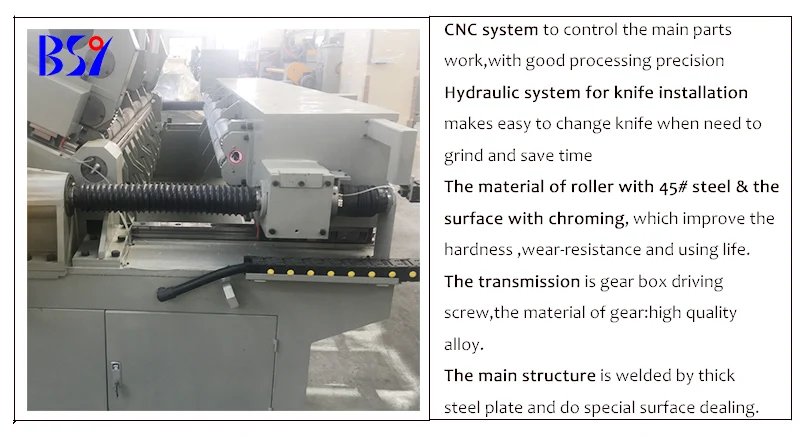

2,The same wood core changes the knife door clearance through the Computerized Numerical Control (CNC) system, and rotates the surface plate and the core plate, which has high production efficiency and greatly improves the utilization rate of the wood.

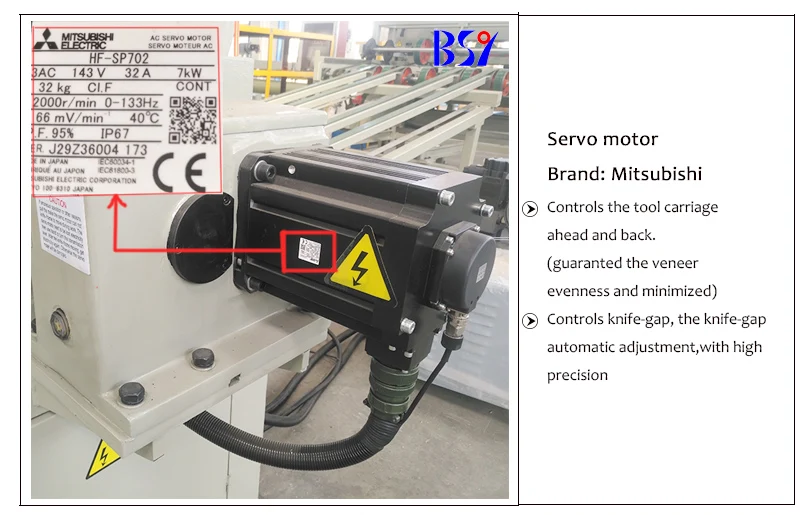

3. Servo motor(Brand: Mitsubishi ) controls the tool carriage ahead and back.(guaranted the veneer evenness and minimized) and control knife-gap, the knife-gap automatic adjustment,with high precision

4. Hydraulic system for knife installation makes easy to change knife when need to grind and save time.

5, The transmission is gear box driving screw,the material of gear:high quality alloy.

6.  The main structure is welded by thick steel plate and do special surface dealing.

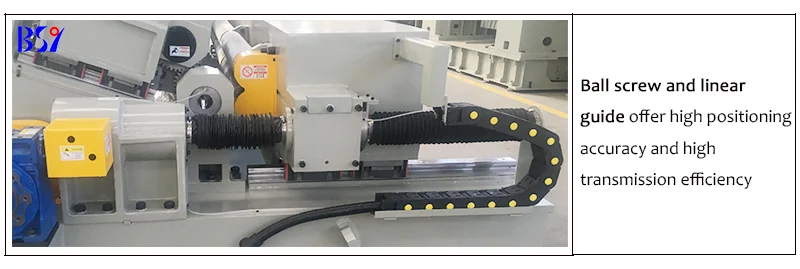

7. Ball screw and linear guide offer high positioning accuracy and high transmission efficiency

8. The material of roller with 45# steel and the surface with chroming,which improve the hardness and wear-resistance and using life.

9,It is suitable for wood factories such as plywood to achieve high efficiency and improve wood utilization.

1. Leading manufacturer of woodworking machinery in China, found in 1956. specialize in this field for more than 60 years.

2. Almost 30 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite popular among clients.

3.Specializing in plywood production line and finger joint board production line. The main productions include: log debarker, log charger, veneer peeling lathe, veneer clipper, press machine, veneer dryer, glue spreader, size trimming saw, sanding machine etc. If you show us the details you want, our engineer will design the suitable production as your requirement

4. Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning
