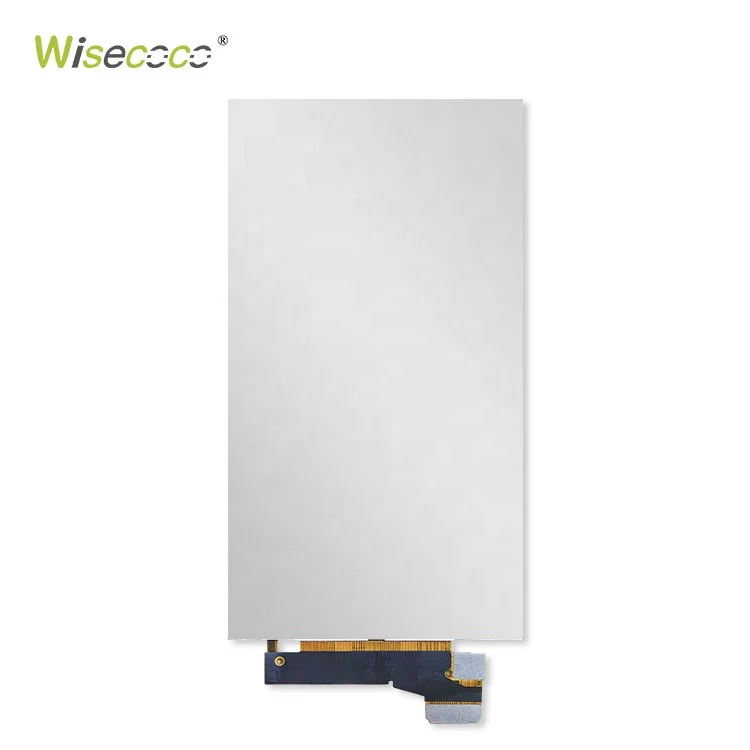

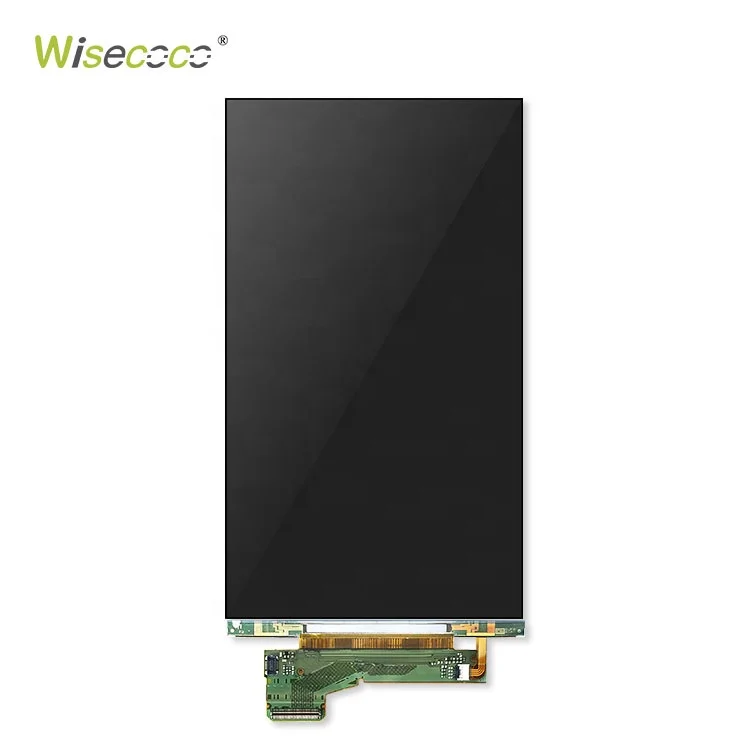

5.5 inch 2160x3840 high resolution 4k tft lcd screen display panel for UV 3D Printer projector without backlight removable

General Features

Diagonal Size

5.5 inch

Type

CG-Silicon, LCM

Pixel Format

2160(RG/BR/GB)×3840 , UHD

Configuration

RGB Vertical Stripe

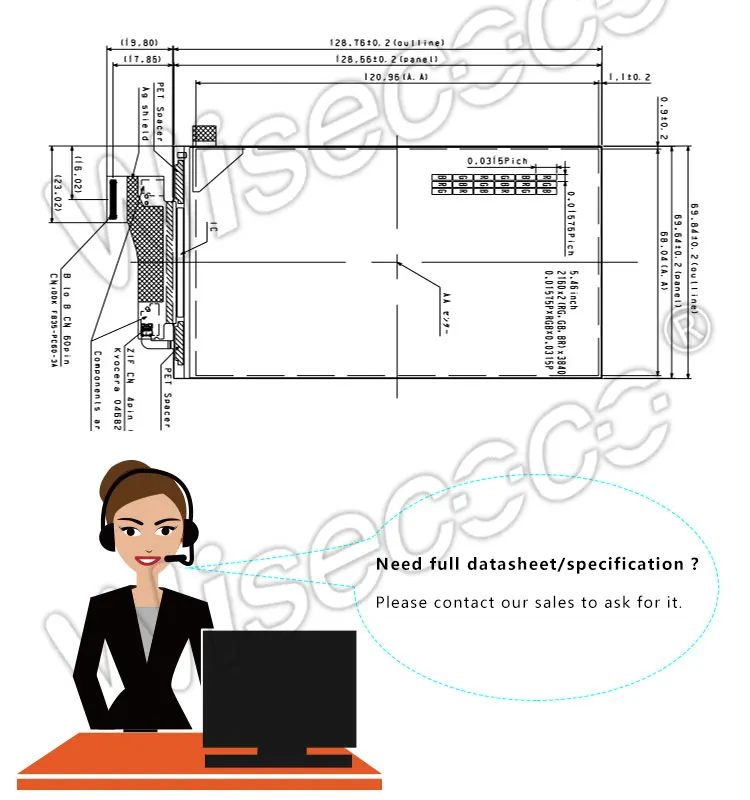

Active Area

68.04(W)×120.96(H) mm

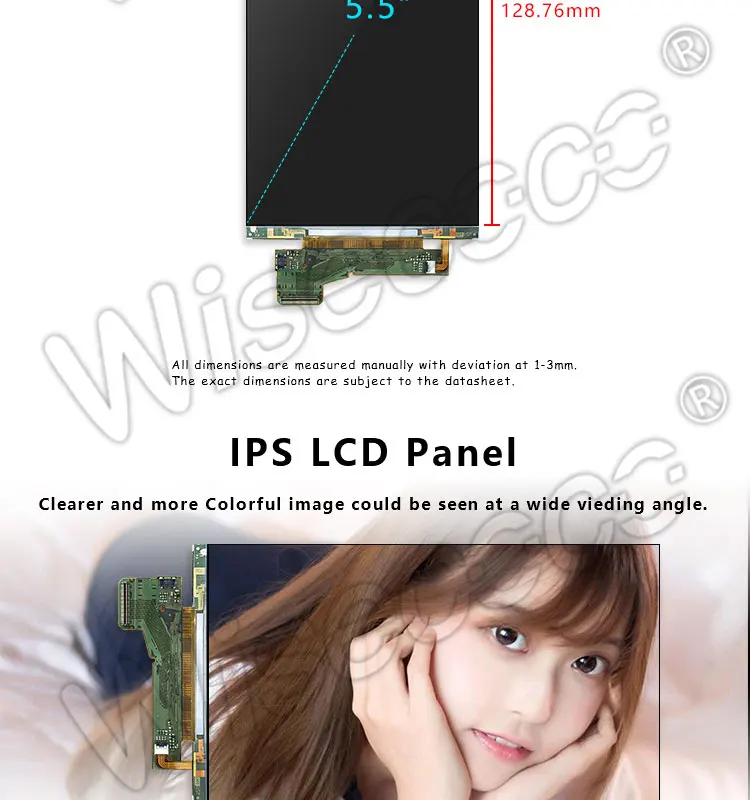

Outline Dim.

69.84(W)×128.76(H) mm

Bezel Area

 -

Treatment

Glare (Haze 0%)

Luminance

450 cd/m² (Typ.)

Contrast Ratio

1200:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

30 (Typ.)(Tr+Td)

Viewing Angle

80/80/80/80 (Min.)(CR≥10)

Operating Mode

New Mode2, Normally Black, Transmissive

Support Color

16.7M   90% (CIE1931)

Light Source

6S3P WLED , Without Driver

Weight

 -

Designed For

HMD AR,VR

Frame Rate

60Hz

Touch Panel

Without

Interface Type

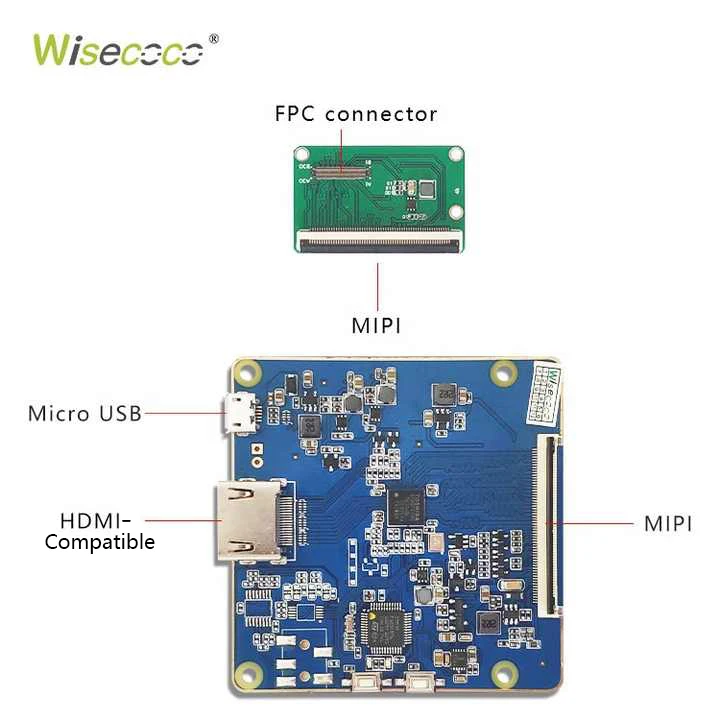

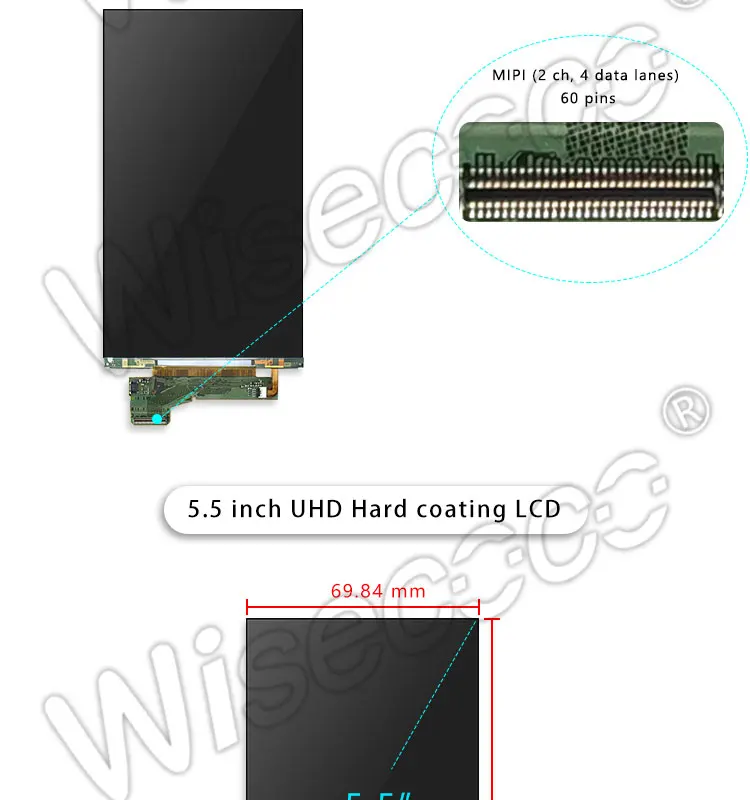

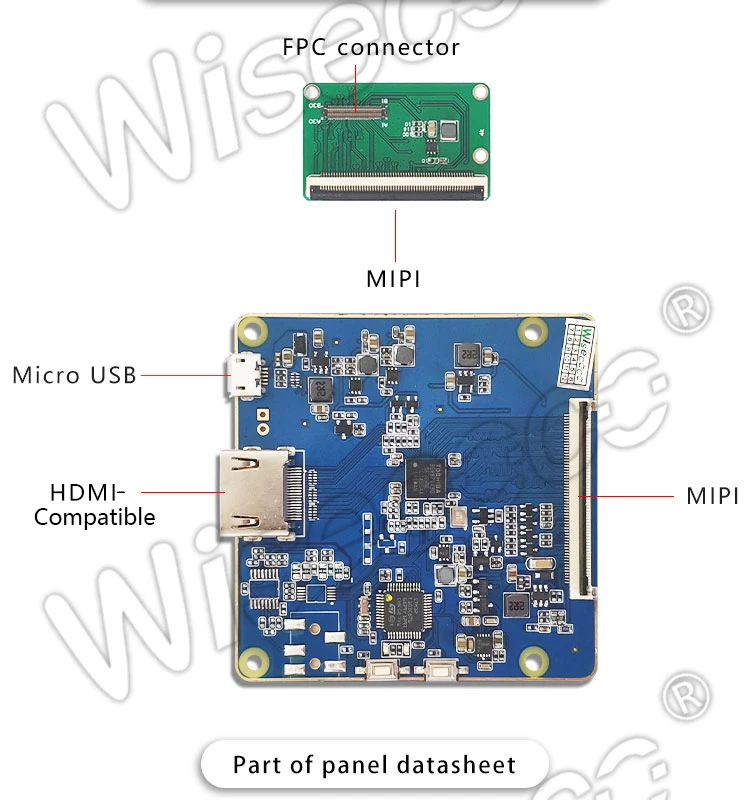

MIPI (2 ch, 4 data lanes) , 60 pins , Connector

Power Supply

1.36/1.85/5.8/-5.6V (Typ.)(DVDD/VDD/VSP/VSN)

Environment

Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 70 °C
