Lab High Quality Mini 12V Food Grade Beer Water Peristaltic Pump

Product Overview

Description

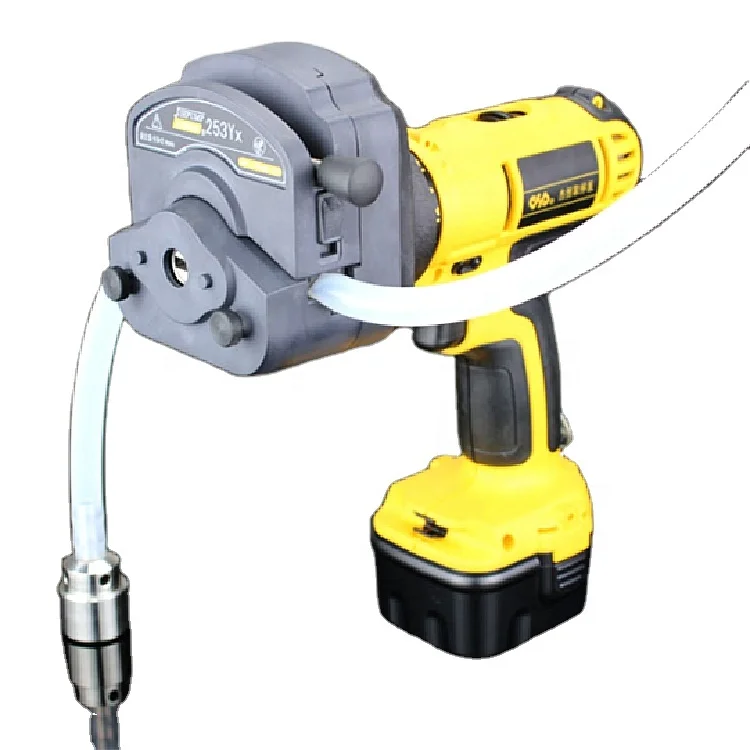

 Handheld water quality portable charging personal Stratified Peristaltic sampling pump



Driver	Pump head	Hose	Flow range
SC-I	253Yx	15 # (inner diameter 4.8mm × wall thickness 2.4)	0~2010ml/min
		24 # (inner diameter 6.4mm × wall thickness 2.4)	0~3290ml/min
		35 # (inner diameter 7.9mm × wall thickness 2.4)	0~3420ml/min



Range of rotation	0-1500rpm
Dimensions	L240 * W118 * H249
Total Weight	1.5Kg
Working environment	Wild, indoor
Power plug	220V-230V / 50HZ
Suction suction	8m (Unlimited depth under water, the depth is determined by the length of the pump tube)
Protection level	IP31

Note:

1. The flow data in the above table is measured at normal temperature in Jieheng laboratory using clean water, for reference only;

2. The material of the hose, the tolerance of the hose size, the viscosity of the conveying medium, the suction stroke, the head, etc. will affect the flow rate;

3. To transport different liquids, the compatibility of the liquid and the hose needs to be considered;

4. According to different application scenarios, different requirements on the life of the hose.

Function introduction:

1. The hand-held sampling pump is often used for emergency monitoring and temporary water sampling. It can be used as a stratified water quality sampler, a portable water quality sampler, and a stratified water quality sampler. Since the peristaltic pump can put the pump tube into the bottom, it can be Use of deep water sampler for stratified sampling of water samples;

2. Rechargeable power supply, easy to carry, suitable for places without power supply;

3. Adapt to the easy-to-install pump head, easy to operate and easy to clean;

4. Imported portable driver, the speed is 0-1500 rpm stepless speed regulation, forward and reverse reversible;

5. Can collect high specific gravity and high viscosity liquid, can collect solid particles suspended liquid, can be layered sampling, the suction range can reach eight meters deep;

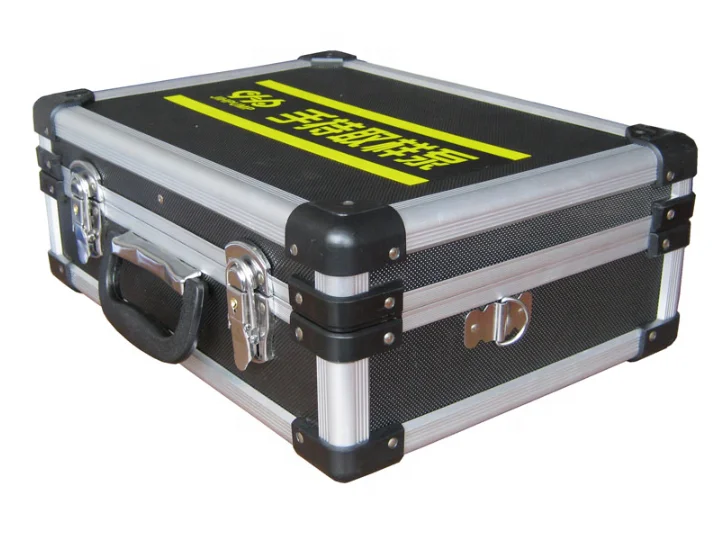

6. Standard configuration: driver, charger, 2 batteries, pump head, 10 meter hose, sampling head, carrying case.
