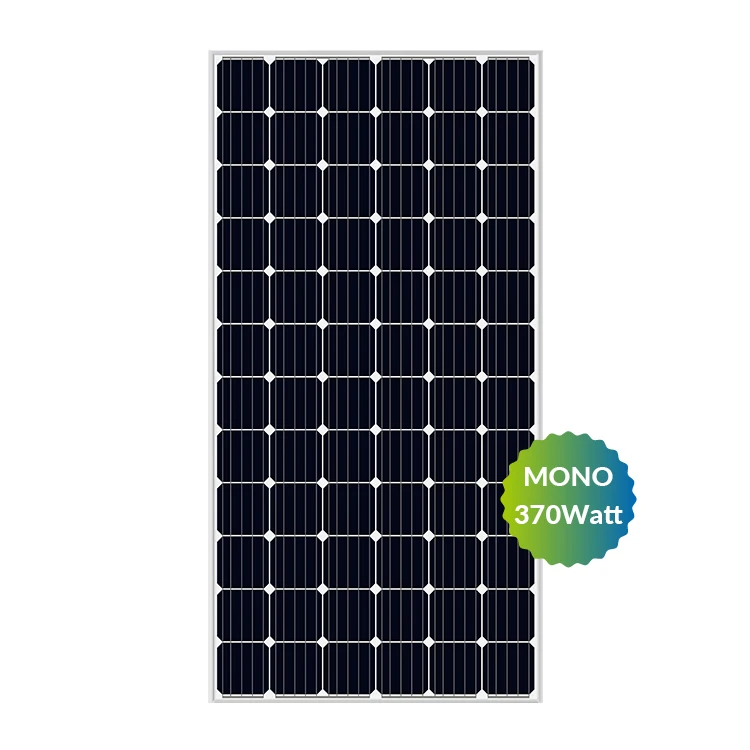

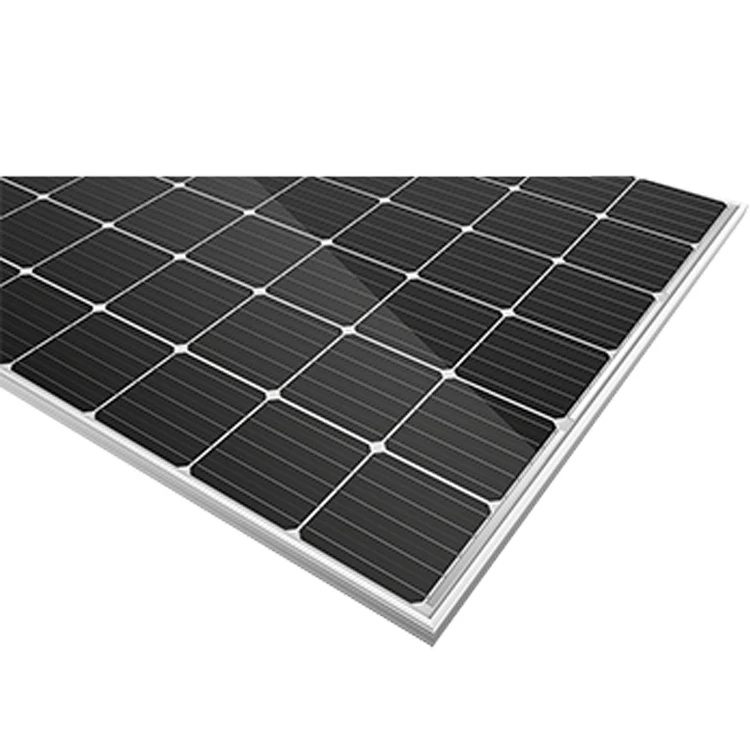

Fortune Energy is proud to bring Seraphim's full series of premium solar panel line
Full cell from 270W ~ 385W | Half-cut from 280W ~ 445W
MAKE INQUIRY NOW, AND ENJOY NEW CUSTOMER WELCOME DISCOUNT!
ELECTRICAL CHARACTERISTICS(STC*)
Module Type
SRP-350-6MA
SRP-365-6MA
SRP-370-6MA
SRP-380-6MA
Maximum Power(W)
350
365
370
380
Open Circuit Voltage(V)
47.0
47.6
47.8
48.3
Short Circuit Current(A)
9.51
9.78
9.88
10.02
Maximum PowerVoltage(A)
38.1
38.7
38.9
39.4
Maximum Power Current (A)
9.19
9.44
9.52
9.65
Module Efficiency(%)
18.04
18.81
19.07
19.58
Power Tolerance(W)
(0,+4.99)
Maximum System Voltage(V)
1000Vdc/1500Vdc
Maximum Series Fuse Rating(A)
20A
Pmax Temperature Coefficient
-0.36%/°C
Voc Temperature Coefficient
-0.28%/°C
Isc Temperature Coefficient
+0.05%/°C
Operating Temperature
-40~+85°C
Nominal Operating Cell Temperature
45±2°C
MECHANICAL SPECIFICATIONS
External Dimensions
1956*992*40 mm/1970*992*40 mm
Weight
21.5kg/22.0kg
Solar Cells
PERC Mono crystalline 156.75*156.75 mm (72pcs)
Front Glass
3.2 mm AR coating tempered glass,low iron
Frame
Anodized aluminium alloy
Junction Box
IP68, 3 diodes
Output Cables
4.0 mm2 ,cable length:1200 mm
Connector
Compatible connectors
Mechanical Load
Front side 5400Pa/Rear side 2400Pa
Manufacturing Technique
GLASS
- 3.2mm thickness yet strong mechanical strength.
- High transmission and anti-reflective. - AR coating
CELL
- 22% cell efficiency
- PECVD coating guarantees color uniformity and consistency - Anti-PID - Smaller temperature coefficient
JUNCTION BOX
- Quality diode
- Increased safety
- Reduced power loss. - IP68 waterproof
Production Process
We employ advanced equipment and skilled labour, dedicated to stringent quality control, from feeding, soldering, electroluminescence (UL) test, lamination, framing to final inspection, fully automated with the highest manufacturing standards.
Founded in 2011, located in the heart of the well-known Sino-Singapore Industrial Park, is a technology-driven enterprise specialising in the development, production and sales of PV solar panel and energy storage system.
Over the past years since our establishment, we’ve delivered combined over 1GW quality PV projects and storage-based solarapplications in Japan and South East Asia. Our sales network reached out to more than 30 countries around the globe.
Types of Installation
Worldwide Projects
Here are some of our recent projects.
Packaging & Shipping
USEFUL NOTES AND TIPS
Unlike other electric products, solar panels' rather larger size and weight require strong packaging and careful handling.
To save cost on whether air delivery or sea shipment, we suggest customers to start with minimum 1 pallet, not only this will save final cost per piece, but also ensure complete protection of the products.
PACKAGING QUANTITY
External Dimensions
1956 x 992 x 40mm/1970 x 992 x 40mm
Container
20'GP
40'GP
40'GQ
Pieces per pallet
26
26
26+2
Pallets per container
10
22
22
Pieces per container
260
572
616
ORDER FULFILLMENT
By Air Express (Sample only)
By Sea Shipment
LEAD TIME
5 ~ 20 days
15 ~ 30 days
TRANSIT TIME
7~15 days
10 ~ 45 days
Why Choose Us
1. Are you a factory or trading company? We design and manufacture small solar panel, custom solar panels, and we manufacture standard solar panel via certified factory, not only do we have manufacturing capability, we are also TUV certified party for 3rd-party production supervision.
2. Can you do OEM and ODM? Absolutely. We offer a wide range of options for conventional panels and non-standard ones, tailored to most on/off-grid solar applications, along with our best pricing.
3. Can you do custom panel? That is what we do, explain your idea, details, specification, we will lead the process clear and visible to come up with technical and design solutions.
4. What is your lead time? For convention panels, usually can be fulfilled between 2~3 weeks.
5. Can you provide sample? Sure, please contact our representative for arrangement.
6. Why order from Fortune Energy? · Quality with excellent design; · Meets major international standards; · 24-hour respond to any post sales service; · Accept all major payment condition such as T/T and L/C.
7. What is your advantage? · Key components are manufactured by our own; · Combined 30+ years of experience in solar energy; · Research and Development capability, OEM and ODM; · Trade Assurance protected.
8. What are your main products? On/off-grid solar panels, small solar panels, custom solar panels, portable solar power station generator, integrated solar street light/lamp, hybrid wind solar led street light/lamp.
