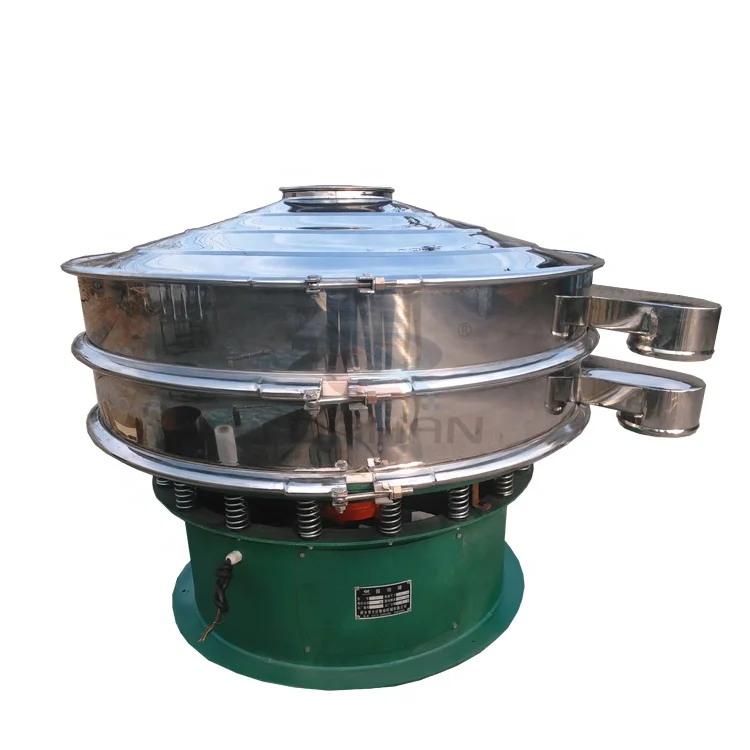

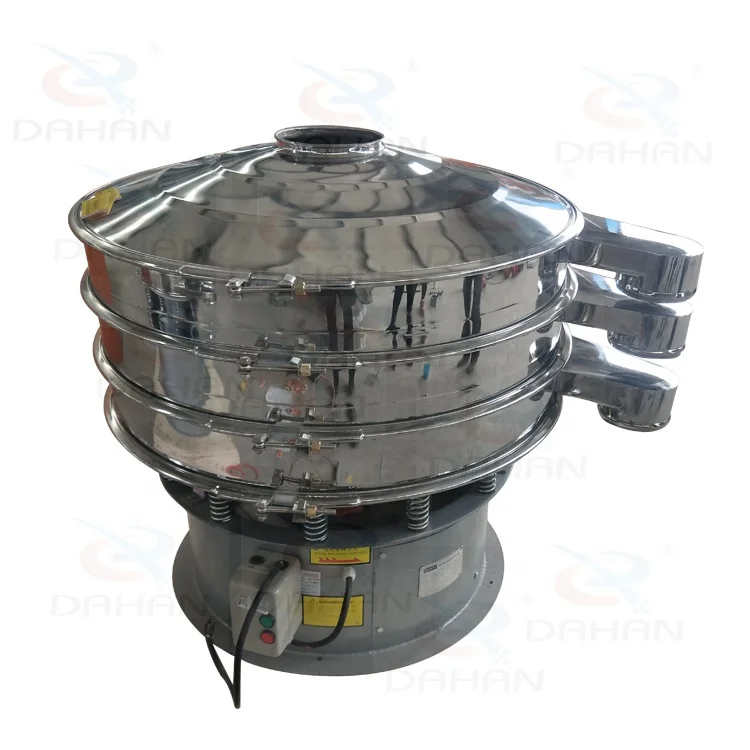

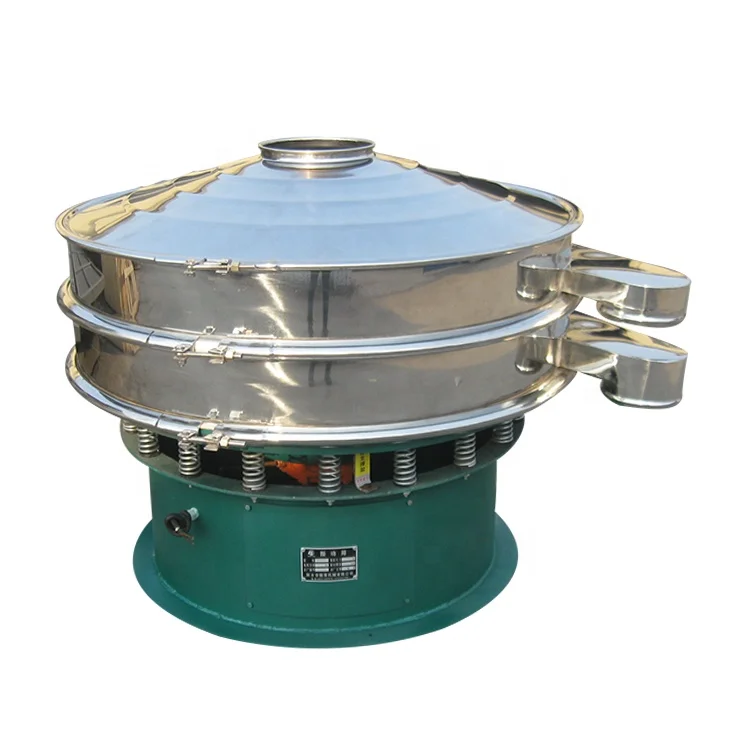

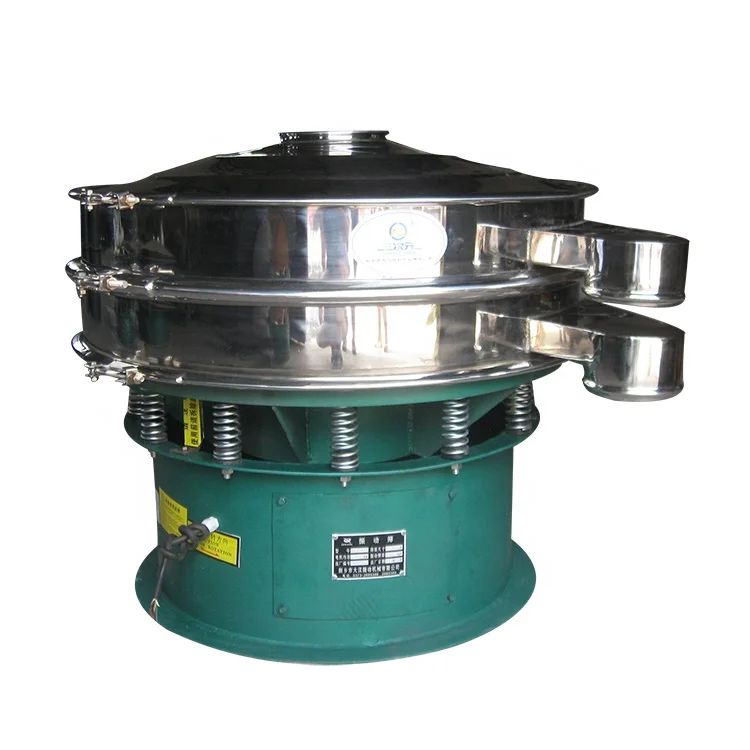

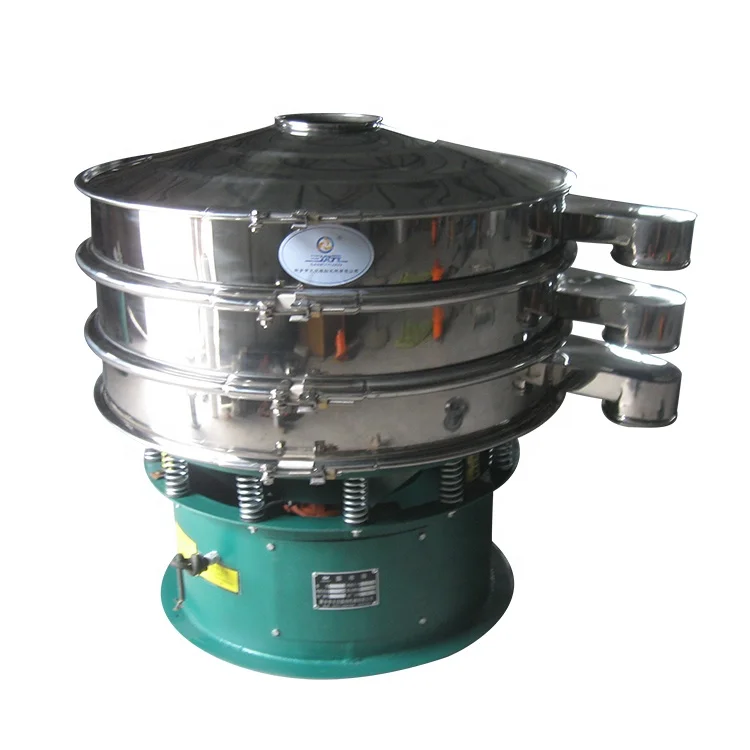

Double layer sifting machine Three-D Vibrating screen circle vibro separate machine

Product Description

Double layer sifting machine Three-D Vibrating screen circle vibro screen is designed as a high-precision screening machinery. The power plant is composed of vertical motor,and eccentric weight installed at two ends.We can produce horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight.We have standard vibrating sieve machine and we can design machine as client's request,such as inlet hopper,inspection window,valve to control matering outflow and other requests.

1

Technical Parameters



  Double layer sifting machine Three-D Vibrating screen circle vibro screen
Model

Power

(kw)

Sieve diameter(mm)Layers

Granularity

(mm)

Voltage(v)RMP(r/min)

Capacity

(kg/h)

DH-4000.183501-4<103801440100
DH-6000.255501-4<101440500
DH-8000.557501-4<101440800
DH-10000.759201-4<1014401400
DH-12001.111201-4<1014402100
DH-15001.514201-4<1014402600
DH-18002.217201-4<1014403300

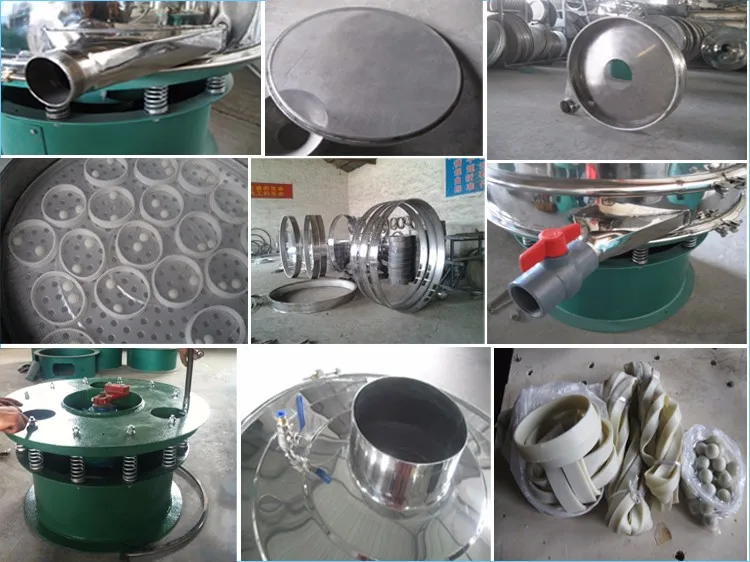

xijie
Related Product

Product Application

Chemical industry: resins, coatings, industrial chemicals, cosmetics, paints, herbal powder.
Food industry: sugar, starch, salt, rice flour, milk powder, soy milk, egg, soy sauce, fruit juice.
Metal,Metallurgical Mining: aluminum powder, lead powder, ore alloy powder, powder electrodes, manganese dioxide, copper powder, magnetic power, abrasives, refractory, kaolin, limestone, alumina, calcium carbonate, quartz sand.
Other industries: abandoned oil, abandoned water, wasted-water dyeing, paper, chemicals, such as activated carbon.

Working Principle

Double layer sifting machine Three-D Vibrating screen circle vibro screen. Its vertical motor, which is installed eccentric hammers on the top and bottom, is regarded as a vibratory source. The eccentric hammers change rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface. Adjusting the phase angle on the top and bottom can change trajectories of the materials on the sieve.
working principleprinciple
