CIP Cleaning Unit, CIP Equipment Manufacturers

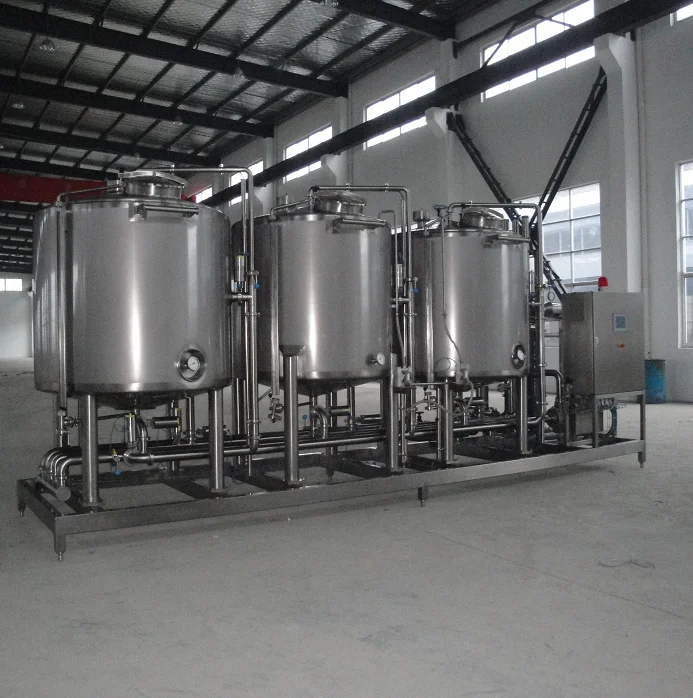

CIP cleaning unit is one of necessary cleaning equipments to clean the pipes and containers in dairy industry, beverage,,and pharmacy, and acts as a key role in ensuring product quality. Chun Nobel CIP system adopts a set of Siemens CPU as control center. We use Siemens touch screens to clearly describe the production process and operation steps which can control, display and visual fault alarm for the whole CIP station in real time. It consists of alkali tank, acid tank, hot water tank, clean water tank, recycle tank , heat exchangers, and pumps. Automatic adding of acid and alkali concentration is controlled by using conductivity meters which reduces the demand for manpower and ensures personal safety.
Detailed Images
High Intelligence of cip equipment

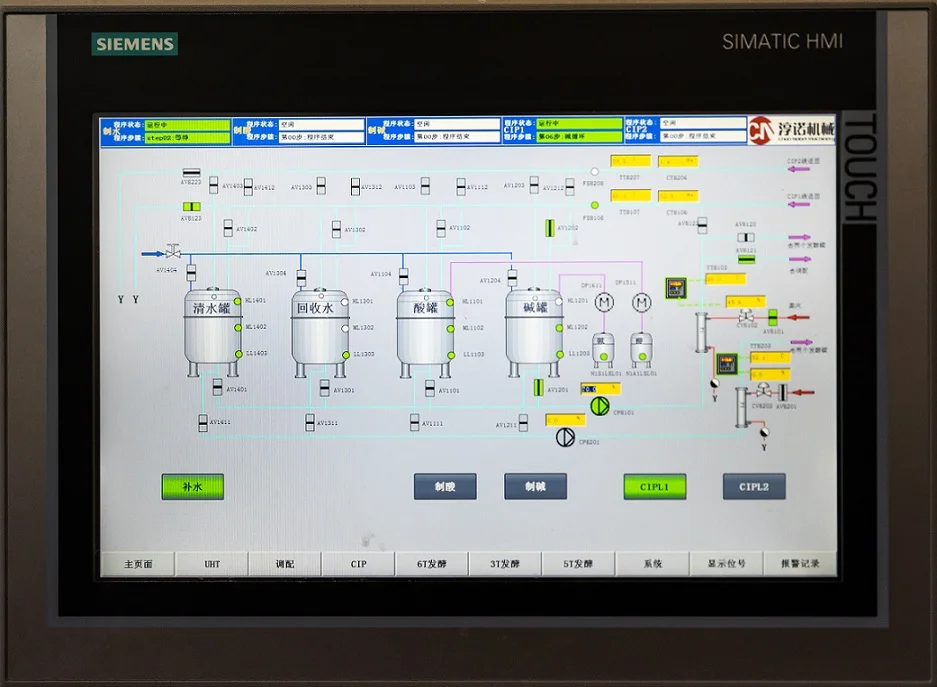

The Siemens 1500 series PLC and HMI are used to realize the perfect combination of customer performance and use of equipment through functions such as self-developed data records, production reports, CIP reports, and alarm independent query reports, which can be remotely maintained in real time.

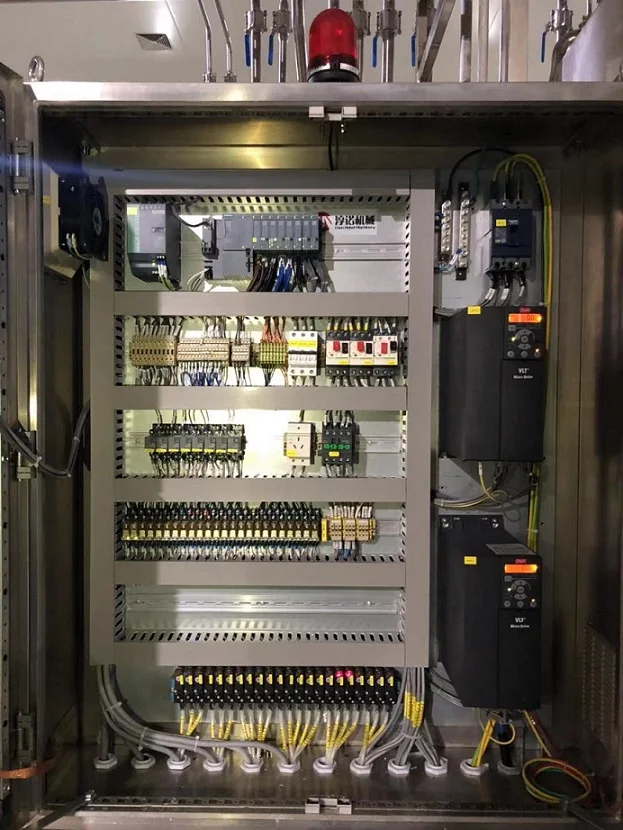

Control system of cip cleaning unit
1. PLC control element adopts Siemens S1500, S1200 series.
2. Low-voltage electrical use Schneider.
3. Frequency converter use Danfoss.
4. Adopt APV and other first-line brands butterfly valves, seat valves, etc. Steam valves use SAMSUM or Spirax Sarco. All ball valves meet food hygiene requirements. Sealing materials are configured with high temperature and corrosion resistant sealing rings according to customer product characteristics.
CIP equipment manufacturers service
1. Our machine has a one-year warranty, and it will not break down in 10 years.
2. We will provide special operation manual.
3. Support real-time remote online maintenance.
4. Real-time online technical support.
Size Information

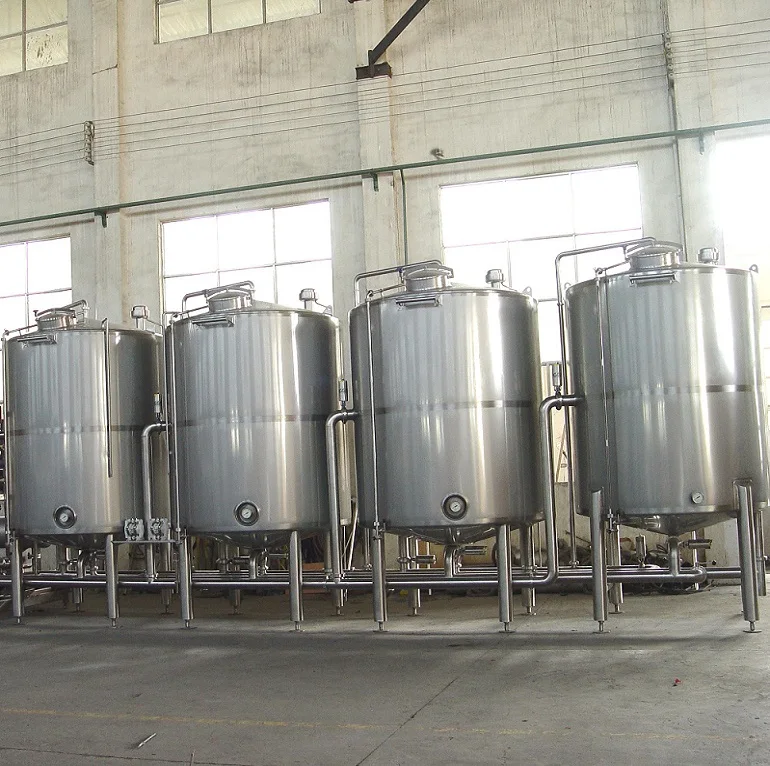

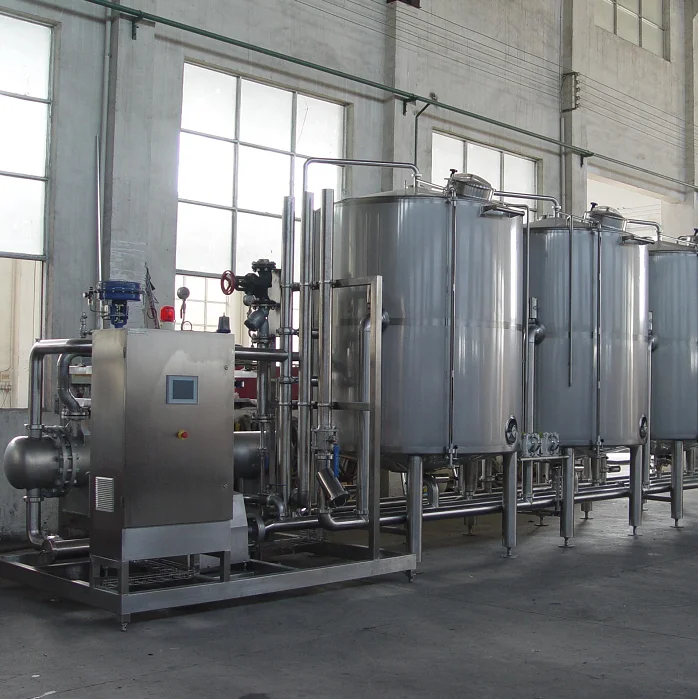

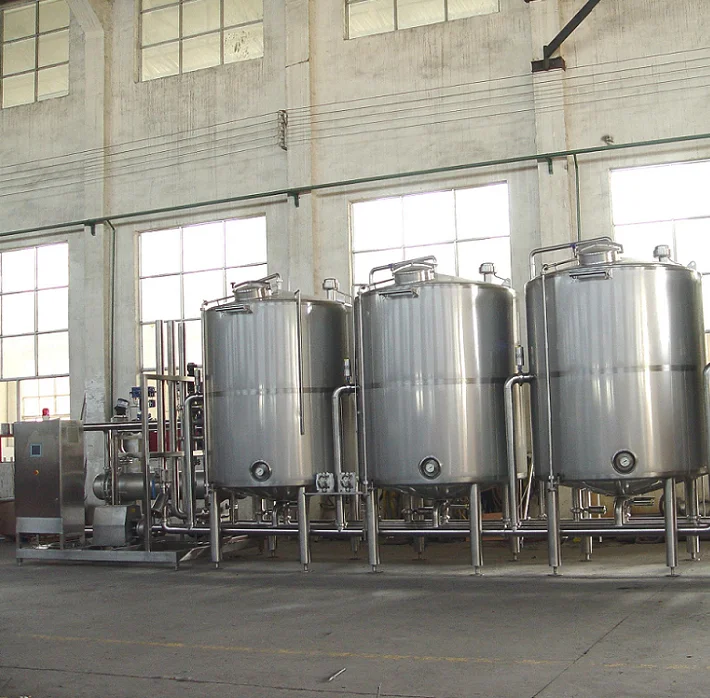

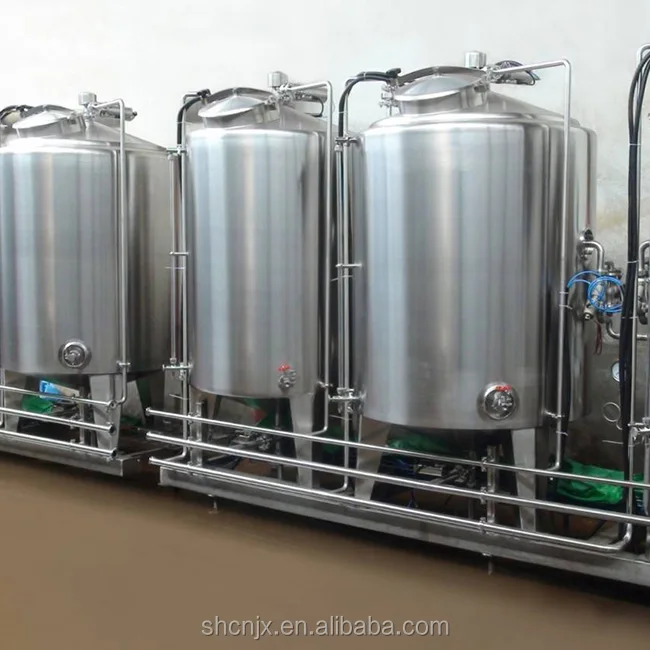

CIP cleaning unit composition
Name | Simple Instruction |
Alkali Tank | Material SUS304, conical top and bottom, insulation thickness 50mm. |
Acid Tank | Material SUS304, conical top and bottom, insulation thickness 50mm. |
Hot Water Tank | Material SUS304, conical top and bottom, insulation thickness 50mm. |
Clean Water Tank | Material SUS304, conical top and bottom, insulation thickness 50mm. |
Dense acid and alkali tank | Material SUS316, single layer, plate top and plate bottom pot or berried pot. |
Processing Pump | Material SUS304, flow 20 m3 /H, lift 36m. Electric motor 5.5KW. (Example) |
Plate heat exchanger | Material SUS304, 18m2 |
Filter | Material SUS304 |
Return Pump | Material SUS304, flow 20 m3 /H, lift 20m. Electric motor 4KW. (Example) |
Control Cabinet | Material SUS304 |
