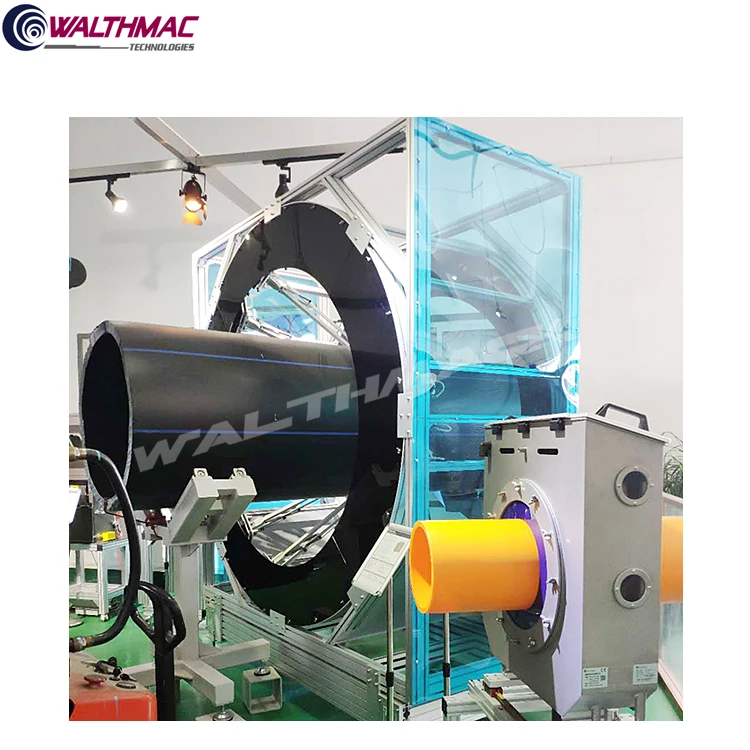

ultrasonic plastic hdpe pipe measure instrument OD diameter measuring wall thickness gauge meter online pipe quality checking

Product Overview

Description



ultrasonic plastic pipe measuring instrument inner diameter measuring pipe thickness gauge meter



-----Model: ULTRAMAC Series------



The scope of application:

gas pipe, water supply pipe, catheter and medical catheter.



Function:

This system is used for the uninterrupted measuring and monitoring the change of the wall thickness, outer diameter, eccentricity and out-of-roundness. Therefore the quality risks can be completely eliminated before deliveried to customer.







Benefits:

• completely eliminate the quality risks and improve product quality.


• Easy use, shorten the start-up time, reduce the rejection ratio.


• Full history record of production data.


• production data and quality issues being traceability.







Core components of the thickness-measuring system:

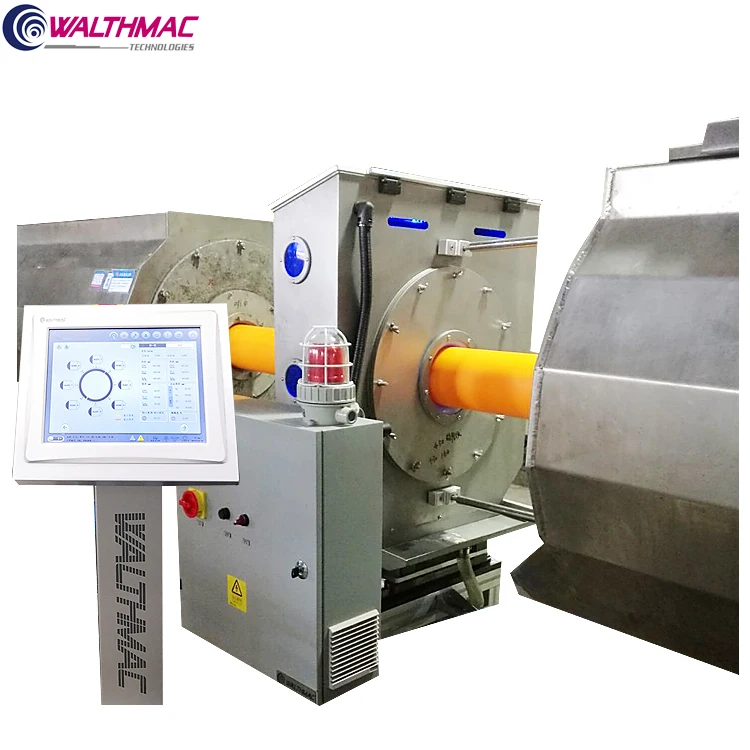

The measurement system is formed by hardware components such as a scanning box, a DSP signal processor and an industrial personal computer (IPC), like the following figure:

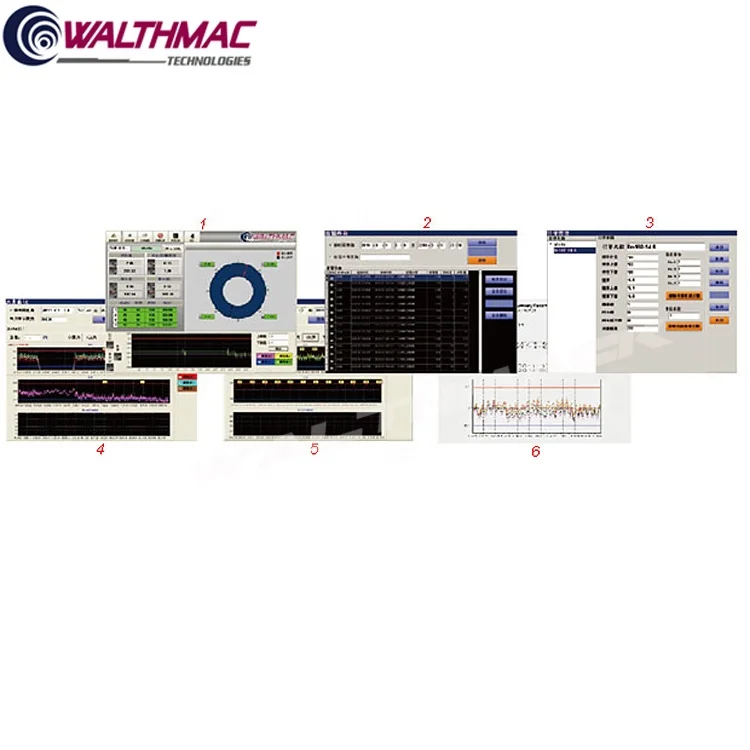

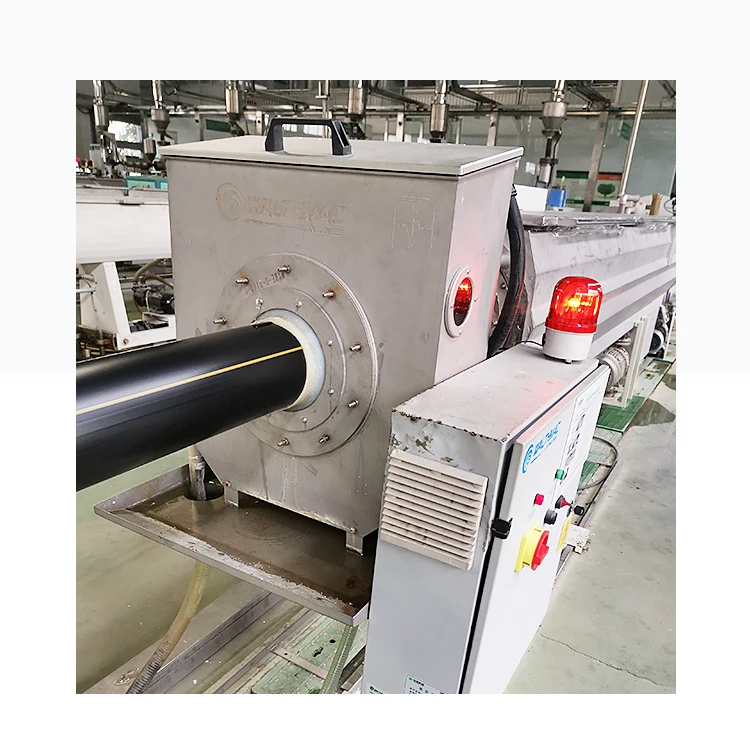

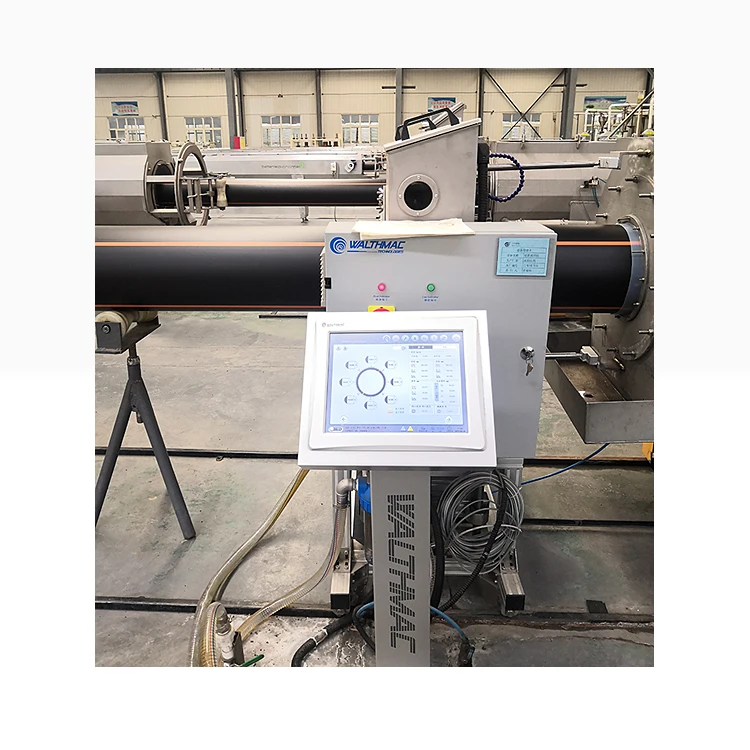

          Scanning box                                  DSP processors                                                     Man-machine interface
