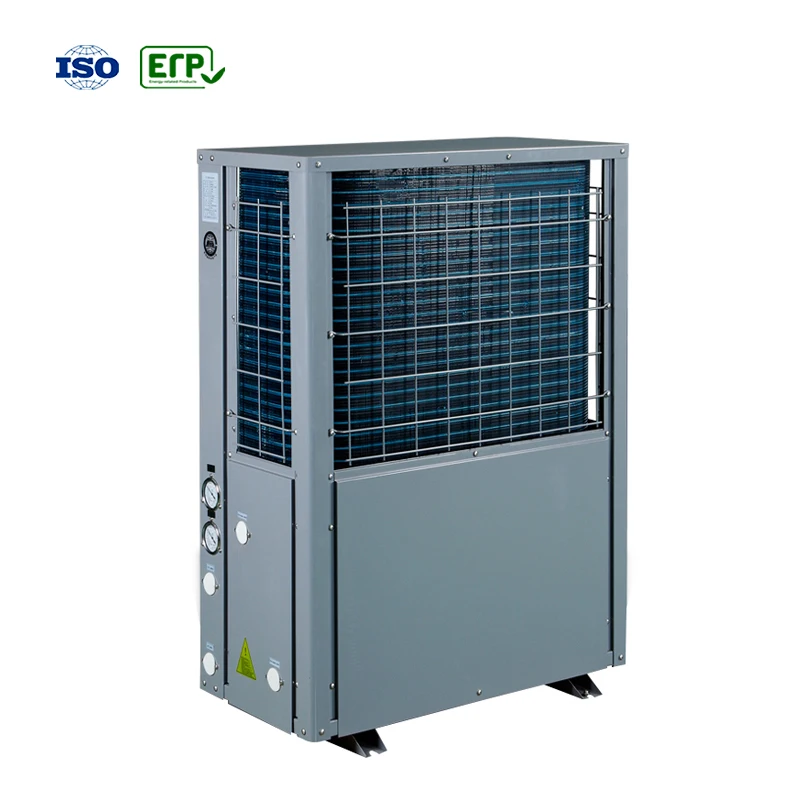

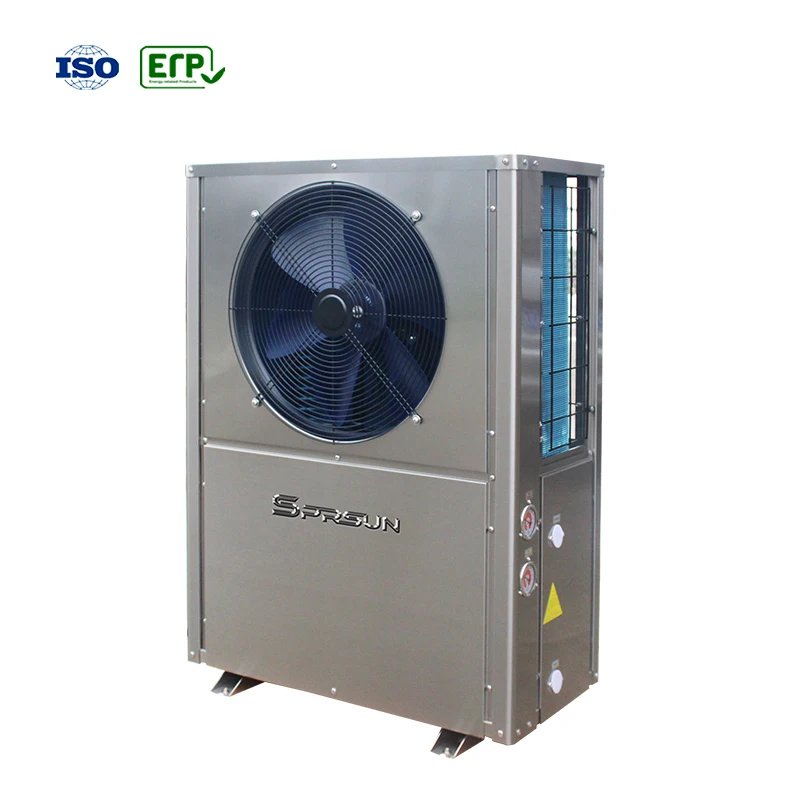

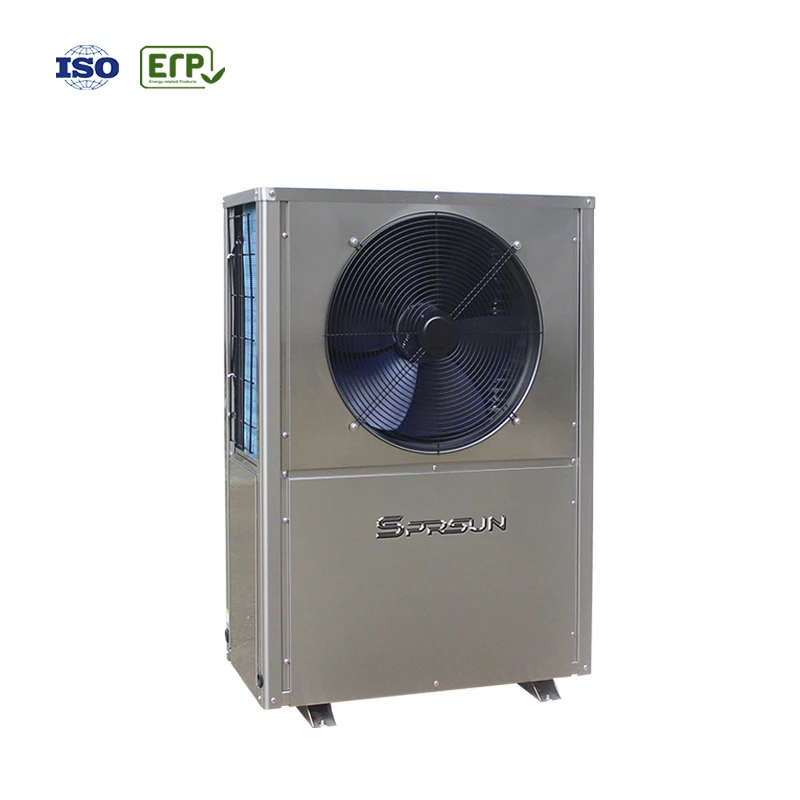

12KW CE Certificate Sprsun Air Source Heat Pump Manufacturing for heating and hot water
- Category: >>>
- Supplier: Guangzhou Sprsun New Energy Technology Development Co. Ltd.
Share on (62582182291):
Product Overview
Description
Product Description
13.8KW Monoblock Air Source Heat Pump for Domestic Hot Water and House Heating
1. High Cop: 4.15/4.12
2. Max Water Temp: 60℃
2. Max Water Temp: 60℃
3. Power Supply: 220V-415V
4. Running Temp: -10℃-45℃
5. Heating Capacity: 9.5/13.8KW
4. Running Temp: -10℃-45℃
5. Heating Capacity: 9.5/13.8KW
SPRSUN Air source heat pumps can supply domestic/commercial room heating and cooling.
Wide Range of Applications: these air to water heat pumps could meet the space heating and heating requirements of different places, such as villas, families, schools, factories, hotels, hospitals, spacenters, sauna centers, greenhouses, flower gardens, farms, etc.
Specifications
Model | CGK/C-12 | ||
Power supply | V | 220V~240V/50Hz/1ph | |
Refrigerant | R410A | ||
Heating capacity | KW | 13.8 | |
Input power | KW | 3.35 | |
COP | 4.12 | ||
Rated current | A | 16.9 | |
Max current | A | 22.8 | |
Max input power | KW | 4.5 | |
Fan motor power | W | 90 | |
Fan motor quantity | Piece | 1 | |
Condenser | Tube in shell heat exchanger | ||
Water flow | L/h | 2637 | |
Water pressure drop | Kpa | ≤35 | |
Net weight | kg | 100 | |
Gross weight | kg | 106 | |
Noise | db | 52 | |
Classification of waterproof | IPX4 | ||
Electric shock proof grade | I | ||
Pipe size (internal thread) | mm | 25 | |
Dimension | mm | 830*490*1160 | |
Packing dimension | mm | 910*500*1320 | |
Compressor model/quantity | ZW42KWP*1 | ||
Rated Working Condition: dry bulb temp: 20℃, wet-bulb temp: 15℃, cool water temp: 15℃; hot water temp: 55℃.
Installation Diagram

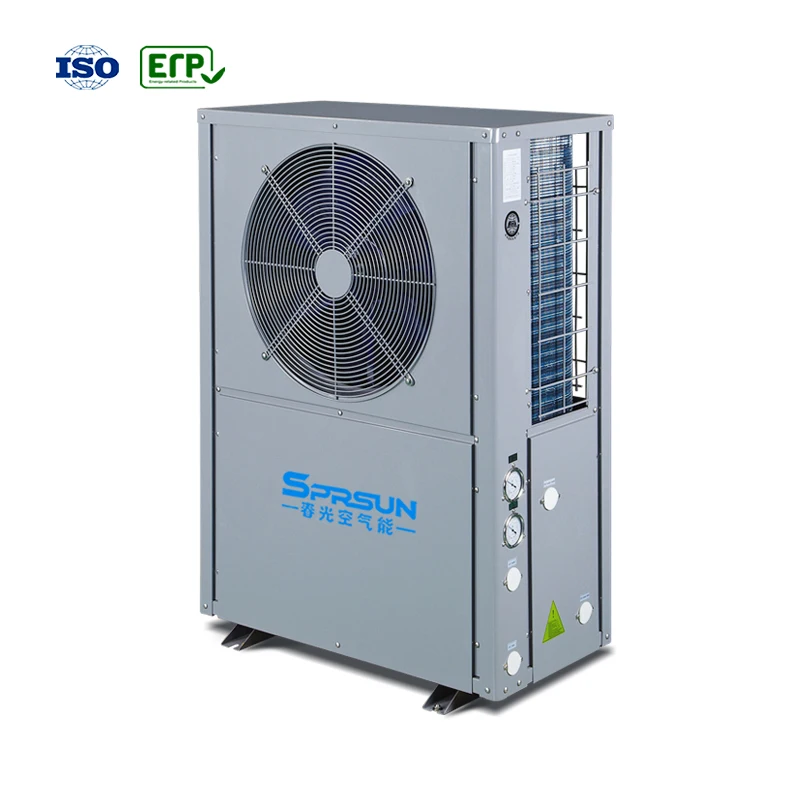

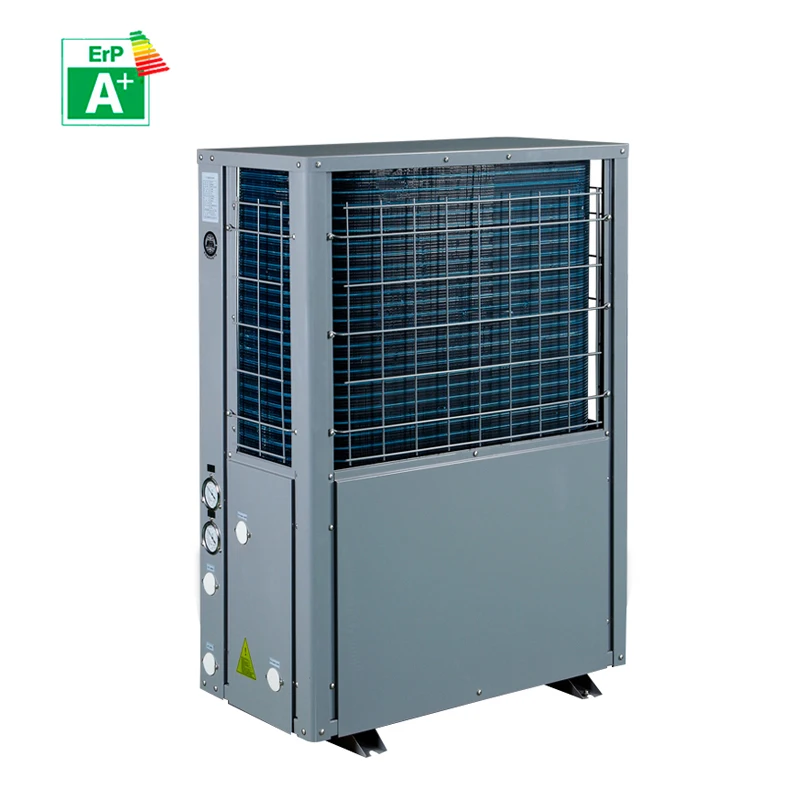

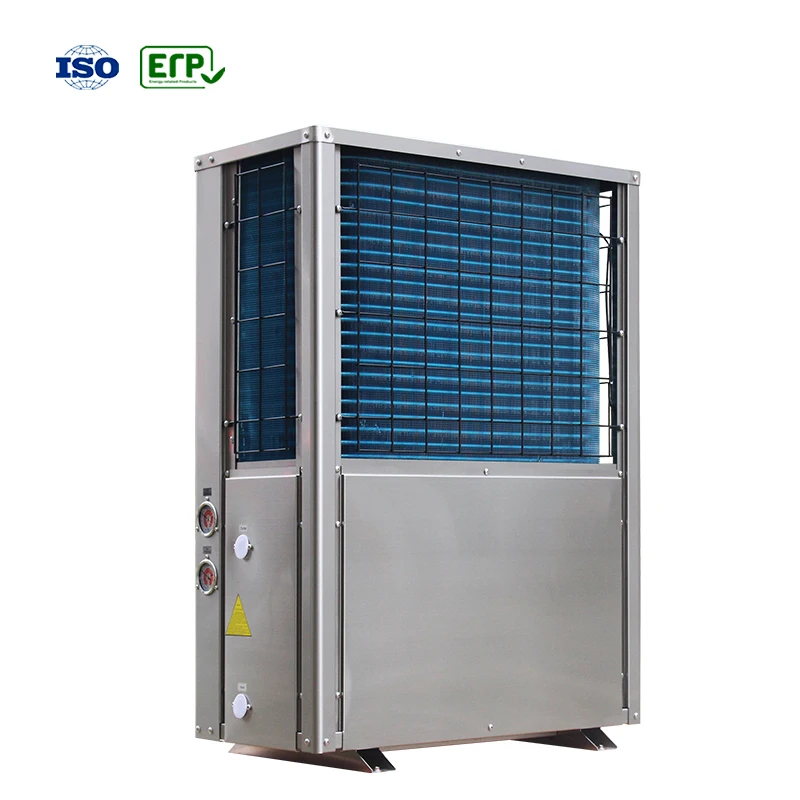

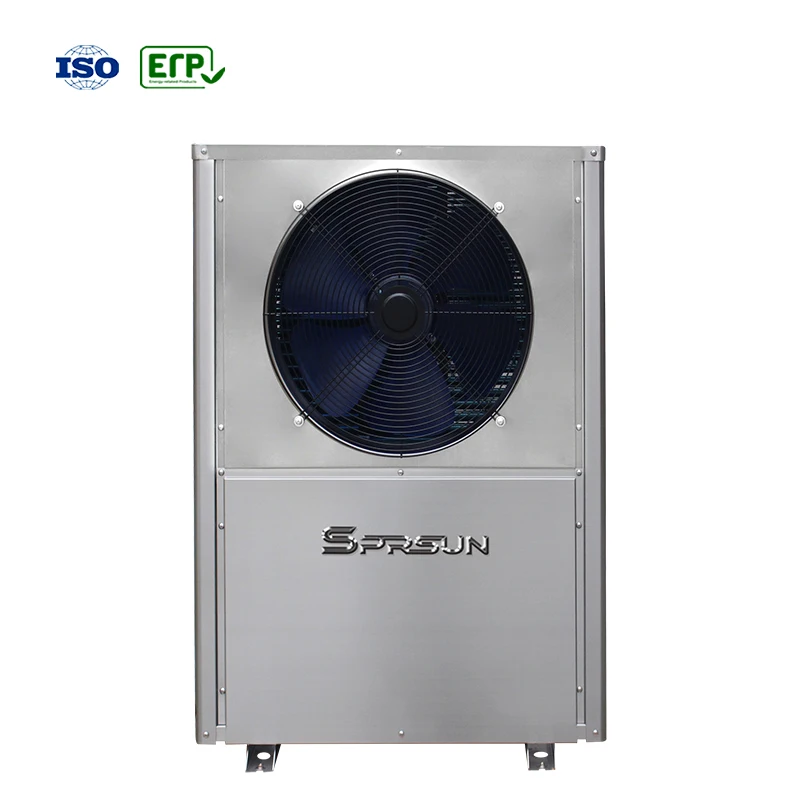

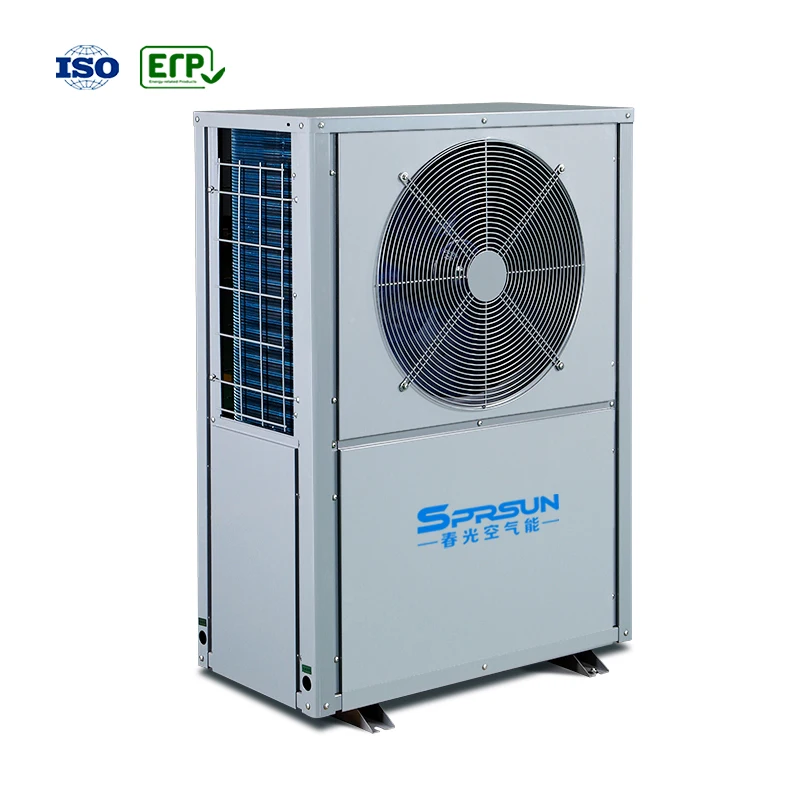

Detailed Images
Company Overview
SPRSUN - Professional Heat Pump Manufacturer since 1999
As one of the Top 10 brand in China's heat pump industry, SPRSUN has been in the heat pump industry for 20 years. With a strong R&D center and 6 production lines, we are specialized in producing air to water heat pumps and other high efficient heat pumps for the HVAC market. Our products are welcome all over the world, such as Germany, Sweden, Serbia, Turkey, Czech, Russia, Vietnam, Australia, South Africa and so on.
Workshop
6 Production Lines & 1 National Standard Heat Pump Testing Lab
SPRSUN Heat Pump Projects Worldwide
Certifications
Focusing on hot water, heating and cooling, SPRSUN is built up to meet customers'special energy saving needs with advanced technology support from Germany while ISO9001 and ISO14001 have been obtained. Our heat pump products are produced based on EN14511 standard with CE, CB, SAA, ETL and ERP certificates.
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a professional heat pump manufacturer since 1999, with experienced and improved R&D, production, sales and service supply.
Q2: What are your main products?
A: Our main products include air source heat pumps, water/ground source heat pumps, swimming pool heat pumps, high temperature heat pumps, EVI heat pumps for cold area and so on.
Q3: How to place an order?
A: Please send us an inquiry or contact us with online service; after receiving your inquiry, we will reply to you with our catalogue, quotation and other information you need.
Q4: Do you provide OEM/ODM customized manufacturing service?
A: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce Europe standard heat pumps under your brand and according to your special needs.
Q5: Can I apply to become your heat pump distributor/reseller?
A: Yes, we are currently looking for more heat pump distributors/resellers across the globe, who can distribute our heat pump products in their local countries.
Q6: How long is your warranty period?
Our warranty is 18 months, but actually we provide lifelong maintenance service. Within 18 months since the delivery date, if the product has any failure under normal usage, SPRSUN will provide free assembly parts. After the warranty period, we will continue to provide lifelong maintenance service, with just a small amount of charges.
