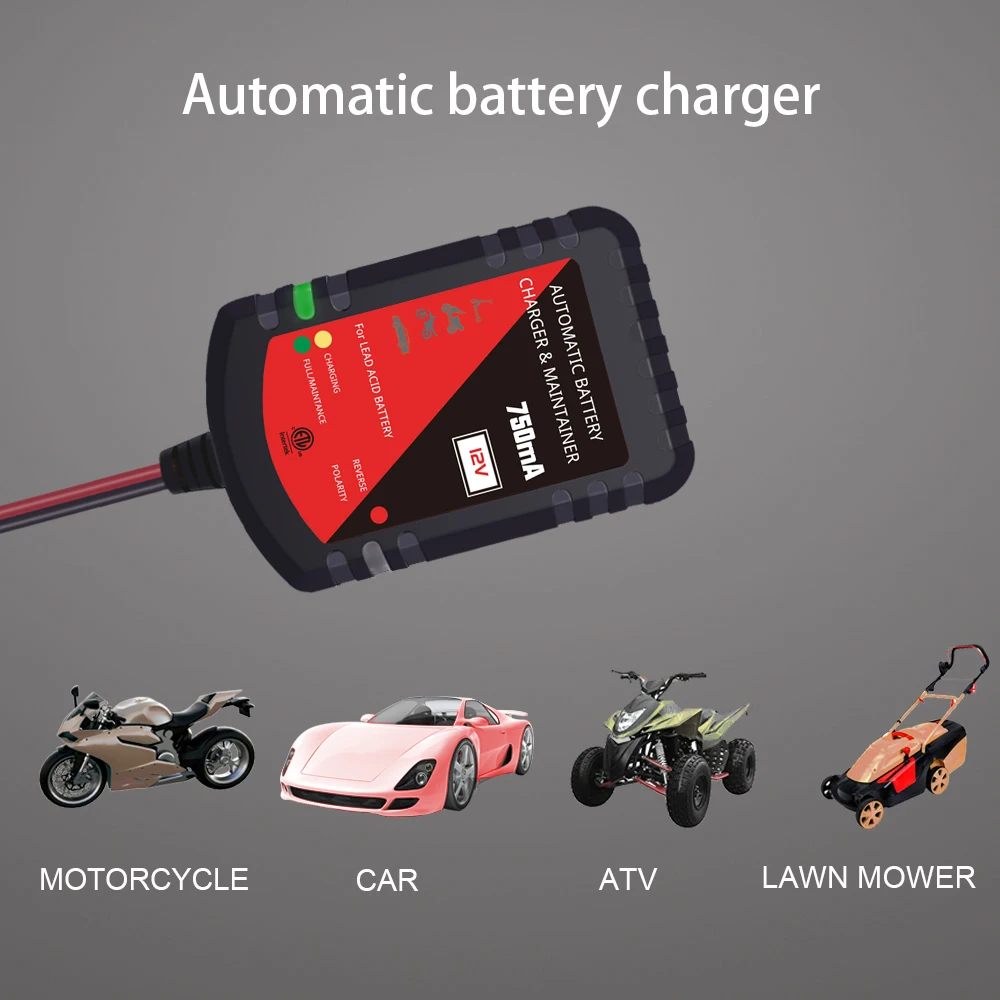

12 В 750 мА свинцово Кислотное зарядное устройство и вспомогательное зарядное устройство для аккумулятора мотоцикла
- Category: Battery Charger >>>
- Supplier: Shenzhen Everpower Electronics Co. Ltd.
Share on (62582234807):
Product Overview
Description
Product Description
MAIN FEATURES:

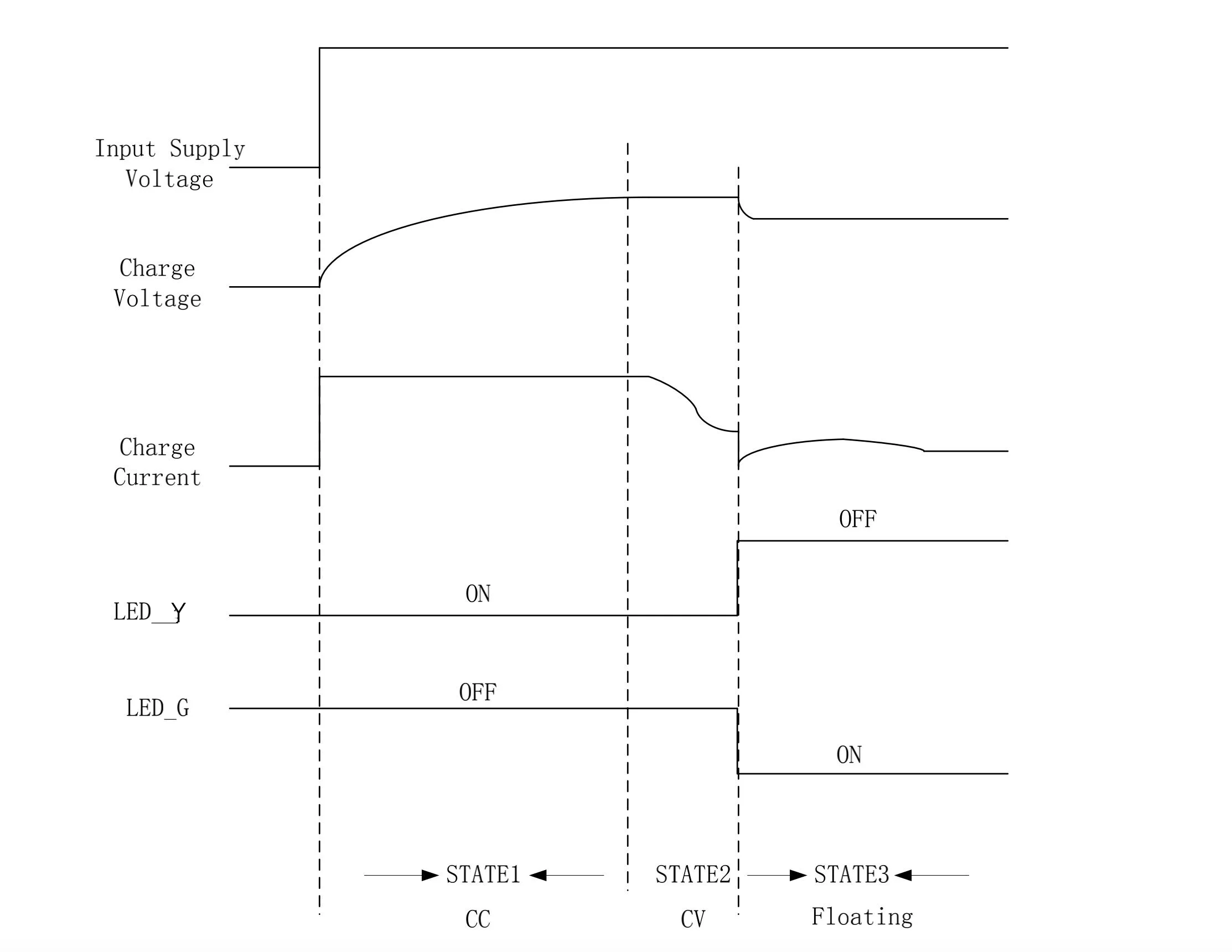

◆Fully auto 3 stages CC-CV(H)-CV(F)charging process
◆It is designed for all kinds 12V lead-acid battery, ,such as GEL,AGM,Lead acid batteries etc.
◆With Tri-color LED indicator, Yellow :charging Green: finished Red: polarity reversed
◆Switch-power supply topology,safety and highly efficient

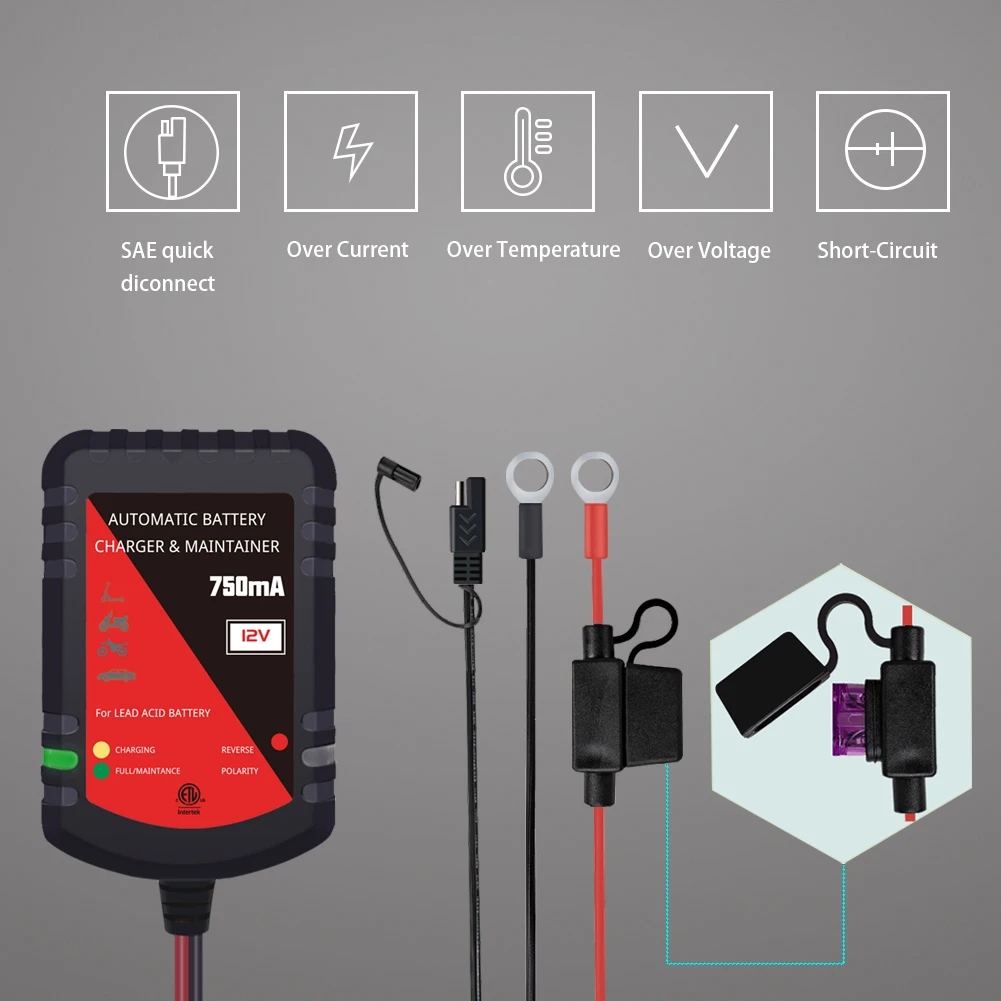

◆Protection mode for battery polarity reversed,OCP ,OVP,and output connectors shorted
◆Does not over charge your battery even if it is kept connected in maintenance float mode
◆It is designed for all kinds 12V lead-acid battery, ,such as GEL,AGM,Lead acid batteries etc.
◆With Tri-color LED indicator, Yellow :charging Green: finished Red: polarity reversed
◆Switch-power supply topology,safety and highly efficient
◆Protection mode for battery polarity reversed,OCP ,OVP,and output connectors shorted
◆Does not over charge your battery even if it is kept connected in maintenance float mode

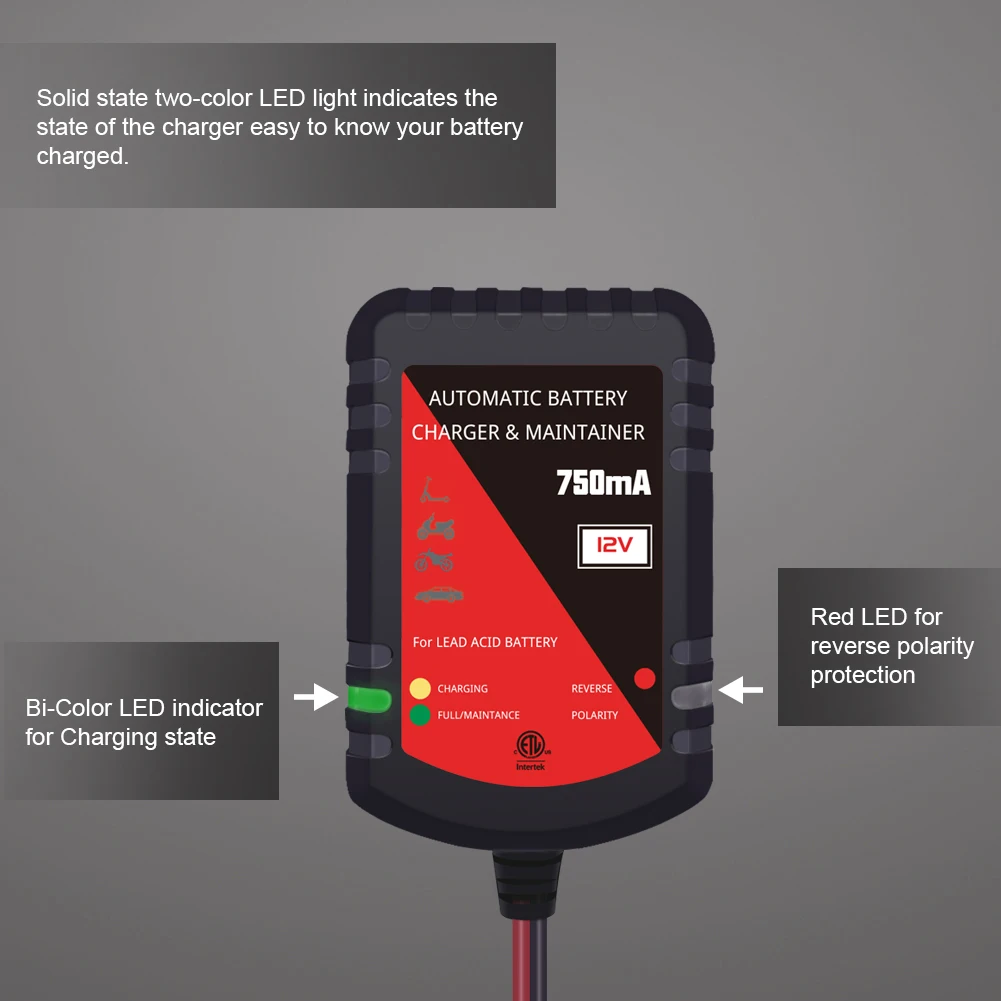

LED Indicator :
Yellow : Charging
Green: Standby/Finished/Float&Maintenance
Red : Reverse Polarity
Off : Output Shorted Protection
Green: Standby/Finished/Float&Maintenance
Red : Reverse Polarity
Off : Output Shorted Protection
How to use:
1.Connect the AC plug to the socket, The Green LED will be on . it indicate the charger POWER ON.

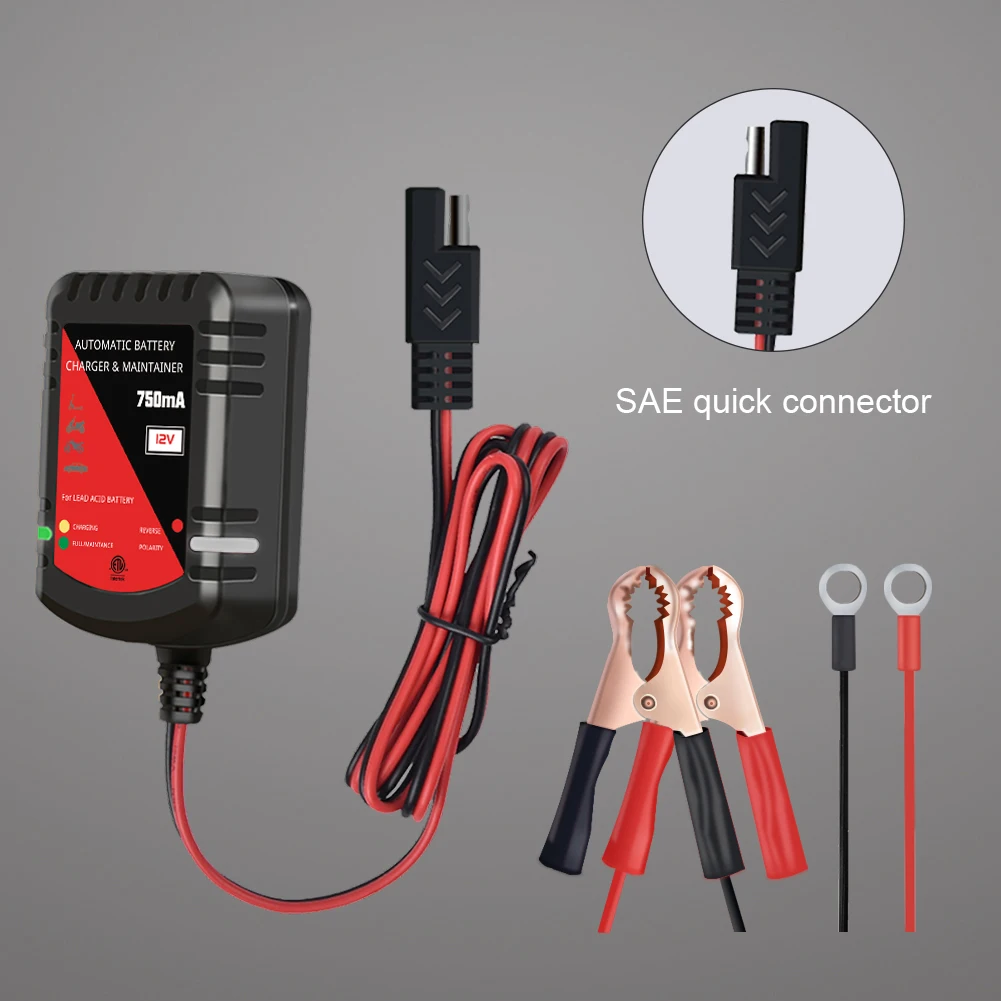

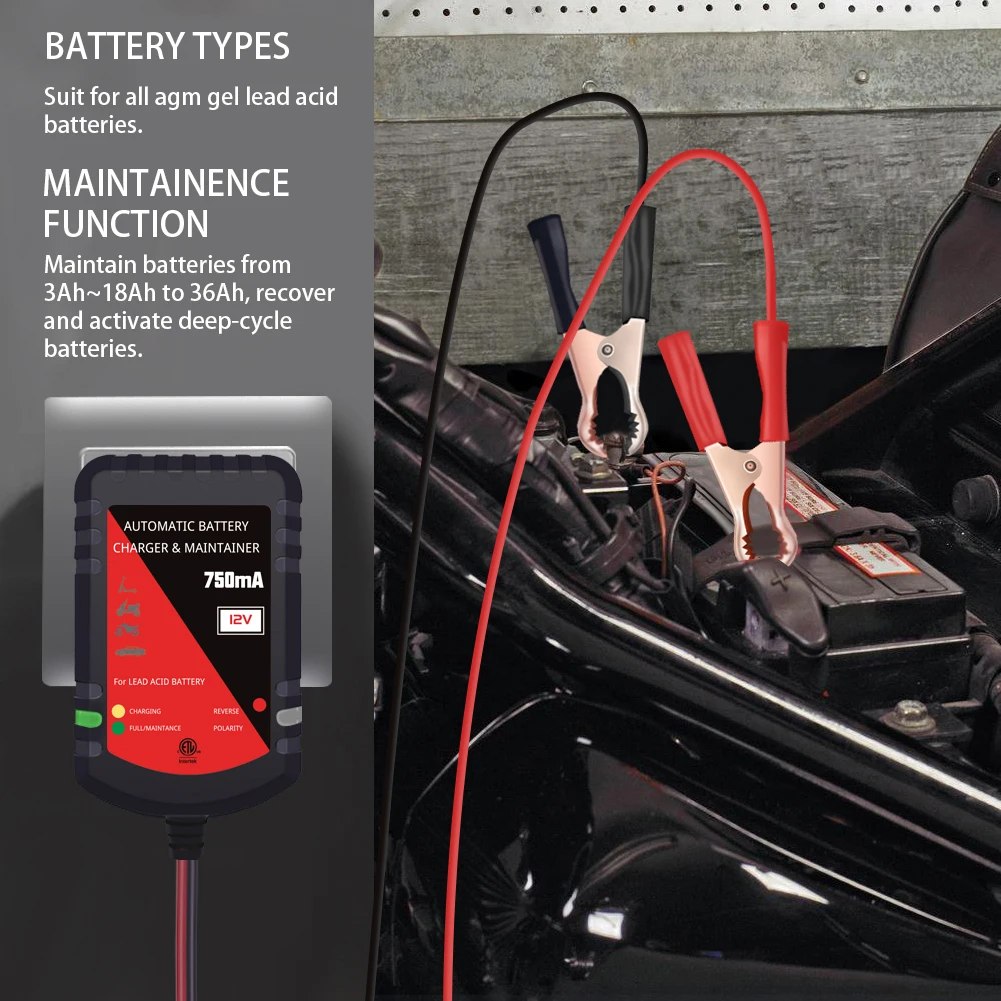

2. Connect red clip to battery positive terminal, the black clip to battery negative terminal.
Reverse Polarity Warning：A slight spark will occur when polarity is reversed and the device will enter reverse polarity protection mode. Please remove the connection and reconnect correctly.
2. Connect red clip to battery positive terminal, the black clip to battery negative terminal.
(You can use other dc plugs to connect battery), the Yellow LED will be on . The charger is charging.
3. When the battery is fully charged,the Green LED will be on .then you can power off the charger and
3. When the battery is fully charged,the Green LED will be on .then you can power off the charger and
disconnect the battery or you can charge a new battery if you needed
4. If the battery polarity reversed , the Red LED will be on; if output shorted, the all LED will be off,
please check the setup
Reverse Polarity Warning：A slight spark will occur when polarity is reversed and the device will enter reverse polarity protection mode. Please remove the connection and reconnect correctly.
Product Specification
Product Name | EPA1020-075 |
Input Voltage | 100-240VAC，50-60Hz |
Input Current | 0.1A |
Back current drain | 1.3mA |
Charge voltage | Rating 12V， Bulk limited voltage : 14.7V |
Ripple current | Current-ripple:<= 0.1A rms |
Bulk charge current | 0.75A± 0.2A |
Operate Temp. | -20℃~50℃ |
Cooling | Natural convection. Do not cover the charger |
Charge principle | auto 3 stages CC-CV(H)-CV(F) |
Battery type | All types of 12V AGM GEL lead-acid batteries |
Battery capacity | 3~18Ah |
Box Size | 140X80X80mm |
Enclosure | IP64 (Dust protected, Water splashing resistance) |
Weight | 250g |
