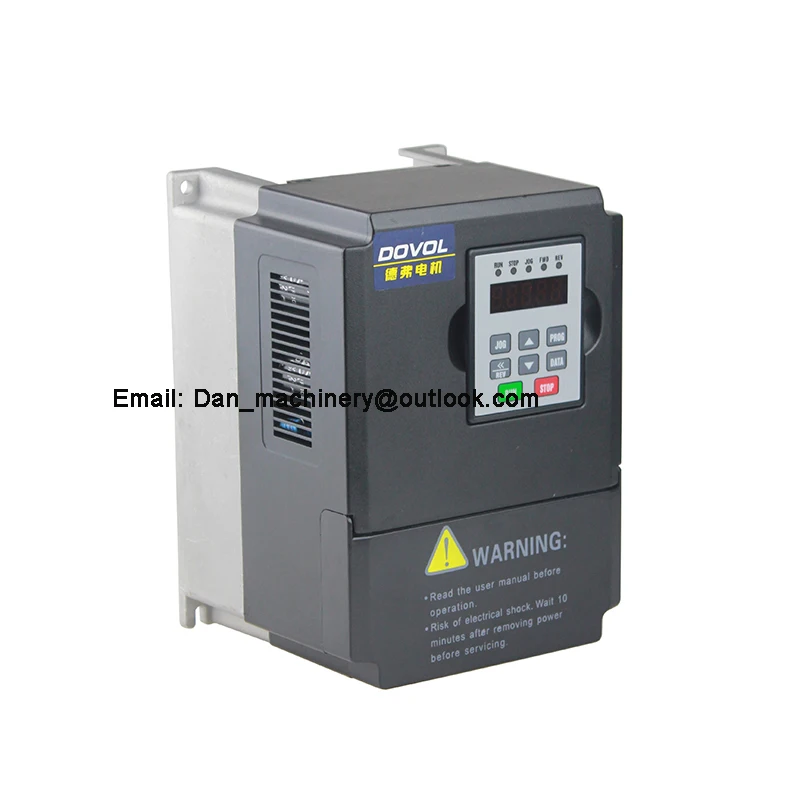

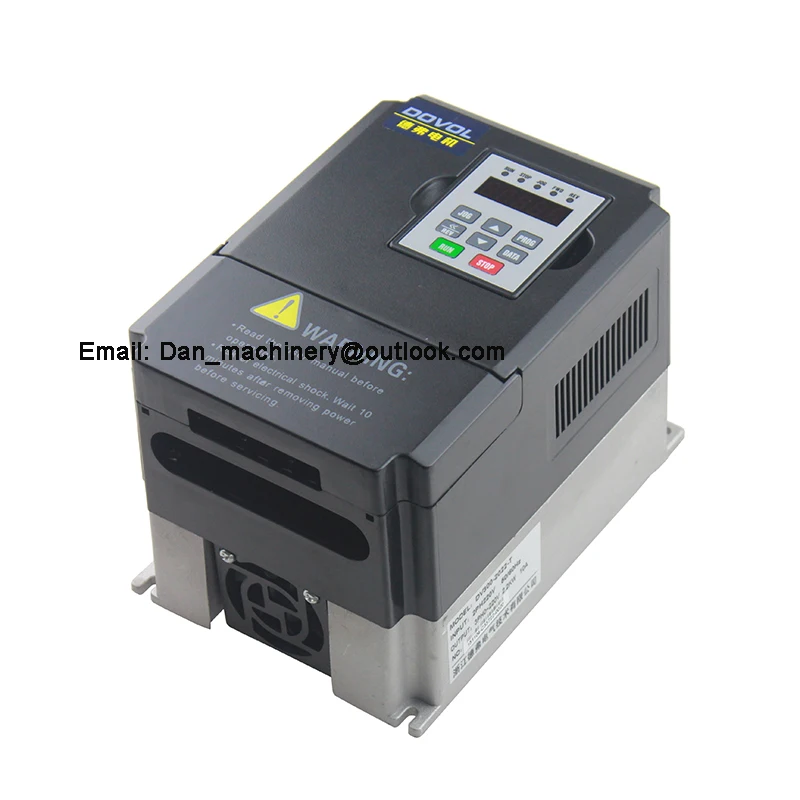

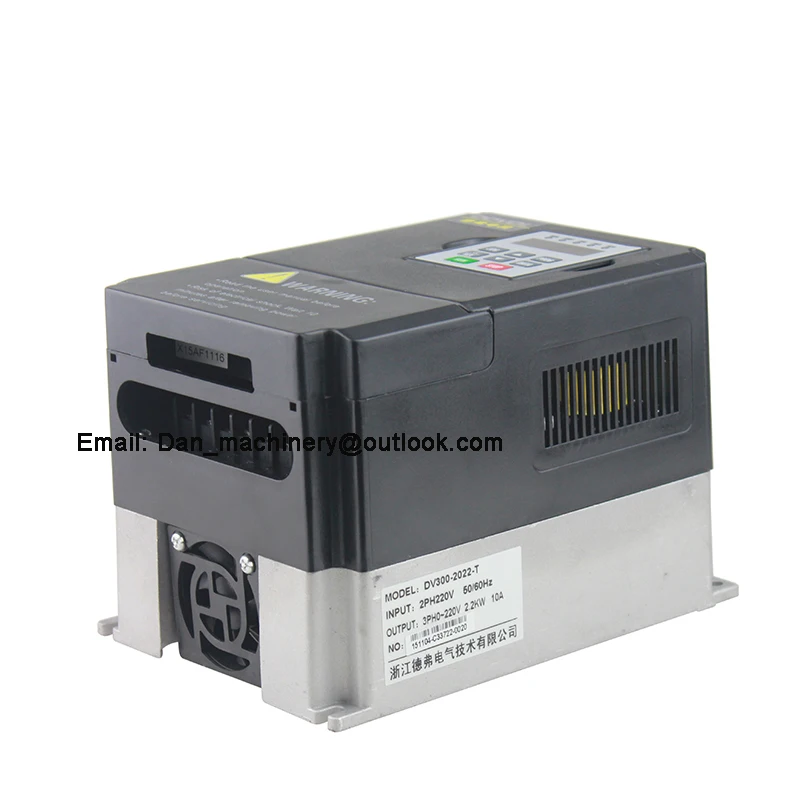

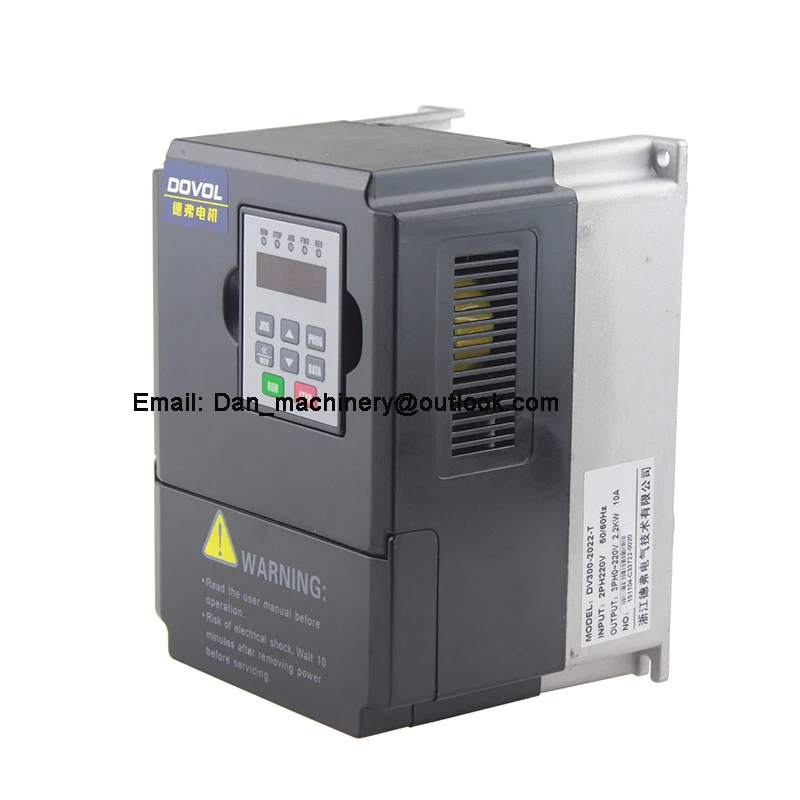

DV300-2022-T HL3000-2022-T 220v 2.2KW Universal AC inverter ac motor frequency converter spare parts for film blowing machine



Applicable to many need fast parking, accurate positioning of the occasion. The company specializes in the development of this a frequency converter, using Japan's latest Mitsubishi IPM module. To ensure the reliability of the product, the use of high-speed drive circuit, and built-in brake circuit to ensure that in the shortest possible time to achieve accurate positioning of the machine.



1, perfect protection, overload, overcurrent, overvoltage, undervoltage, phase, short circuit,

And leakage protection.

2, a variety of control functions, multi-step speed, PID control, up to 8 programmable input ports, fully meet the various applications.

3, starting torque large 0.5HZ / 150%.

Particularly suitable for:

High-speed motor, PID control, fan pumps and so on.

Application industry:

Engraving machine, constant pressure water supply, lathe, forging bed, CNC center.



Technical specifications:

 input and output

 Input voltage: 380 / 220V ± 15%

Input frequency: 50 / 60Hz

 Output voltage: three-phase 0 ~ input voltage

Output frequency: 0.1 ~ 2000.0Hz

Control function

Modulation: SVPWM control

 Carrier frequency: 1.0K ~ 15.0KHz

 Output frequency accuracy: ± 0.1% of the maximum output frequency

frequency resolution: 0.1Hz, 0.01Hz

 Torque boost: 0 ~ 3%

 slip compensation: 0.0 ~ 5.0Hz

Acceleration and deceleration time: 0.05 ~ 650.00S

 V / F curve: can be arbitrarily set V / F curve

multi-speed operation: up to 8 kinds of speed can be preset

 Run function

Operation control mode: panel control, external terminal control

frequency setting mode: panel keys, analog voltage or potentiometer, analog current, external control terminal rise / fall

 input signal: positive / reverse command, jog command, multi-speed command, run command, fault signal input, reset command, count signal input

 alarm signal output: relay output (AC250V / 2A), open collector output (DC24V / 50mA)



 Other functions

 program running, PID function, instantaneous power failure restart, fault restart, frequency upper and lower limits, parameter locking, automatic voltage regulation (AVR), deceleration

Stop or free stop, DC brakes, analog output



 protection function

 Provides up to 25 fault protection functions: overcurrent, overvoltage, undervoltage, overtemperature, phase loss, overload, etc.

 working environment

 working environment temperature: -10 ℃to +40 ℃

 Working environment humidity: 90% RH or less (no condensation)

installation site: indoor altitude of 1000 meters below, no direct sunlight

 ambient air: no corrosive, flammable gas
